EV06221007
Solenoid valve DN40 G 1 1/2" Inch stainless steel EV06 FKM 24V DC NO
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

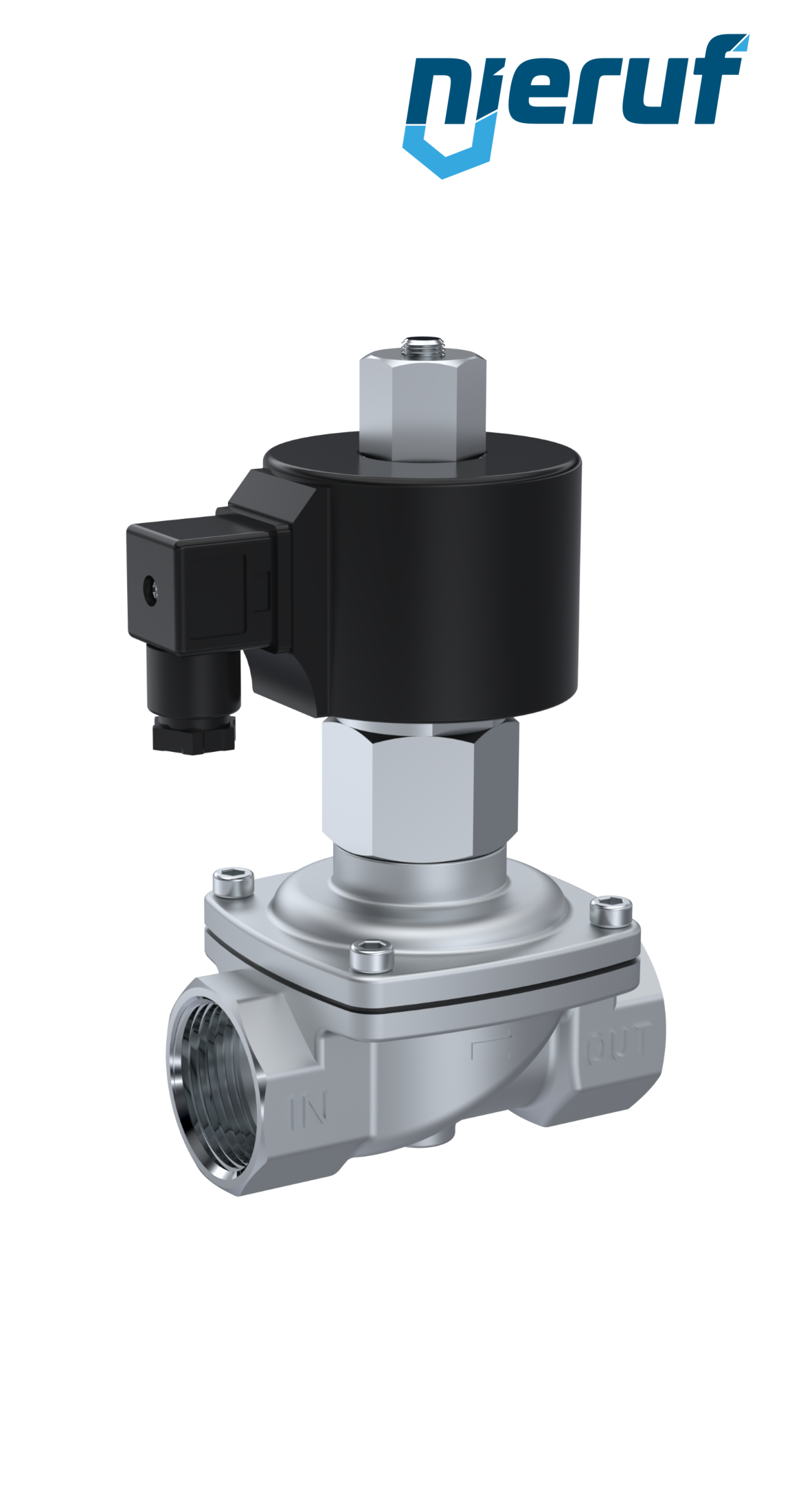

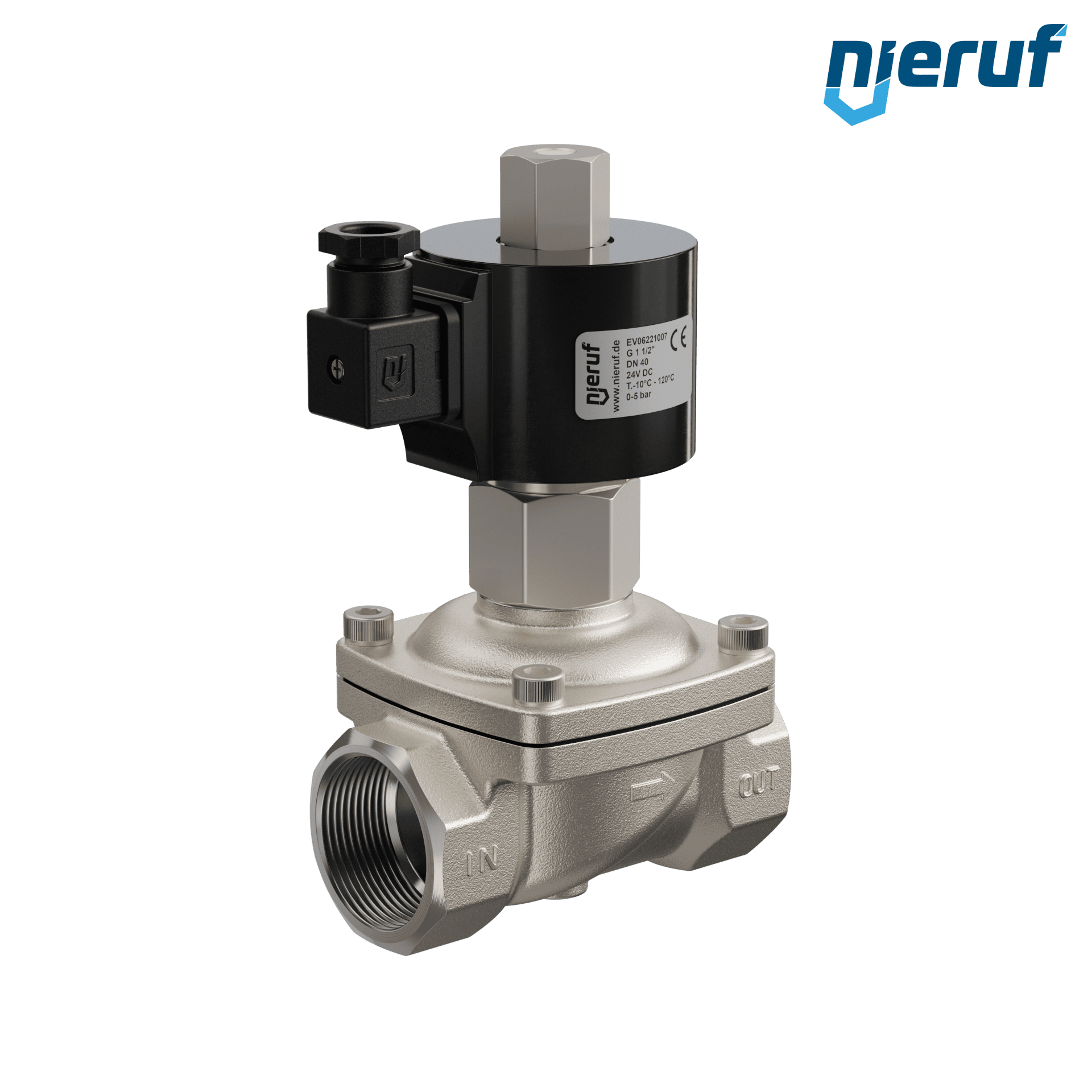

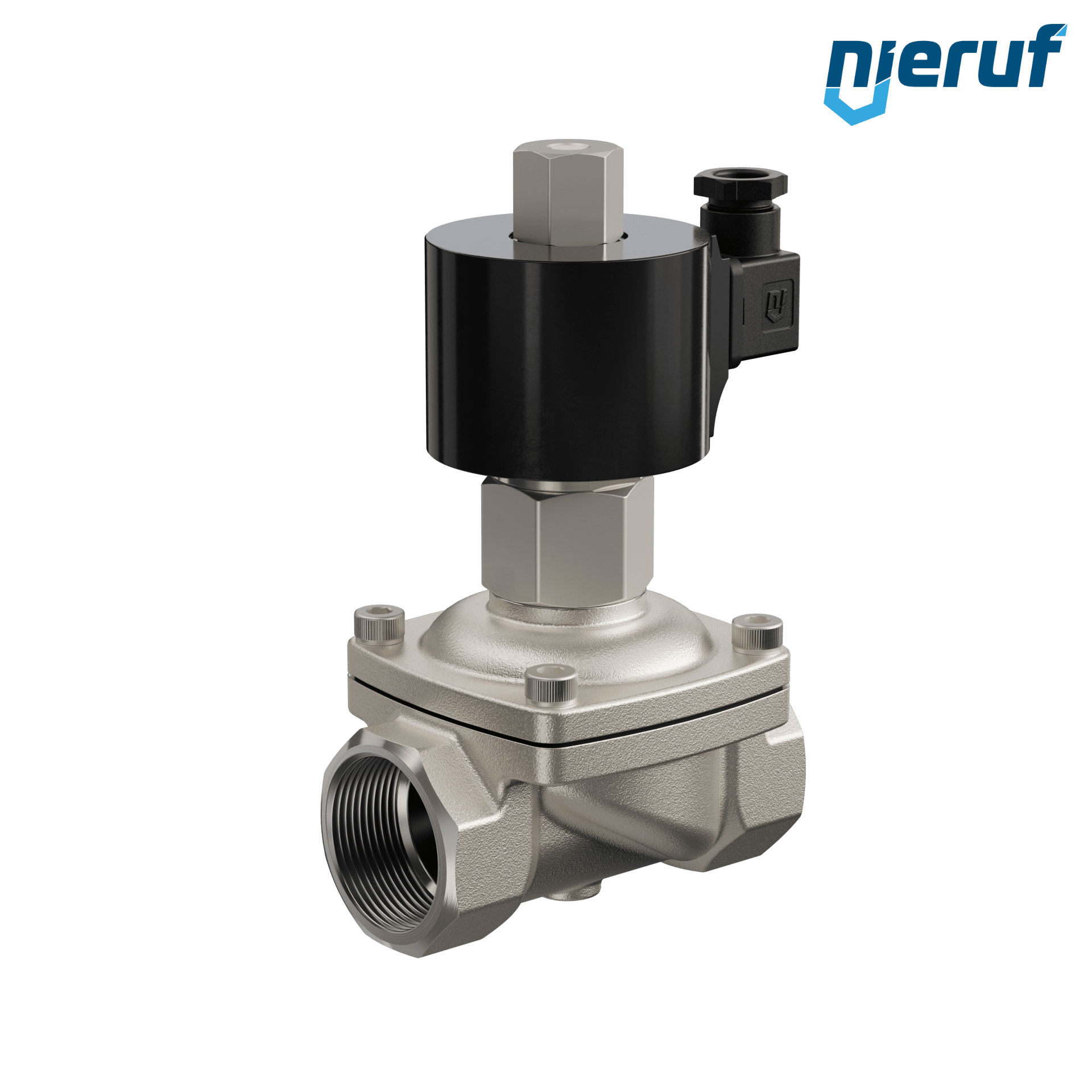

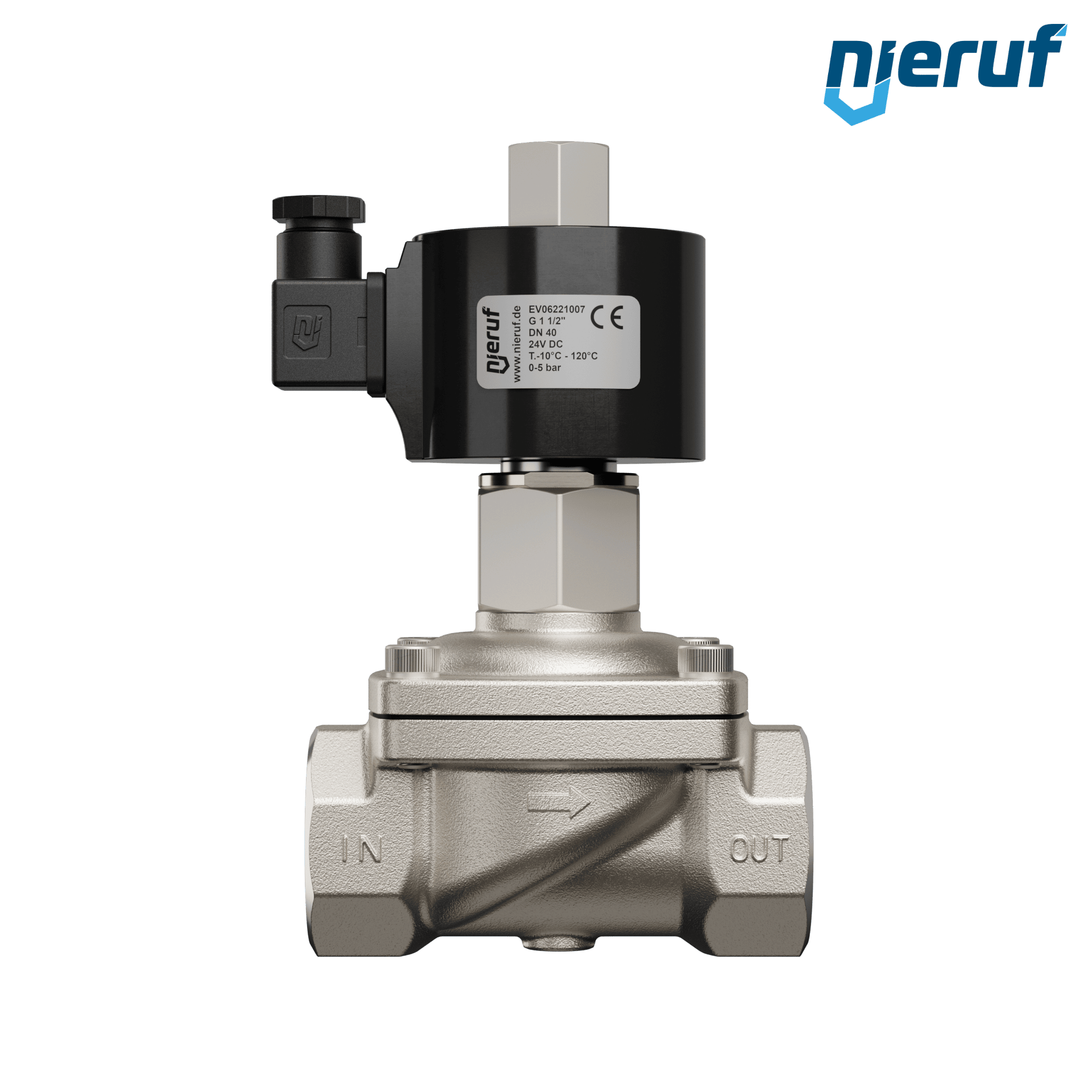

Solenoid valve NO - normally open EV06 G 1 1/2" Inch force pilot operated stainless steel 1.4308 FKM 24V DC liquid and gaseous media
| product: | Solenoid valve |
|---|---|
| type: | EV06 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN40 |
| connection: | G 1 1/2" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 24.9 m³/h |
| function: | NO - normally open |
| control: | force pilot operated |
| material: | stainless steel 1.4308 |
| seal: | FKM |
| voltage: | 24V DC |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 45 Watt |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +120°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0,0 - 5 bar |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN40 G 1 1/2" Inch stainless steel EV06 FKM 24V DC NO
Article no.
: EV06221007
product:
Solenoid valve
type:
EV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN40
connection:
G 1 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
24.9 m³/h
function:
NO - normally open
control:
force pilot operated
material:
stainless steel 1.4308
seal:
FKM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
45 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 5 bar
installation position:
any position, solenoid preferably standing
