ES01010204.500

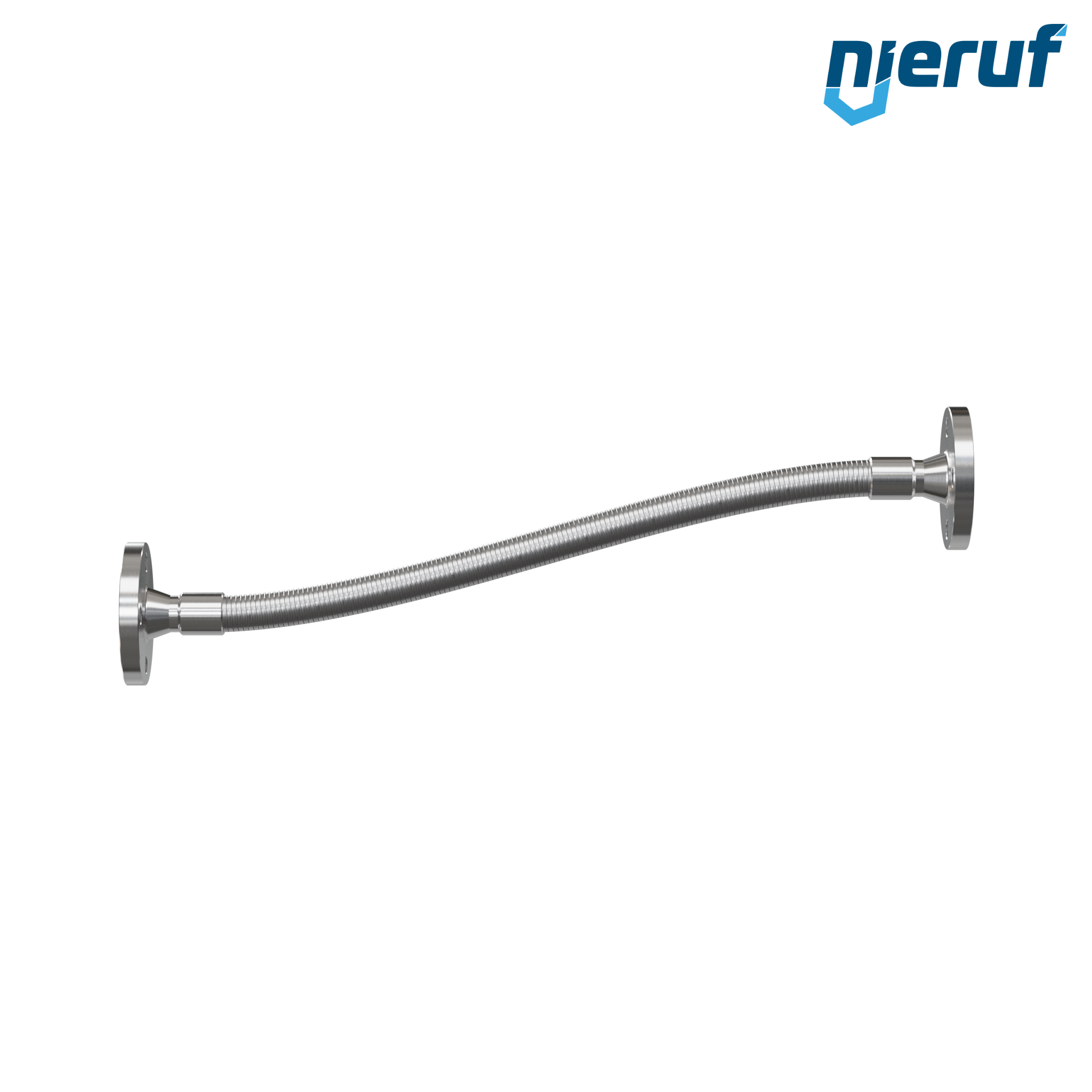

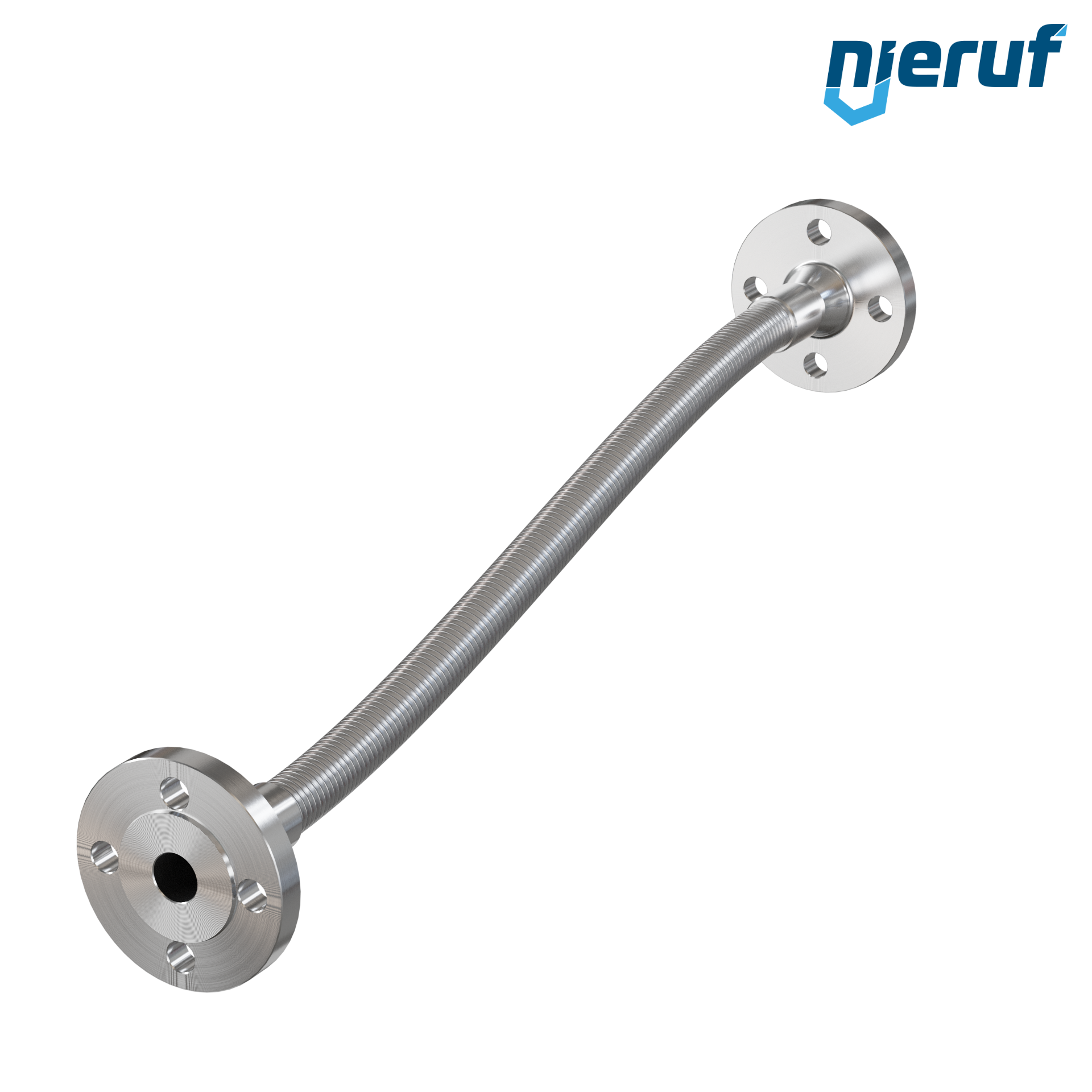

Stainless steel hoses ES01 DN20 - 3/4" inch with double braid and fixed flange length 500 mm
Delivery time: 1 - 2 weeks
Equipment
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€26.78 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Stainless steel hoses with fixed flange on both sides EN 1092-01 Typ 11 PN 40 and double braid in diameter DN20 - 3/4" inch with 500 mm length and 40 bar max. pressure
| product: | Stainless steel hoses |
|---|---|
| type: | ES01 |
| manufacturer: | NieRuf |
| diameter: | DN20 - 3/4" inch |
| length: | 500 mm |
| connection: | fixed flange on both sides EN 1092-01 Typ 11 PN 40 |
| material hose: | stainless steel 1.4404 |
| material mesh: | stainless steel 1.4301 |
| version: | double braid |
| max. pressure: | 40 bar |
| temperature: | 20°C |
| Minimal bending radius: | dynamic load: 150 mm & static load: 70 mm |
| media: | liquid and gaseous media |
| product feature: | The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Stainless steel hoses ES01 DN20 - 3/4" inch with double braid and fixed flange length 500 mm
Article no.
: ES01010204.500
product:
Stainless steel hoses
type:
ES01
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
length:
500 mm
connection:
fixed flange on both sides EN 1092-01 Typ 11 PN 40
material hose:
stainless steel 1.4404
material mesh:
stainless steel 1.4301
version:
double braid
max. pressure:
40 bar
temperature:
20°C
Minimal bending radius:
dynamic load: 150 mm & static load: 70 mm
media:
liquid and gaseous media
product feature:
The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose
€2.02 VAT included.
€26.78 VAT included.
