ES01010206.1000

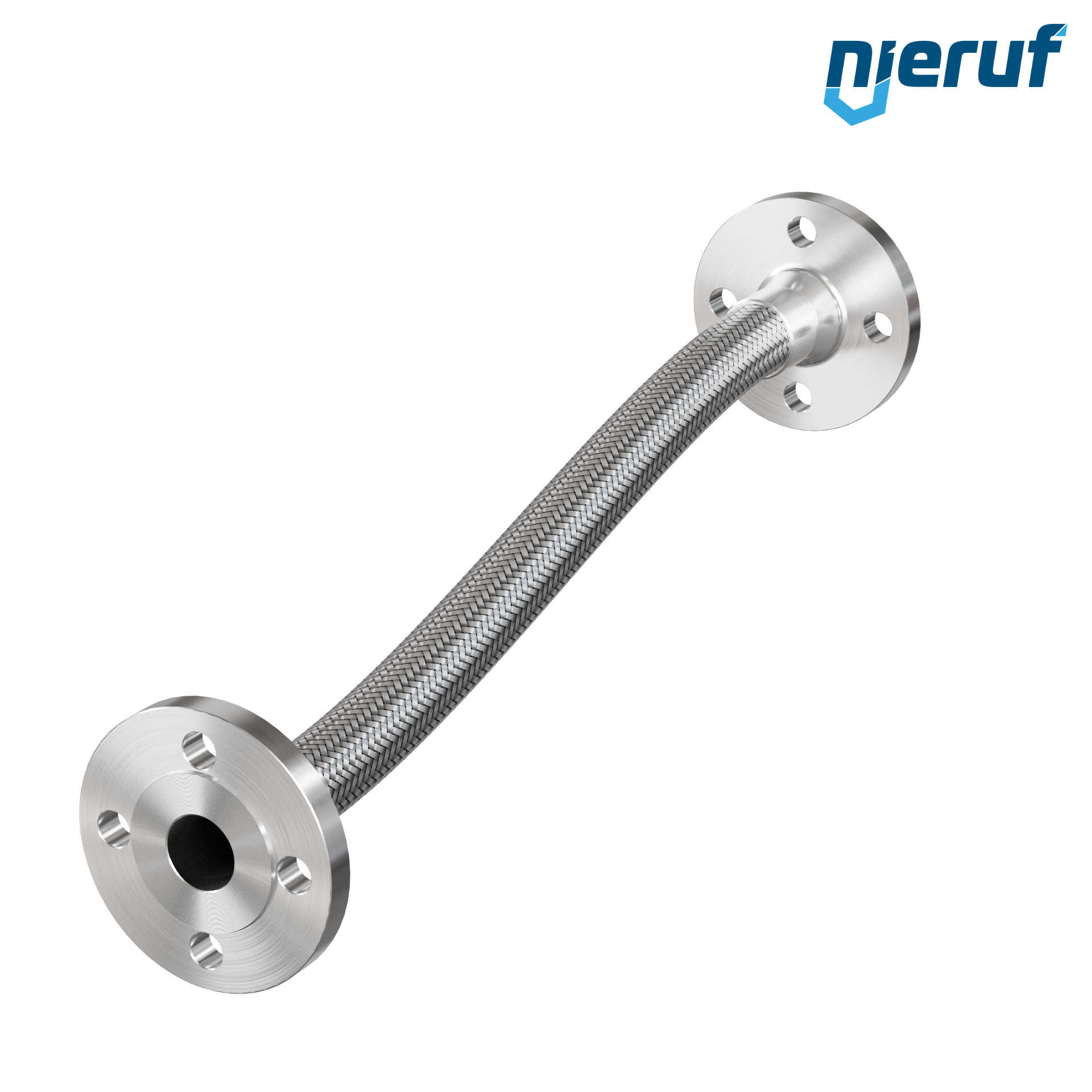

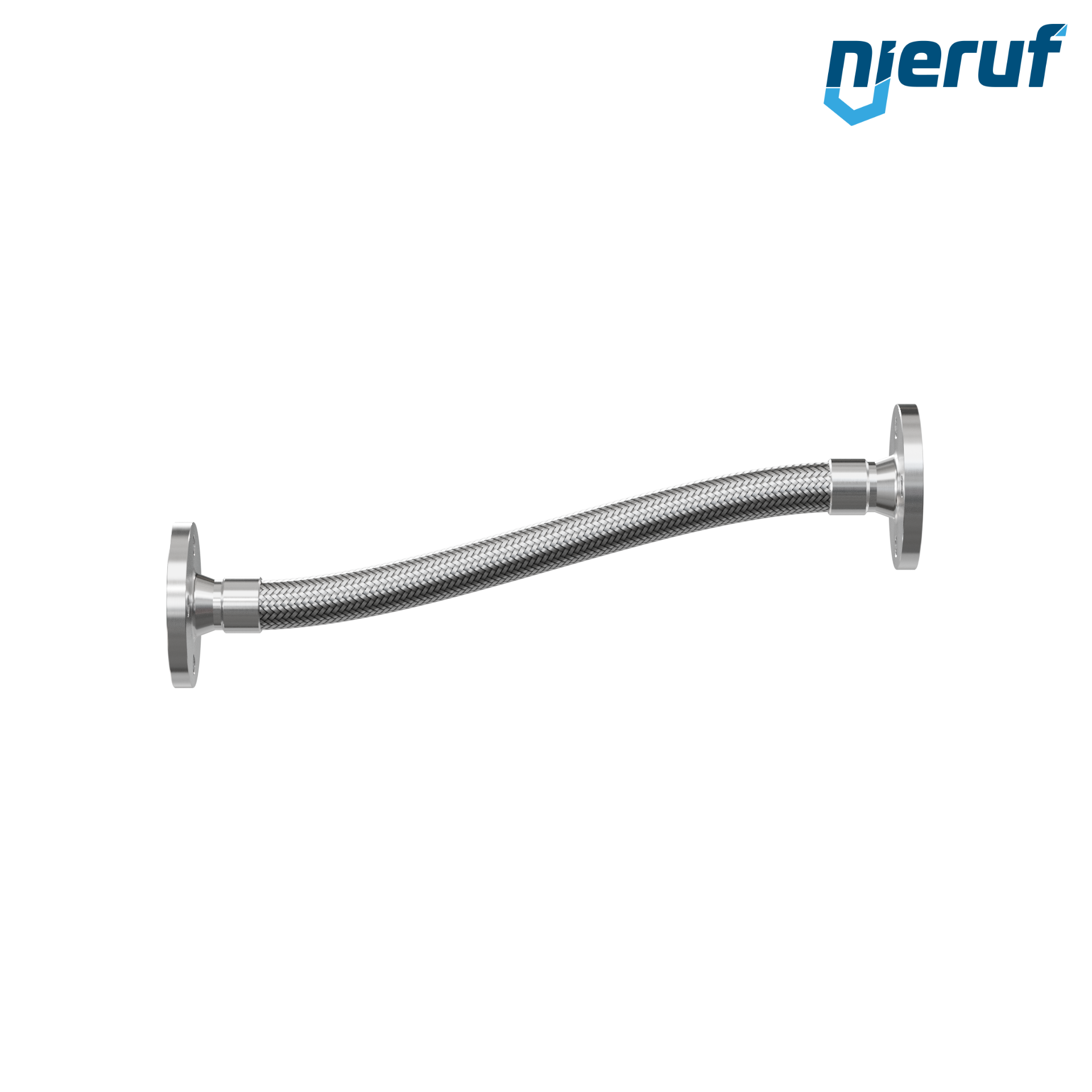

Stainless steel hoses ES01 DN32 - 1 1/4" inch with double braid and fixed flange length 1000 mm

€348.90*

€415.19 VAT included.

Delivery time
1 - 2 weeks

Equipment

FL01000106

Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541

€29.50*

€35.11 VAT included.

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE


Product number: ES01010206.1000

Downloads

Stainless steel hoses ES01 DN32 - 1 1/4" inch with double braid and fixed flange length 1000 mm

Stainless steel hoses with fixed flange on both sides EN 1092-01 Typ 11 PN 40 and double braid in diameter DN32 - 1 1/4" inch with 1000 mm length and 35 bar max. pressure

product Stainless steel hoses
type ES01
manufacturer NieRuf
diameter DN32 - 1 1/4" inch
length 1000 mm
connection fixed flange on both sides EN 1092-01 Typ 11 PN 40
material hose stainless steel 1.4404
material mesh stainless steel 1.4301
version double braid
max. pressure 35 bar
temperature 0-600°C (please take note of the pressure-temperature-diagram)
Minimal bending radius dynamic load: 200 mm & static load: 112 mm
media liquid and gaseous media
product feature The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Stainless steel hoses ES01 DN32 - 1 1/4" inch with double braid and fixed flange length 1000 mm

Article no. : ES01010206.1000
product: Stainless steel hoses
type: ES01
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
length: 1000 mm
connection: fixed flange on both sides EN 1092-01 Typ 11 PN 40
material hose: stainless steel 1.4404
material mesh: stainless steel 1.4301
version: double braid
max. pressure: 35 bar
temperature: 0-600°C (please take note of the pressure-temperature-diagram)
Minimal bending radius: dynamic load: 200 mm & static load: 112 mm
media: liquid and gaseous media
product feature: The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose
