ES01010006.500

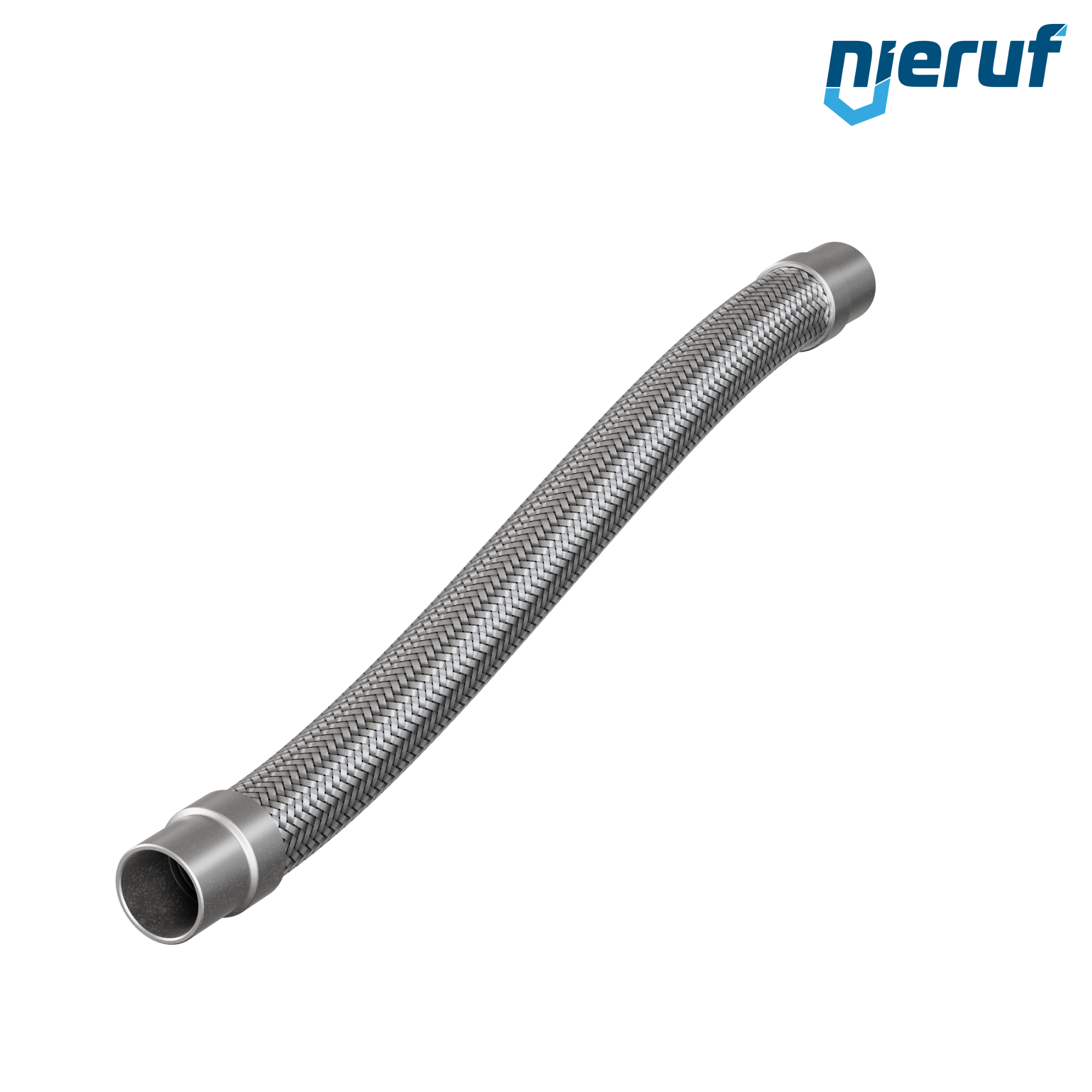

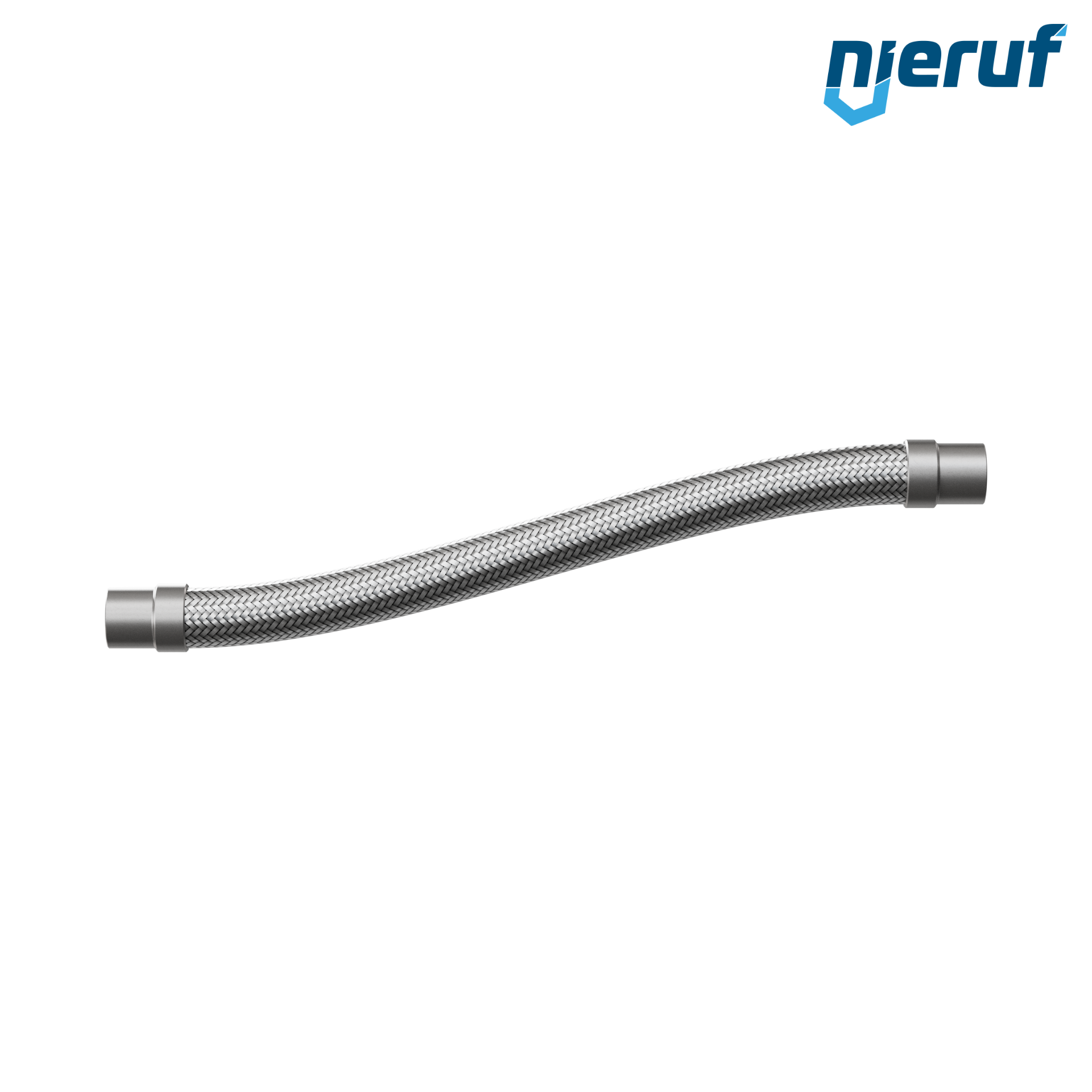

Stainless steel hoses ES01 DN32 - 42.4 mm with double braid and welding ends length 500 mm
Delivery time: 1 - 2 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you
Stainless steel hoses with welding ends on both sides Ø 42,4 mm and double braid in diameter DN32 - 42.4 mm with 500 mm length and 35 bar max. pressure
| product: | Stainless steel hoses |
|---|---|
| type: | ES01 |
| manufacturer: | NieRuf |
| diameter: | DN32 - 42.4 mm |
| length: | 500 mm |
| connection: | welding ends on both sides Ø 42,4 mm |
| material hose: | stainless steel 1.4404 |
| material mesh: | stainless steel 1.4301 |
| version: | double braid |
| max. pressure: | 35 bar |
| temperature: | 20°C |
| Minimal bending radius: | dynamic load: 200 mm & static load: 112 mm |
| media: | liquid and gaseous media |
| product feature: | The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Stainless steel hoses ES01 DN32 - 42.4 mm with double braid and welding ends length 500 mm
Article no.
: ES01010006.500
product:
Stainless steel hoses
type:
ES01
manufacturer:
NieRuf
diameter:
DN32 - 42.4 mm
length:
500 mm
connection:
welding ends on both sides Ø 42,4 mm
material hose:
stainless steel 1.4404
material mesh:
stainless steel 1.4301
version:
double braid
max. pressure:
35 bar
temperature:
20°C
Minimal bending radius:
dynamic load: 200 mm & static load: 112 mm
media:
liquid and gaseous media
product feature:
The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose
