ES01000112.1000

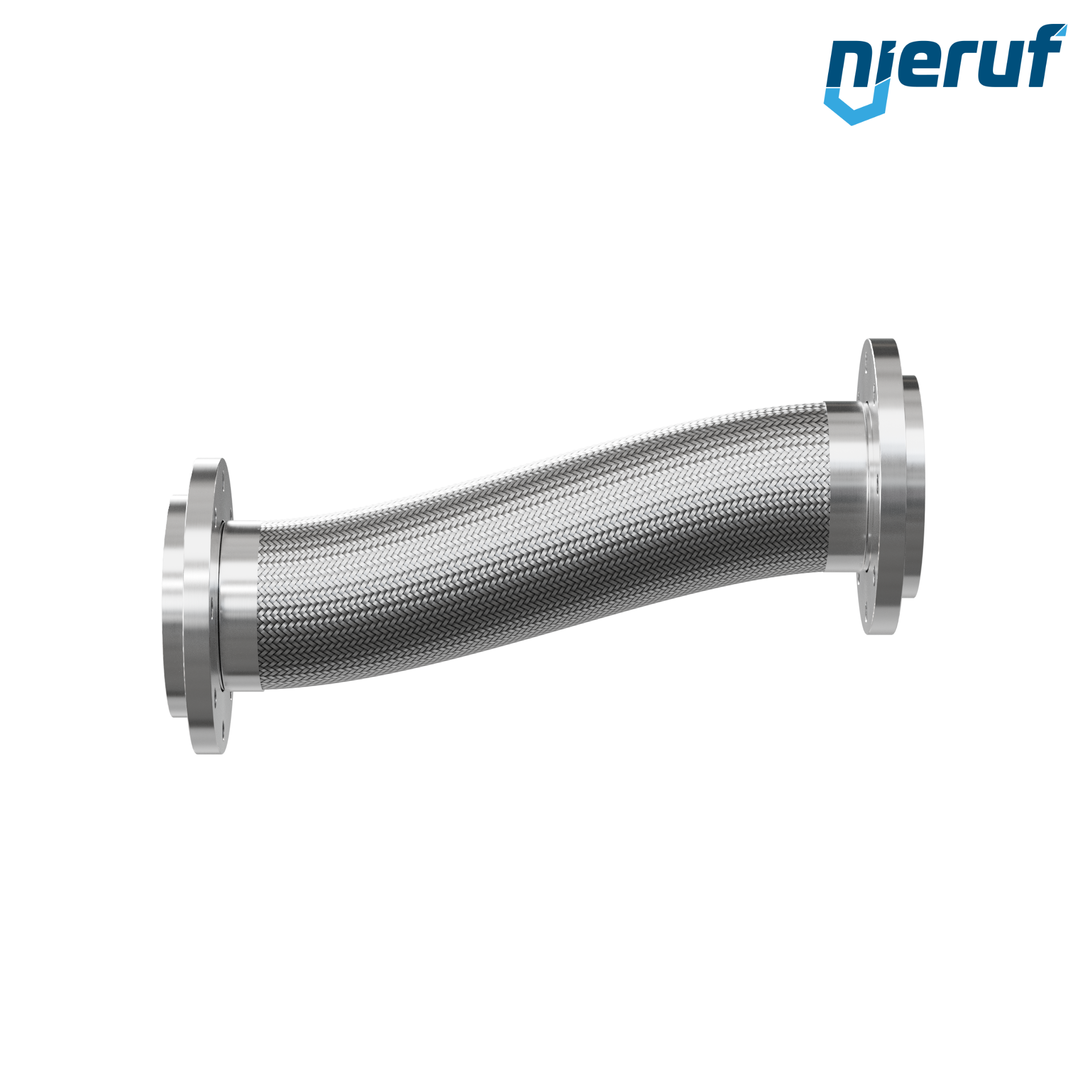

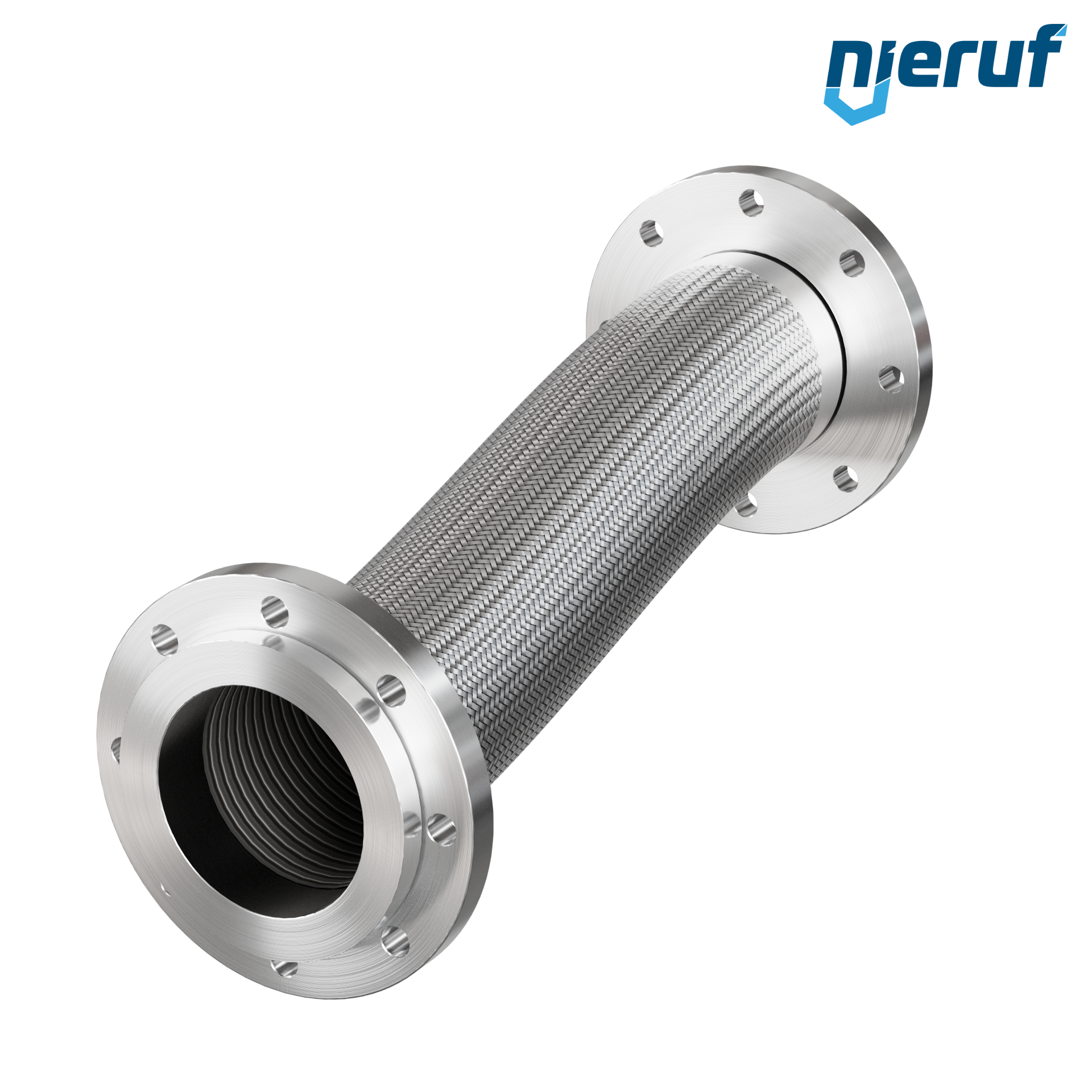

Stainless steel hoses ES01 DN125 - 5" inch with single braid and swivel flange length 1000 mm
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Stainless steel hoses with swivel flange on both sides EN 1092-01 type 02 PN 16 with collar and single braid in diameter DN125 - 5" inch with 1000 mm length and 10 bar max. pressure
| product: | Stainless steel hoses |
|---|---|
| type: | ES01 |
| manufacturer: | NieRuf |
| diameter: | DN125 - 5" inch |
| length: | 1000 mm |
| connection: | swivel flange on both sides EN 1092-01 type 02 PN 16 with collar |
| material hose: | stainless steel 1.4404 |
| material mesh: | stainless steel 1.4301 |
| version: | single braid |
| max. pressure: | 10 bar |
| temperature: | 20°C |
| Minimal bending radius: | dynamic load: 787 mm & static load: 457 mm |
| media: | liquid and gaseous media |
| product feature: | The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Stainless steel hoses ES01 DN125 - 5" inch with single braid and swivel flange length 1000 mm
Article no.
: ES01000112.1000
product:
Stainless steel hoses
type:
ES01
manufacturer:
NieRuf
diameter:
DN125 - 5" inch
length:
1000 mm
connection:
swivel flange on both sides EN 1092-01 type 02 PN 16 with collar
material hose:
stainless steel 1.4404
material mesh:
stainless steel 1.4301
version:
single braid
max. pressure:
10 bar
temperature:
20°C
Minimal bending radius:
dynamic load: 787 mm & static load: 457 mm
media:
liquid and gaseous media
product feature:
The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose
€97.22 VAT included.
€7.26 VAT included.
