ES01000013.500

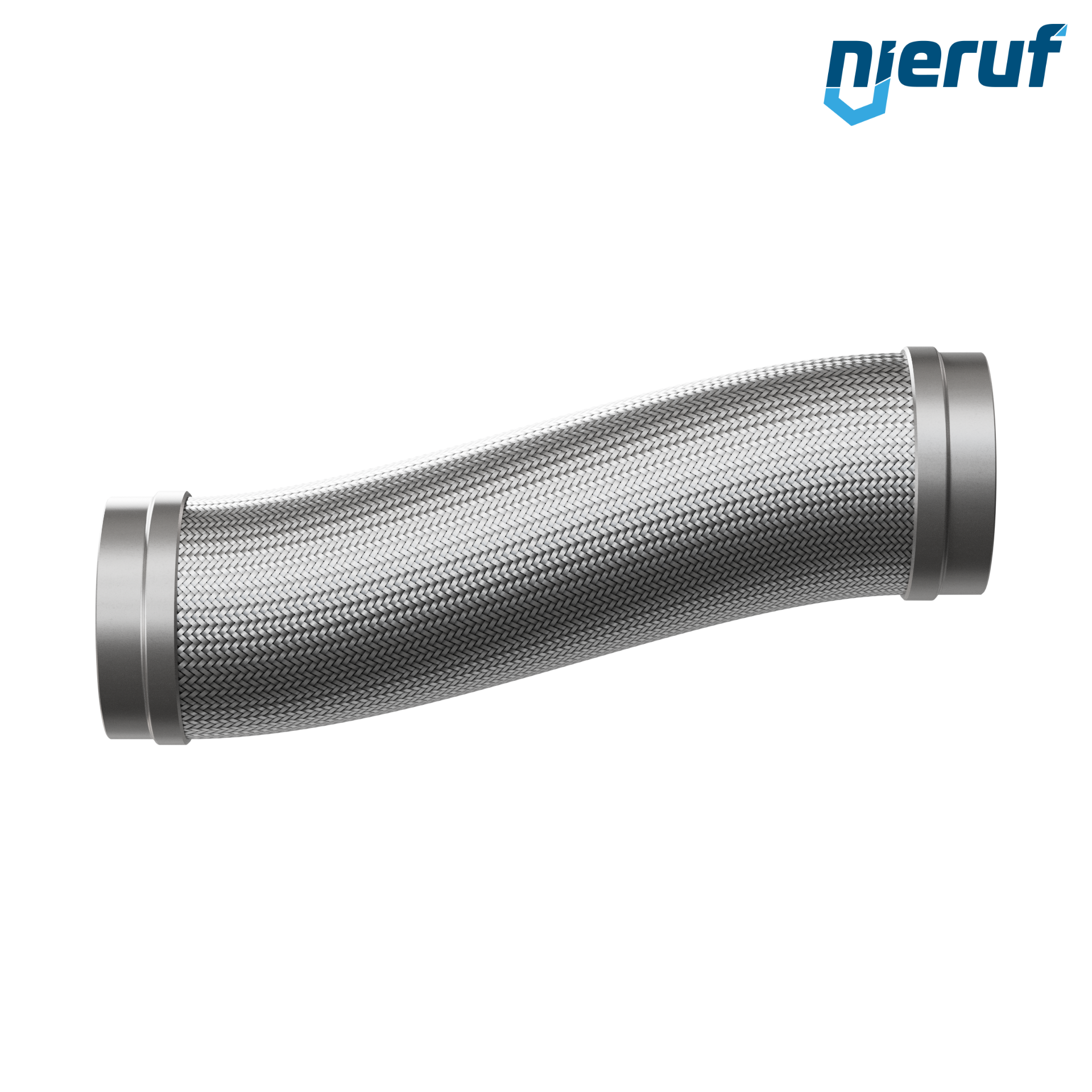

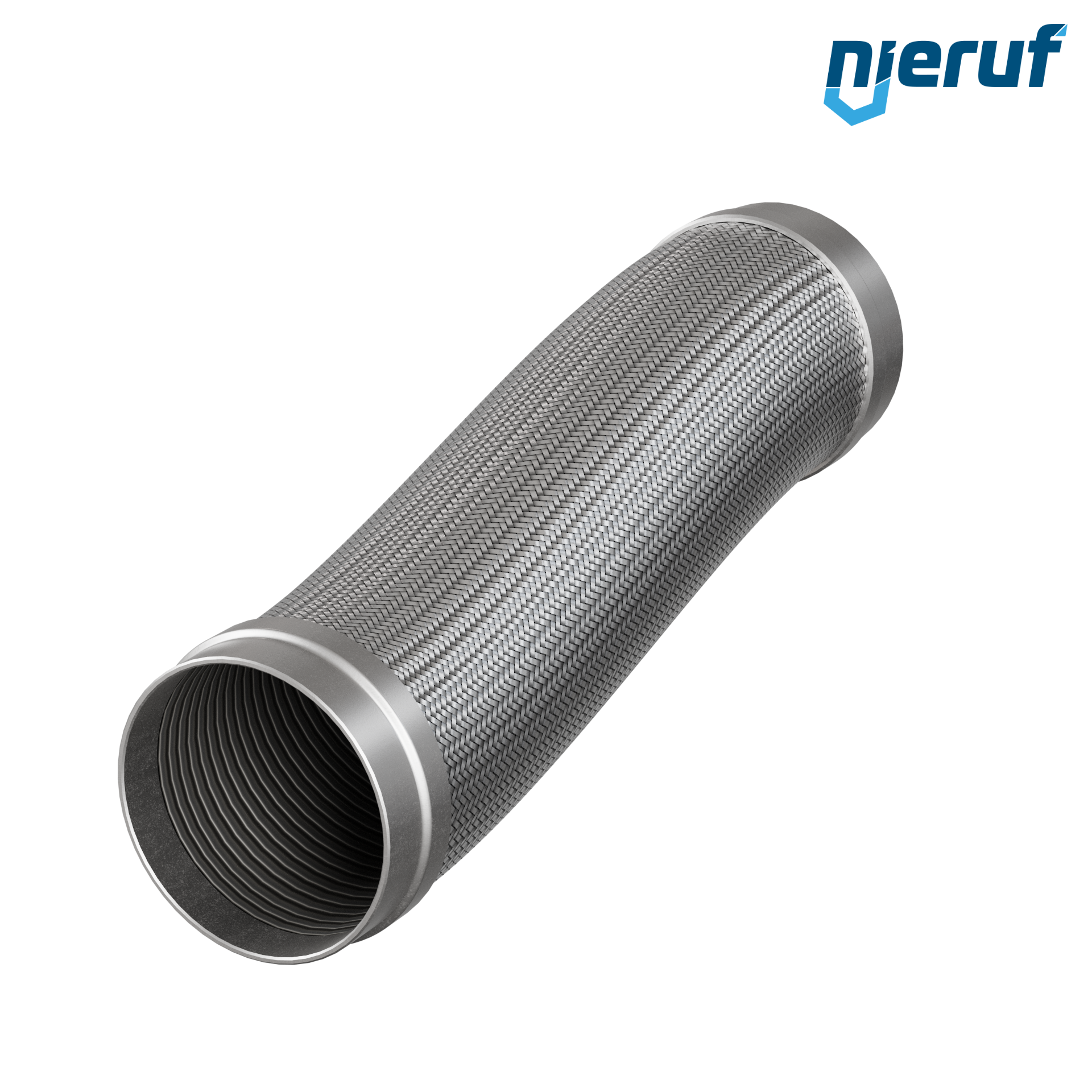

Stainless steel hoses ES01 DN150 - 168.3 mm with single braid and welding ends length 500 mm
Delivery time: 1 - 2 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you
Stainless steel hoses with welding ends on both sides Ø 168,3 mm and single braid in diameter DN150 - 168.3 mm with 500 mm length and 6 bar max. pressure
| product: | Stainless steel hoses |
|---|---|
| type: | ES01 |
| manufacturer: | NieRuf |
| diameter: | DN150 - 168.3 mm |
| length: | 500 mm |
| connection: | welding ends on both sides Ø 168,3 mm |
| material hose: | stainless steel 1.4404 |
| material mesh: | stainless steel 1.4301 |
| version: | single braid |
| max. pressure: | 6 bar |
| temperature: | 20°C |
| Minimal bending radius: | dynamic load: 914 mm & static load: 483 mm |
| media: | liquid and gaseous media |
| product feature: | The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Stainless steel hoses ES01 DN150 - 168.3 mm with single braid and welding ends length 500 mm
Article no.
: ES01000013.500
product:
Stainless steel hoses
type:
ES01
manufacturer:
NieRuf
diameter:
DN150 - 168.3 mm
length:
500 mm
connection:
welding ends on both sides Ø 168,3 mm
material hose:
stainless steel 1.4404
material mesh:
stainless steel 1.4301
version:
single braid
max. pressure:
6 bar
temperature:
20°C
Minimal bending radius:
dynamic load: 914 mm & static load: 483 mm
media:
liquid and gaseous media
product feature:
The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
