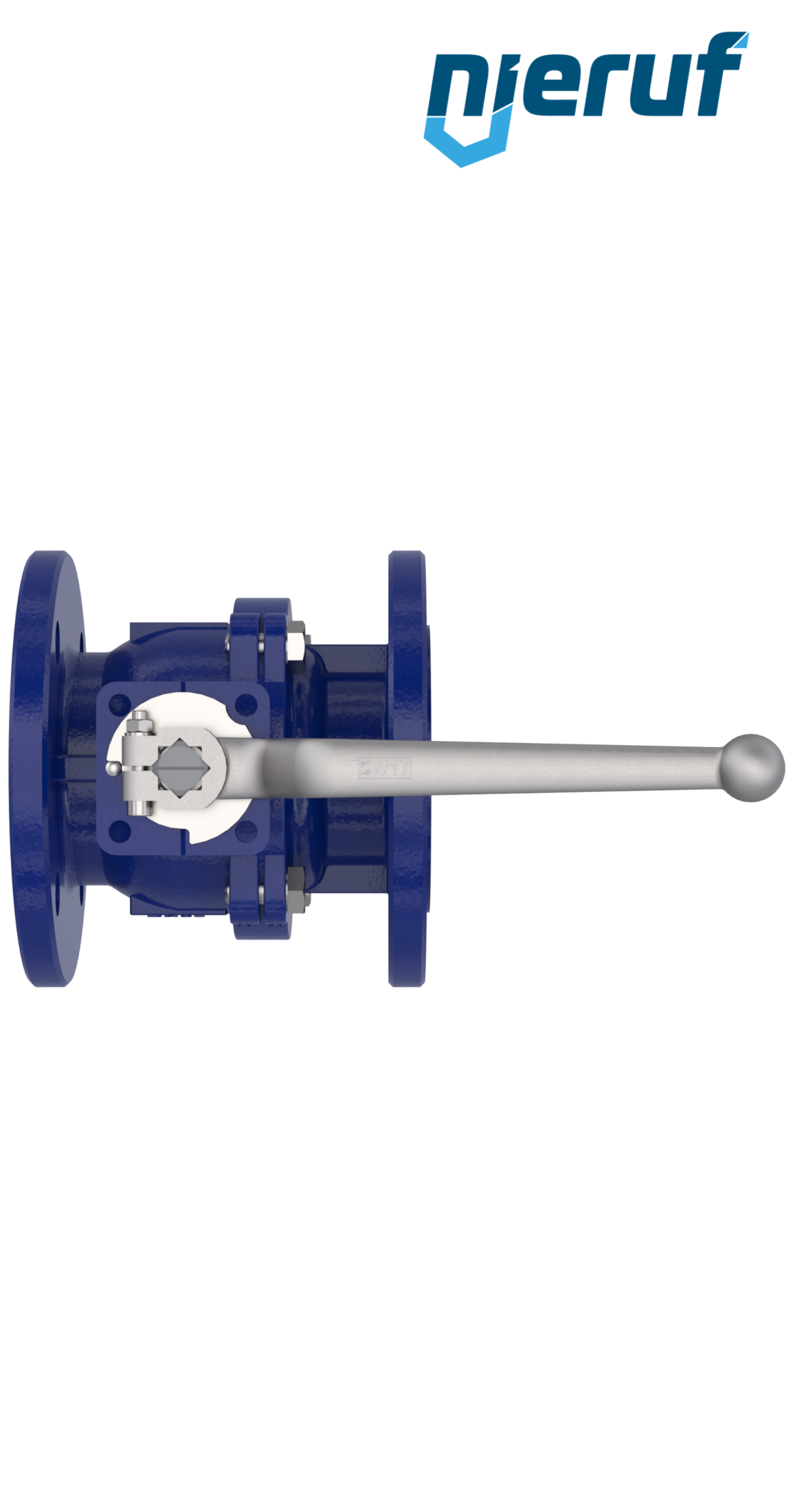

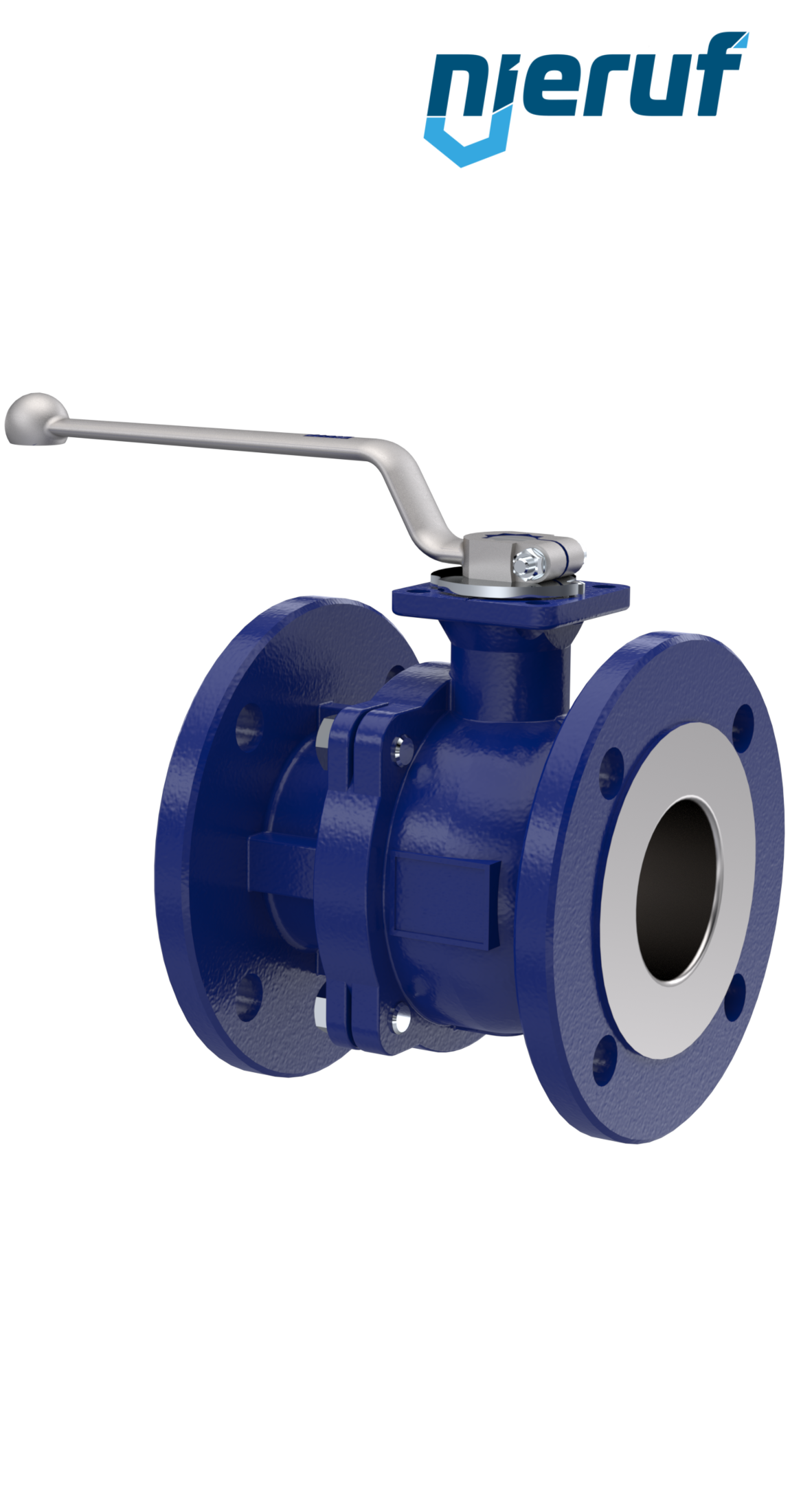

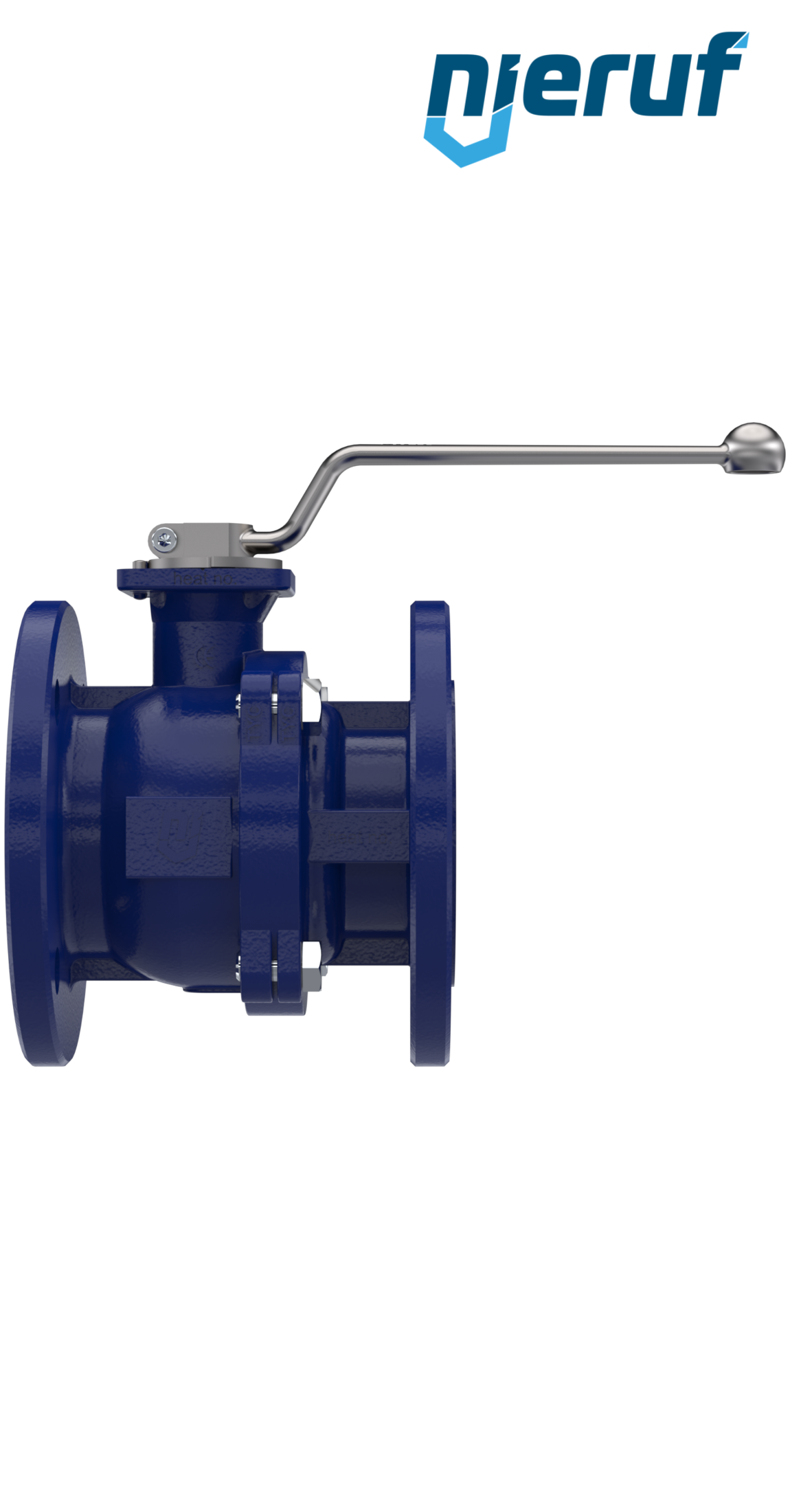

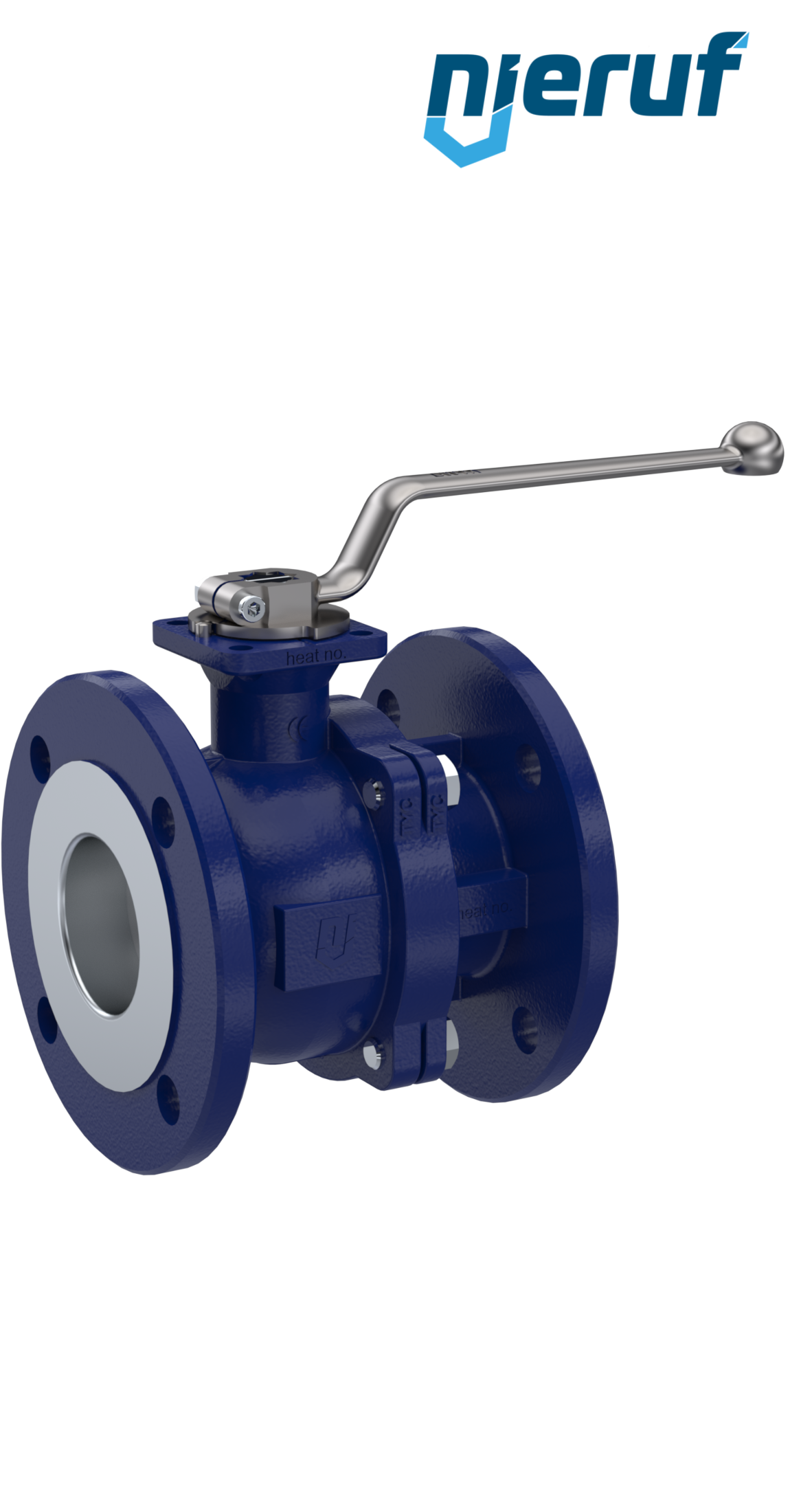

Steam-flange ball valve FK12 DN40 PN40 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE/TFM for gaseous for example steam
| product | Steam-flange ball valve |
|---|---|
| type | FK12 |
| manufacturer | NieRuf |
| diameter | DN40 |
| connection | flange dimensions acc. to EN 1092-1 PN40 |
| Seal steam | graphite |
| body seal | graphite |
| ball seal | PTFE/TFM |
| media | gaseous for example steam |
| temperature | -20°C up to +220°C - depending on working pressure and media |
| max. pressure | PN40 |
| design | full port design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4408 |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality ball valve is made of cast steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of galvanized steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Steam-flange ball valve FK12 DN40 PN40 made of carbon steel 1.0619
Article no.
: FK12010107
product:
Steam-flange ball valve
type:
FK12
manufacturer:
NieRuf
diameter:
DN40
connection:
flange dimensions acc. to EN 1092-1 PN40
Seal steam:
graphite
body seal:
graphite
ball seal:
PTFE/TFM
media:
gaseous for example steam
temperature:
-20°C up to +220°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of cast steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of galvanized steel.
