EF02010004

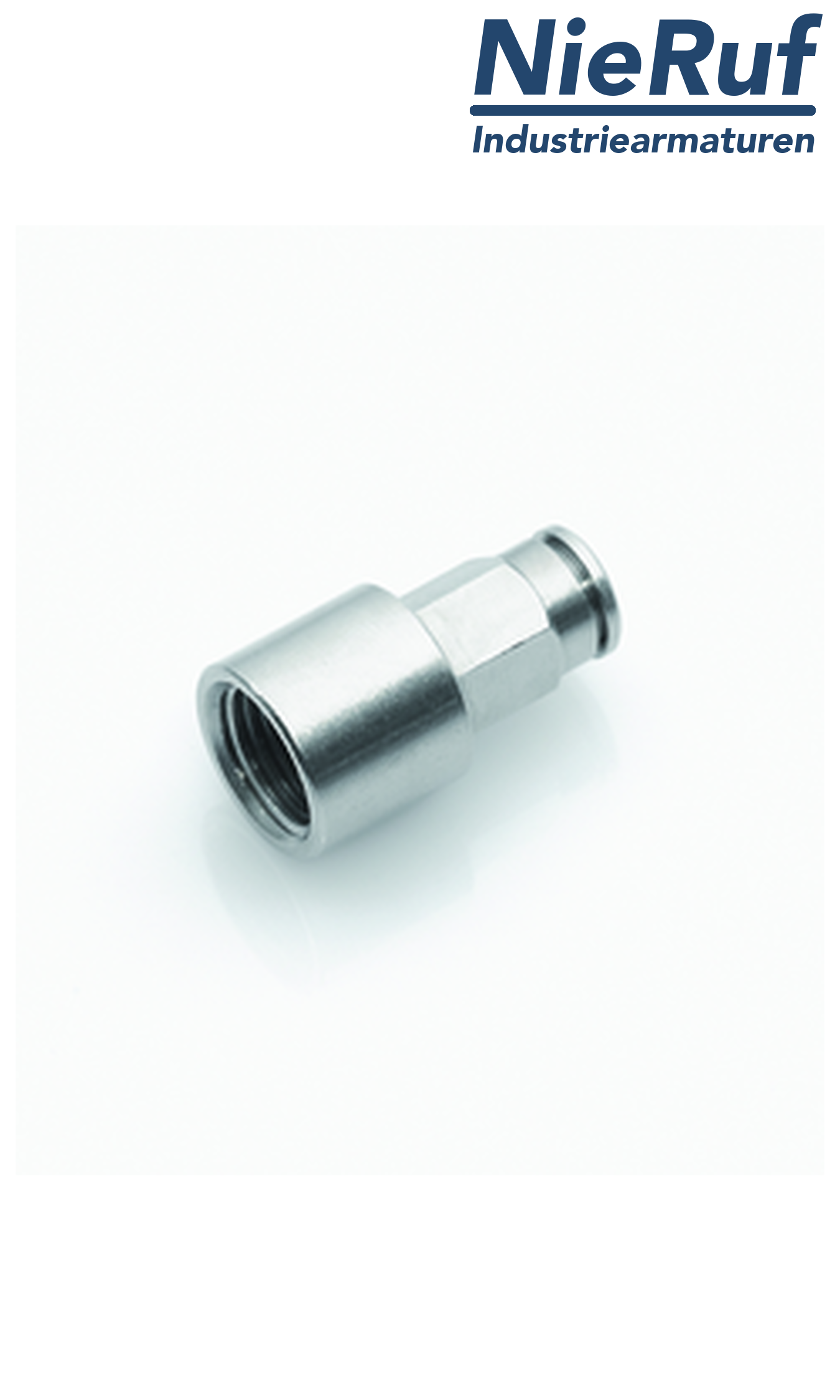

Straight female adaptor EF02 brass FKM G1/8" D4mm
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
port connection Straight female adaptor made of brass with FKM-seal G1/8" D4mm for lubricated & non-lubricated compressed air up to 16 bar
| product: | port connection |
|---|---|
| type: | EF02 |
| manufacturer: | NieRuf |
| design: | Straight female adaptor |
| thread connection: | G1/8" |
| tube connection 1: | D4mm |
| body material: | brass Ms58 nickel-plated |
| seal: | FKM |
| collet: | stainless steel 1.4401 |
| pressure ring: | brass Ms58 nickel-plated |
| thread: | cylindrical |
| media: | lubricated & non-lubricated compressed air |
| max. working pressure: | up to 16 bar |
| product feature: | Straight female adaptor to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Straight female adaptor EF02 brass FKM G1/8" D4mm
Article no.
: EF02010004
product:
port connection
type:
EF02
manufacturer:
NieRuf
design:
Straight female adaptor
thread connection:
G1/8"
tube connection 1:
D4mm
body material:
brass Ms58 nickel-plated
seal:
FKM
collet:
stainless steel 1.4401
pressure ring:
brass Ms58 nickel-plated
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Straight female adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
