EF01000004

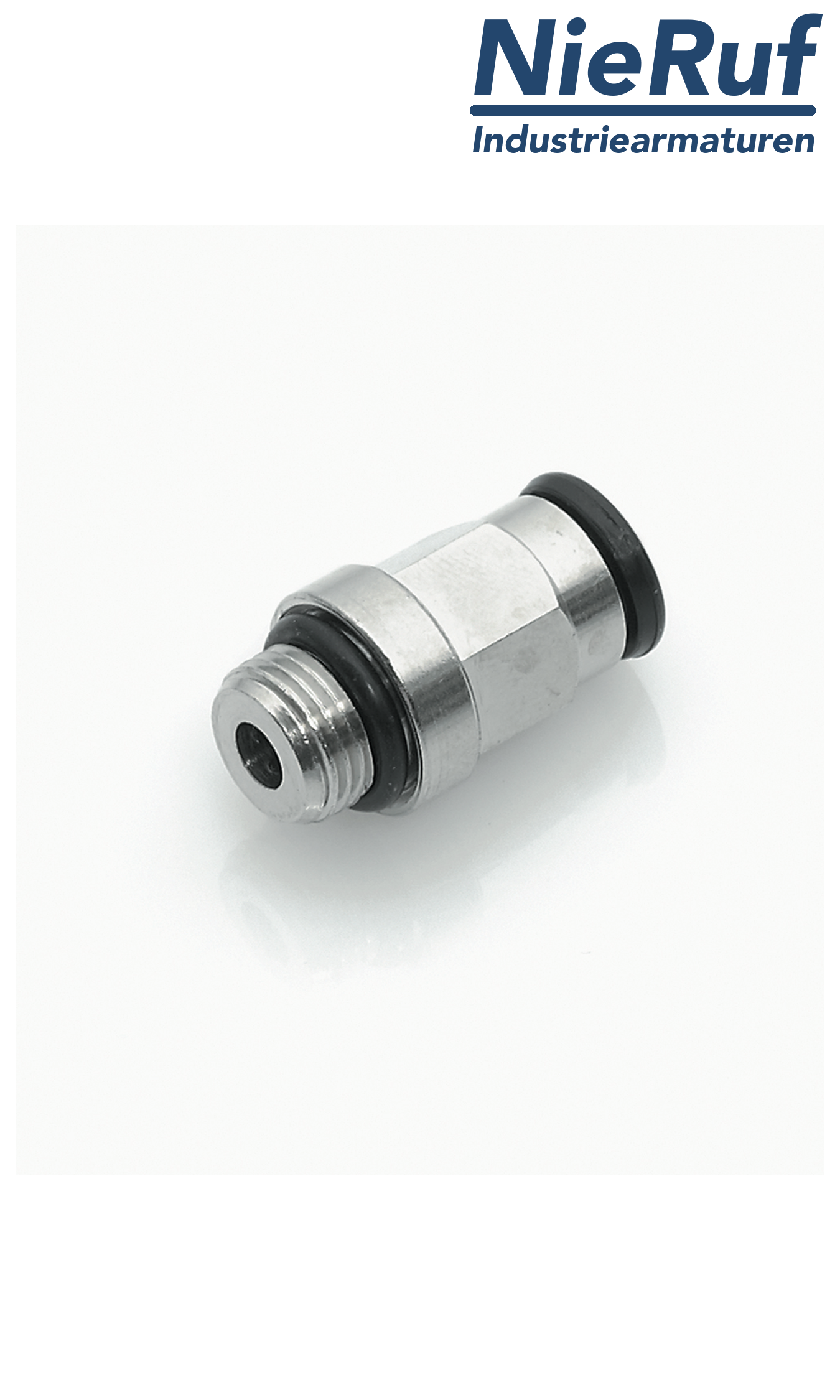

Straight male adaptor EF01 brass NBR G1/8" D4mm
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you
port connection Straight male adaptor made of brass with NBR-seal G1/8" D4mm for lubricated & non-lubricated compressed air up to 16 bar
| product: | port connection |
|---|---|
| type: | EF01 |
| manufacturer: | NieRuf |
| design: | Straight male adaptor |
| thread connection: | G1/8" |
| tube connection 1: | D4mm |
| body material: | brass Ms58 nickel-plated |
| seal: | NBR |
| collet: | stainless steel 1.4401 |
| pressure ring: | black plastic |
| thread: | cylindrical |
| media: | lubricated & non-lubricated compressed air |
| max. working pressure: | up to 16 bar |
| product feature: | Straight male adaptor to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Straight male adaptor EF01 brass NBR G1/8" D4mm
Article no.
: EF01000004
product:
port connection
type:
EF01
manufacturer:
NieRuf
design:
Straight male adaptor
thread connection:
G1/8"
tube connection 1:
D4mm
body material:
brass Ms58 nickel-plated
seal:
NBR
collet:
stainless steel 1.4401
pressure ring:
black plastic
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Straight male adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
