ZR01000112

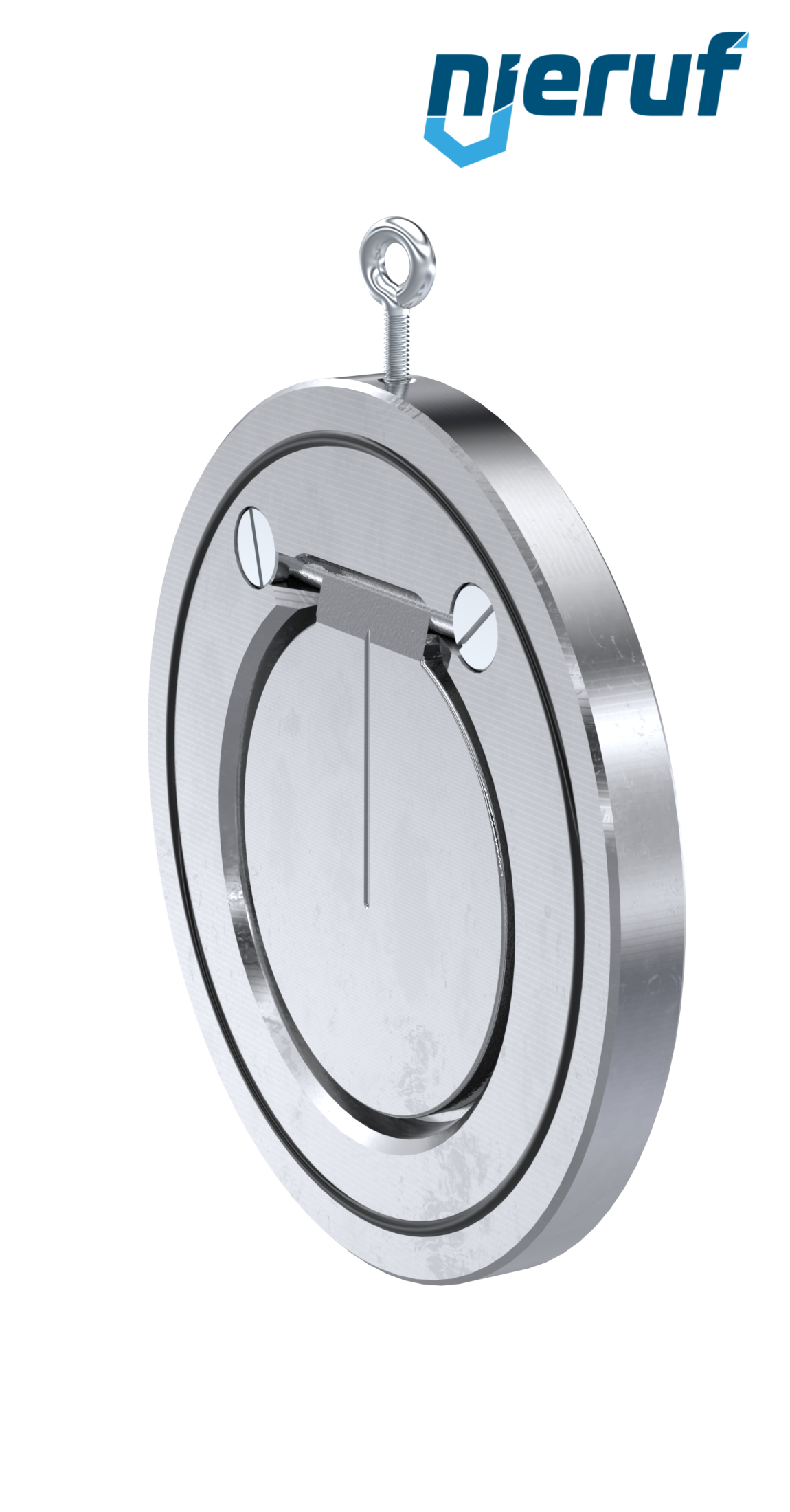

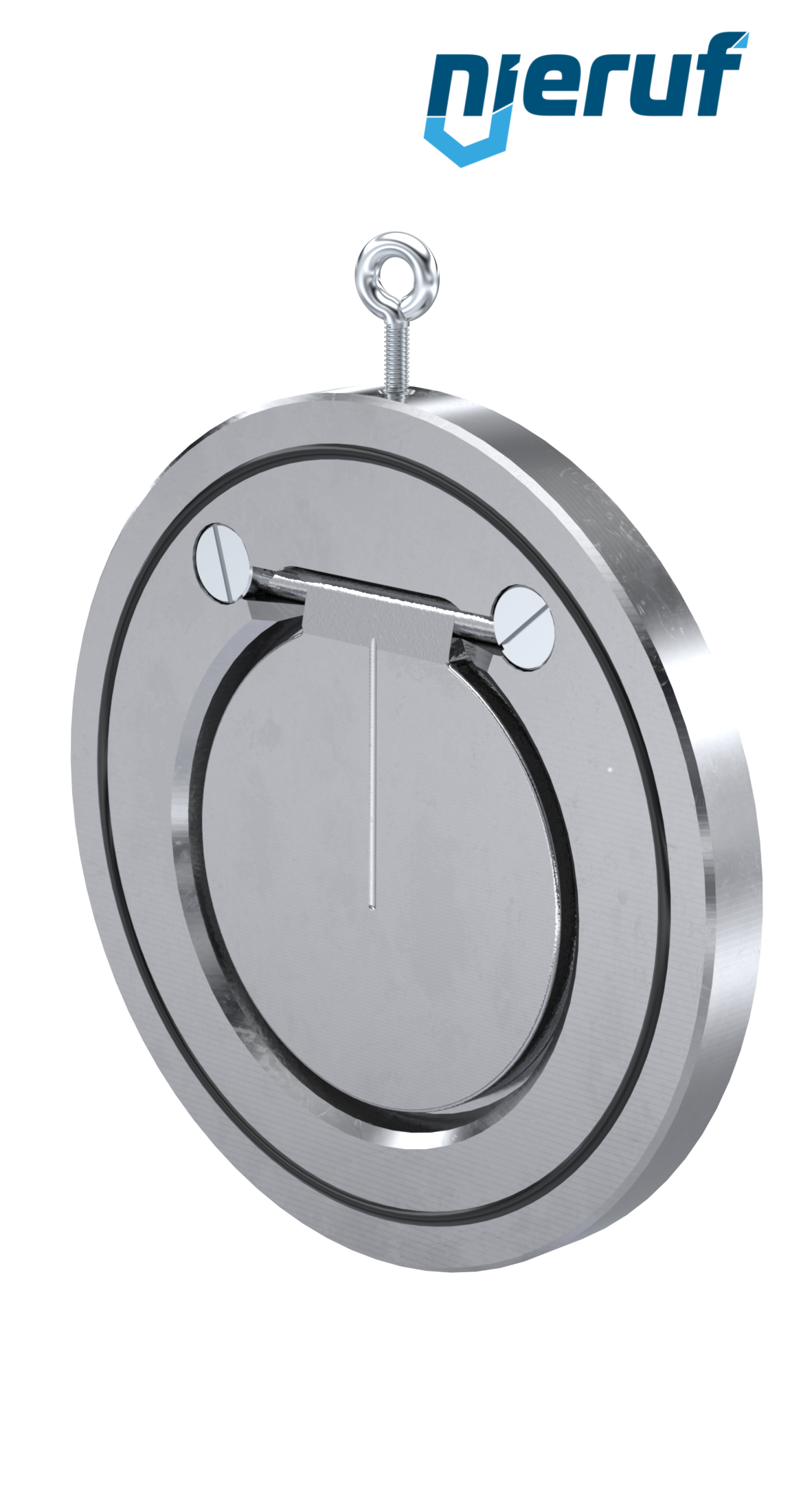

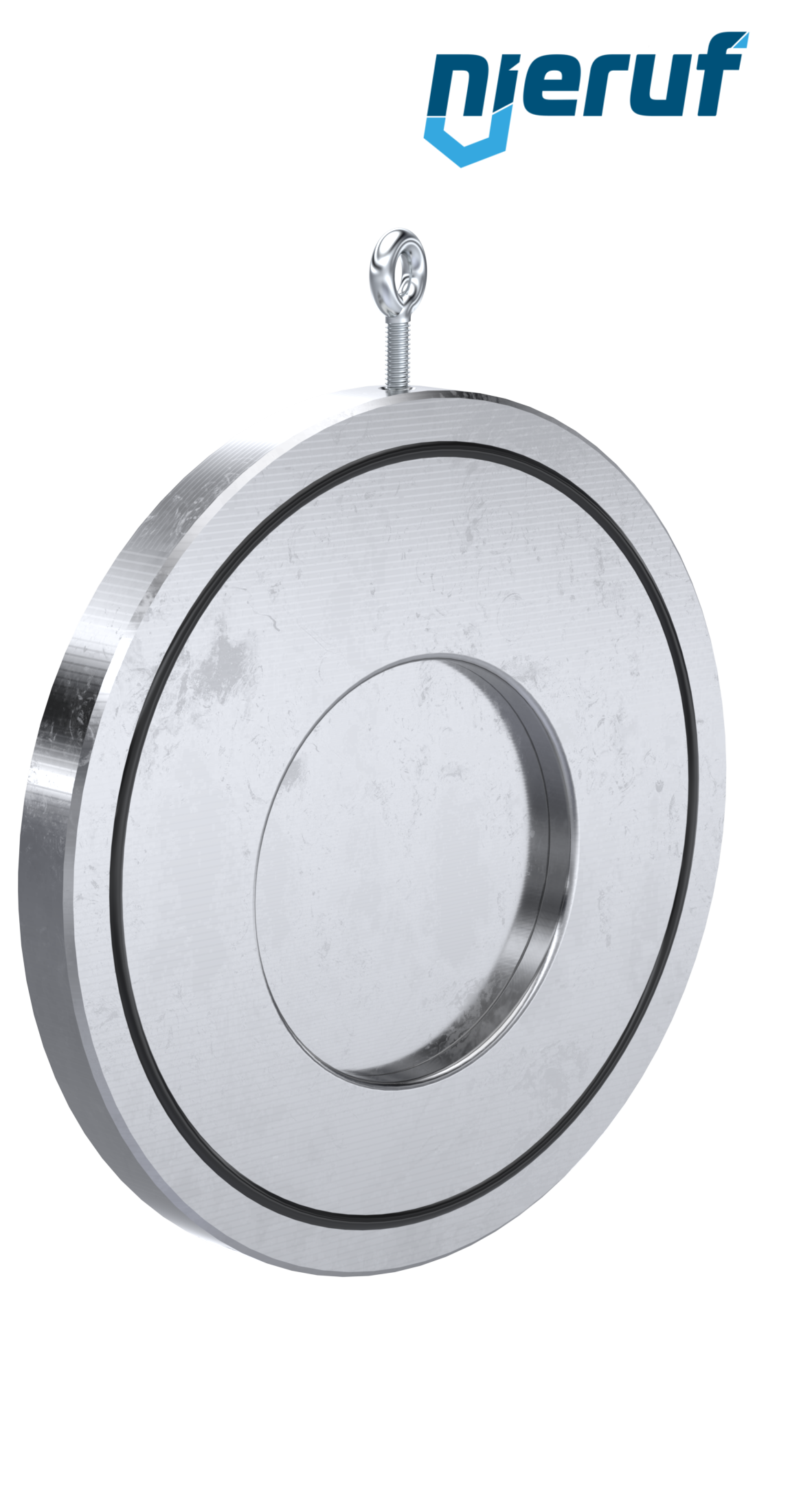

swing check valve DN125 ZR01 steel 1.0460 / A 105, zinc plated EPDM
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Equipment
joint set swing check valve/flange DN125 - 5" Inch for flange PN10/16 steel
€28.56 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
swing check valve DN125 PN 10/16 DIN EN 1092-1 Form B made of steel 1.0460 / A 105, zinc plated seal EPDM for liquid and gaseous media
| product: | swing check valve |
|---|---|
| type: | ZR01 |
| manufacturer: | NieRuf |
| design: | swing check valve |
| diameter: | DN125 |
| body material: | steel 1.0460 / A 105, zinc plated |
| disc material: | steel A 216 WCB / A 105, zinc plated |
| seal: | EPDM |
| temperature: | -10°C up to +150°C |
| connection: | flange |
| flange: | PN 10/16 DIN EN 1092-1 Form B |
| pressure range: | 0 - 16 bar |
| media: | liquid and gaseous media |
| tightness acc. to DIN EN 12266: | leak rate A |
| option: | without spring reset |
| installation position: | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature: | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN125 ZR01 steel 1.0460 / A 105, zinc plated EPDM
Article no.
: ZR01000112
product:
swing check valve
type:
ZR01
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN125
body material:
steel 1.0460 / A 105, zinc plated
disc material:
steel A 216 WCB / A 105, zinc plated
seal:
EPDM
temperature:
-10°C up to +150°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
€62.59 VAT included.
€7.26 VAT included.
€28.56 VAT included.
€115.67 VAT included.
€126.02 VAT included.
