ZR02000308
swing check valve DN50 ZR02 stainless steel A351 CF8M PTFE
- Delivery time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Friday, 14. March
Guaranteed delivery until Monday, 17. March, 12 o'clock
Equipment
joint set swing check valve/flange DN50 - 2" Inch for flange PN10/16 stainless steel
€10.95 VAT included.
Questions about the article?

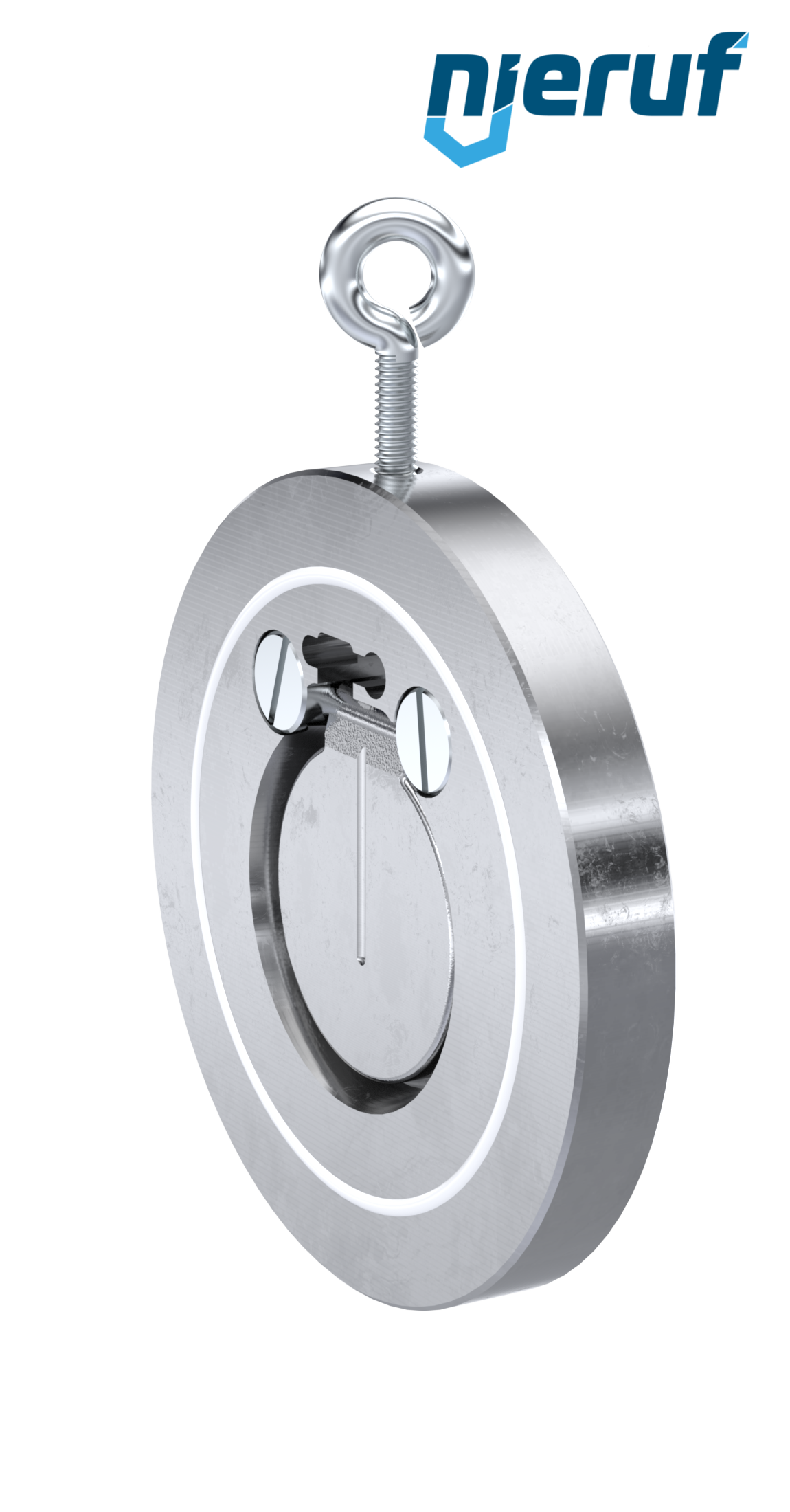

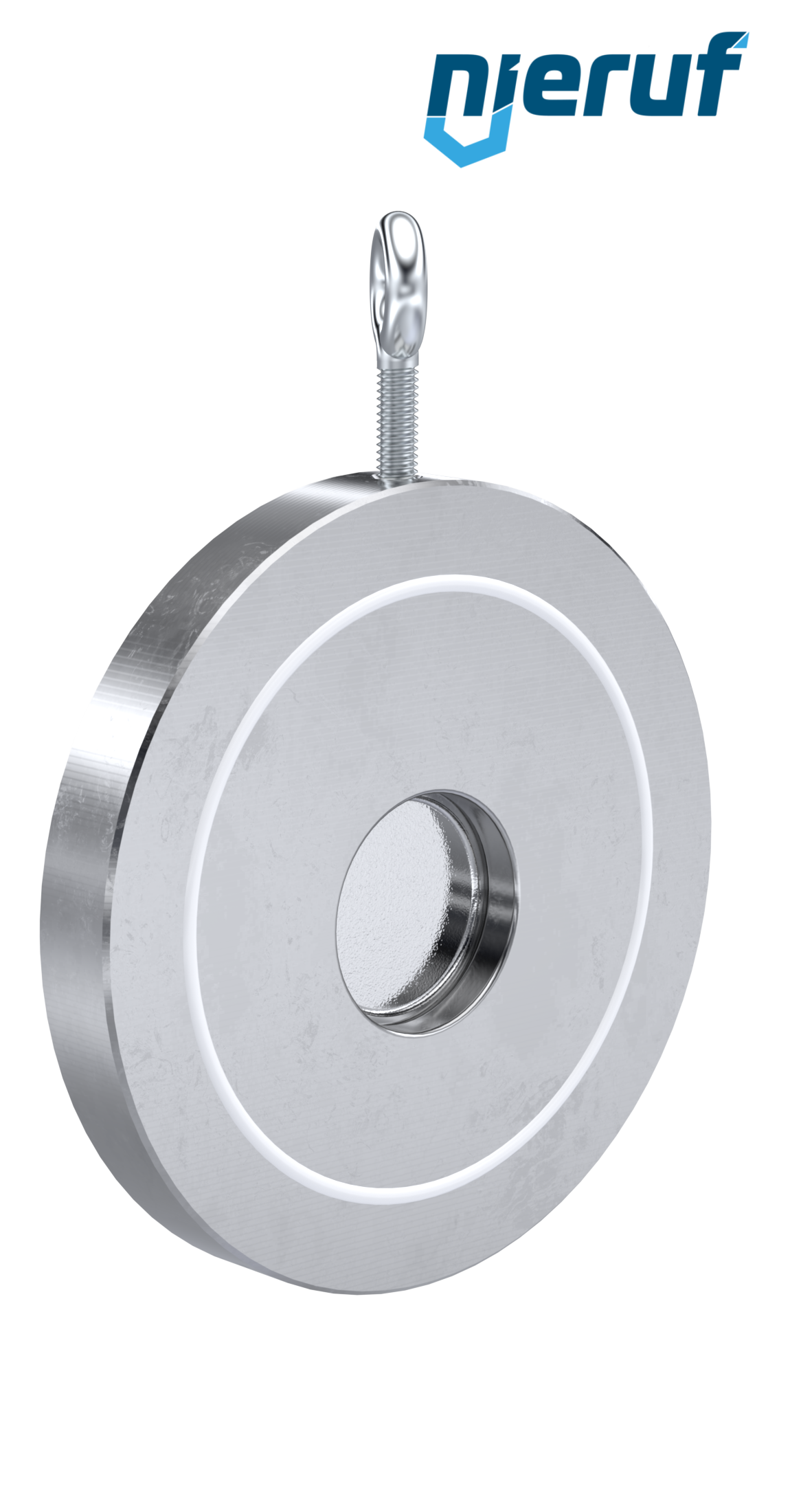

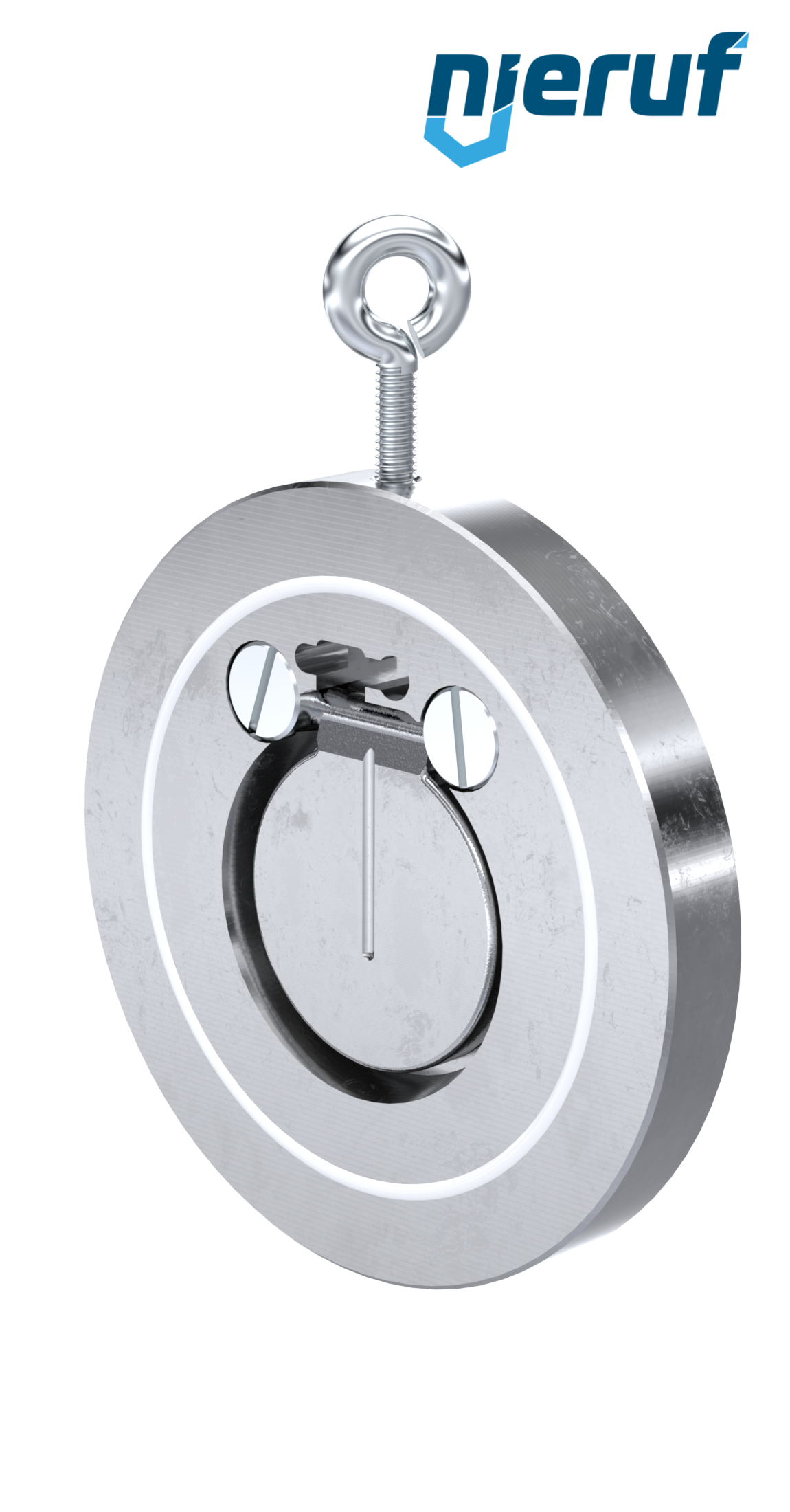

swing check valve DN50 PN 10/16/25/40 DIN EN 1092-1 Form B made of stainless steel A351 CF8M seal PTFE for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR02 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN50 |
| body material | stainless steel A351 CF8M |
| disc material | stainless steel A351 CF8M |
| seal | PTFE |
| temperature | -196°C up to +250°C |
| connection | flange |
| flange | PN 10/16/25/40 DIN EN 1092-1 Form B |
| pressure range | 0 - 40 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN50 ZR02 stainless steel A351 CF8M PTFE
Article no.
: ZR02000308
product:
swing check valve
type:
ZR02
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN50
body material:
stainless steel A351 CF8M
disc material:
stainless steel A351 CF8M
seal:
PTFE
temperature:
-196°C up to +250°C
connection:
flange
flange:
PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range:
0 - 40 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
