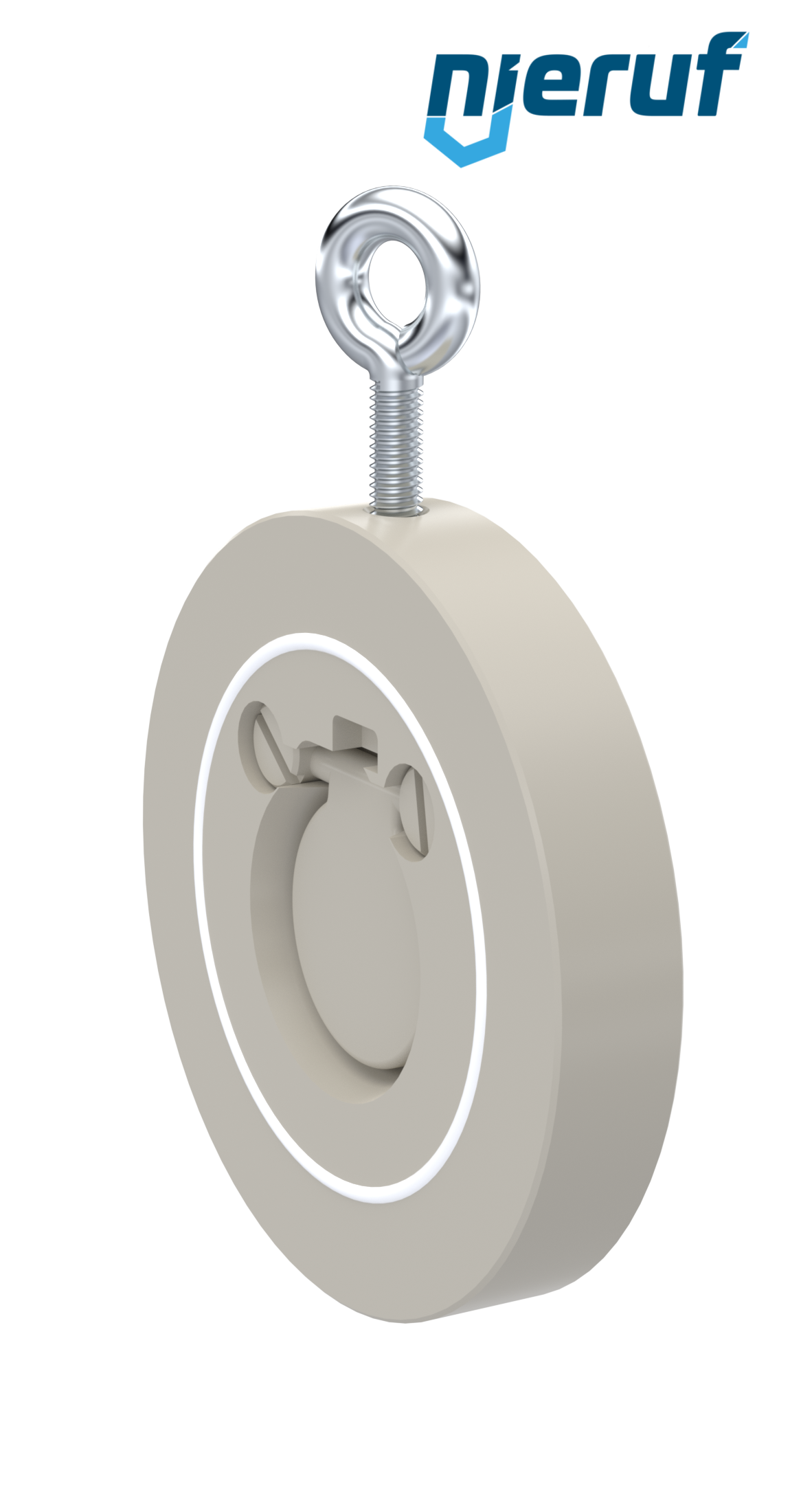

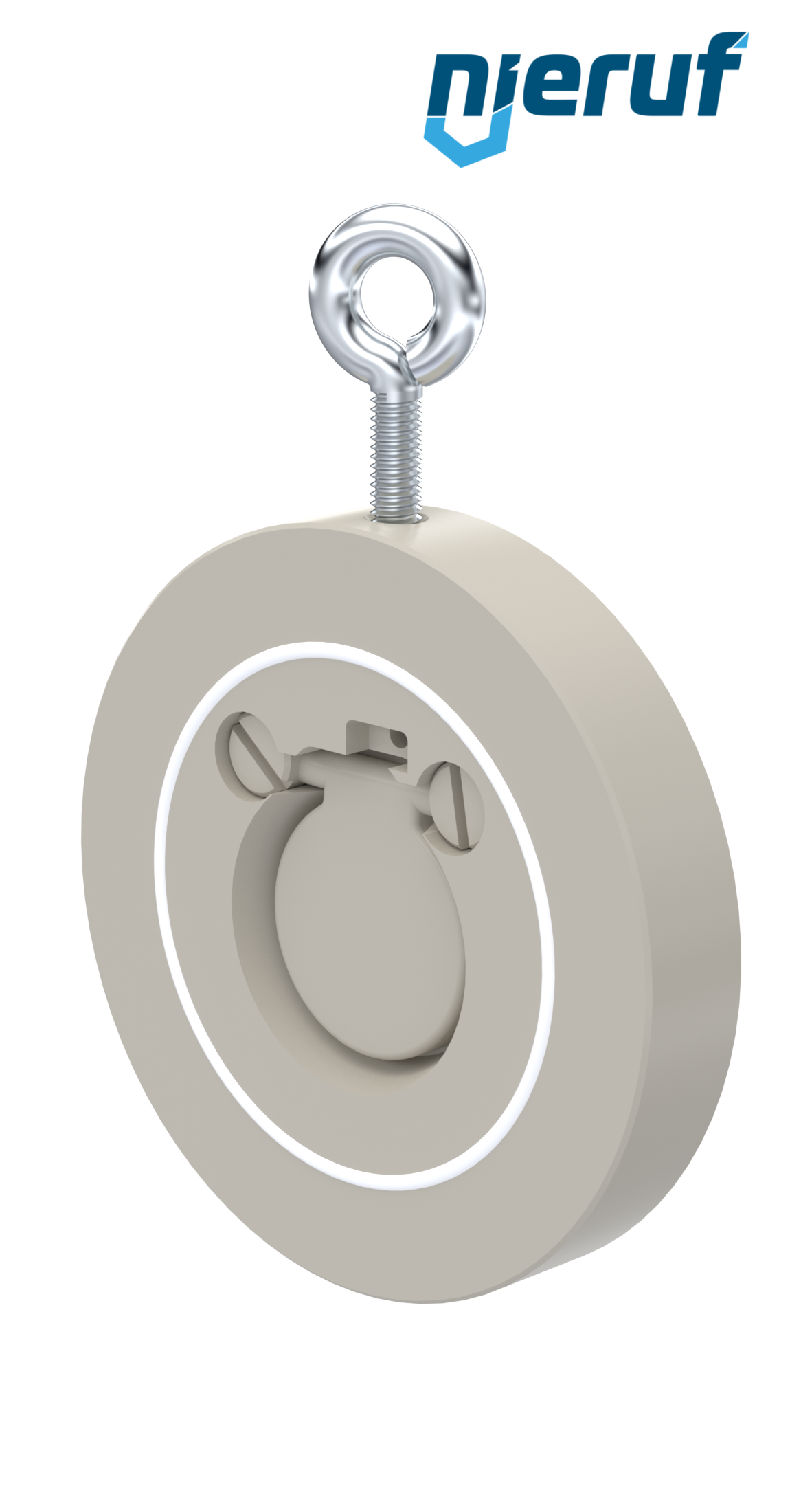

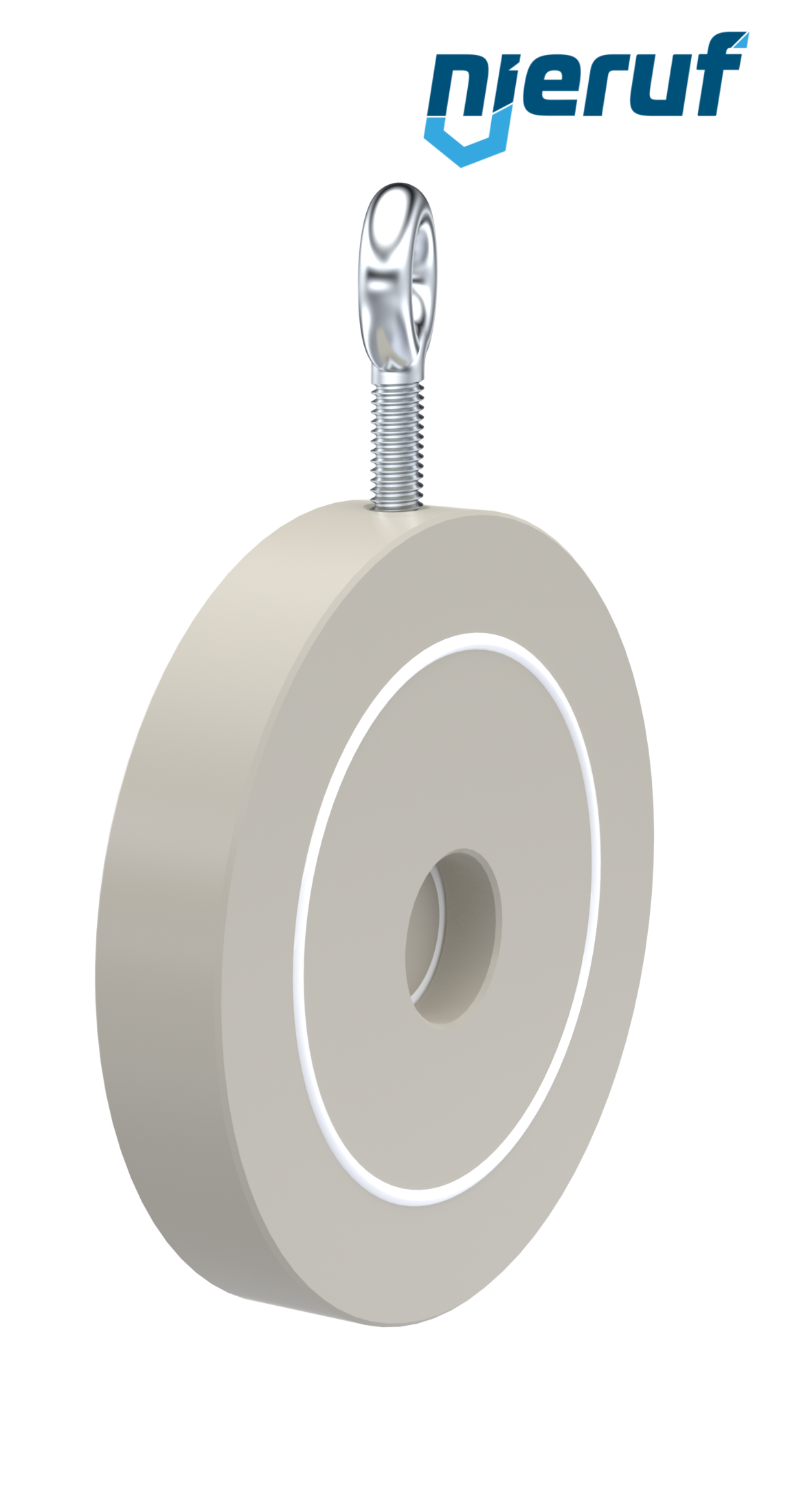

swing check valve DN32 PN 10/16 DIN EN 1092-1 Form B plastic PP-H seal PTFE for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR06 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN32 |
| body material | plastic PP-H |
| disc material | plastic PP-H |
| seal | PTFE |
| temperature | 0°C up to +90°C |
| connection | flange |
| flange | PN 10/16 DIN EN 1092-1 Form B |
| pressure range | 0 - 8 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN32 ZR06 plastic PP-H PTFE
Article no.
: ZR06000306
product:
swing check valve
type:
ZR06
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN32
body material:
plastic PP-H
disc material:
plastic PP-H
seal:
PTFE
temperature:
0°C up to +90°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 8 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
