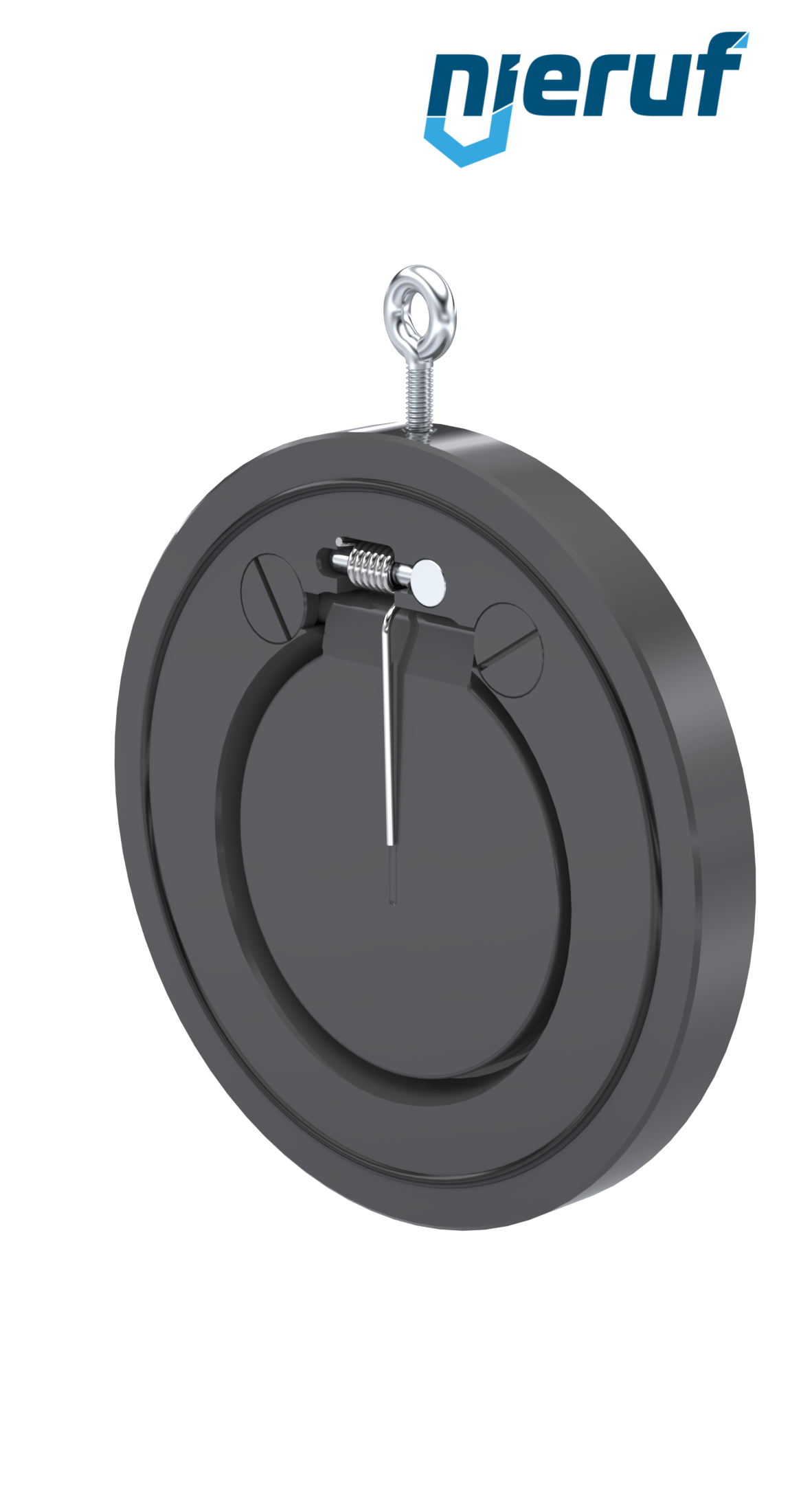

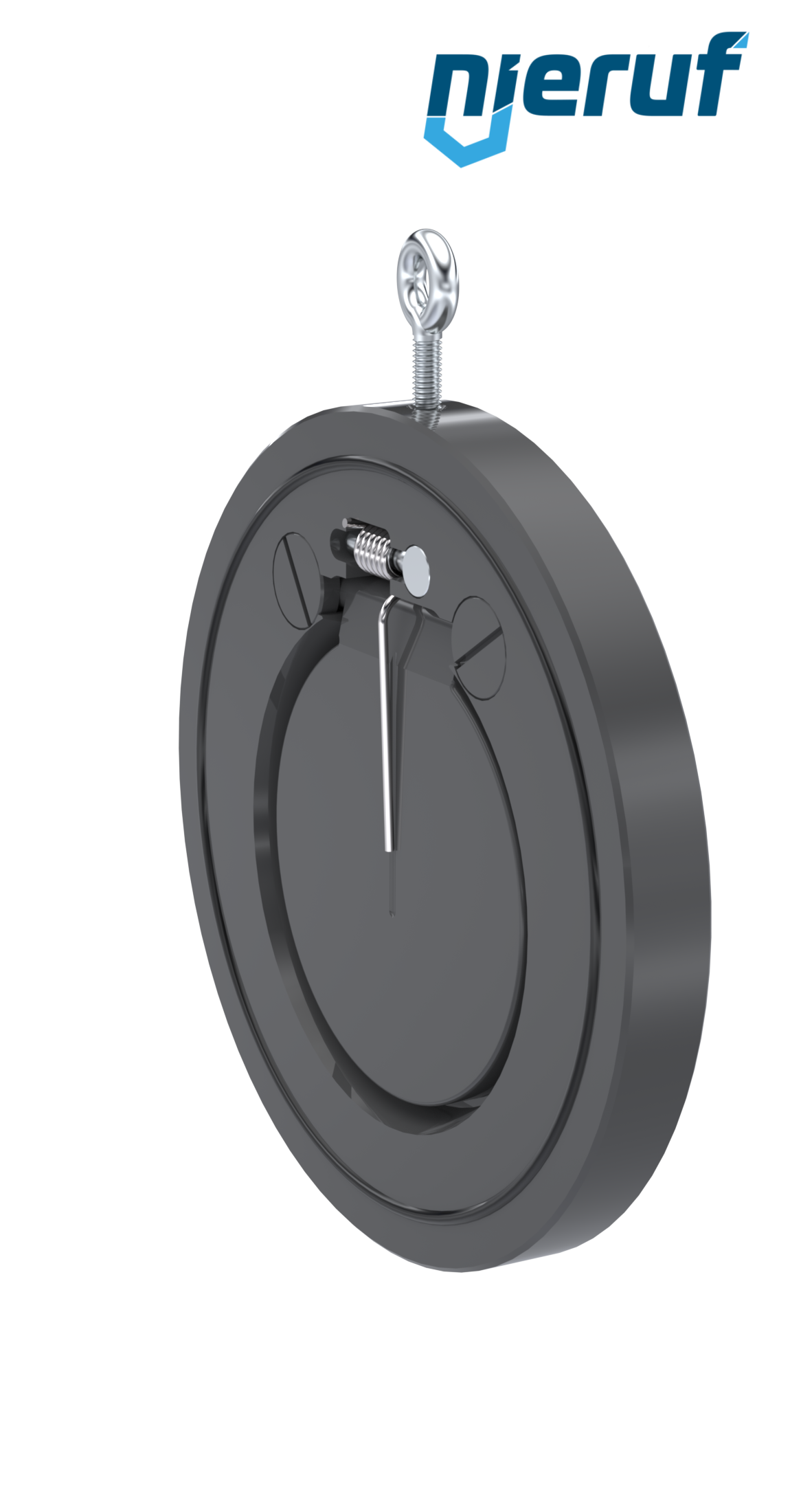

swing check valve with spring DN100 PN 10/16 DIN EN 1092-1 Form B plastic PVC-U seal NBR for liquid and gaseous media
| product | swing check valve with spring |
|---|---|
| type | ZR07 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN100 |
| body material | plastic PVC-U |
| disc material | plastic PVC-U |
| seal | NBR |
| temperature | 0°C up to +60°C |
| connection | flange |
| flange | PN 10/16 DIN EN 1092-1 Form B |
| pressure range | 0 - 10 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve with spring DN100 ZR07 plastic PVC-U NBR
Article no.
: ZR07000411
product:
swing check valve with spring
type:
ZR07
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN100
body material:
plastic PVC-U
disc material:
plastic PVC-U
seal:
NBR
temperature:
0°C up to +60°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 10 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
