ZR03000111

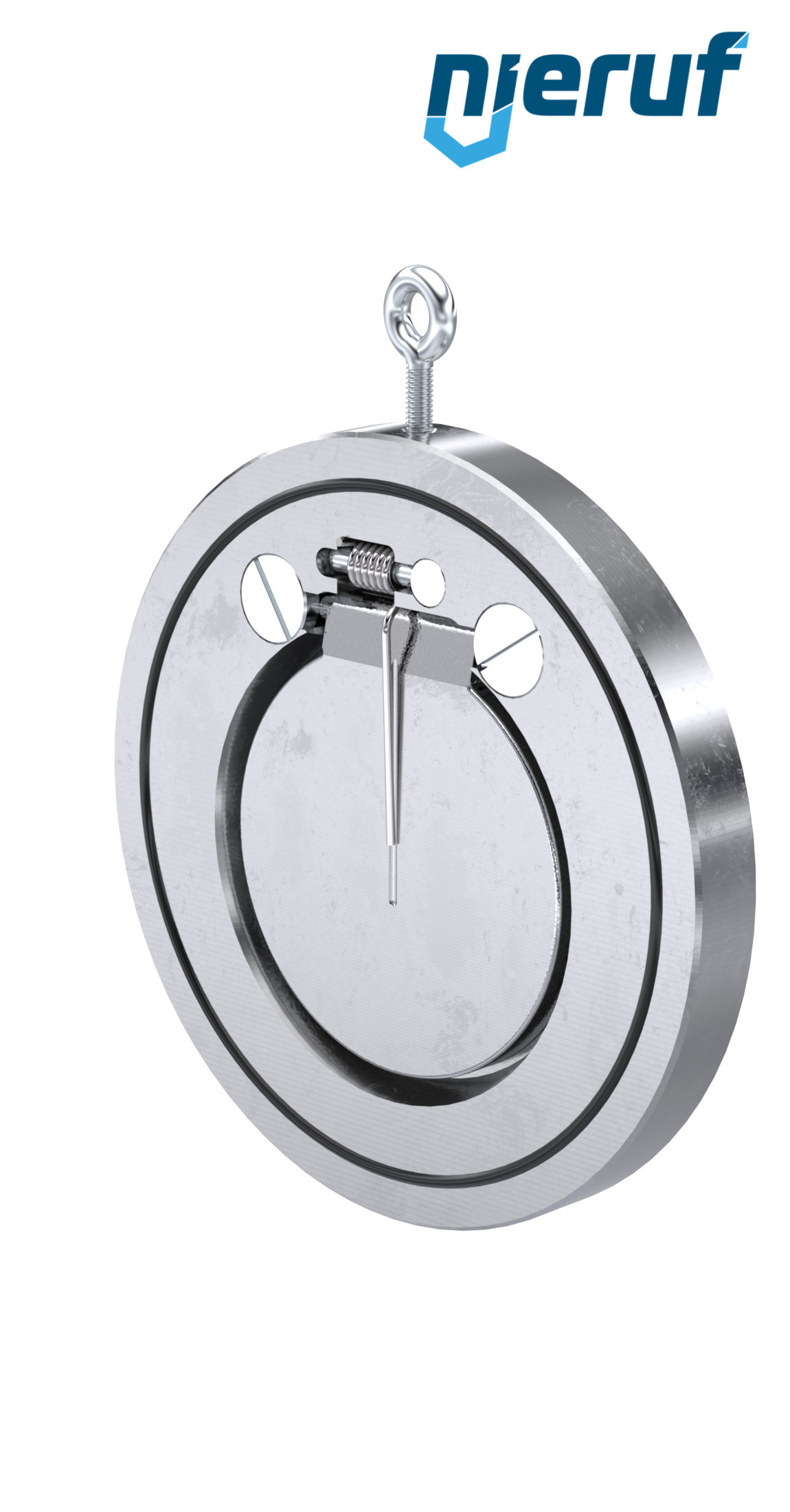

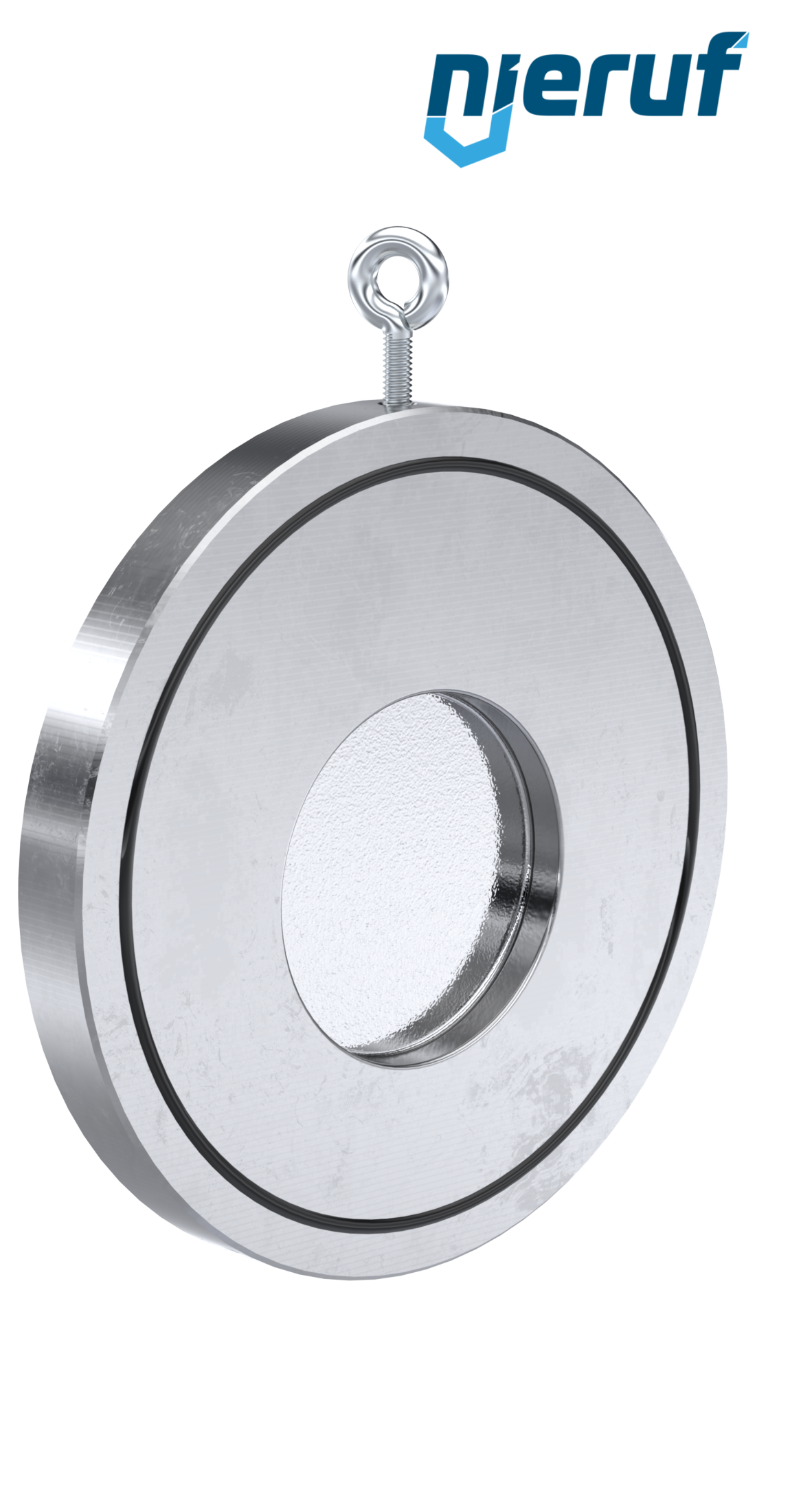

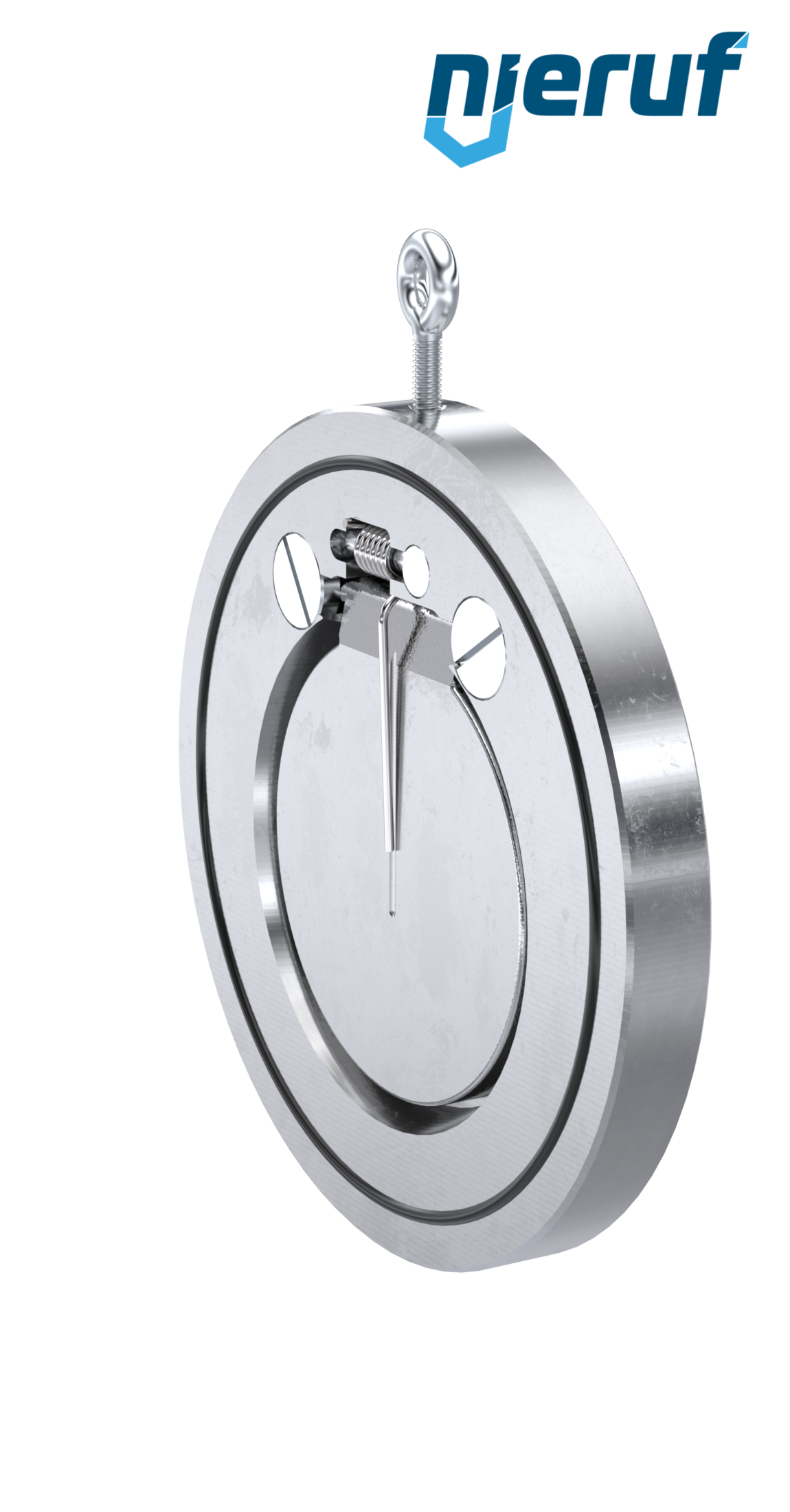

swing check valve with spring DN100 ZR03 steel 1.0460 / A 105, zinc plated EPDM
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Equipment
joint set swing check valve/flange DN100 - 4" Inch for flange PN10/16 steel
€23.80 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
swing check valve with spring DN100 PN 10/16 DIN EN 1092-1 Form B made of steel 1.0460 / A 105, zinc plated seal EPDM
| product: | swing check valve with spring |
|---|---|
| type: | ZR03 |
| manufacturer: | NieRuf |
| design: | swing check valve |
| diameter: | DN100 |
| body material: | steel 1.0460 / A 105, zinc plated |
| disc material: | steel A 216 WCB / A 105, zinc plated |
| seal: | EPDM |
| temperature: | -10°C up to +150°C |
| connection: | flange |
| flange: | PN 10/16 DIN EN 1092-1 Form B |
| pressure range: | 0 - 16 bar |
| media: | liquid and gaseous media |
| tightness acc. to DIN EN 12266: | leak rate A |
| option: | with spring made of stainless steel |
| installation position: | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature: | short face to face |
