FL06020105
Threaded flange DN25 PN16/40 EN1092-1 13 B1 C22.8 / P250GH bare
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

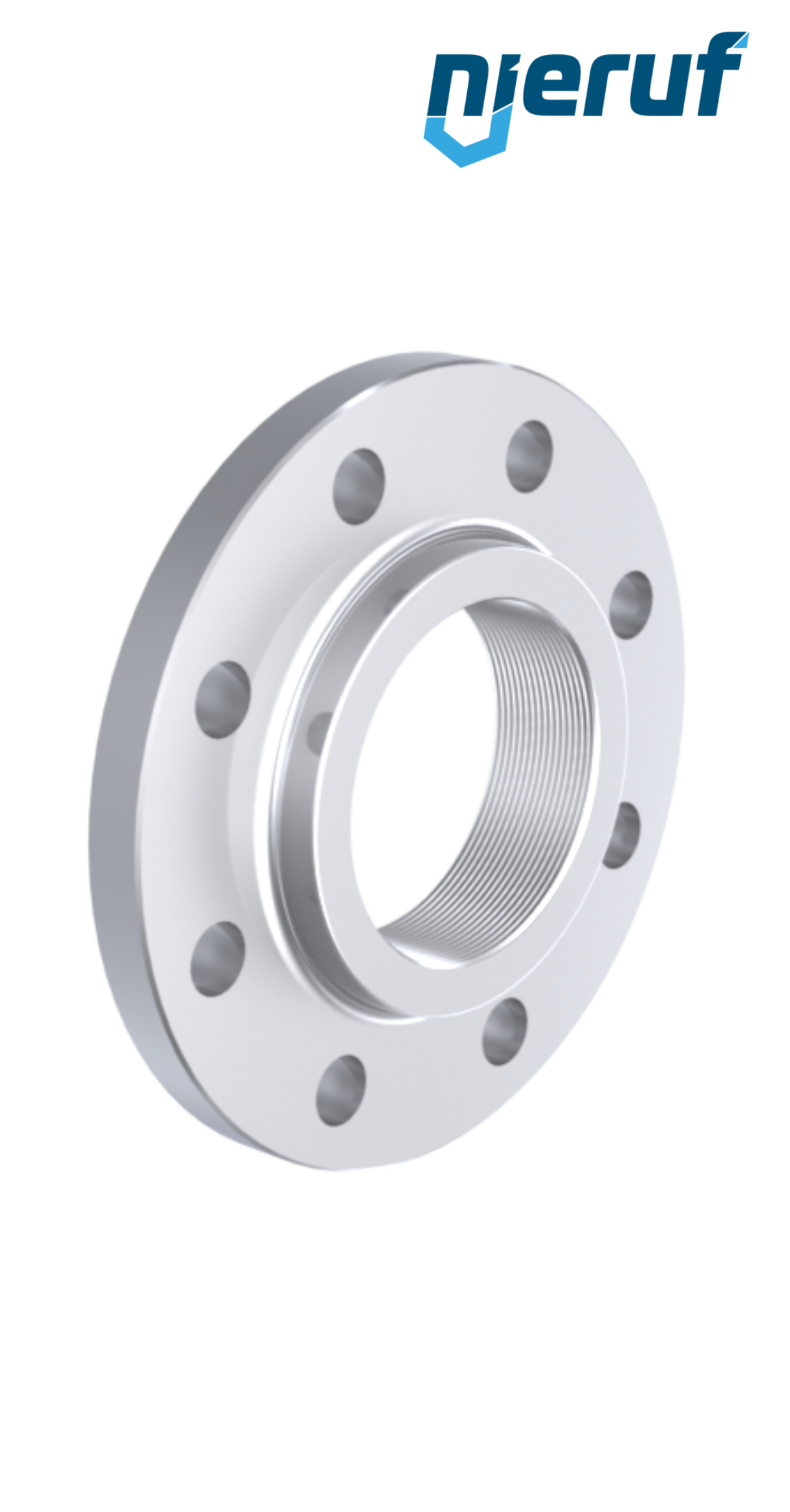

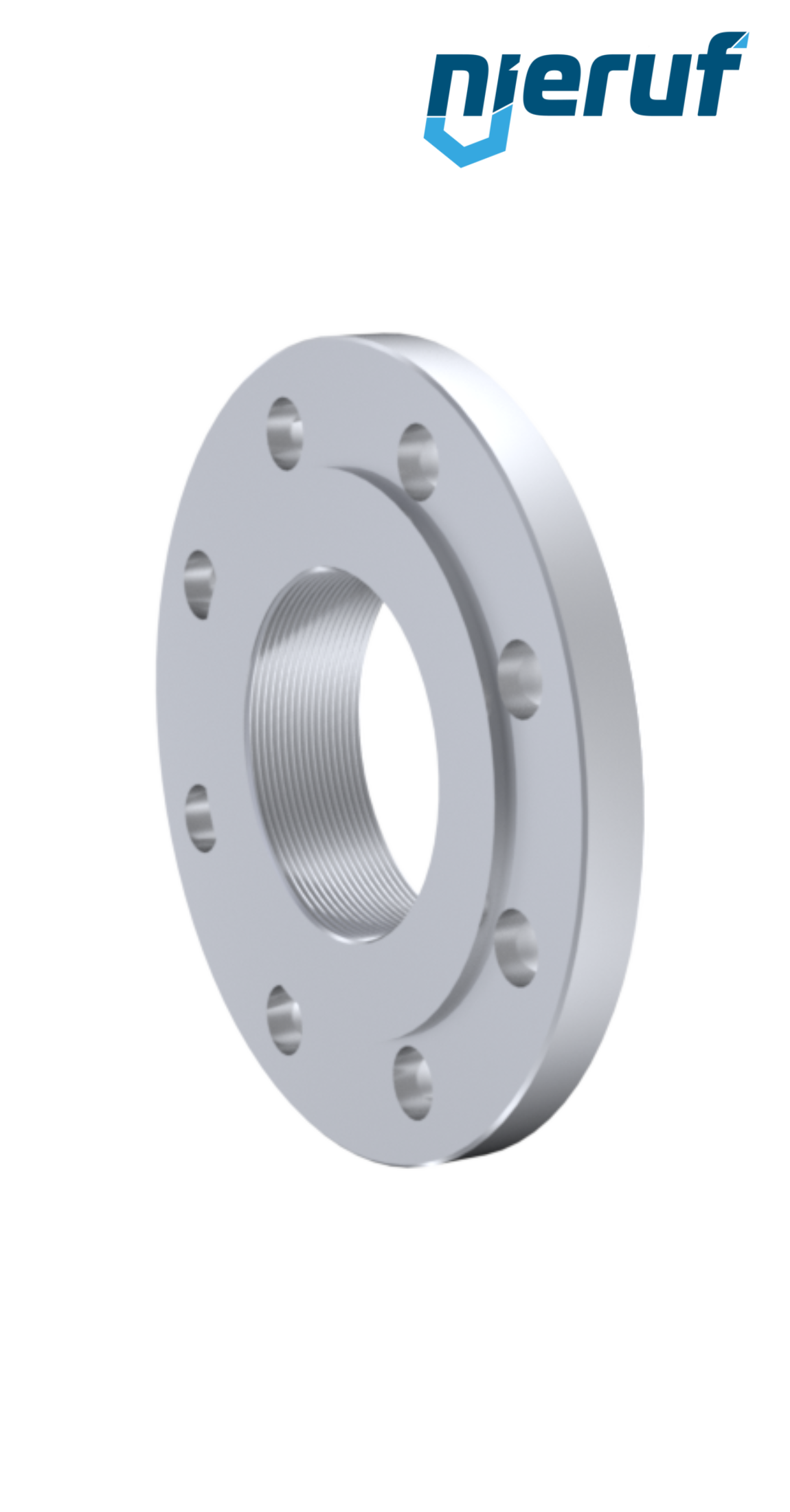

Threaded flange made of steel C22.8 / P250GH bare DN25 flange according DIN PN16/40 EN1092-1 Typ 13 B1
| product: | Threaded flange |
|---|---|
| type: | FL06 |
| manufacturer: | NieRuf |
| diameter: | DN25 |
| connection: | PN16/40 |
| material: | steel |
| material nr.: | C22.8 / P250GH bare |
| norm: | EN1092-1 |
| norm-type: | 13 |
| surface: | B1 |
| Design: | Threaded flange with projection |
| pipe thread: | 1" inch |

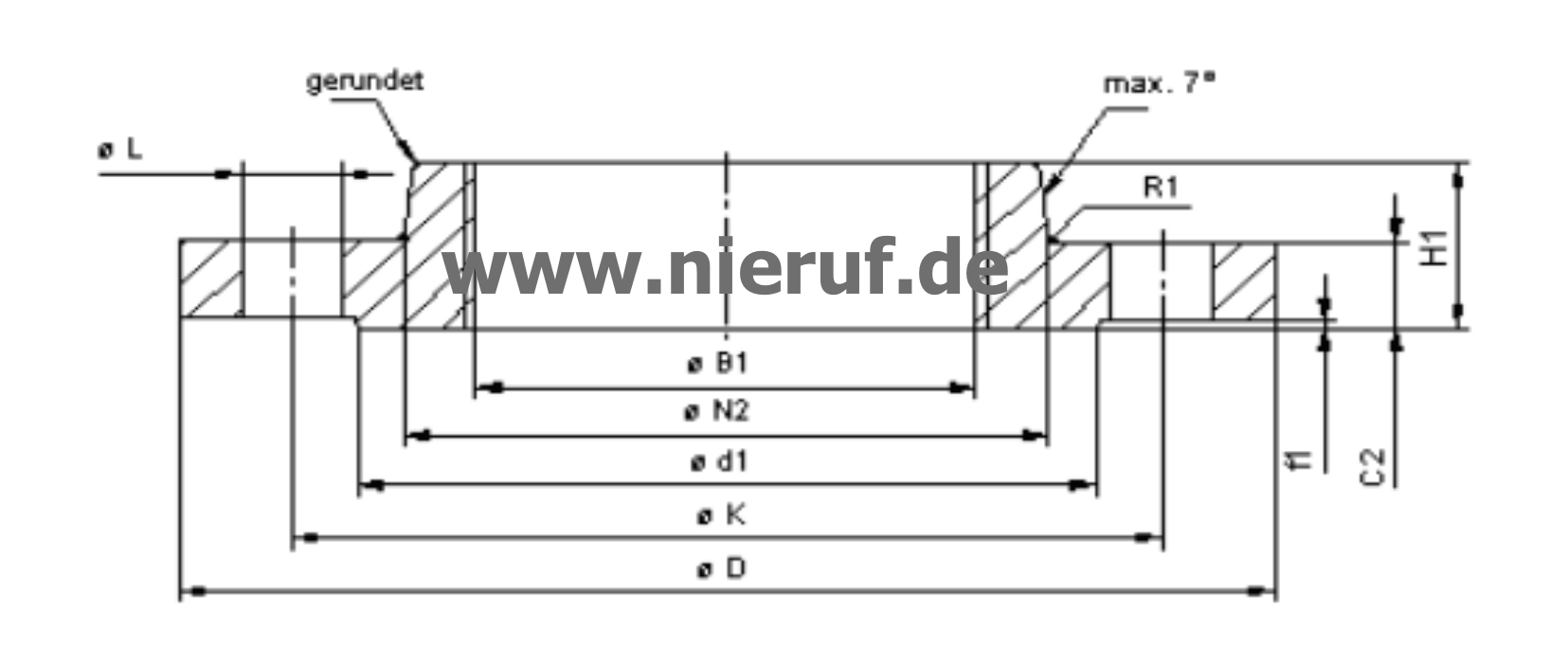

| D: | 115 |
| C2: | 18 |
| K: | 85 |
| H1: | 28 |
| N2: | 52 |
| R1: | 4 |
| d1: | 68 |
| f1: | 2 |
| screw: | M12 |
| Qty. Screws: | 4 |
| L: | 14 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Threaded flange DN25 PN16/40 EN1092-1 13 B1 C22.8 / P250GH bare
Article no.
: FL06020105
product:
Threaded flange
type:
FL06
manufacturer:
NieRuf
diameter:
DN25
connection:
PN16/40
material:
steel
material nr.:
C22.8 / P250GH bare
norm:
EN1092-1
norm-type:
13
surface:
B1
Design:
Threaded flange with projection
pipe thread:
1" inch
D:
115
C2:
18
K:
85
H1:
28
N2:
52
R1:
4
d1:
68
f1:
2
screw:
M12
Qty. Screws:
4
L:
14
€2.26 VAT included.
€4.28 VAT included.
€14.28 VAT included.
€6.66 VAT included.
€28.92 VAT included.
€11.78 VAT included.
