FK08000009

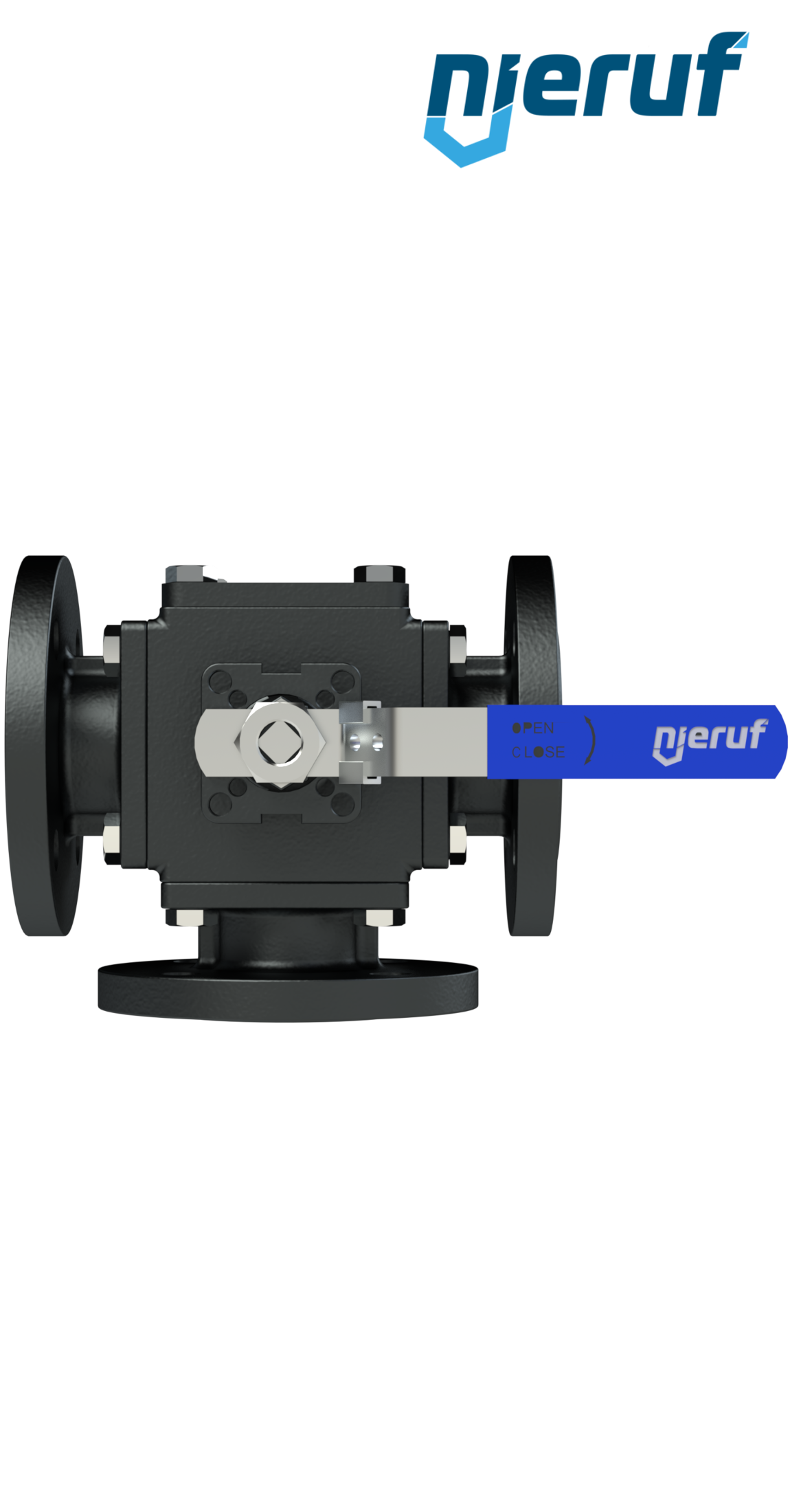

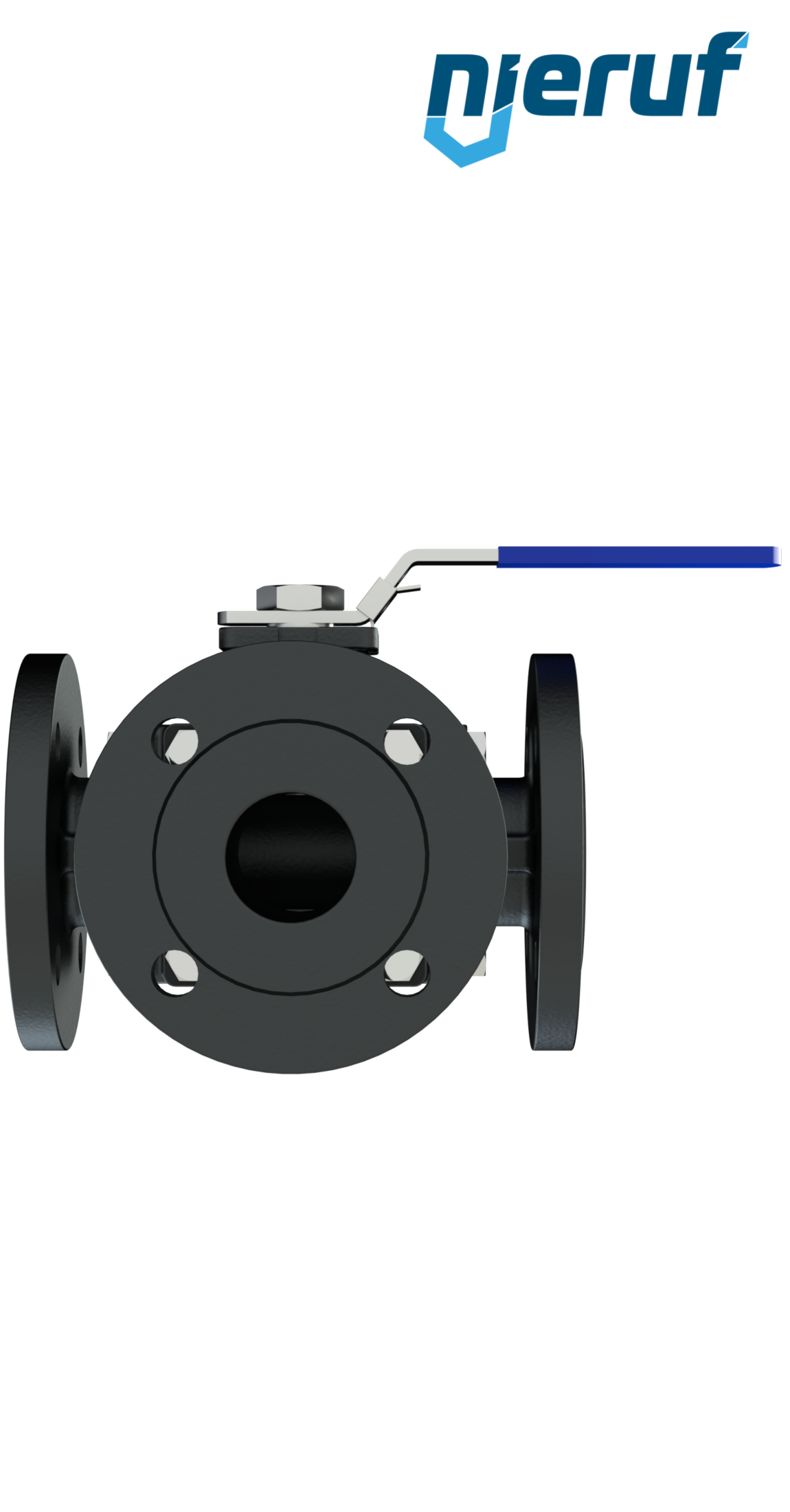

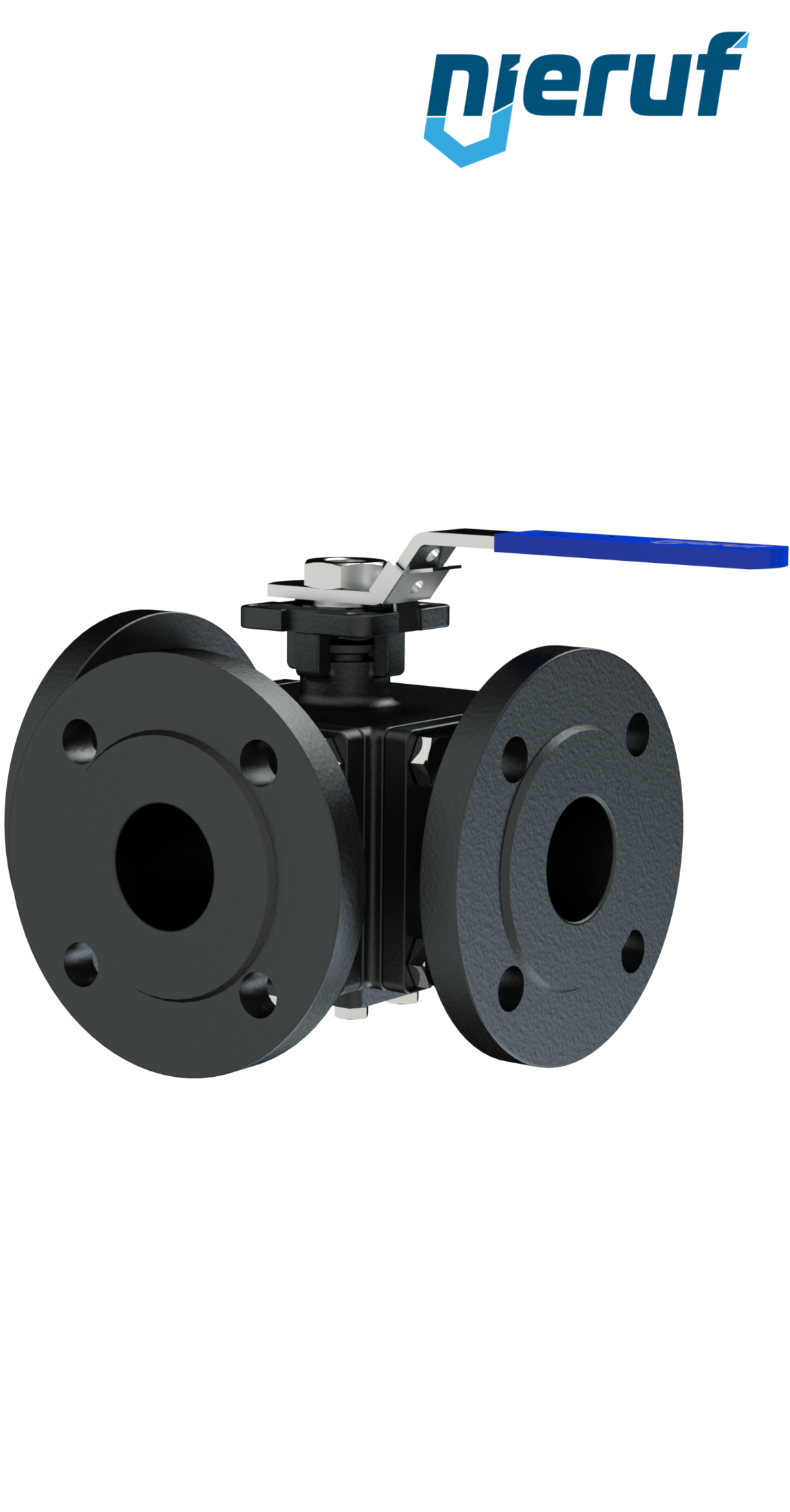

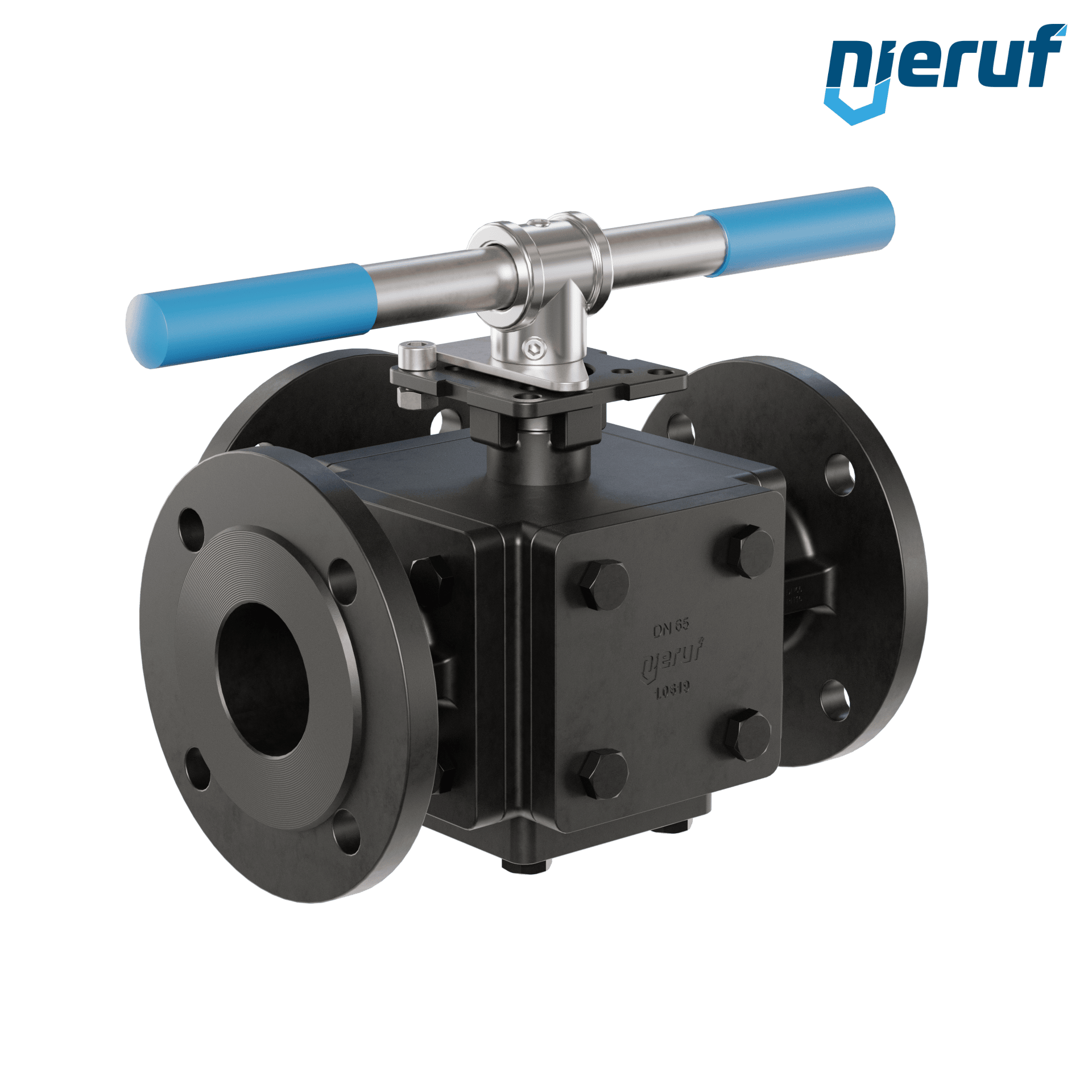

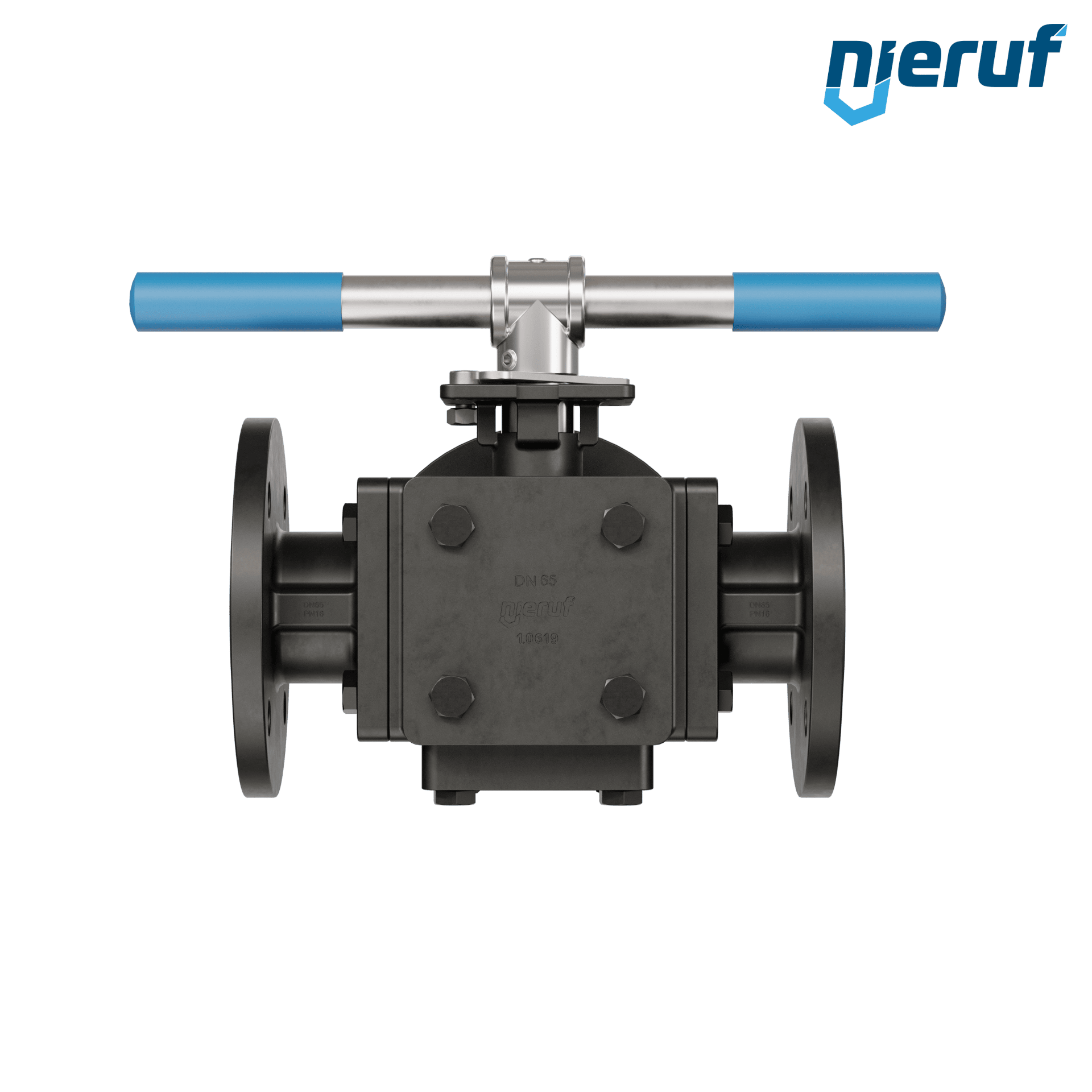

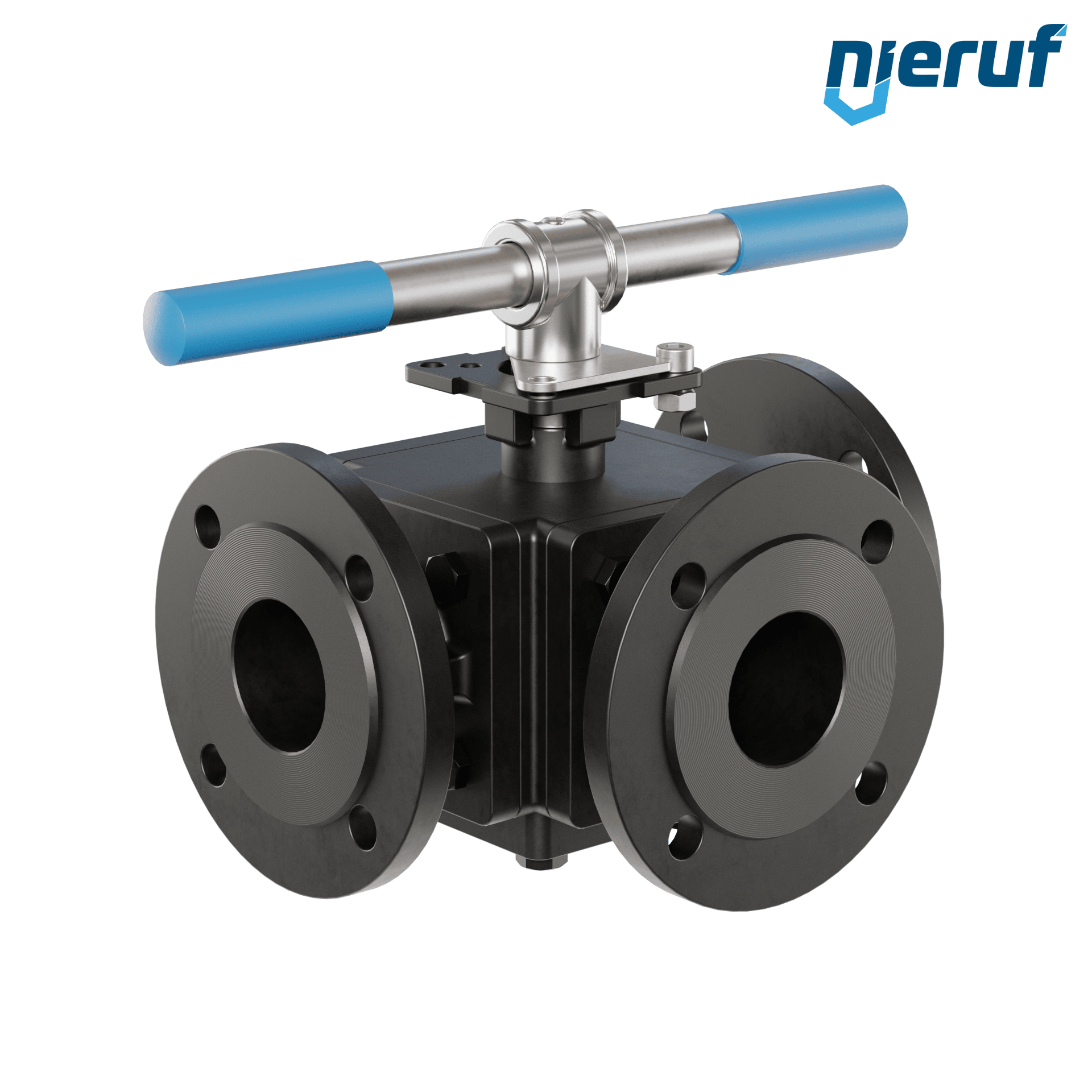

Three-way flange ball valve DN65 FK08 T drilling carbon steel 1.0619
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
€8.09 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Three-way flange ball valve DN65 PN16 FK08 body carbon steel 1.0619 ball carbon steel 1.4308 seal TFM 1600 / PTFE T drilling
| product: | Three-way flange ball valve |
|---|---|
| type: | FK08 |
| manufacturer: | NieRuf |
| diameter: | DN65 |
| connection: | flange dimensions acc. to DIN EN 1092-1 |
| Seal steam: | O-ring Viton |
| ball seal: | TFM 1600 / PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN16 |
| design: | T drilling |
| body material: | carbon steel 1.0619 |
| ball material: | carbon steel 1.4308 |
| length: | 290mm |
| actuator: | hand lever with blue plastic cover |
| installation position: | any position |
| authorized for: | TA Luft |
| product description: | This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Three-way flange ball valve DN65 FK08 T drilling carbon steel 1.0619
Article no.
: FK08000009
product:
Three-way flange ball valve
type:
FK08
manufacturer:
NieRuf
diameter:
DN65
connection:
flange dimensions acc. to DIN EN 1092-1
Seal steam:
O-ring Viton
ball seal:
TFM 1600 / PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
T drilling
body material:
carbon steel 1.0619
ball material:
carbon steel 1.4308
length:
290mm
actuator:
hand lever with blue plastic cover
installation position:
any position
authorized for:
TA Luft
product description:
This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3
