PF01020104.1

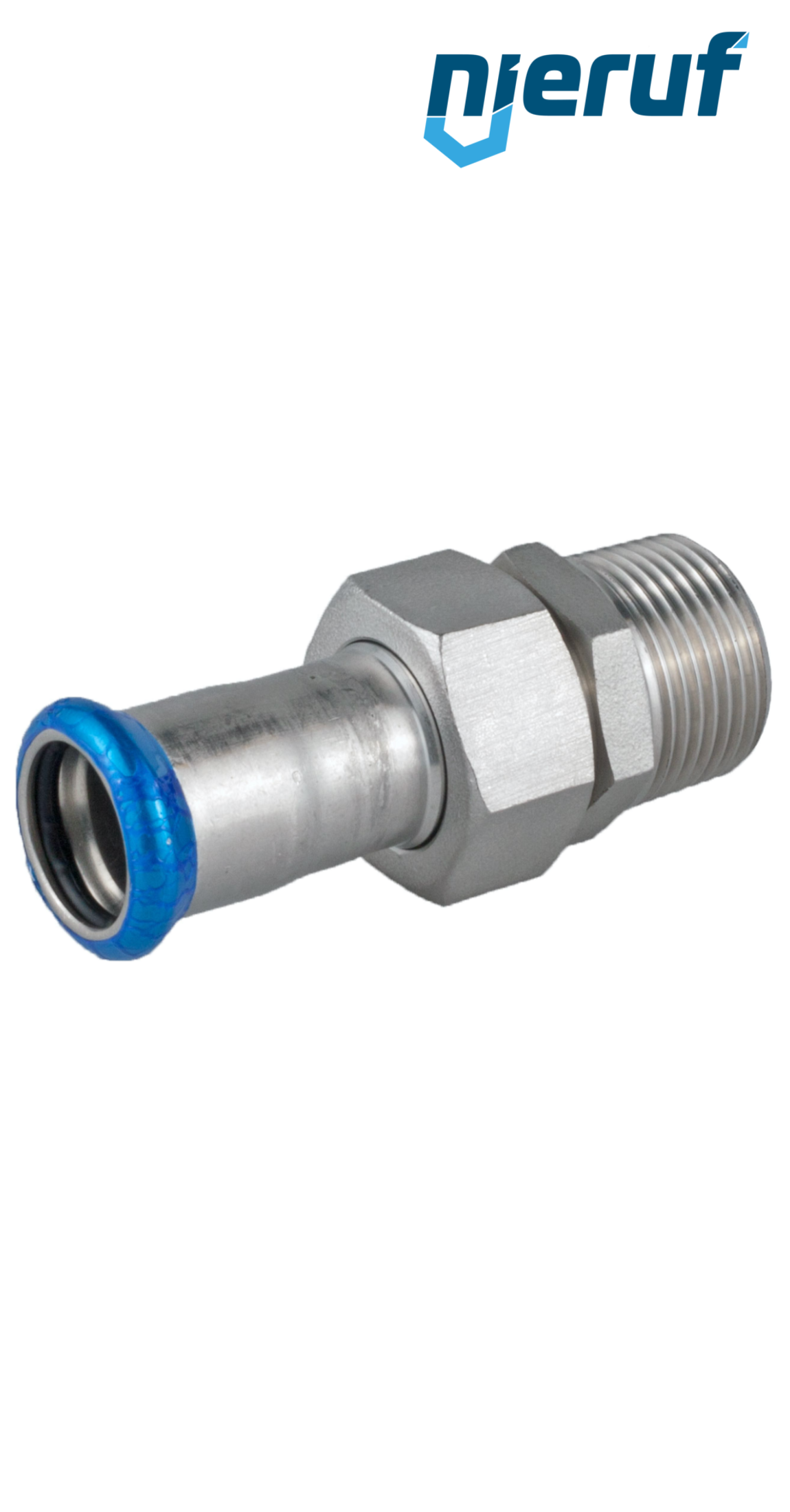

Union Coupling Pressfitting F DN20 - 22,0 mm male thread 1/2" inch stainless steel
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you
Union Coupling PF01-02 with press connection F DN20 - 22,0 mm, male thread 1/2" inch made of stainless steel for liquid and gaseous media
| product: | Union Coupling |
|---|---|
| type: | PF01-02 |
| manufacturer: | NieRuf |
| diameter 1: | DN20 - 22,0 mm |
| connection 1: | F |
| diameter 2: | 1/2" inch |
| connection 2: | male thread |
| Contour: | M-Contour |
| thread: | acc. to DIN EN 10226-1 |

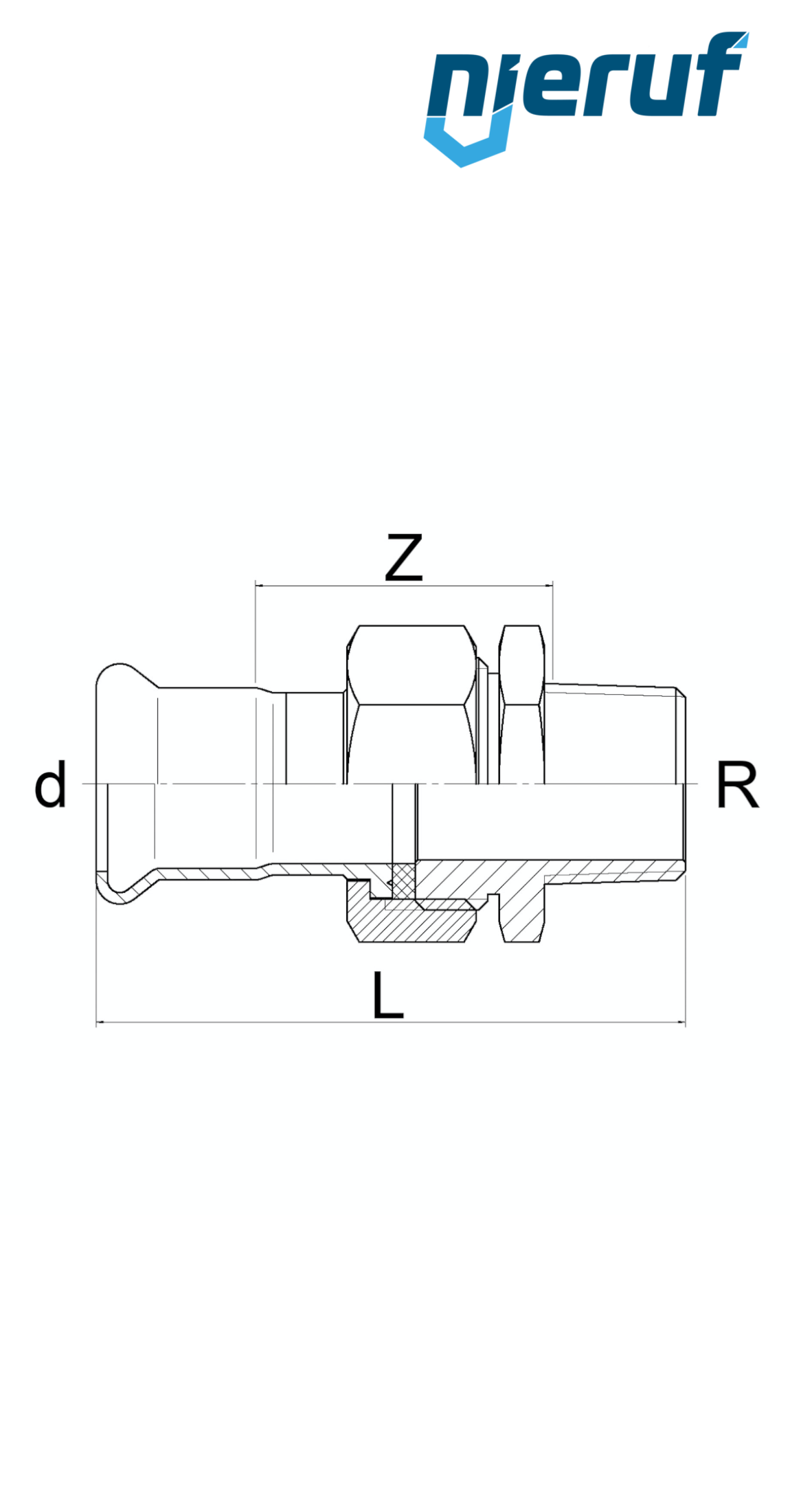

| d: | 22,0 |
| L: | 76,0 |
| Z: | 38,0 |
| R: | 1/2" |
| max. working pressure: | 16 bar at +20°C |
| material: | stainless steel 316 L |
| certification: | DVGW-drinking water |
| product feature 1: | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2: | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Union Coupling Pressfitting F DN20 - 22,0 mm male thread 1/2" inch stainless steel
Article no.
: PF01020104.1
product:
Union Coupling
type:
PF01-02
manufacturer:
NieRuf
diameter 1:
DN20 - 22,0 mm
connection 1:
F
diameter 2:
1/2" inch
connection 2:
male thread
Contour:
M-Contour
thread:
acc. to DIN EN 10226-1
d:
22,0
L:
76,0
Z:
38,0
R:
1/2"
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
