PK07010011

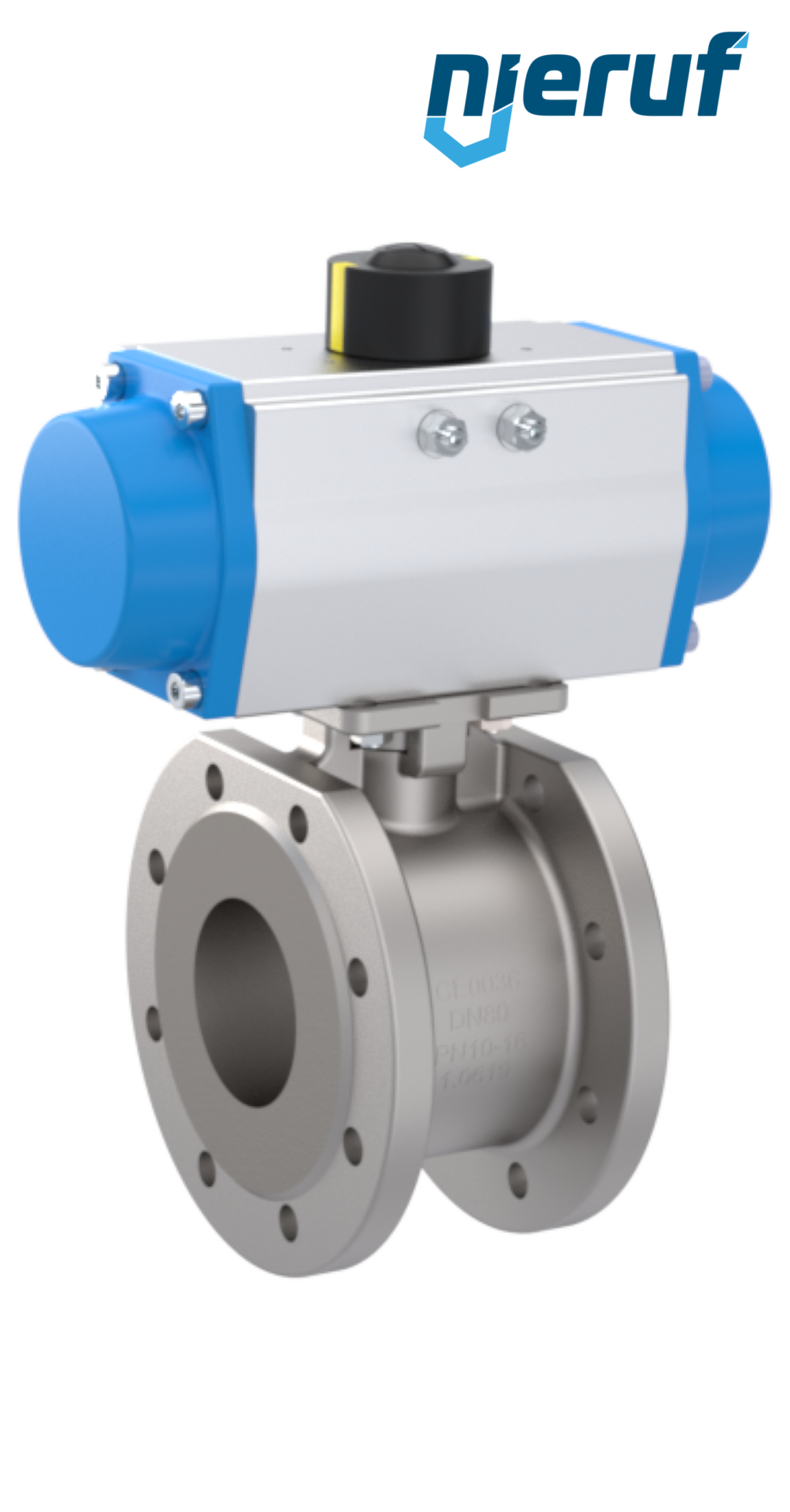

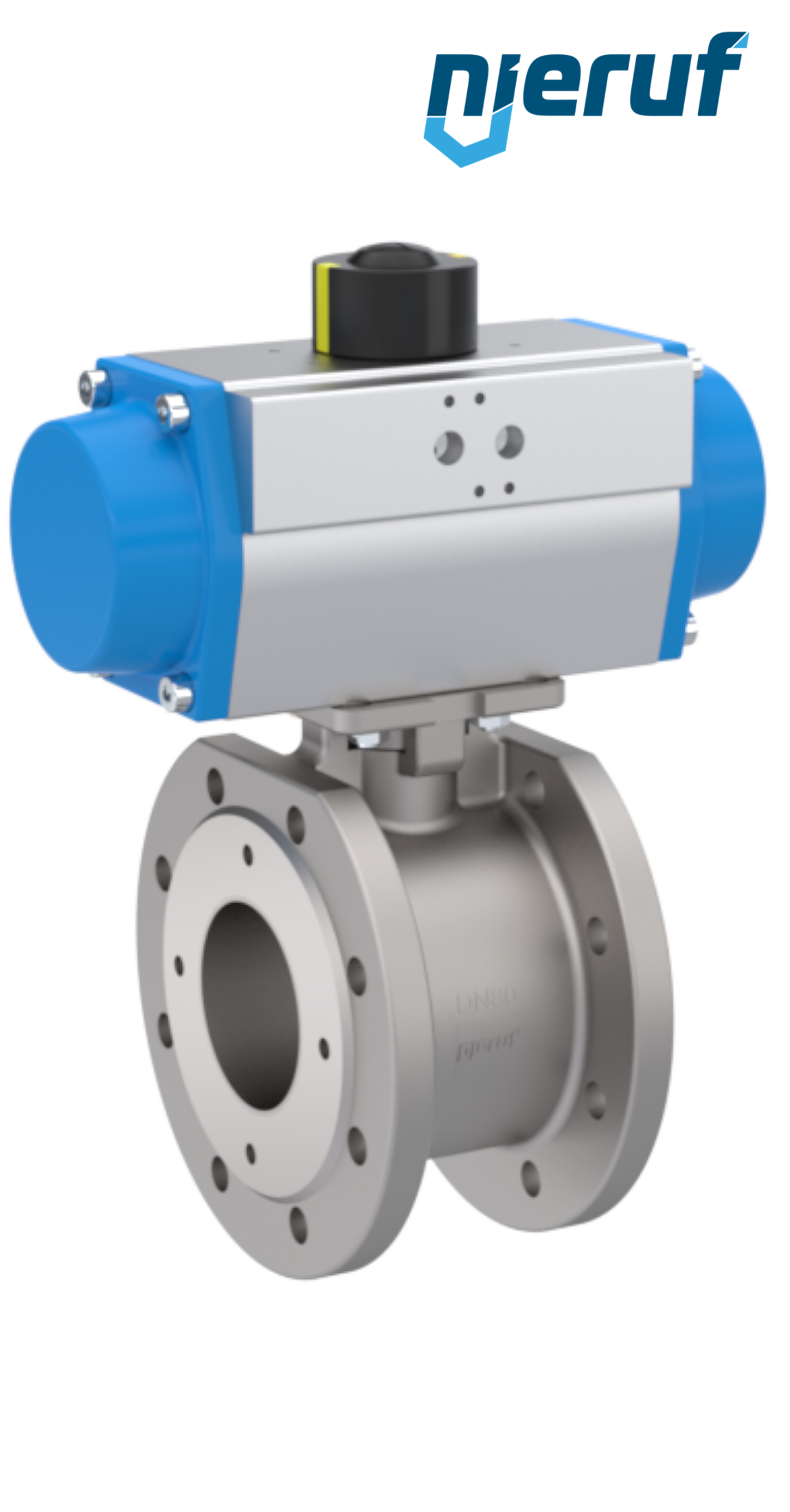

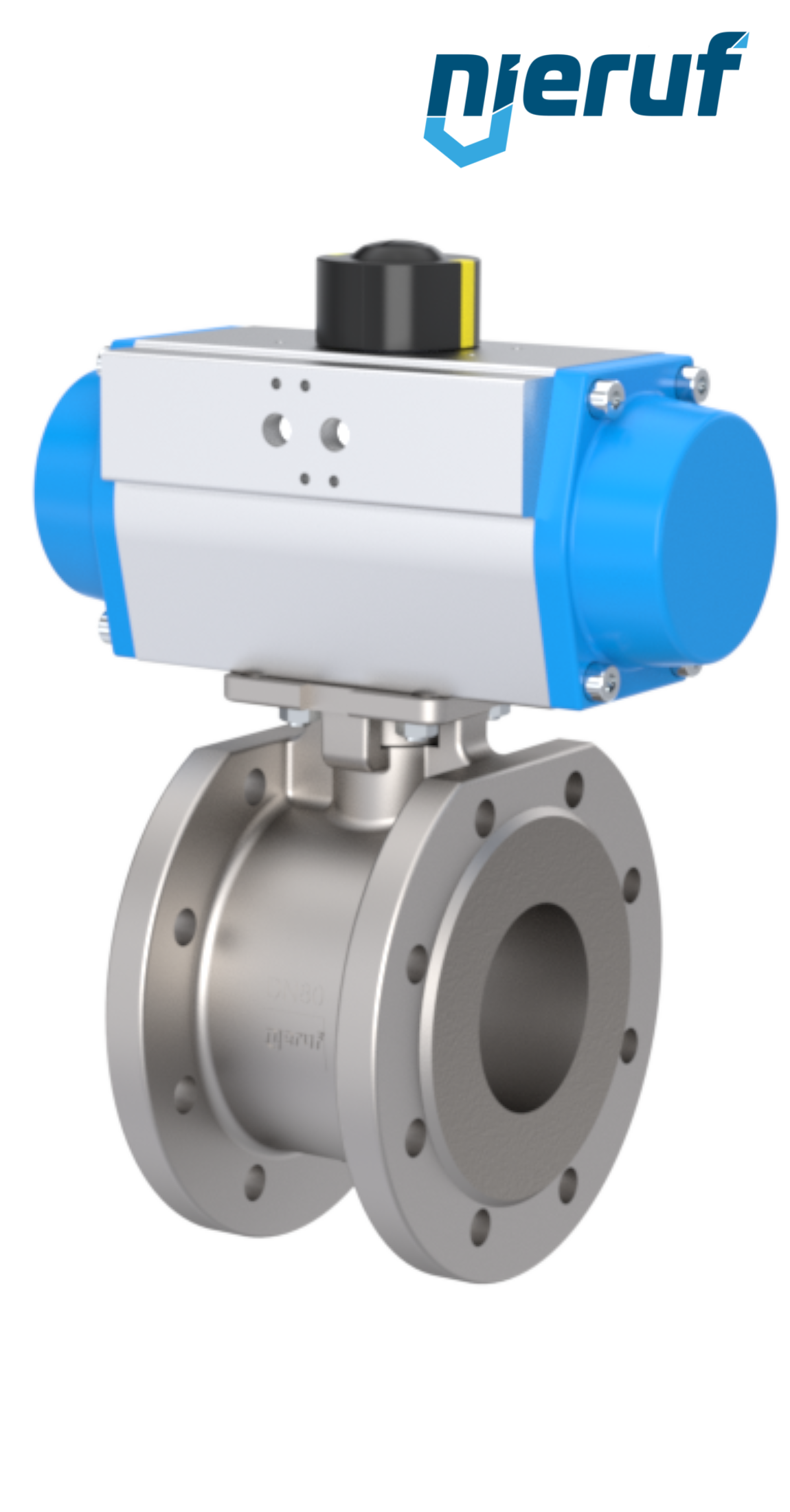

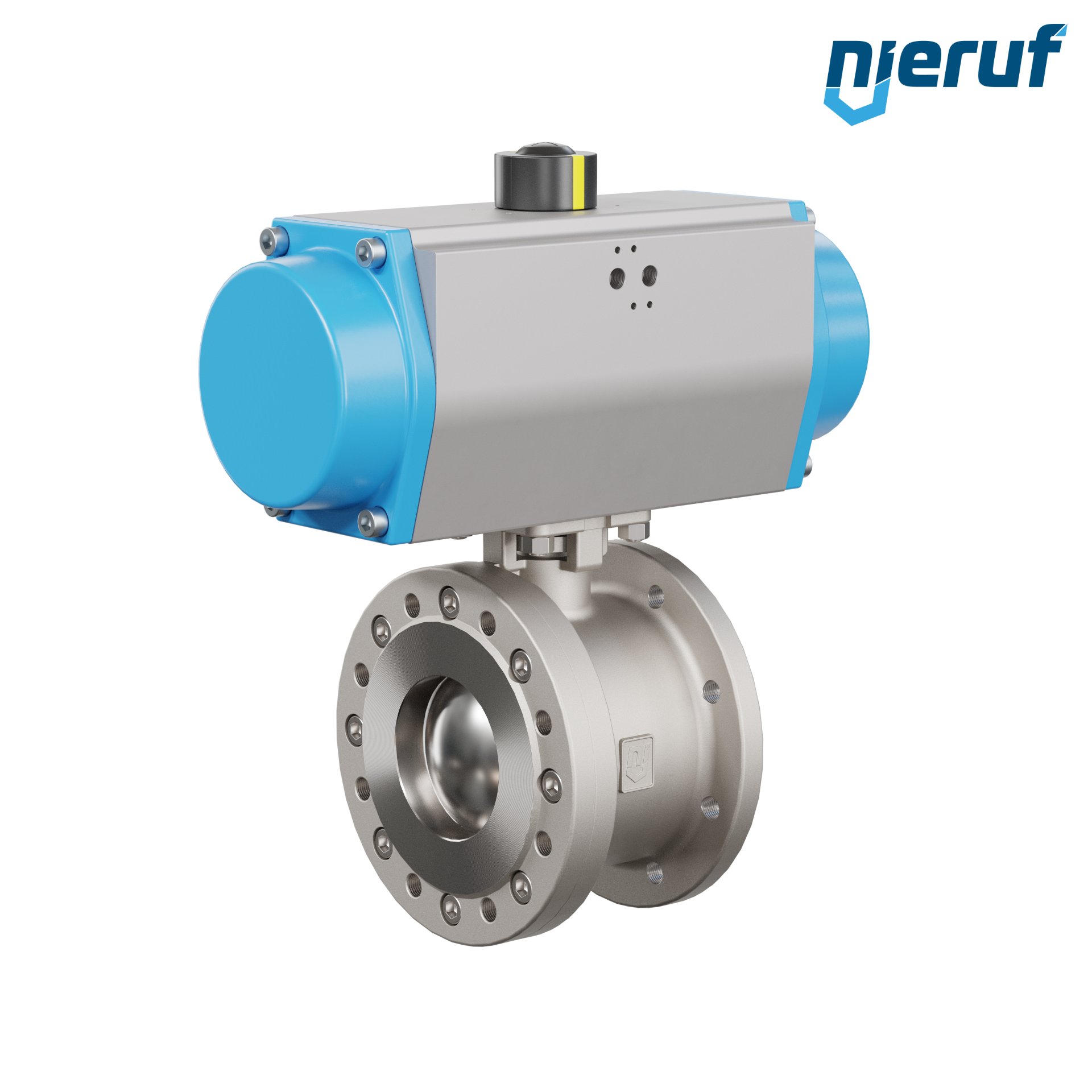

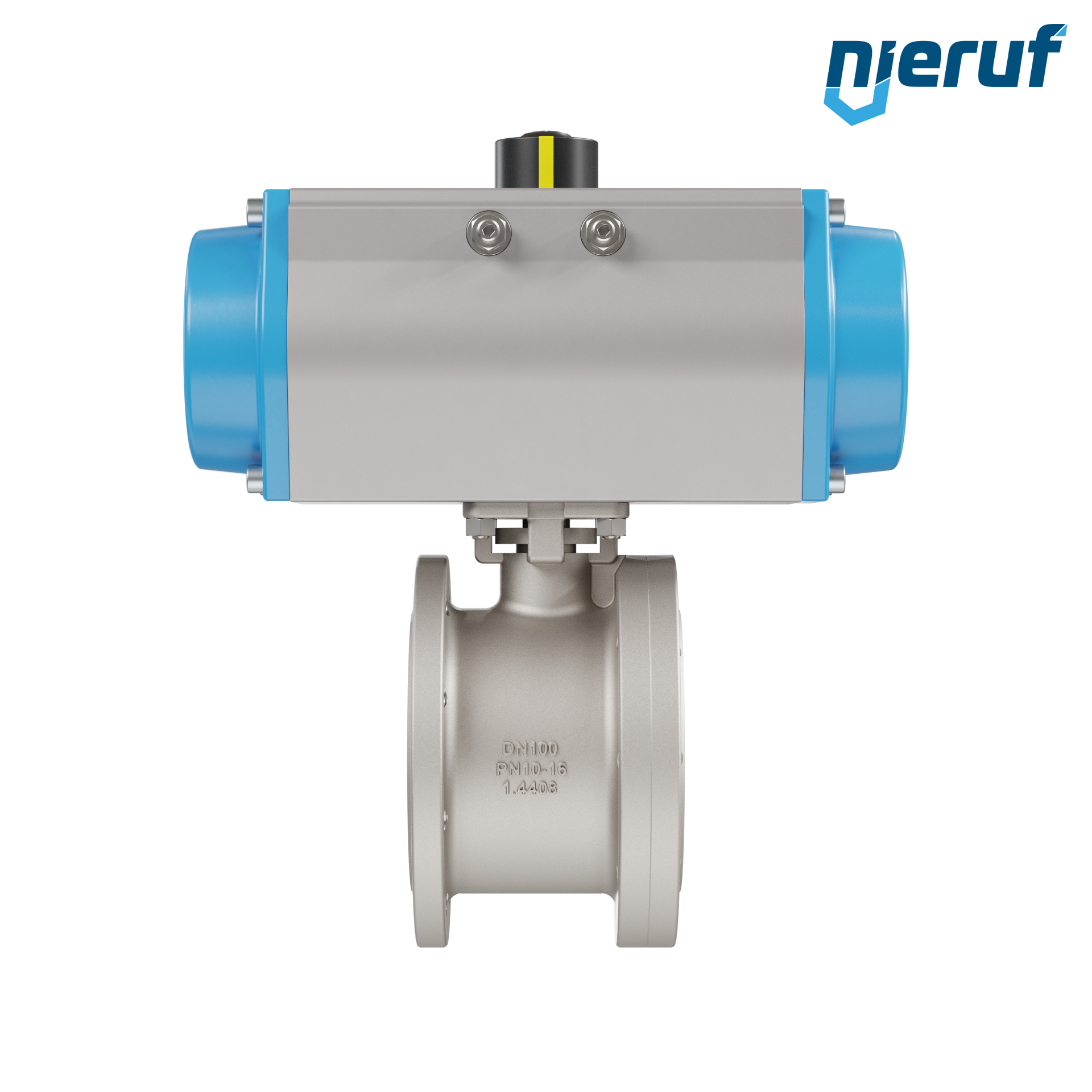

automatic-flange stainless steel ball valve DN100 PK07 pneumatic actuator single acting
Delivery time: 3 - 5 working days
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
automatic-flange stainless steel ball valve DN100 stainless steel 1.4408 PK07 pneumatic actuator GS143 made of aluminium (mode of function: GS = single acting)
| product: | automatic-flange stainless steel ball valve |
|---|---|
| type: | PK07 |
| manufacturer: | NieRuf |
| diameter: | DN100 - 4" inch |
| connection: | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam: | PTFE |
| media: | liquid and gaseous media |
| temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure: | PN16 |
| design: | automatic-flange ball valve with pneumatic actuator (single acting normally closed) |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4408 |
| ball seal: | PTFE + TFM |
| length: | 150mm |
| actuator: | pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting - normally closed) |
| actuator informations: | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for: | TA Luft |
| product description: | This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange stainless steel ball valve DN100 PK07 pneumatic actuator single acting
Article no.
: PK07010011
product:
automatic-flange stainless steel ball valve
type:
PK07
manufacturer:
NieRuf
diameter:
DN100 - 4" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
design:
automatic-flange ball valve with pneumatic actuator (single acting normally closed)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE + TFM
length:
150mm
actuator:
pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.
