PK07000003

automatic-flange stainless steel ball valve DN15 PK07 pneumatic actuator double acting

€177.60*

€211.34 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Monday, 23. December

Guaranteed delivery until Tuesday, 24. December, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

NA02010001

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC

€44.40*

€52.84 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€70.80*

€84.25 VAT included.


VS01000103

joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel

€4.00*

€4.76 VAT included.


FD01000103

flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: PK07000003

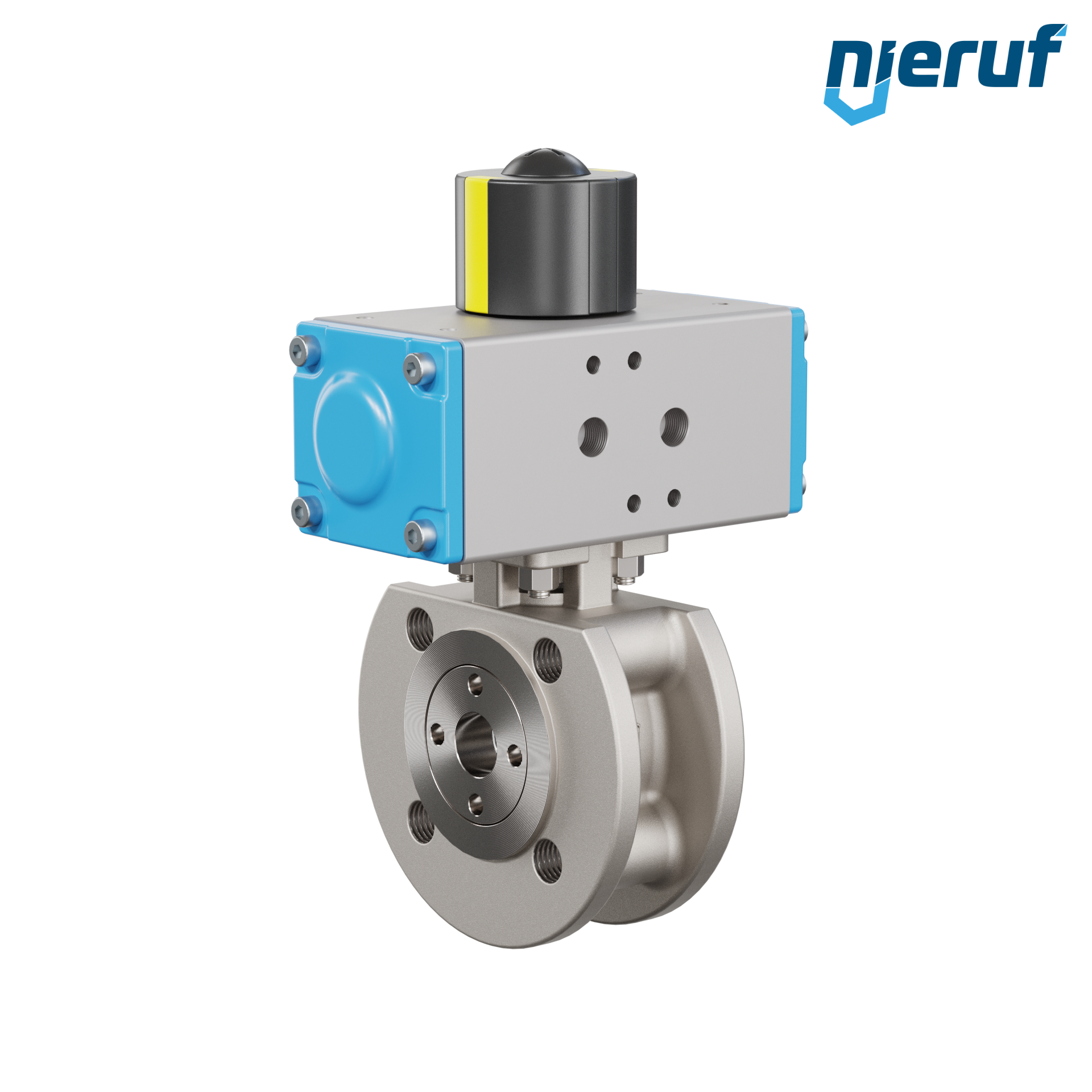

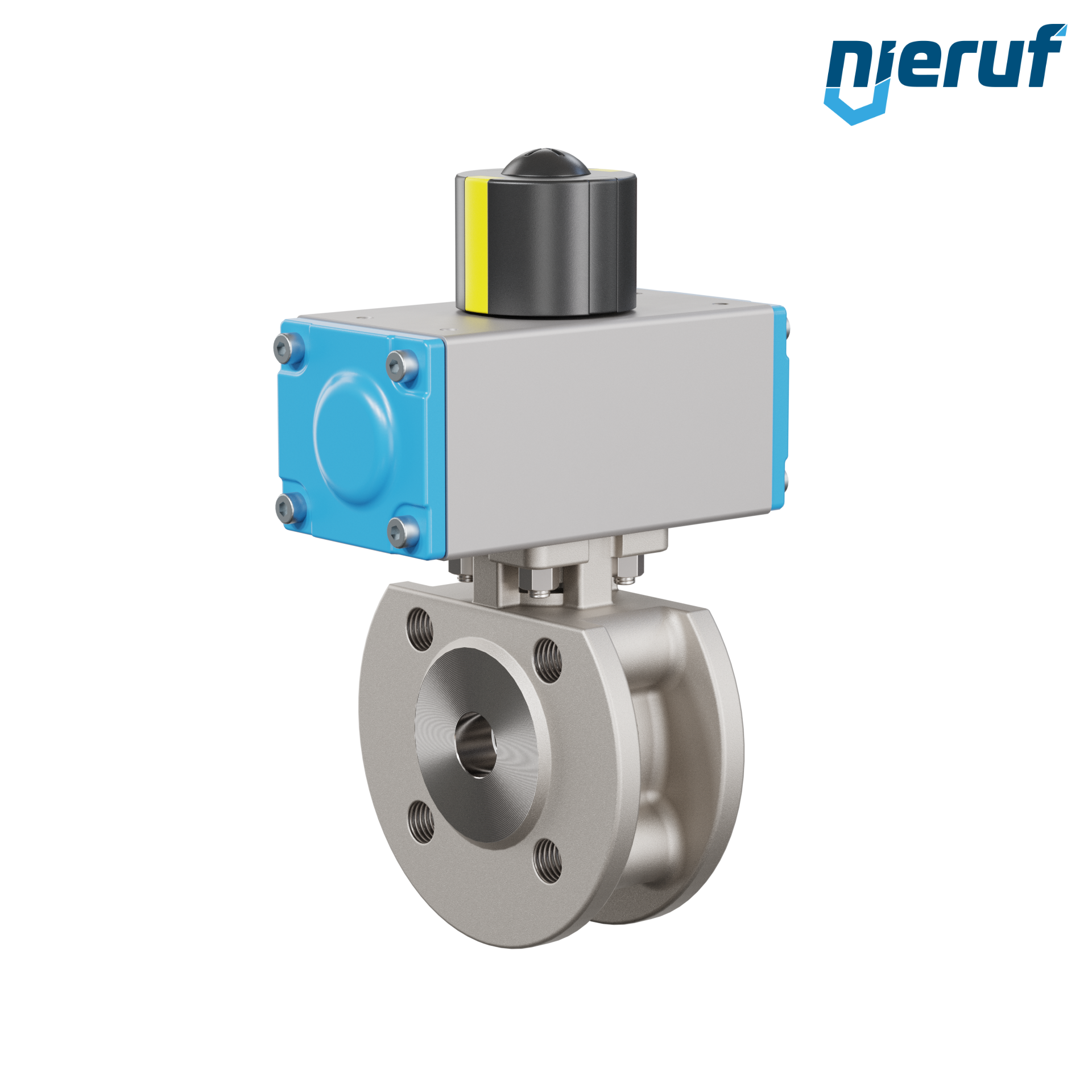

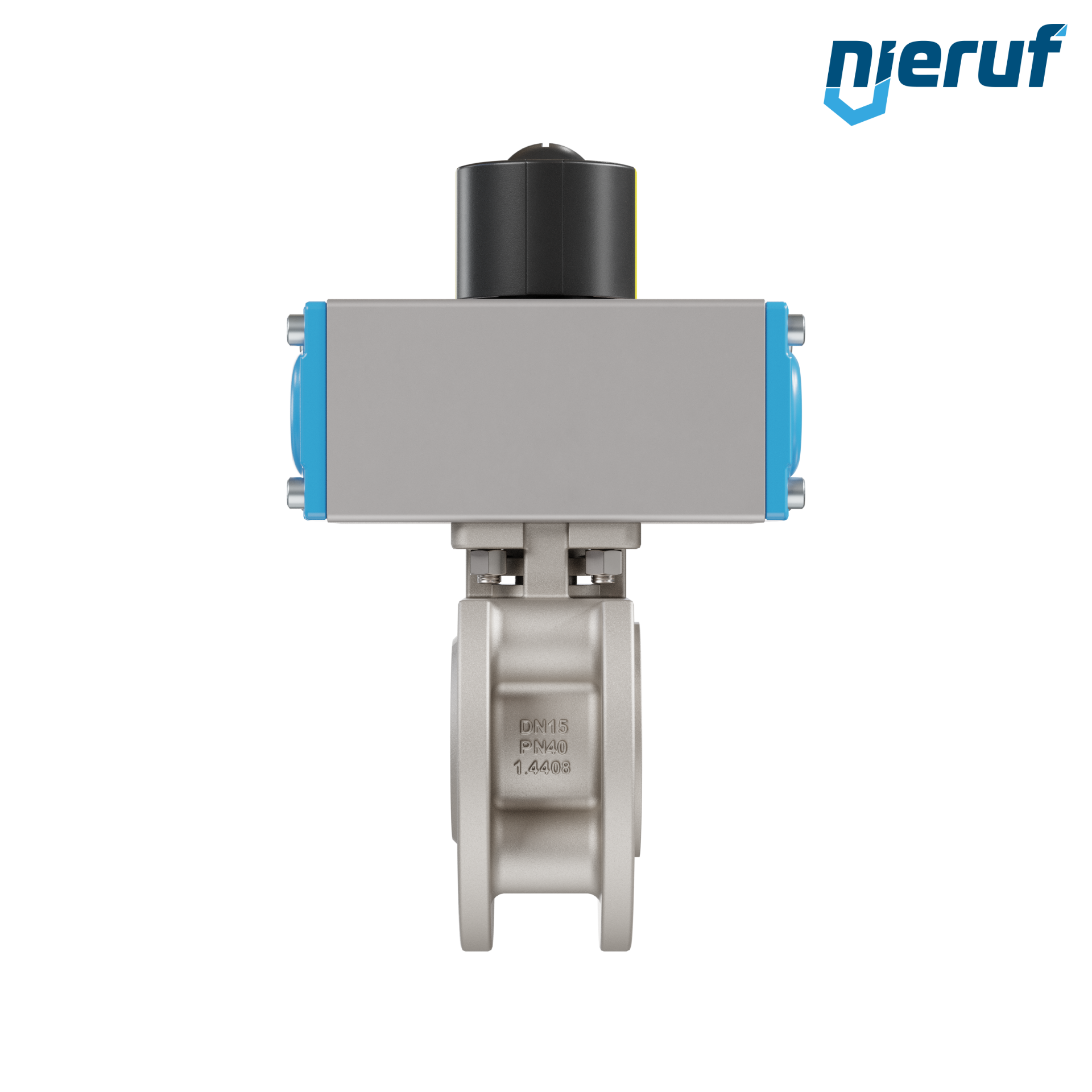

automatic-flange stainless steel ball valve DN15 PK07 pneumatic actuator double acting

automatic-flange stainless steel ball valve DN15 stainless steel 1.4408 PK07 pneumatic actuator GD48 made of aluminium (mode of function: GD = double acting)

product: automatic-flange stainless steel ball valve
type: PK07
manufacturer: NieRuf
diameter: DN15 - 1/2" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: automatic-flange ball valve with pneumatic actuator (double acting)
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE + TFM
length: 42mm
actuator: pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic-flange stainless steel ball valve DN15 PK07 pneumatic actuator double acting

Article no. : PK07000003
product: automatic-flange stainless steel ball valve
type: PK07
manufacturer: NieRuf
diameter: DN15 - 1/2" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: automatic-flange ball valve with pneumatic actuator (double acting)
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE + TFM
length: 42mm
actuator: pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible.

No spare parts were found for the item number .
