GK16010004
ball diverter valve DN15 - 1/2" inch GK16 L Drilling inlet female thread 3/4" inch
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you

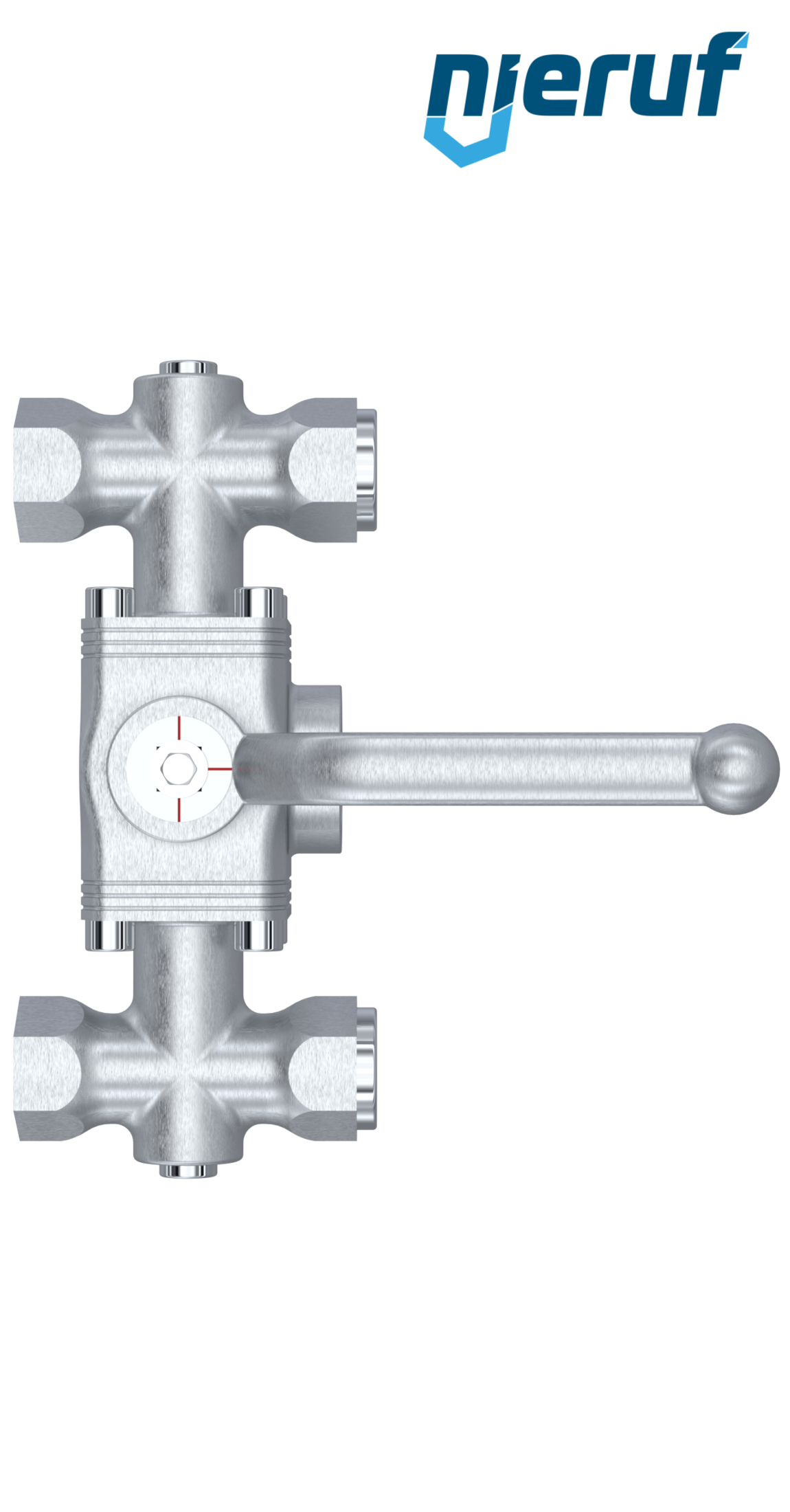

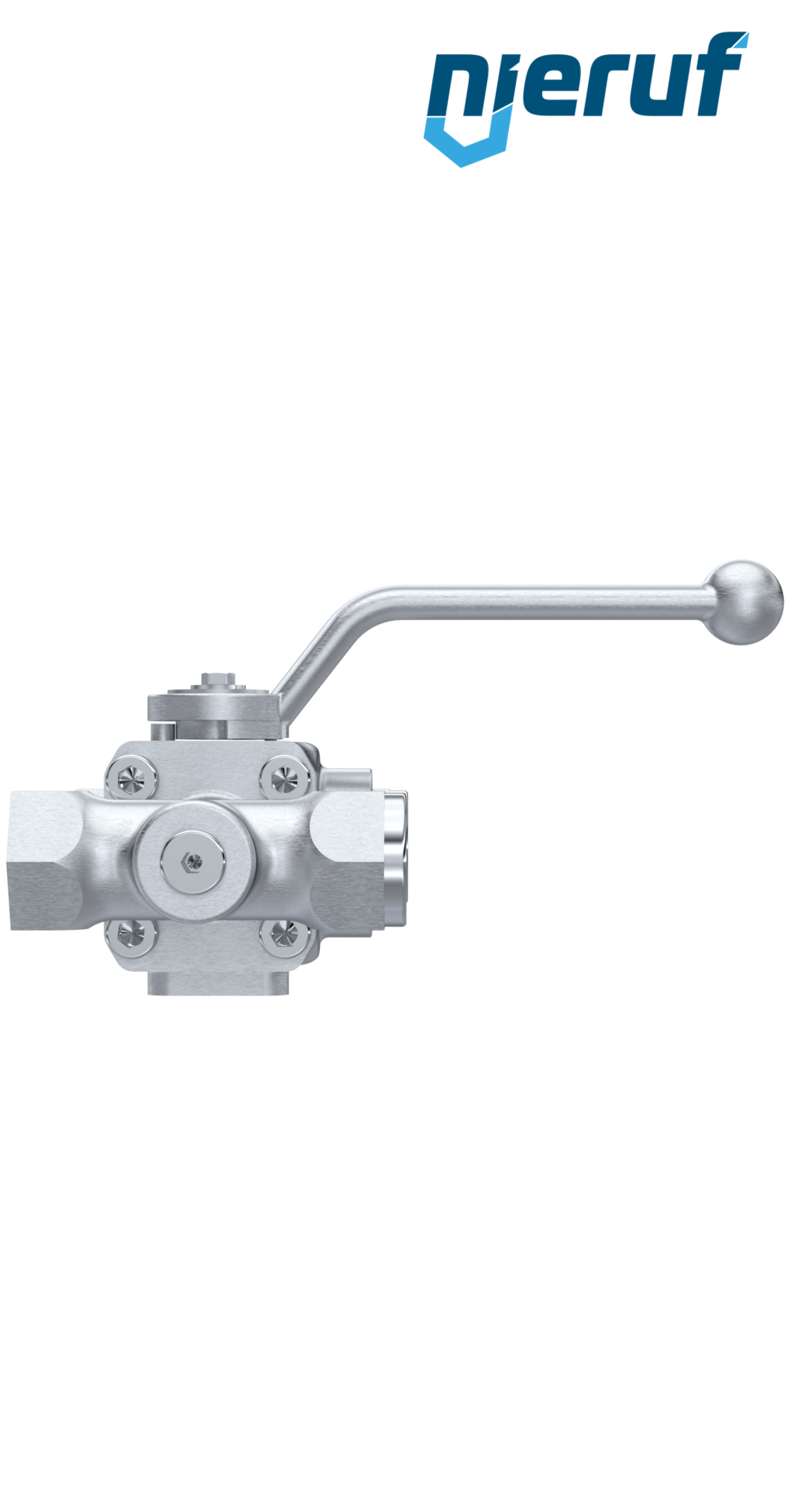

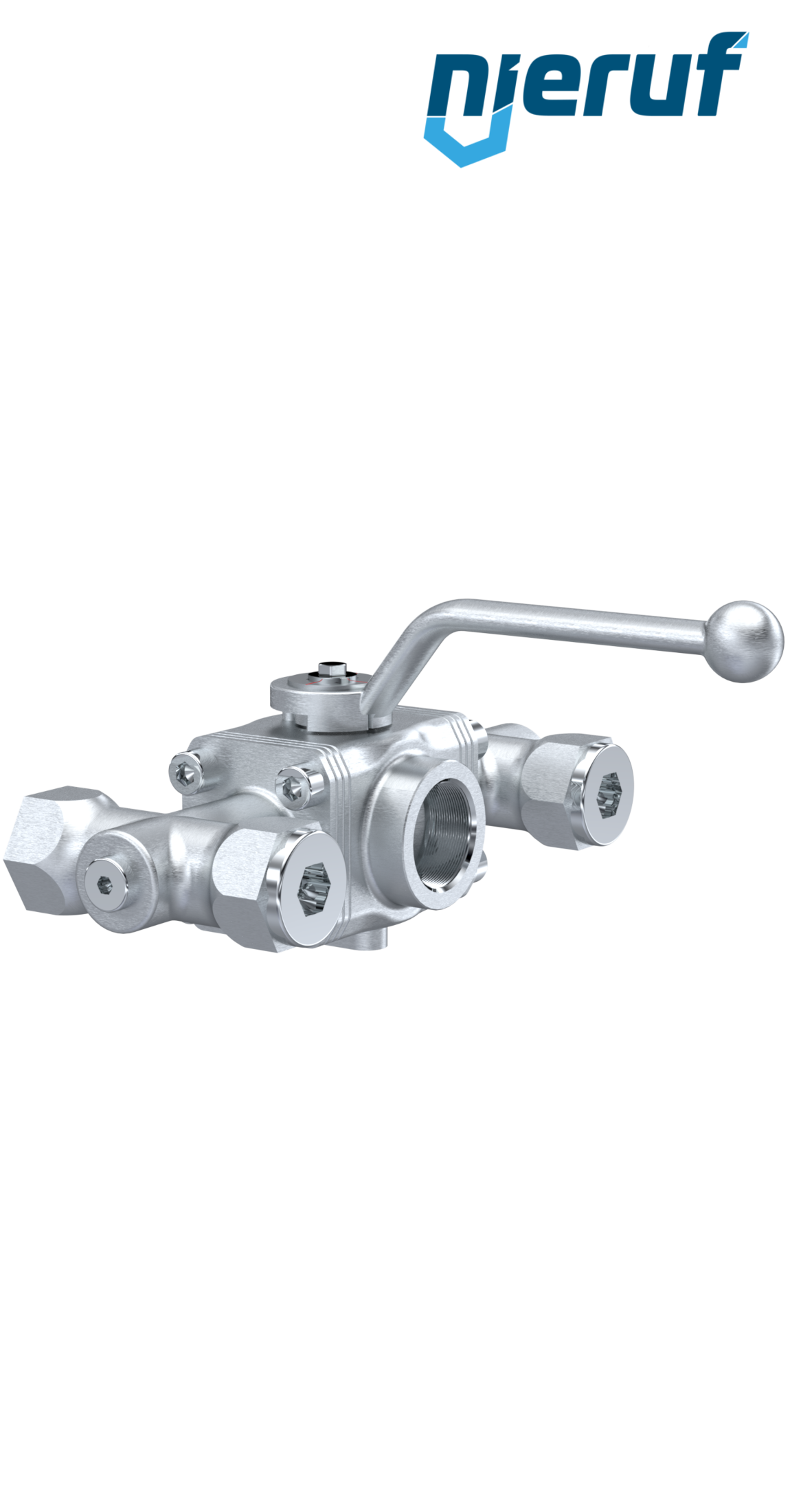

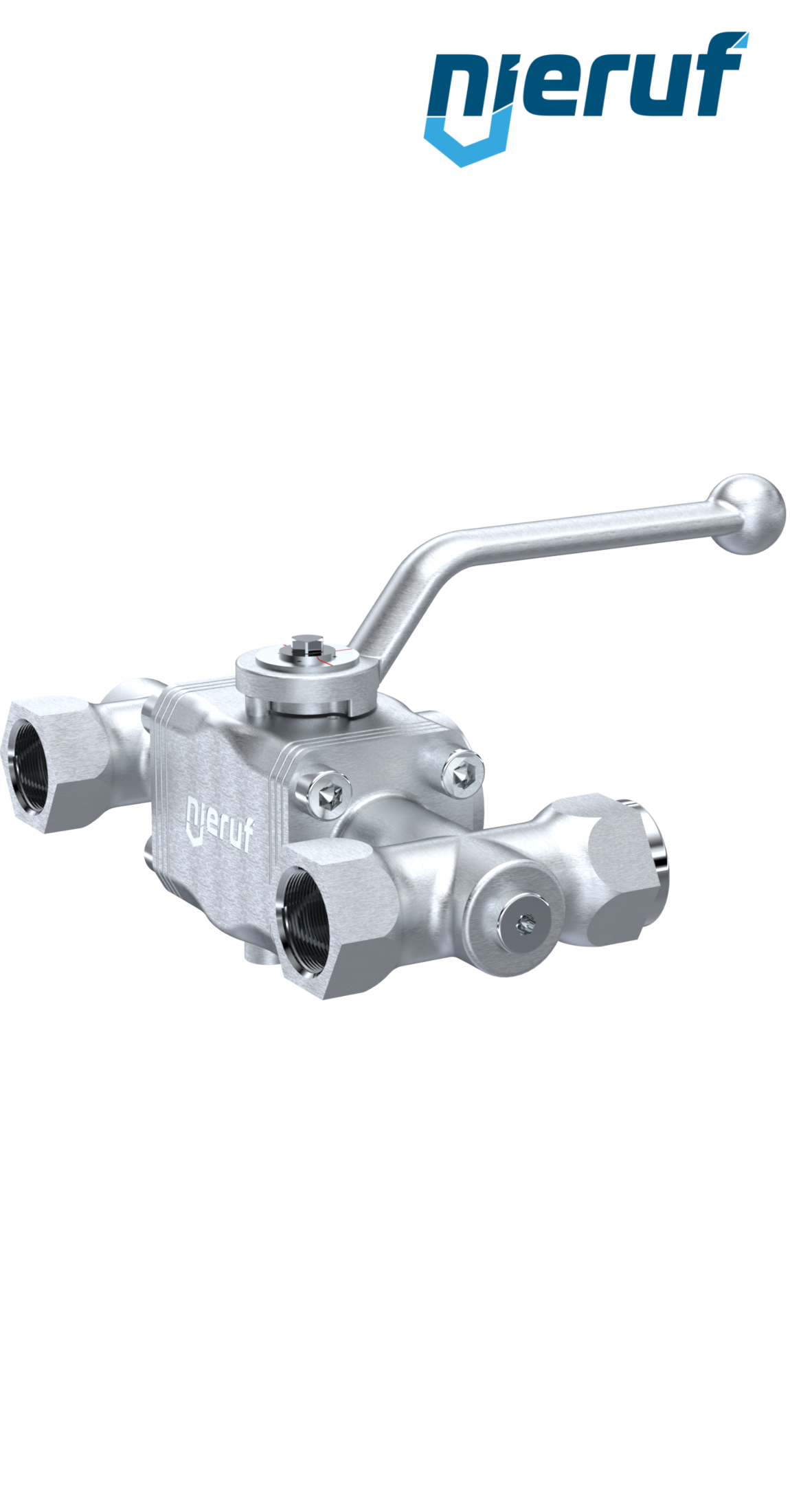

ball diverter valve DN15 - 1/2" inch stainless steel 1.4408 GK16 lever L Drilling for liquid, gaseous media & cryogenic liquified gases
| product: | ball diverter valve |
|---|---|
| type: | GK16 |
| manufacturer: | NieRuf |
| diameter: | DN15 - 1/2" inch |
| connection: | female thread 3/4" inch |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid, gaseous media & cryogenic liquified gases |
| temperature: | -200°C up to +120°C - depending on working pressure and media |
| max. pressure: | PN63 |
| design: | L Drilling |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4404 |
| length: | 198mm |
| actuator: | lever |
| actuator informations: | connection inlet 3/4" DN20, outlet 1/2" DN15 |
| installation position: | To ensure the proper function of the ball diverter valves, they must be installed in such a manner that prevents impermissible static, dynamic or thermal loads from acting. |
| product description: | Ball diverter valve with threaded connection made of stainless steel for the installation of two safety valves for the protection of containers designed for the storage of cryogenic gases. With L drilling. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball diverter valve DN15 - 1/2" inch GK16 L Drilling inlet female thread 3/4" inch
Article no.
: GK16010004
product:
ball diverter valve
type:
GK16
manufacturer:
NieRuf
diameter:
DN15 - 1/2" inch
connection:
female thread 3/4" inch
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid, gaseous media & cryogenic liquified gases
temperature:
-200°C up to +120°C - depending on working pressure and media
max. pressure:
PN63
design:
L Drilling
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4404
length:
198mm
actuator:
lever
actuator informations:
connection inlet 3/4" DN20, outlet 1/2" DN15
installation position:
To ensure the proper function of the ball diverter valves, they must be installed in such a manner that prevents impermissible static, dynamic or thermal loads from acting.
product description:
Ball diverter valve with threaded connection made of stainless steel for the installation of two safety valves for the protection of containers designed for the storage of cryogenic gases. With L drilling.
€2.38 VAT included.
