GK16000004
ball diverter valve DN15 - 1/2" inch GK16 T Drilling inlet female thread 3/4" inch
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you

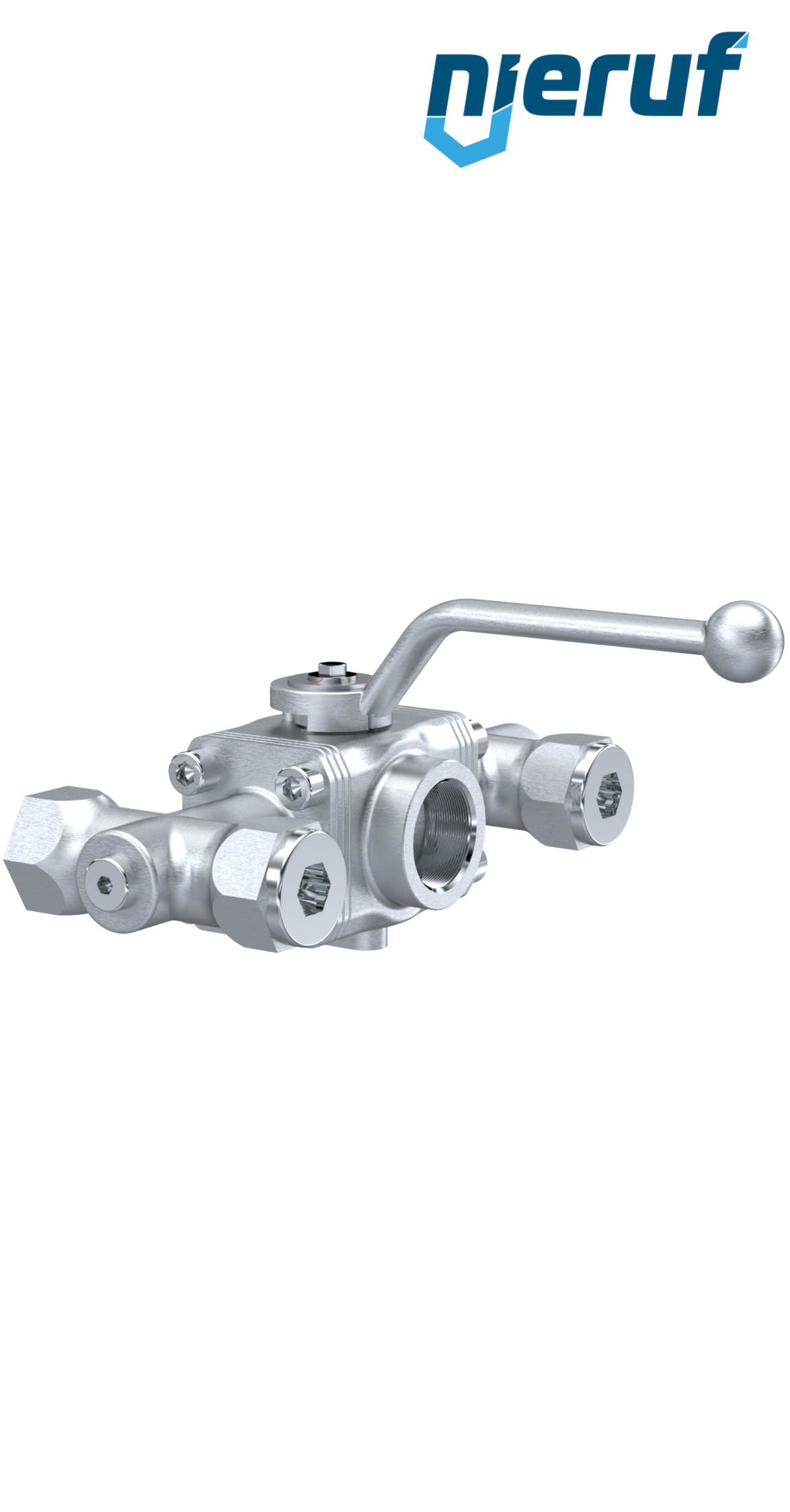

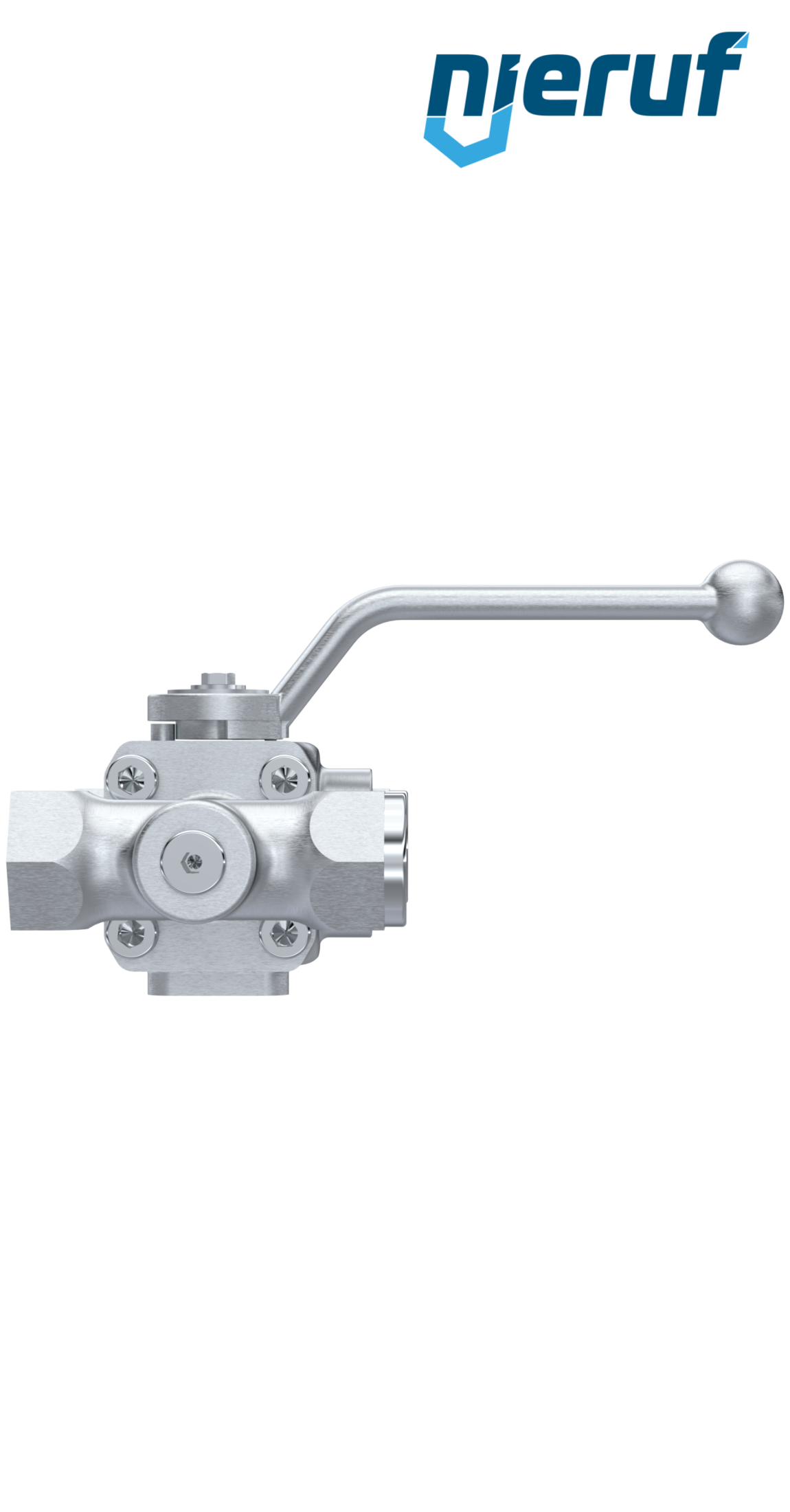

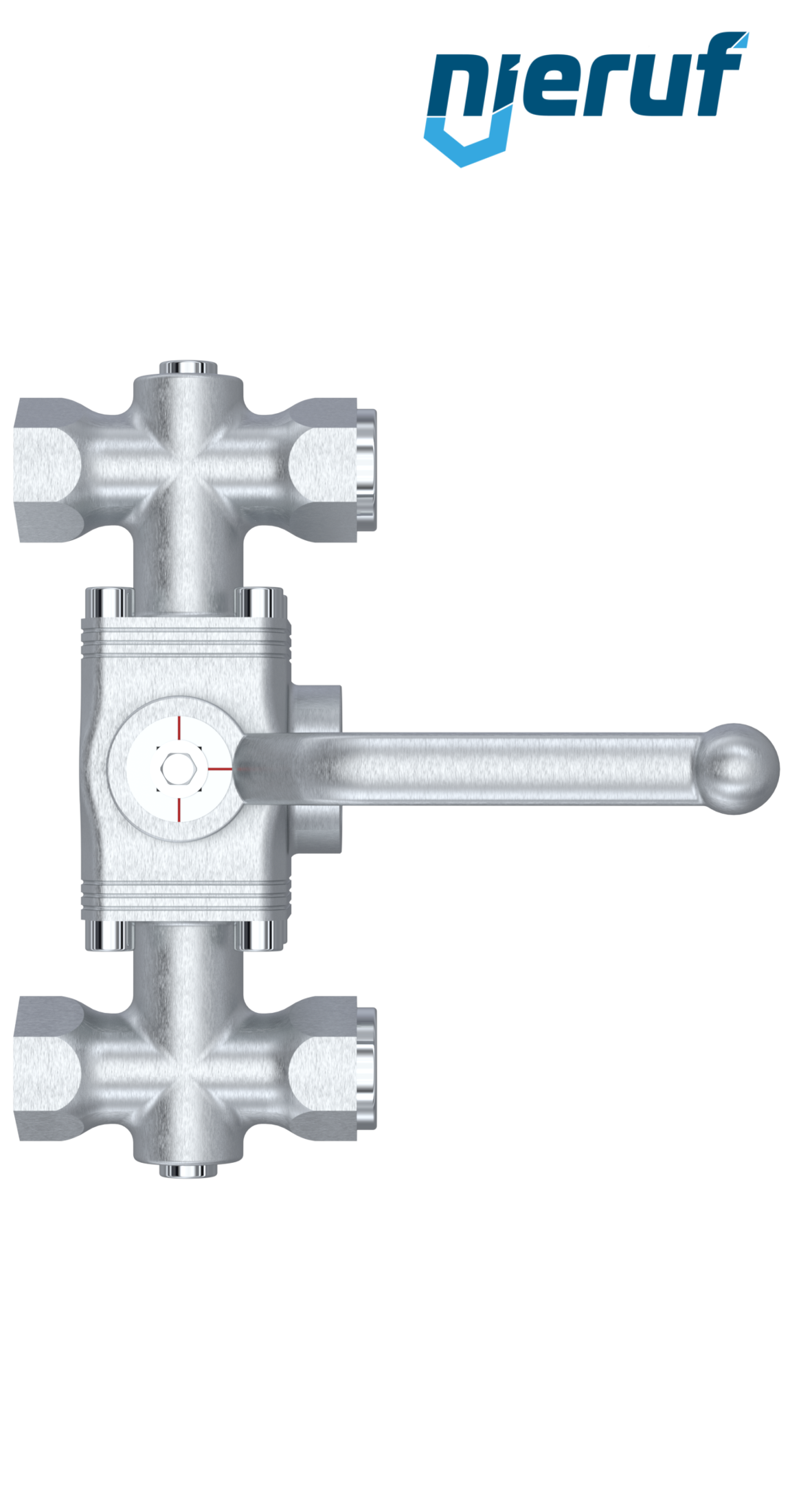

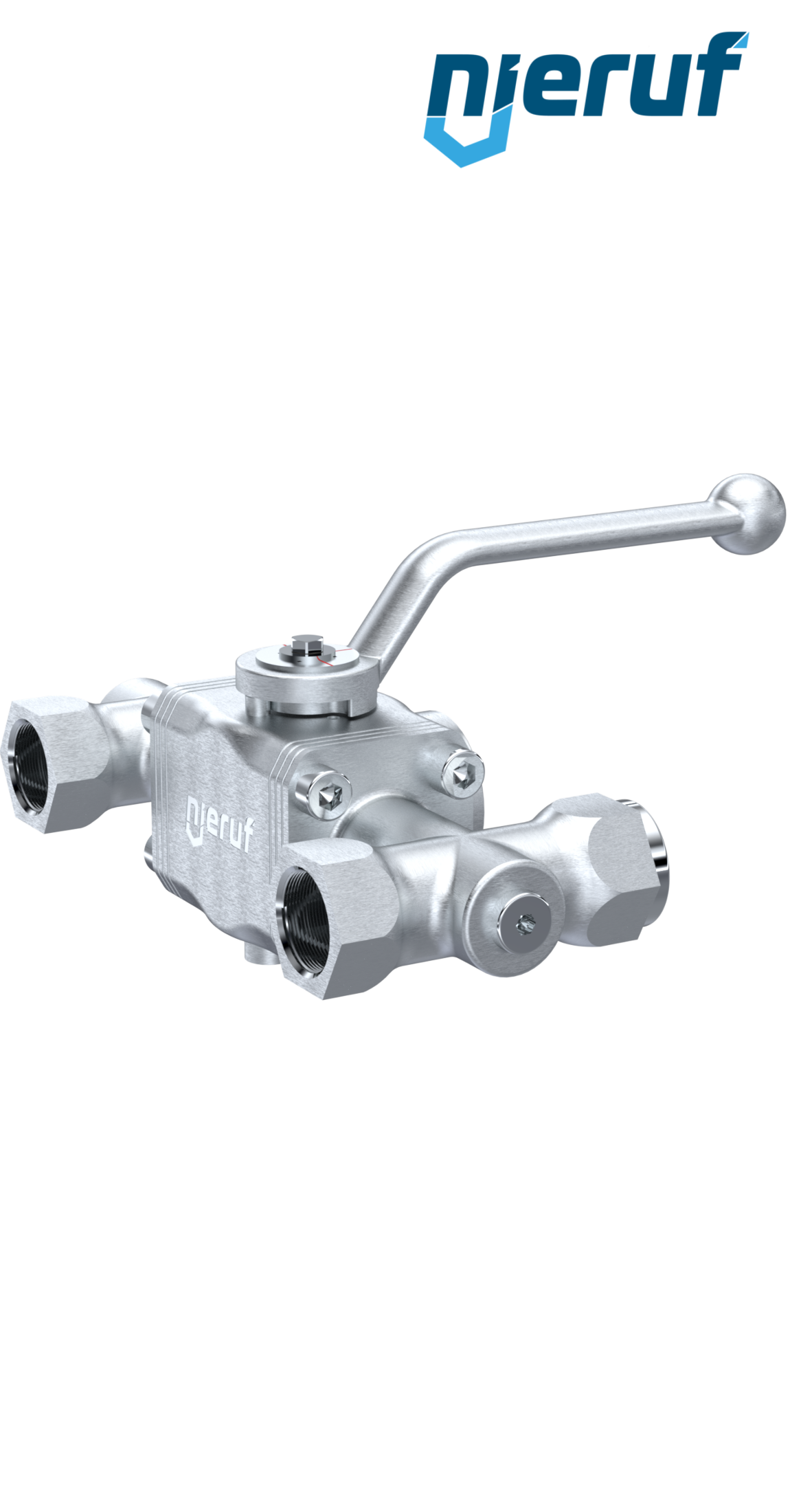

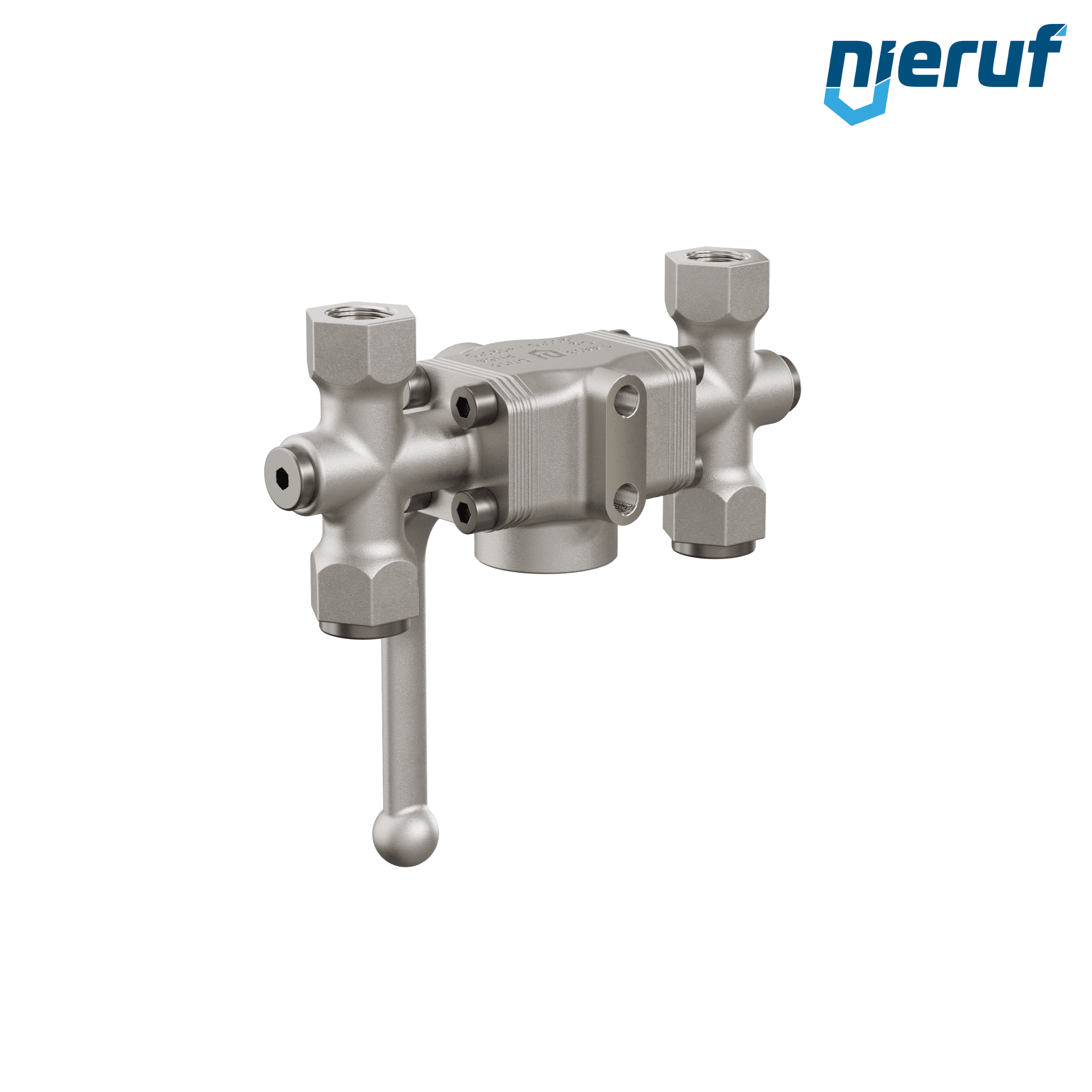

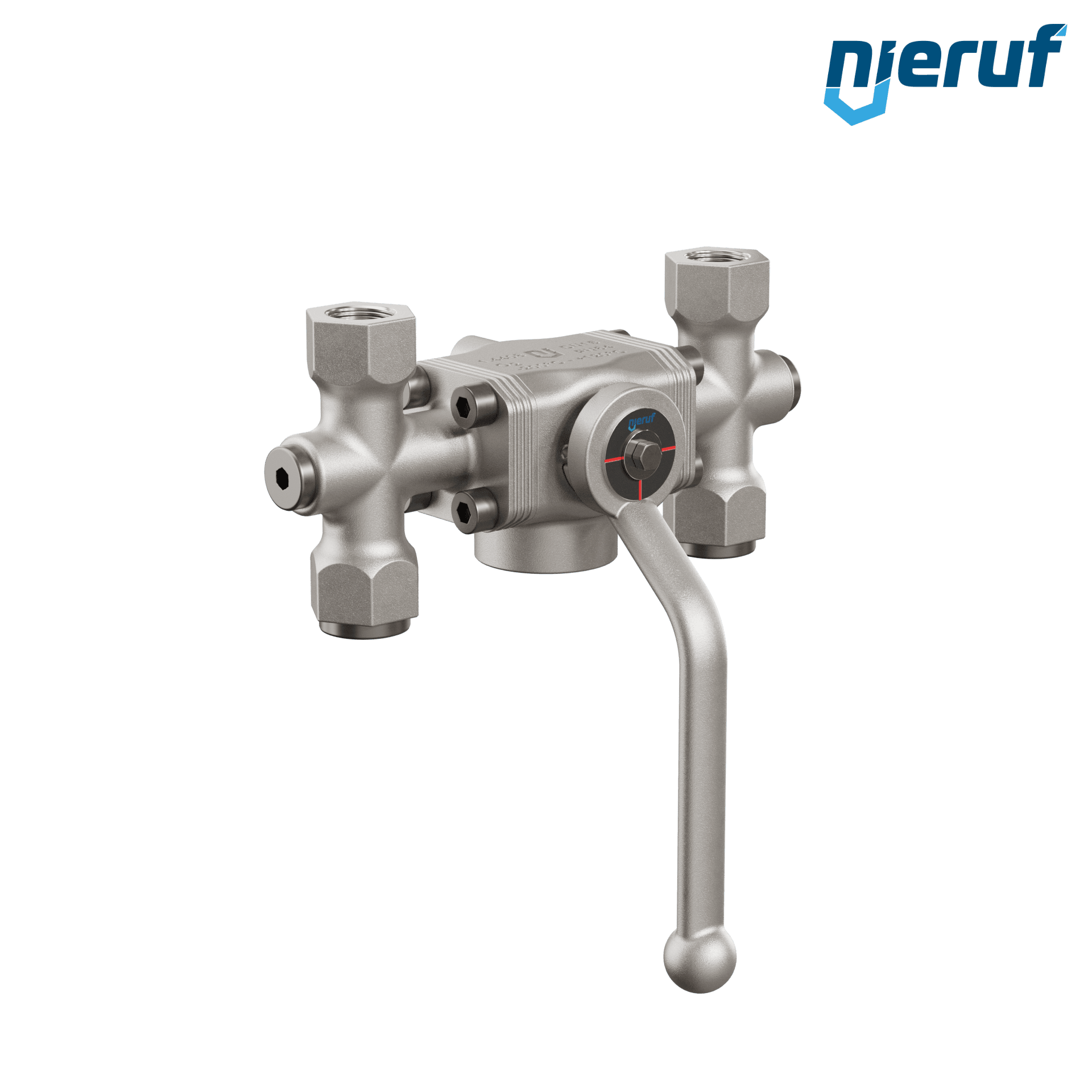

ball diverter valve DN15 - 1/2" inch stainless steel 1.4408 GK16 lever T Drilling for liquid, gaseous media & cryogenic liquified gases
| product: | ball diverter valve |
|---|---|
| type: | GK16 |
| manufacturer: | NieRuf |
| diameter: | DN15 - 1/2" inch |
| connection: | female thread 3/4" inch |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid, gaseous media & cryogenic liquified gases |
| temperature: | -200°C up to +120°C - depending on working pressure and media |
| max. pressure: | PN63 |
| design: | T Drilling |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4404 |
| length: | 198mm |
| actuator: | lever |
| actuator informations: | connection inlet 3/4" DN20, outlet 1/2" DN15 |
| installation position: | To ensure the proper function of the ball diverter valves, they must be installed in such a manner that prevents impermissible static, dynamic or thermal loads from acting. |
| product description: | Ball diverter valve with threaded connection made of stainless steel for the installation of two safety valves for the protection of containers designed for the storage of cryogenic gases. With T drilling. |
