EK01000006
Automatic-ball valves DN32 - 1 1/4" inch brass electric 24V EK01
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 01. September
Guaranteed delivery until Tuesday, 02. September, 12 o'clock
Order in within by express delivery
Equipment
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

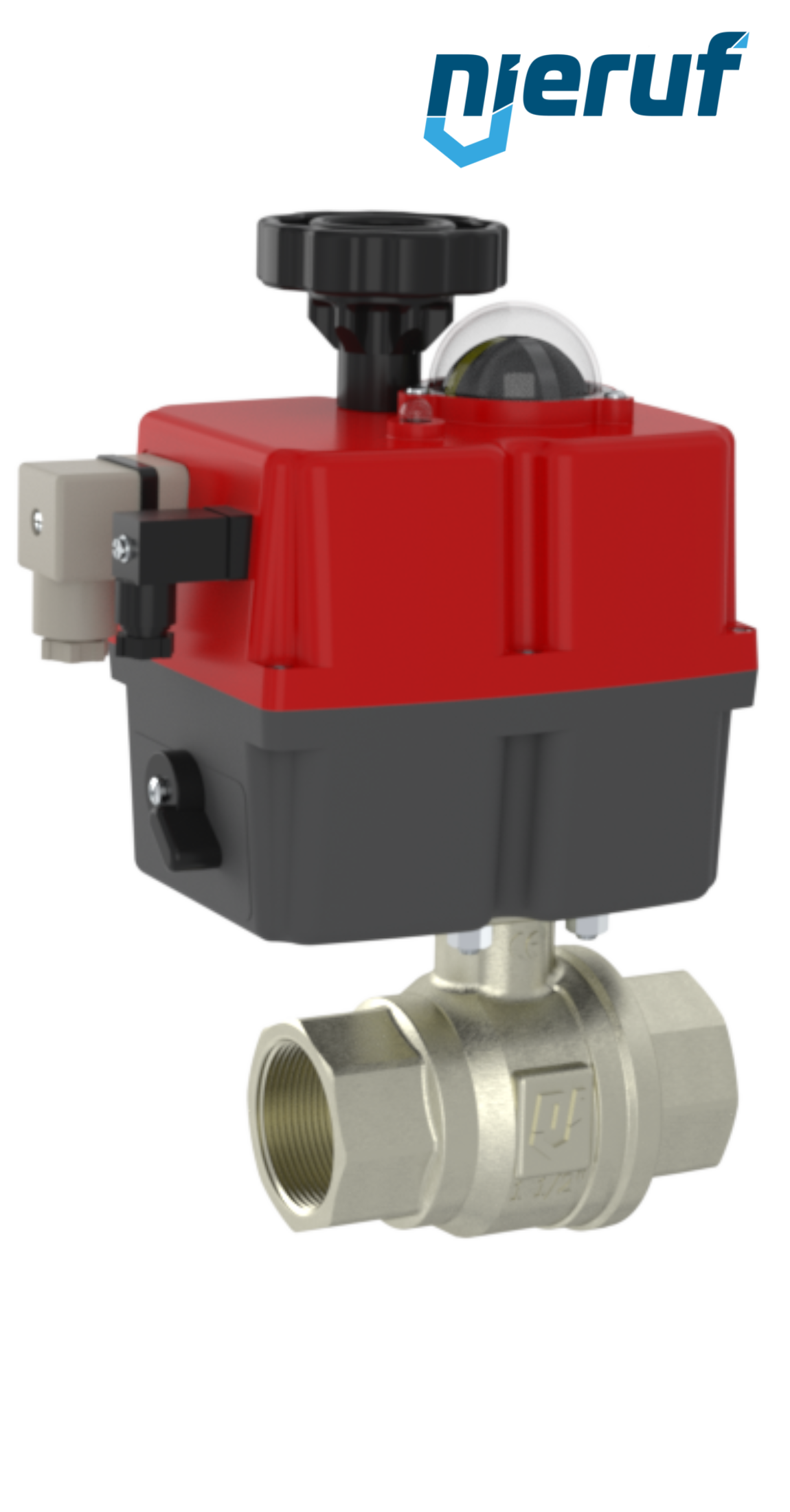

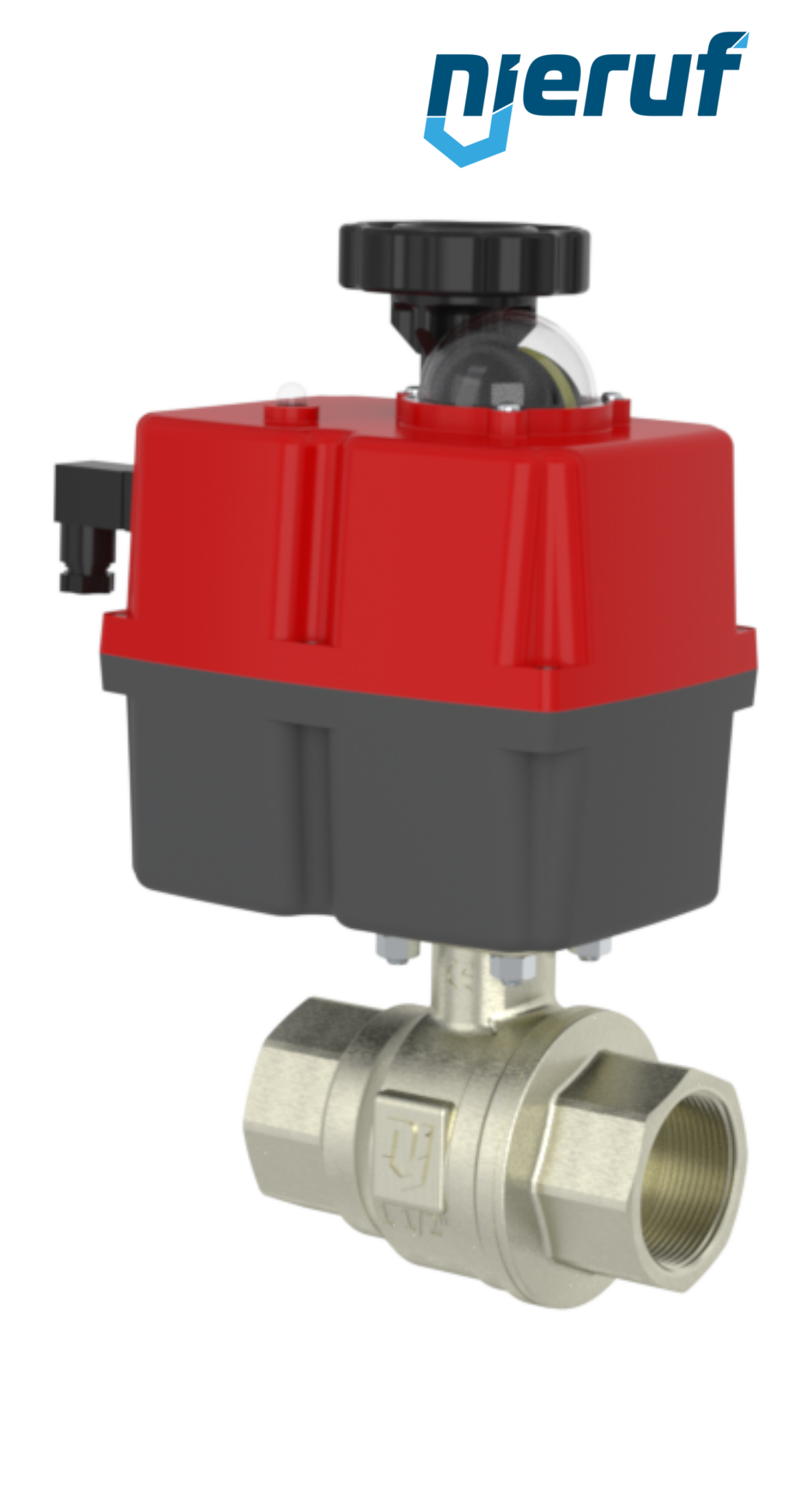

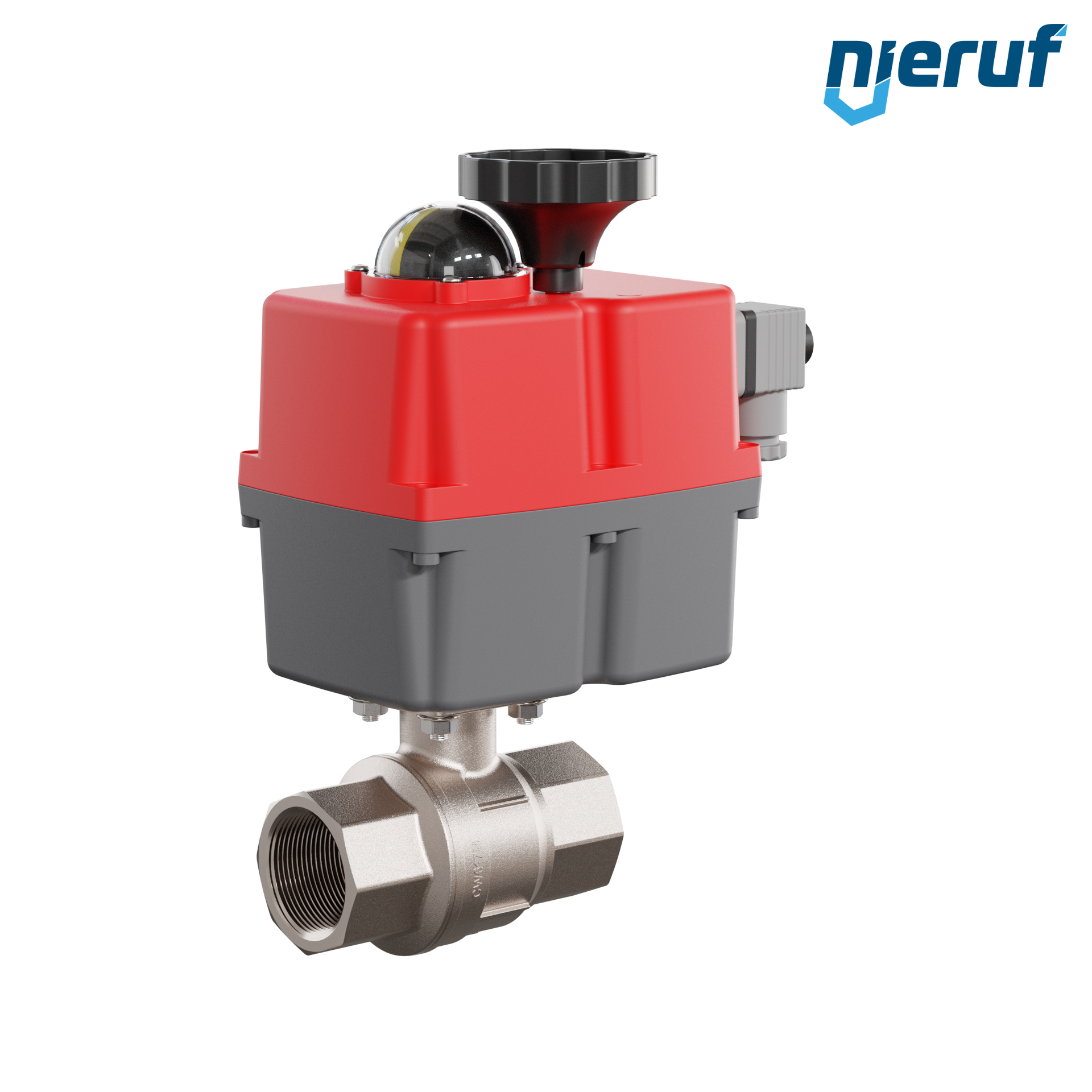

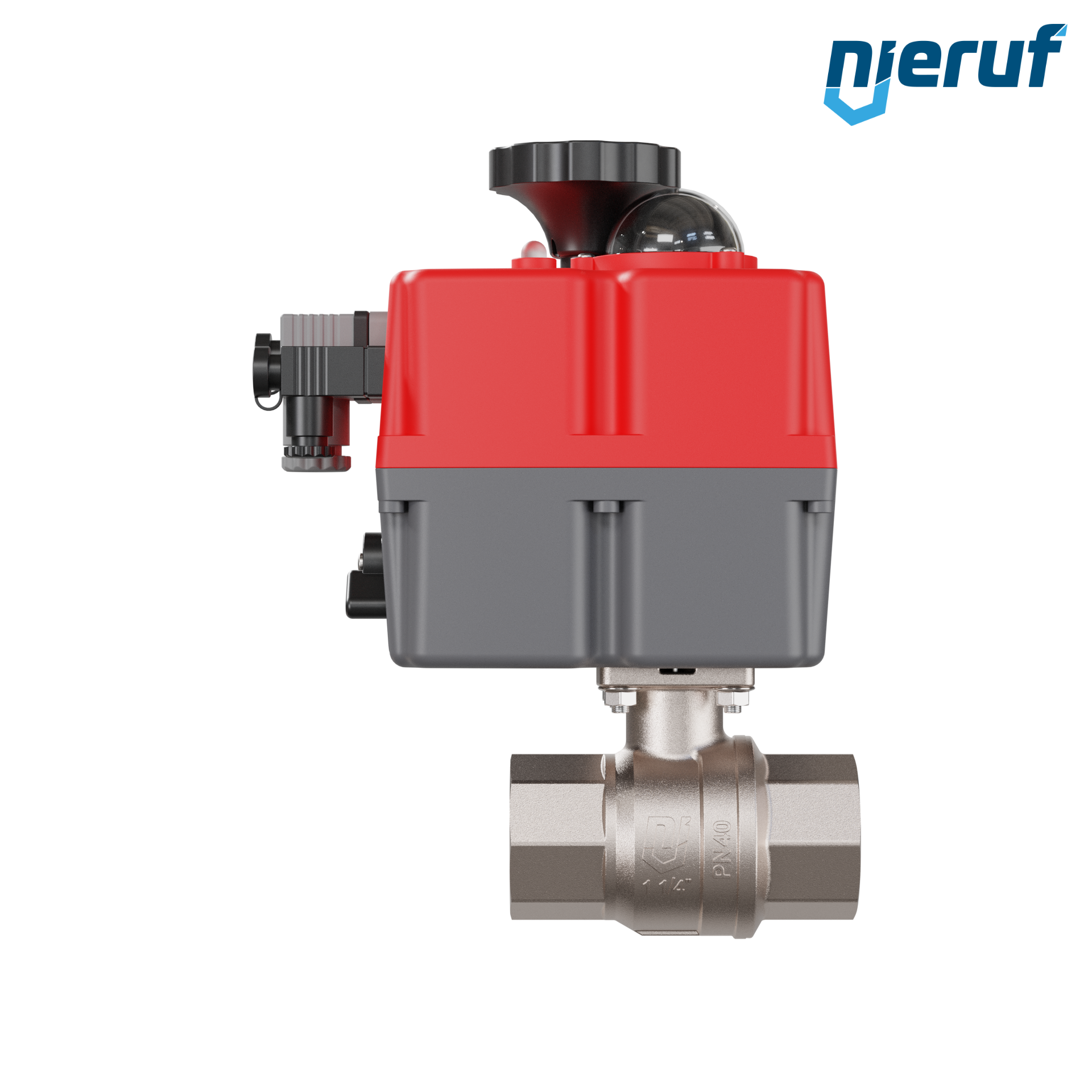

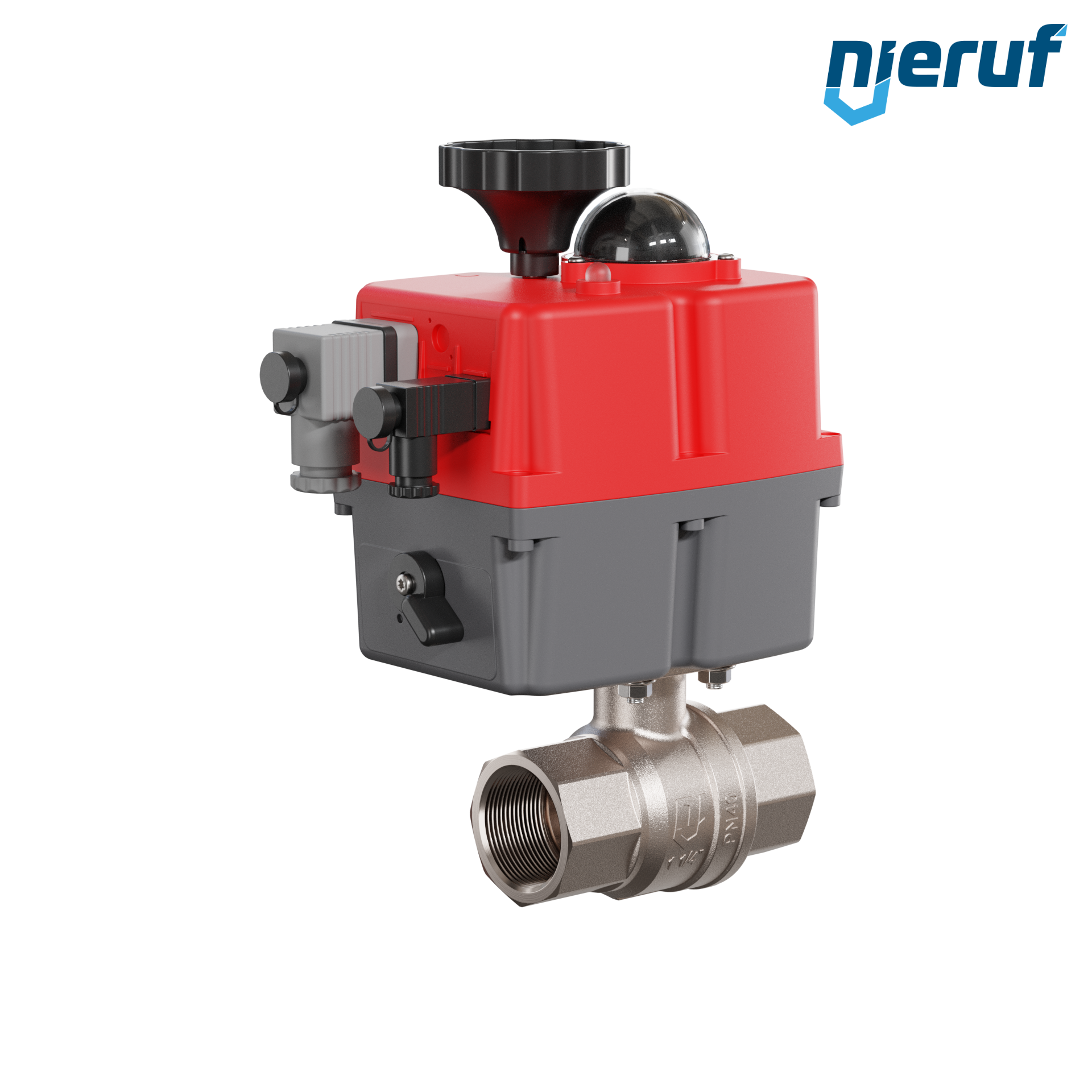

Automatic-ball valves DN32 - 1 1/4" inch brass CW617N nickel plated EK01 electronic actuator - series S for 24V AC/DC
product: | Automatic-ball valves |
---|---|
type: | EK01 |
manufacturer: | NieRuf |
diameter: | DN32 - 1 1/4" inch |
connection: | female thread |
Seal steam: | Viton |
media: | liquid and gaseous media |
temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C |
max. pressure: | PN40 |
max. differentiel pressure: | max. 16 bar |
design: | Two - pieces brass ball valve with actuator |
body material: | brass CW617N nickel plated |
ball material: | stainless steel 1.4408 |
ball seal: | PTFE |
length: | 110mm |
actuator: | electronic actuator S20 - series S for 24-240V AC/DC |
actuator informations: | corrosion resistant synthetic body |
installation position: | any position, not upside down |
product description: | This high quality automatic-brass ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Automatic-ball valves DN32 - 1 1/4" inch brass electric 24V EK01
Article no.
: EK01000006
product:
Automatic-ball valves
type:
EK01
manufacturer:
NieRuf
diameter:
DN32 - 1 1/4" inch
connection:
female thread
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C
max. pressure:
PN40
max. differentiel pressure:
max. 16 bar
design:
Two - pieces brass ball valve with actuator
body material:
brass CW617N nickel plated
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
110mm
actuator:
electronic actuator S20 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-brass ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.
