PK01010006

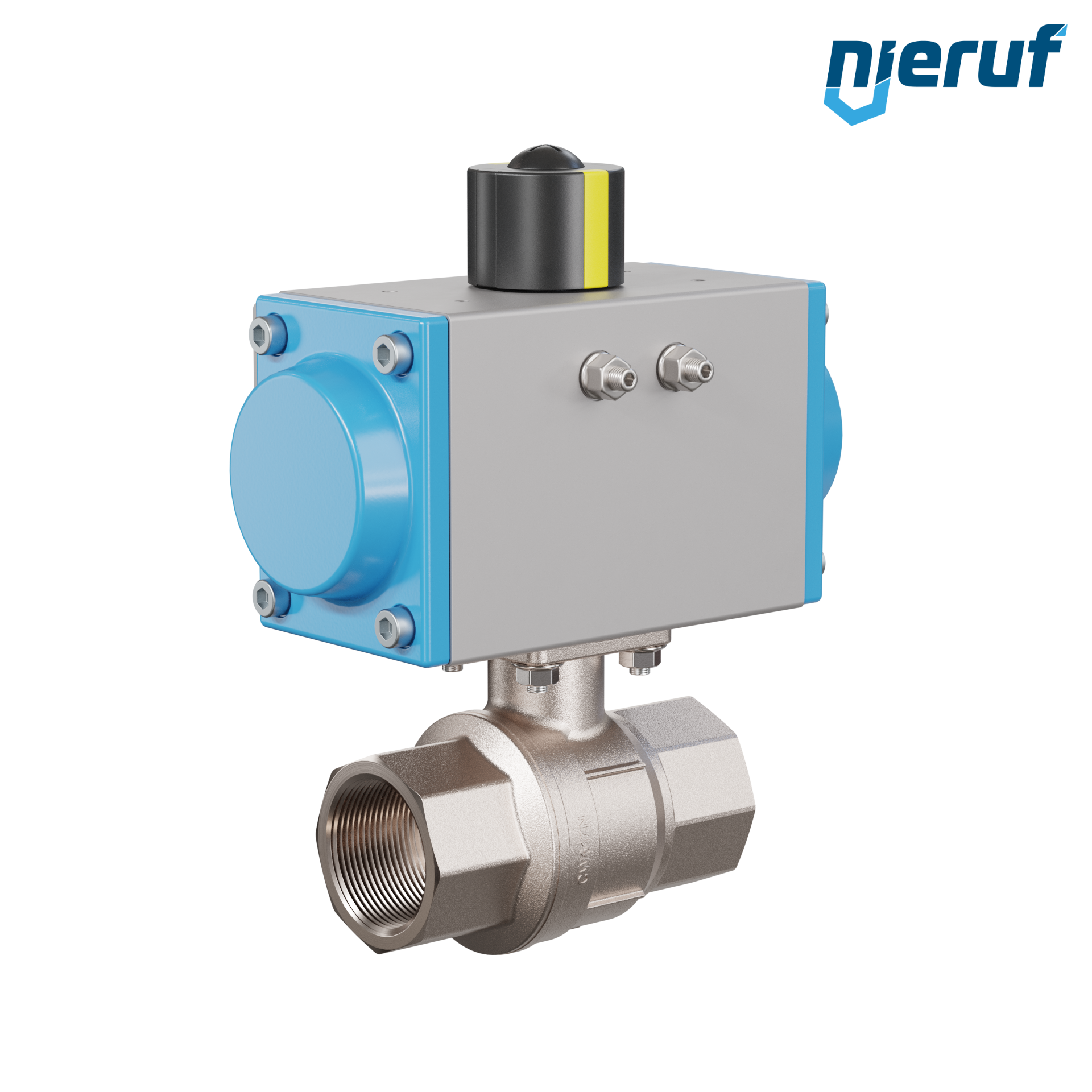

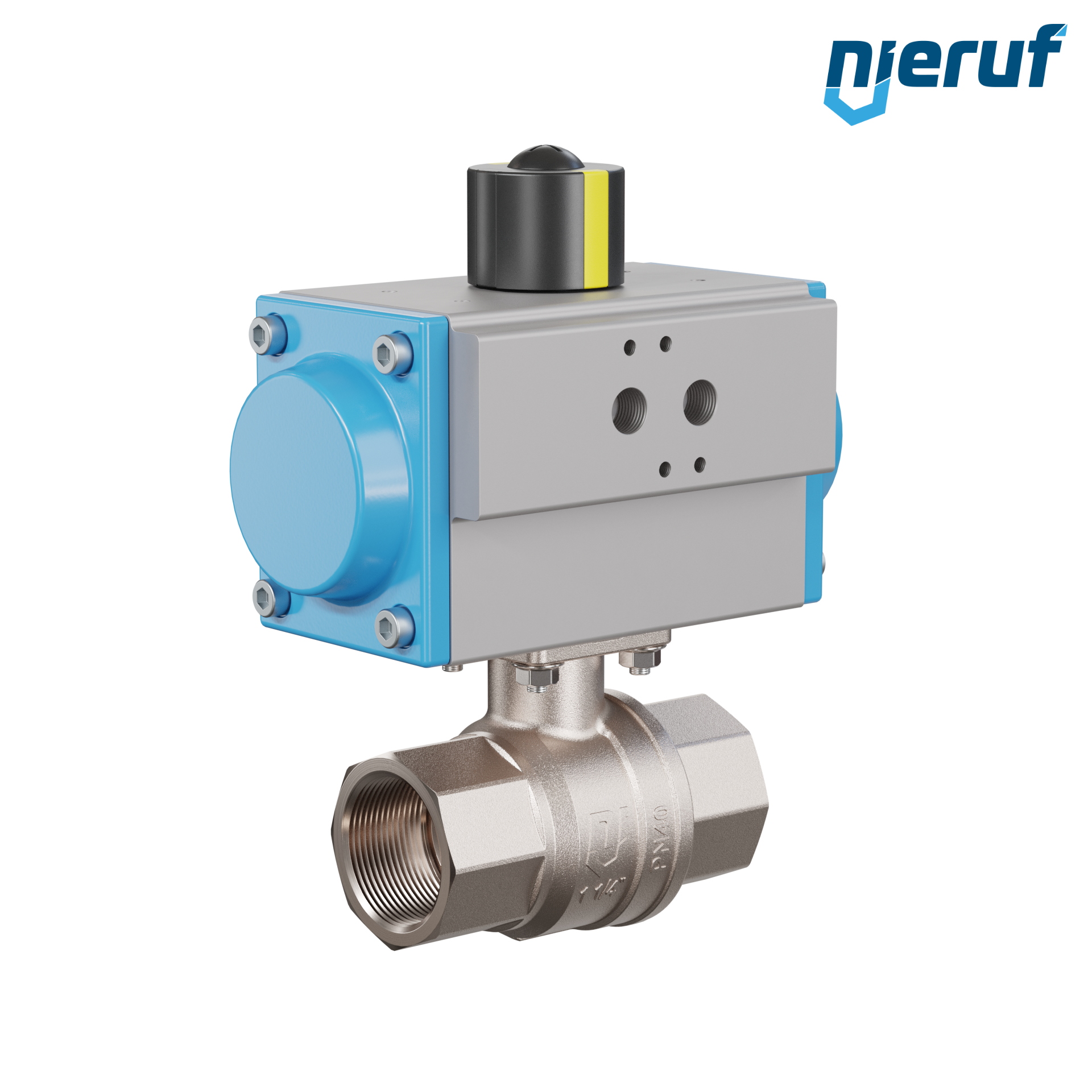

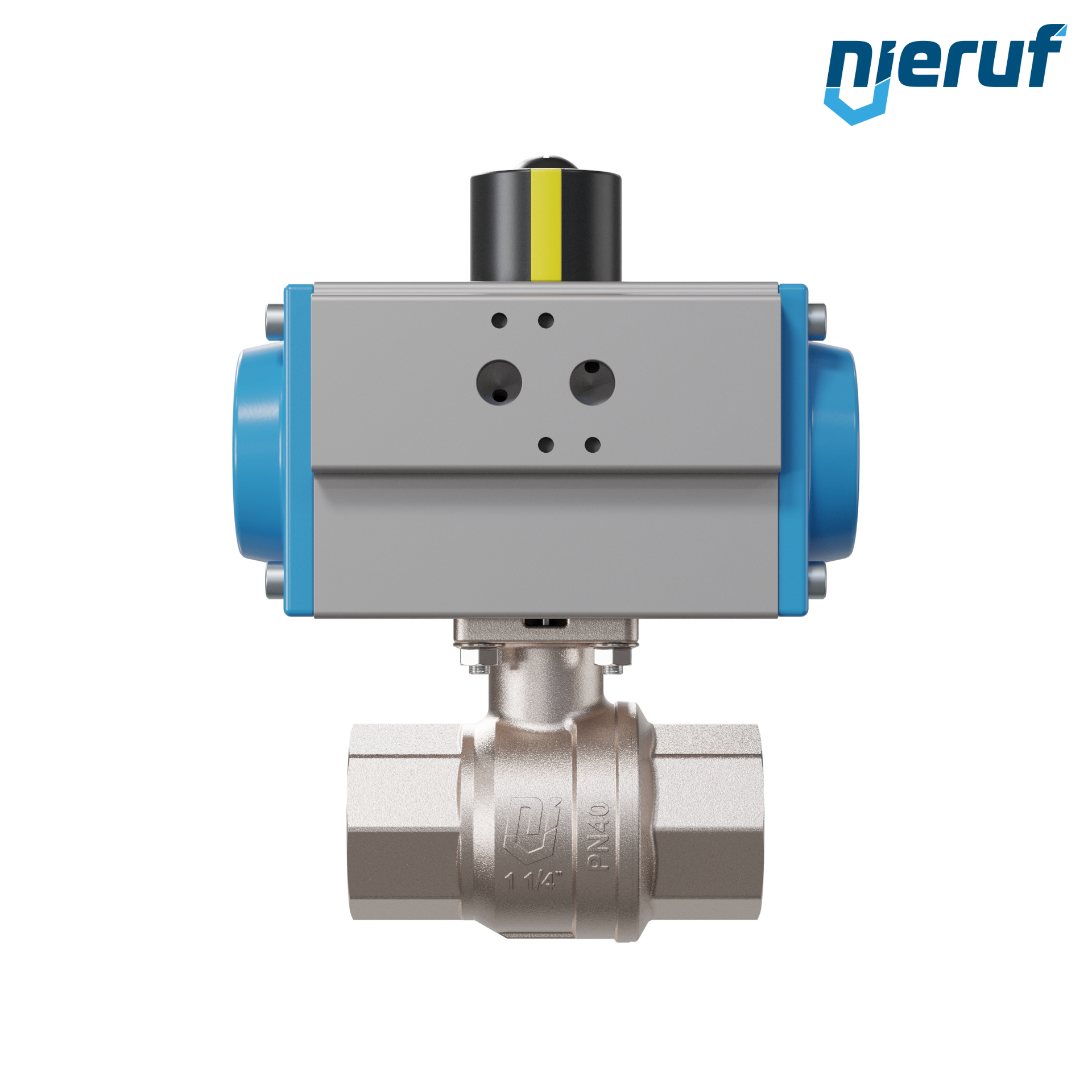

automatic ball valves DN32 - 1 1/4" inch pneumatic actuator single acting PK01
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
automatic ball valves DN32 - 1 1/4" inch brass CW617N nickel plated PK01 pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting)
| product: | automatic ball valves |
|---|---|
| type: | PK01 |
| manufacturer: | NieRuf |
| diameter: | DN32 - 1 1/4" inch |
| connection: | female thread |
| Seal steam: | Viton |
| media: | liquid and gaseous media |
| temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C |
| max. pressure: | PN40 |
| max. differentiel pressure: | 16 bar |
| design: | Two - pieces brass ball valve with pneumatic actuator (single acting normally closed) |
| body material: | brass CW617N nickel plated |
| ball material: | stainless steel 1.4408 |
| ball seal: | PTFE |
| length: | 110mm |
| actuator: | pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting - normally closed) |
| actuator informations: | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| product description: | This high quality automatic-brass ball valves thread connections with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic ball valves DN32 - 1 1/4" inch pneumatic actuator single acting PK01
Article no.
: PK01010006
product:
automatic ball valves
type:
PK01
manufacturer:
NieRuf
diameter:
DN32 - 1 1/4" inch
connection:
female thread
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
max. pressure:
PN40
max. differentiel pressure:
16 bar
design:
Two - pieces brass ball valve with pneumatic actuator (single acting normally closed)
body material:
brass CW617N nickel plated
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
110mm
actuator:
pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description:
This high quality automatic-brass ball valves thread connections with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air
