PK02010003

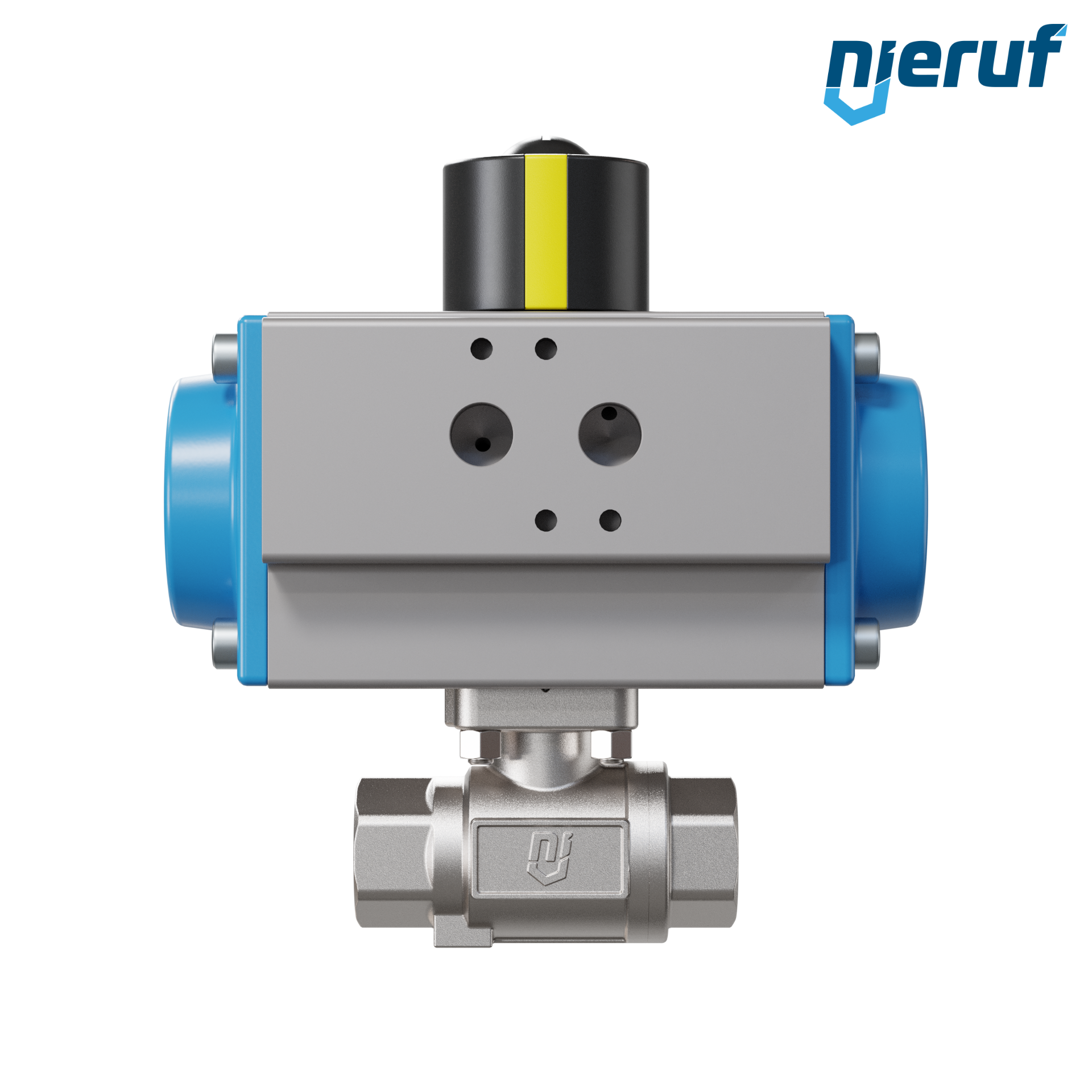

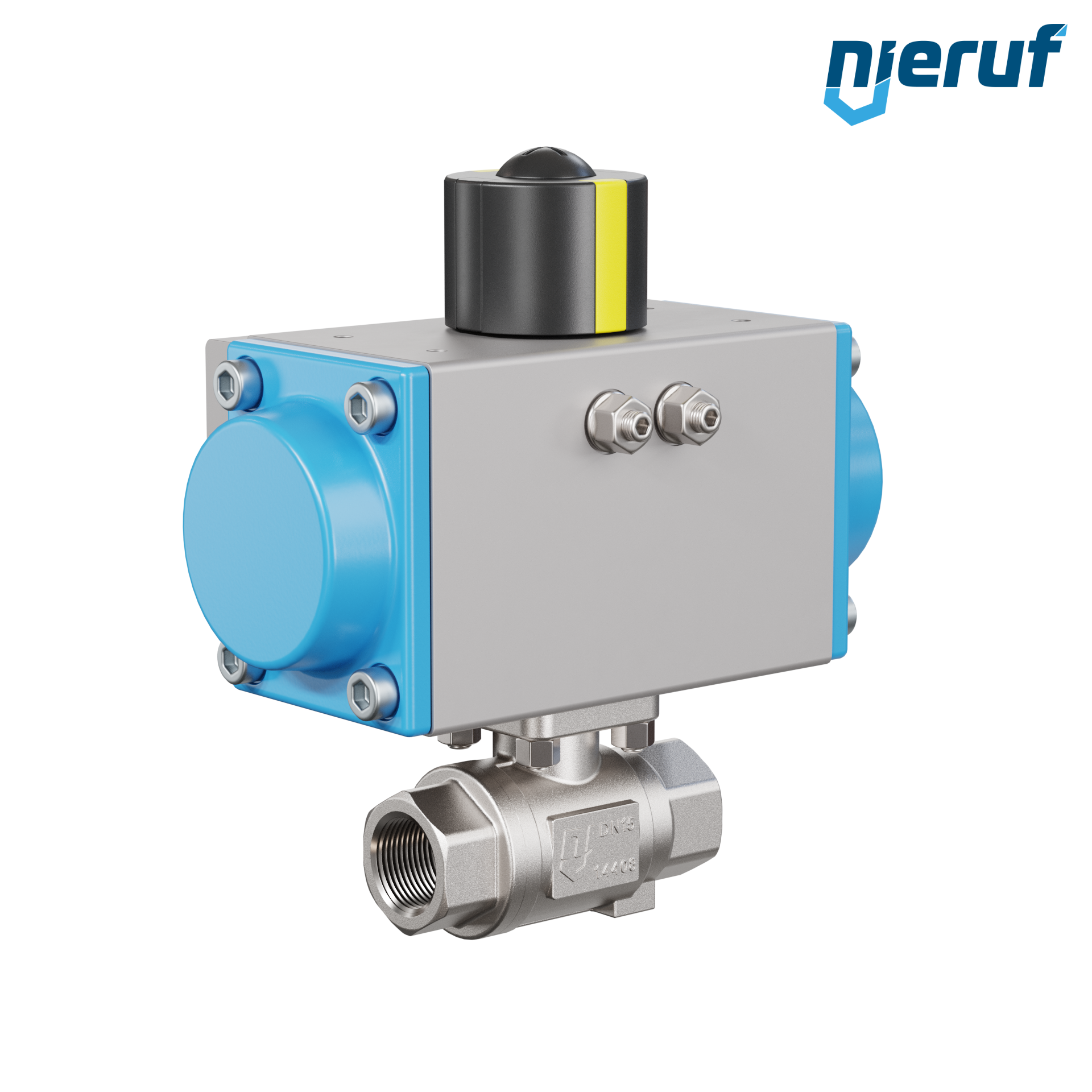

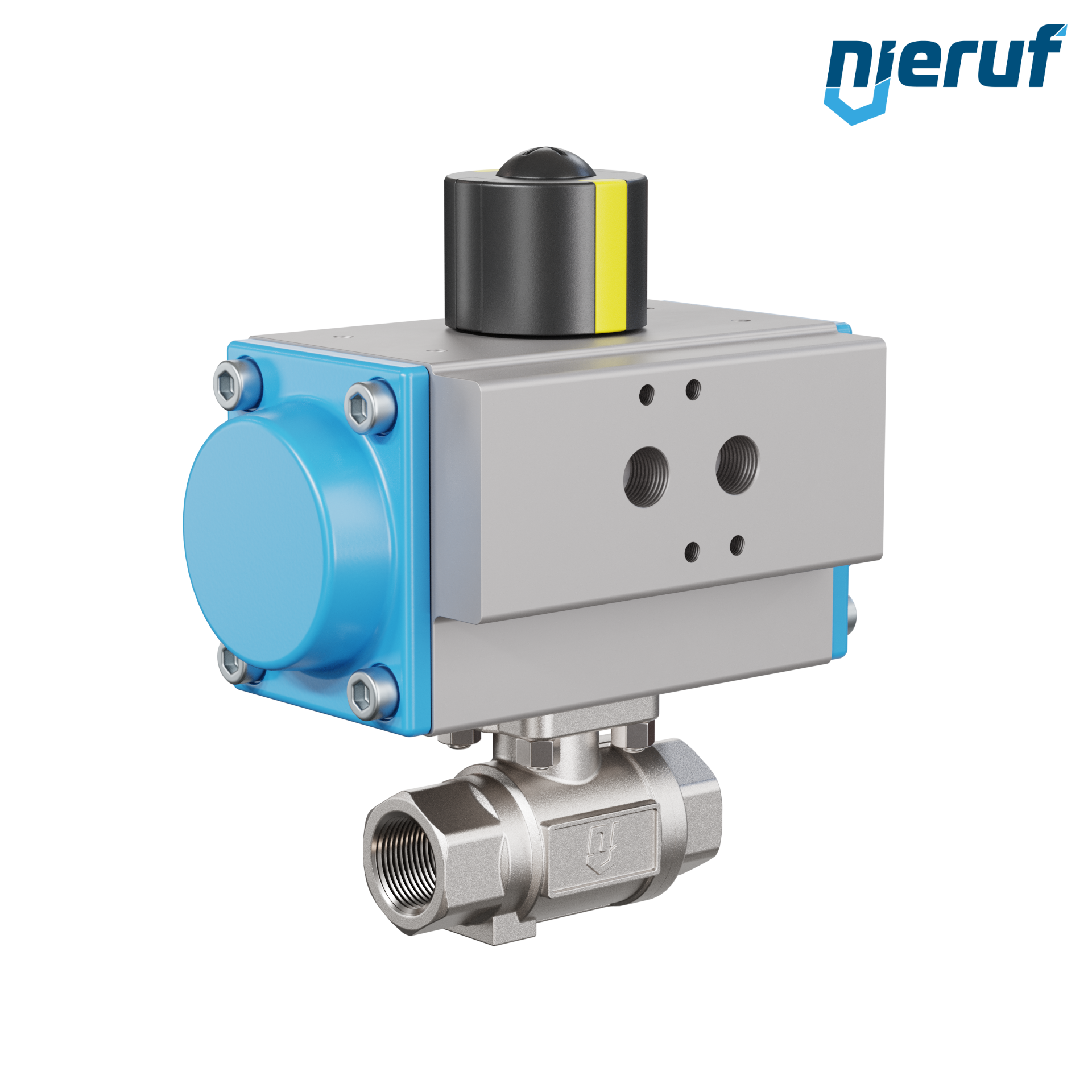

pneumatic-ball valve DN15 - 1/2" inch actuator single acting PK02

€182.20*

€216.82 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Thursday, 31. October

Guaranteed delivery until Friday, 01. November, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

PR01000000

Position indicator Typ PR01 for pneumatic actuator

€58.20*

€69.26 VAT included.


NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: PK02010003
pneumatic-ball valve DN15 - 1/2" inch actuator single acting PK02

pneumatic-ball valve DN15 - 1/2" inch stainless steel 1.4408 PK02 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)

product: pneumatic-ball valve
type: PK02
manufacturer: NieRuf
diameter: DN15 - 1/2" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN40
max. differentiel pressure: 7 bar
design: Two - pieces brass ball valve with pneumatic actuator (single acting normally closed)
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 75mm
actuator: pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop / ISO class 4

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

pneumatic-ball valve DN15 - 1/2" inch actuator single acting PK02

Article no. : PK02010003
product: pneumatic-ball valve
type: PK02
manufacturer: NieRuf
diameter: DN15 - 1/2" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN40
max. differentiel pressure: 7 bar
design: Two - pieces brass ball valve with pneumatic actuator (single acting normally closed)
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 75mm
actuator: pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop / ISO class 4
