EK01010001

Automatic-ball valves DN8 - 1/4" inch brass electric 85-240V EK01

€275.70*

€328.08 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Thursday, 31. October

Guaranteed delivery until Friday, 01. November, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: EK01010001

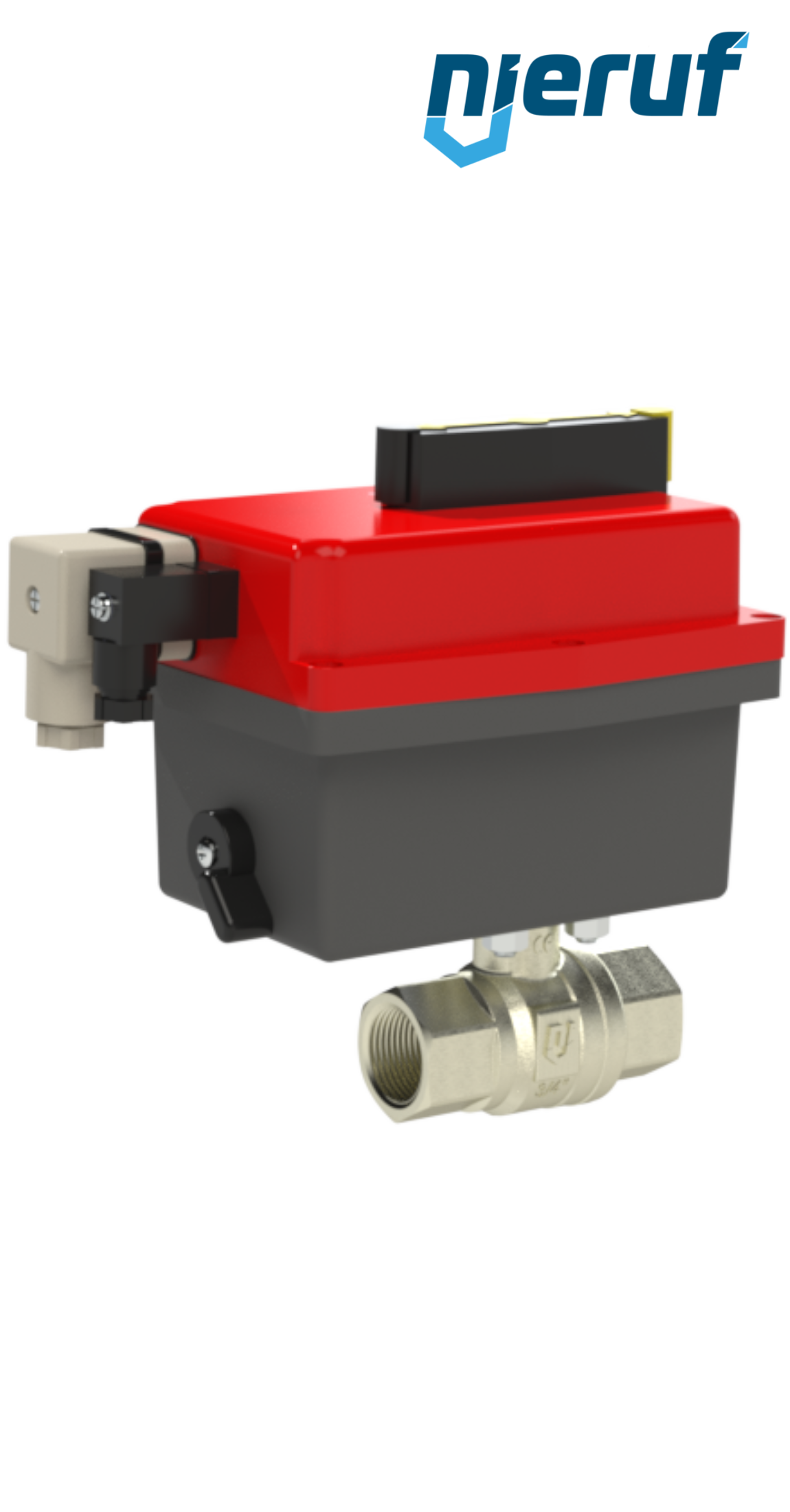

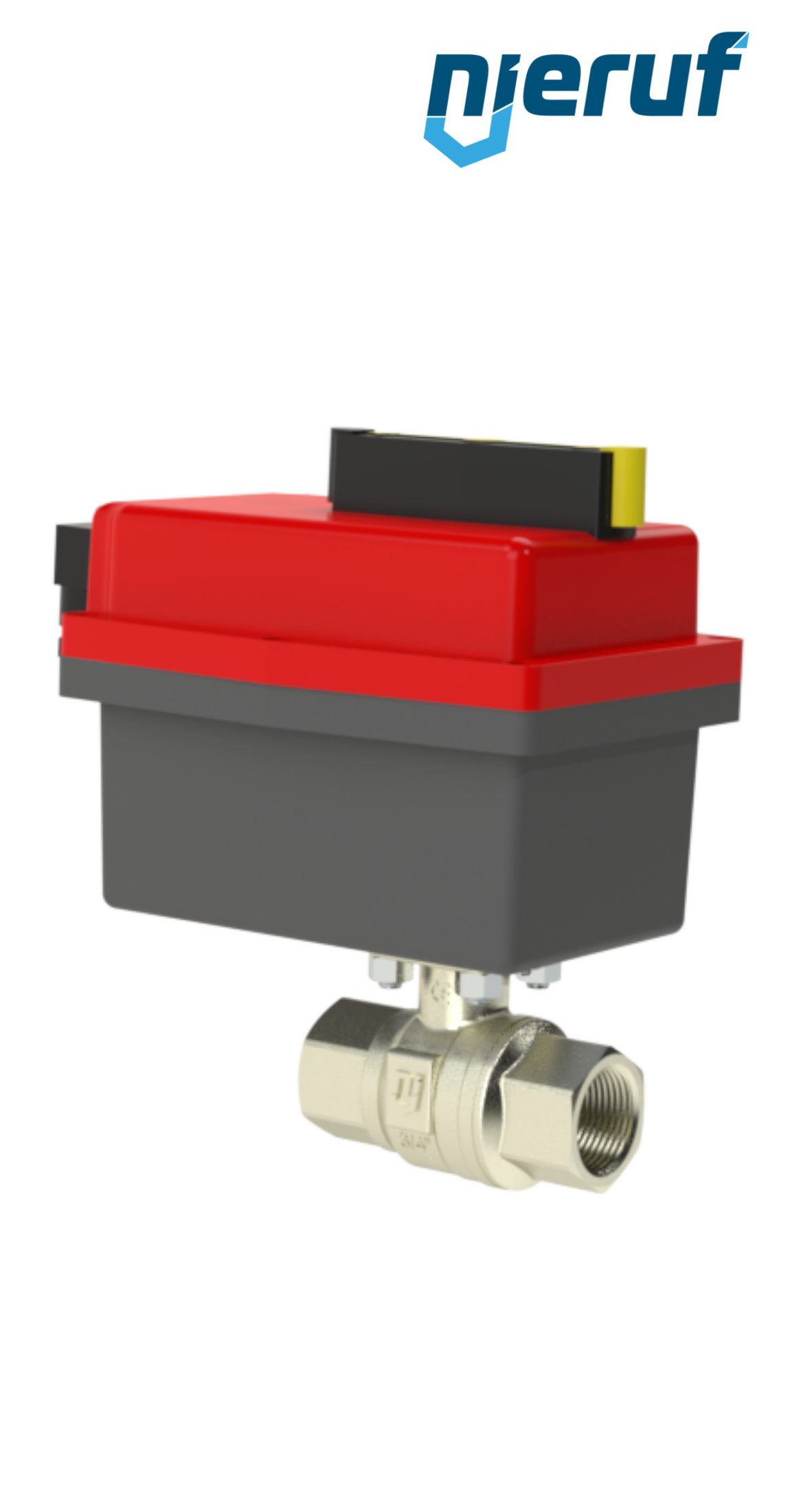

Automatic-ball valves DN8 - 1/4" inch brass electric 85-240V EK01

Automatic-ball valves DN8 - 1/4" inch brass CW617N nickel plated EK01 electronic actuator H10- series H (high voltage) for 85-240V AC+DC

product: Automatic-ball valves
type: EK01
manufacturer: NieRuf
diameter: DN8 - 1/4" inch
connection: female thread
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C
max. pressure: PN65
max. differentiel pressure: max. 16 bar
design: Two - pieces brass ball valve with actuator
body material: brass CW617N nickel plated
ball material: stainless steel 1.4408
ball seal: PTFE
length: 60mm
actuator: electronic actuator H10 - series H (high voltage) for 85-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-brass ball valves thread connections with electronic actuator (series H = high voltage) with visual position indicator and emergency operating.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Automatic-ball valves DN8 - 1/4" inch brass electric 85-240V EK01

Article no. : EK01010001
product: Automatic-ball valves
type: EK01
manufacturer: NieRuf
diameter: DN8 - 1/4" inch
connection: female thread
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C
max. pressure: PN65
max. differentiel pressure: max. 16 bar
design: Two - pieces brass ball valve with actuator
body material: brass CW617N nickel plated
ball material: stainless steel 1.4408
ball seal: PTFE
length: 60mm
actuator: electronic actuator H10 - series H (high voltage) for 85-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-brass ball valves thread connections with electronic actuator (series H = high voltage) with visual position indicator and emergency operating.
