EK02000005
automatic-ball valve DN25 - 1" inch stainless steel electric 24V EK02
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

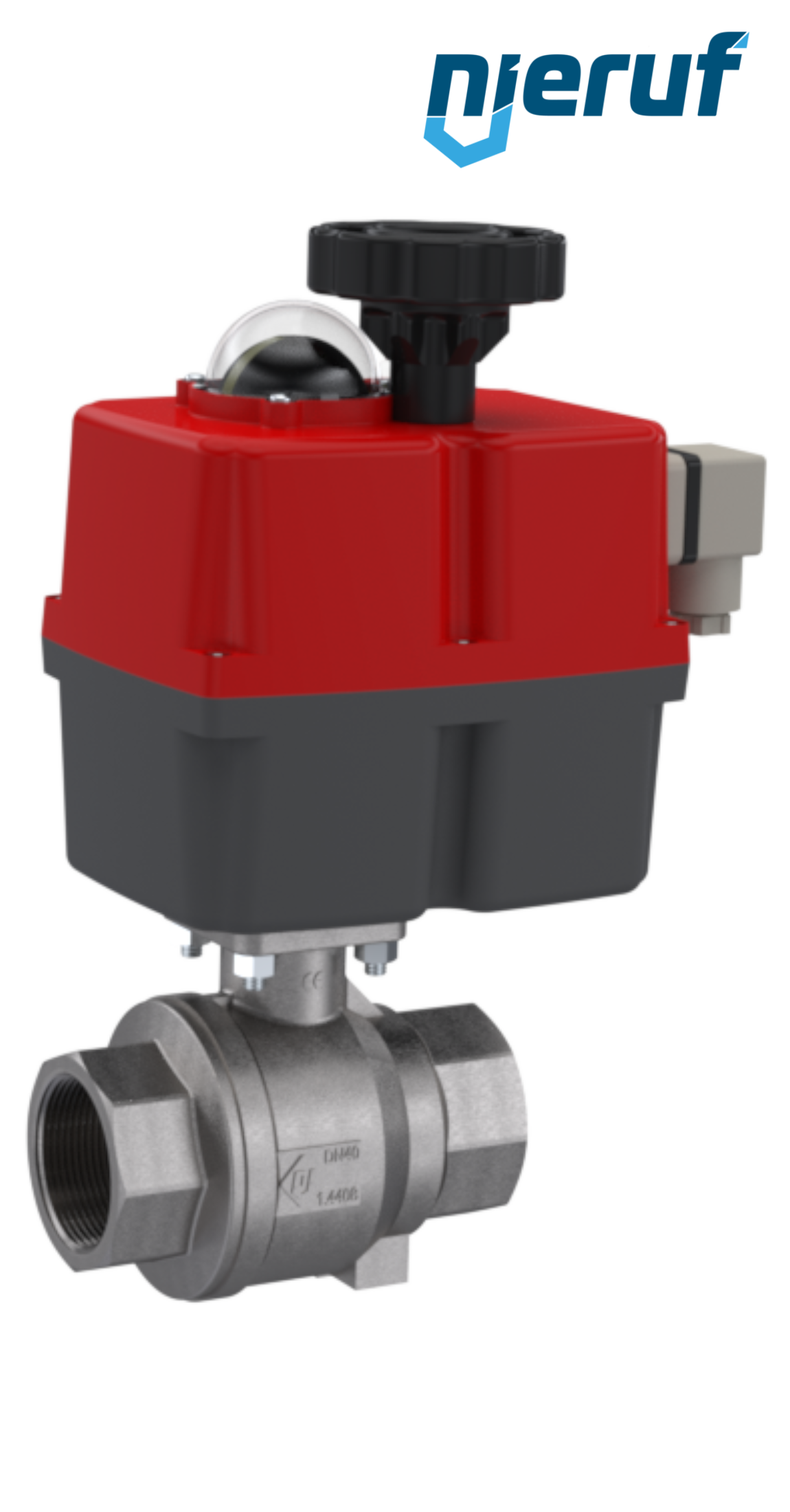

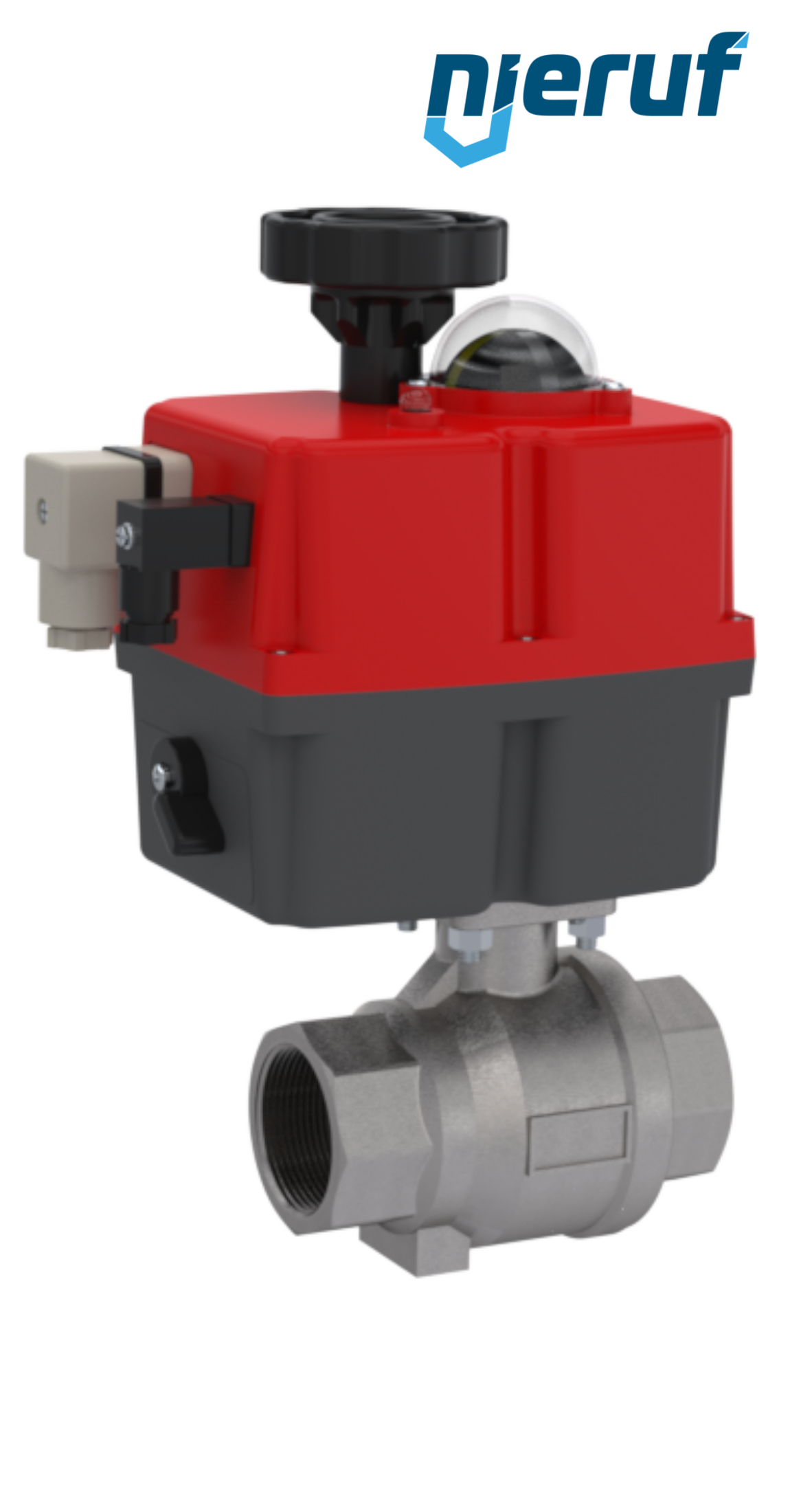

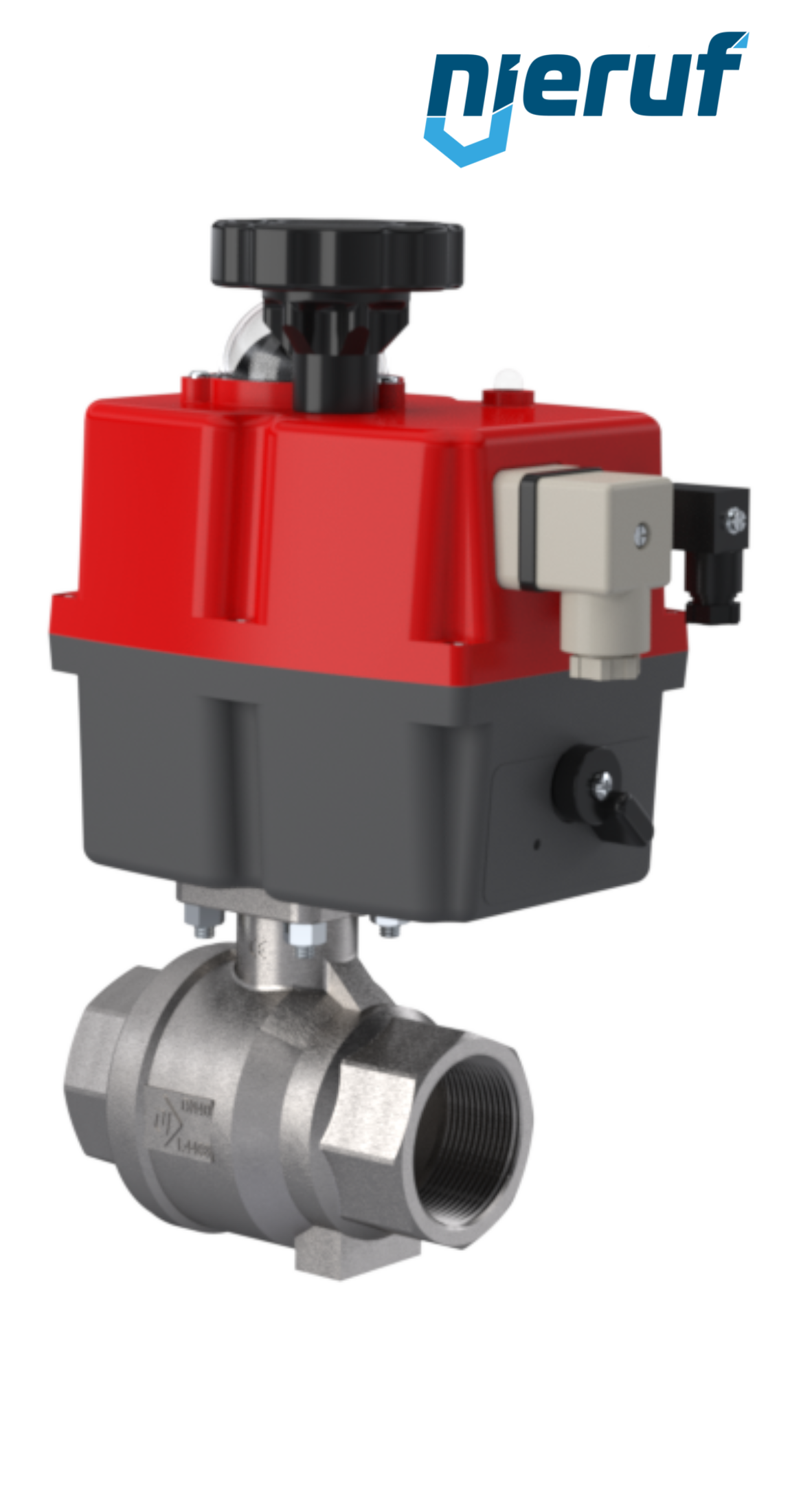

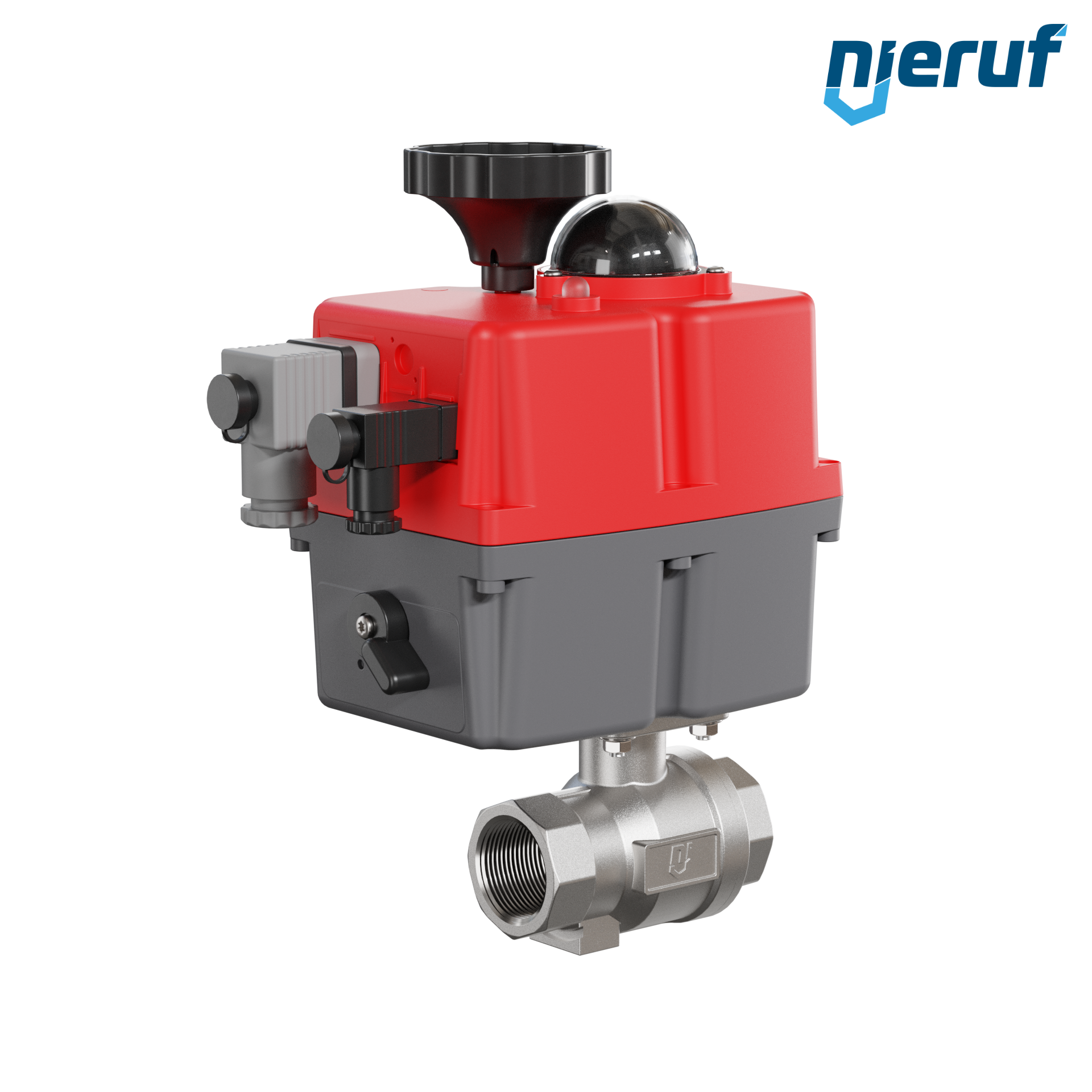

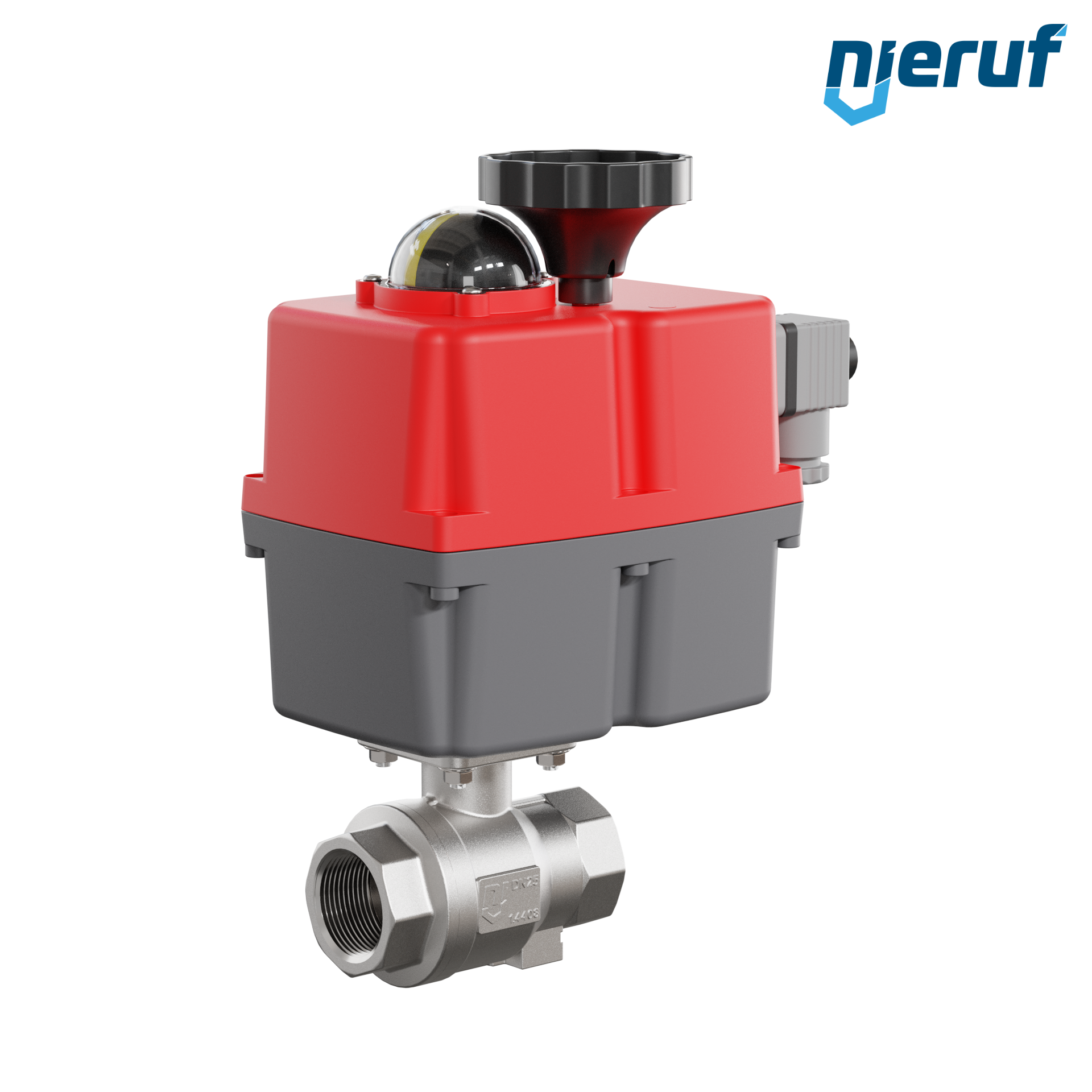

automatic-ball valve DN25 - 1" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S for 24V AC/DC
| product: | automatic-ball valve |
|---|---|
| type: | EK02 |
| manufacturer: | NieRuf |
| diameter: | DN25 - 1" inch |
| connection: | female thread |
| Seal steam: | PTFE / Viton |
| media: | liquid and gaseous media |
| temperature: | ball valve generally from -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure: | PN40 |
| max. differentiel pressure: | max. 7 bar |
| design: | Two - pieces stainless steel ball valve with actuator |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4408 |
| ball seal: | PTFE |
| length: | 90mm |
| actuator: | electronic actuator S20 - series S for 24-240V AC/DC |
| actuator informations: | corrosion resistant synthetic body |
| installation position: | any position, not upside down |
| product description: | This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-ball valve DN25 - 1" inch stainless steel electric 24V EK02
Article no.
: EK02000005
product:
automatic-ball valve
type:
EK02
manufacturer:
NieRuf
diameter:
DN25 - 1" inch
connection:
female thread
Seal steam:
PTFE / Viton
media:
liquid and gaseous media
temperature:
ball valve generally from -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN40
max. differentiel pressure:
max. 7 bar
design:
Two - pieces stainless steel ball valve with actuator
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
90mm
actuator:
electronic actuator S20 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.
