PK02000008
pneumatic-ball valve DN50 - 2" inch actuator double acting PK02
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 02. December
Guaranteed delivery until Tuesday, 03. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

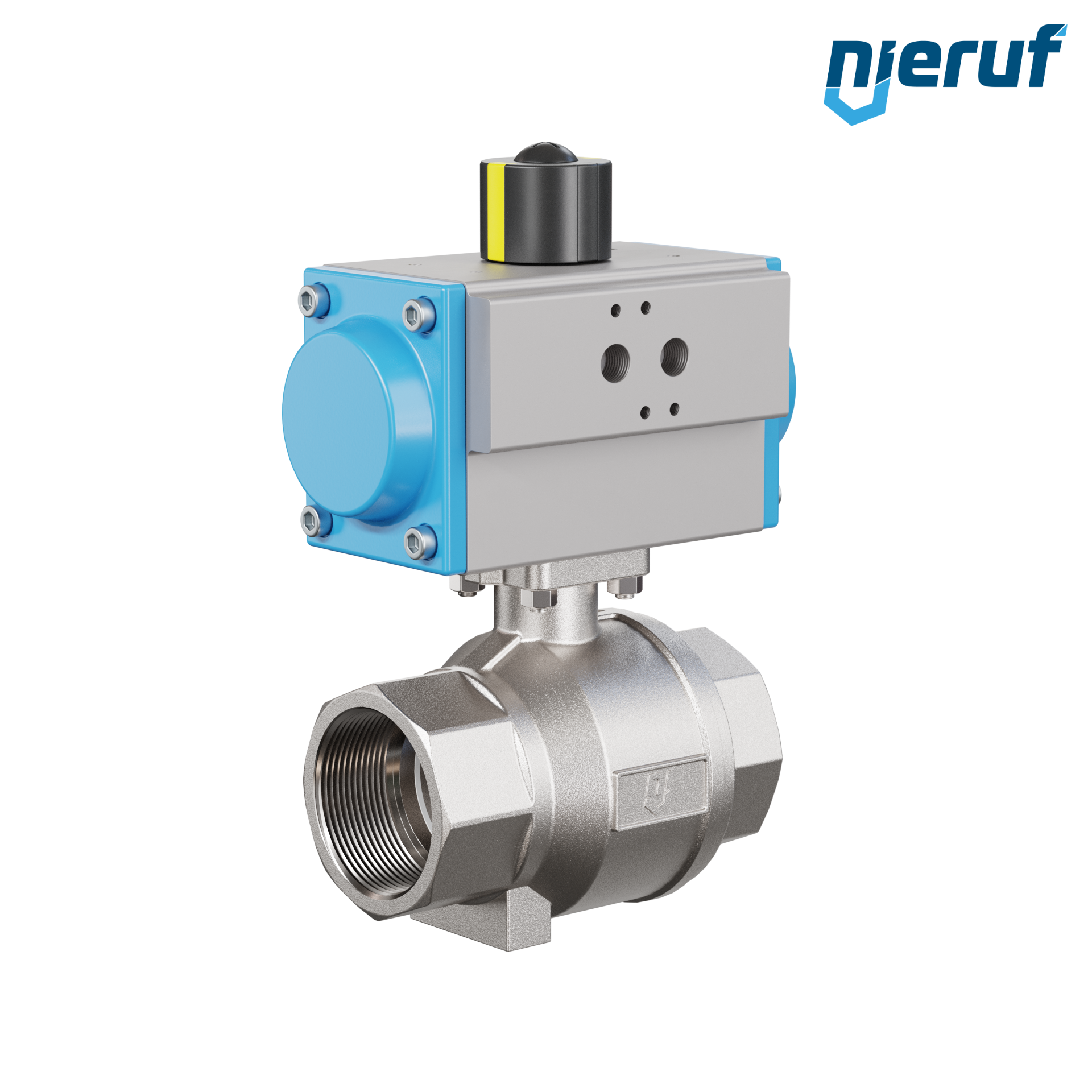

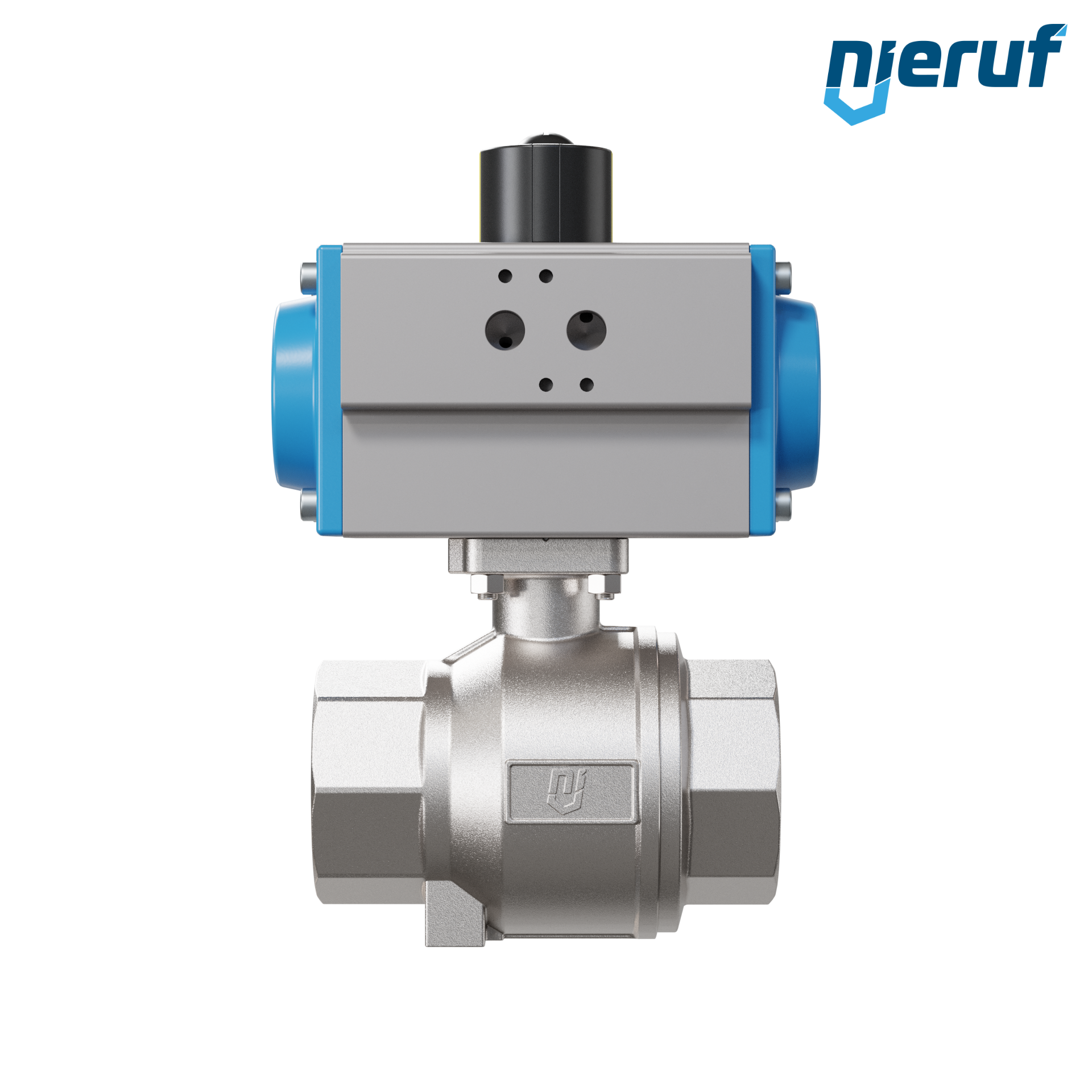

pneumatic-ball valve DN50 - 2" inch stainless steel 1.4408 PK02 pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting)
| product: | pneumatic-ball valve |
|---|---|
| type: | PK02 |
| manufacturer: | NieRuf |
| diameter: | DN50 - 2" inch |
| connection: | female thread |
| Seal steam: | PTFE / Viton |
| media: | liquid and gaseous media |
| temperature: | ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C |
| max. pressure: | PN40 |
| max. differentiel pressure: | 7 bar |
| design: | Two - pieces brass ball valve with pneumatic actuator (double acting) |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4408 |
| ball seal: | PTFE |
| length: | 140mm |
| actuator: | pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting) |
| actuator informations: | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for: | TA Luft |
| product description: | This high quality automatic-stainless steel ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop, ISO class 4 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pneumatic-ball valve DN50 - 2" inch actuator double acting PK02
Article no.
: PK02000008
product:
pneumatic-ball valve
type:
PK02
manufacturer:
NieRuf
diameter:
DN50 - 2" inch
connection:
female thread
Seal steam:
PTFE / Viton
media:
liquid and gaseous media
temperature:
ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN40
max. differentiel pressure:
7 bar
design:
Two - pieces brass ball valve with pneumatic actuator (double acting)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
140mm
actuator:
pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-stainless steel ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop, ISO class 4
