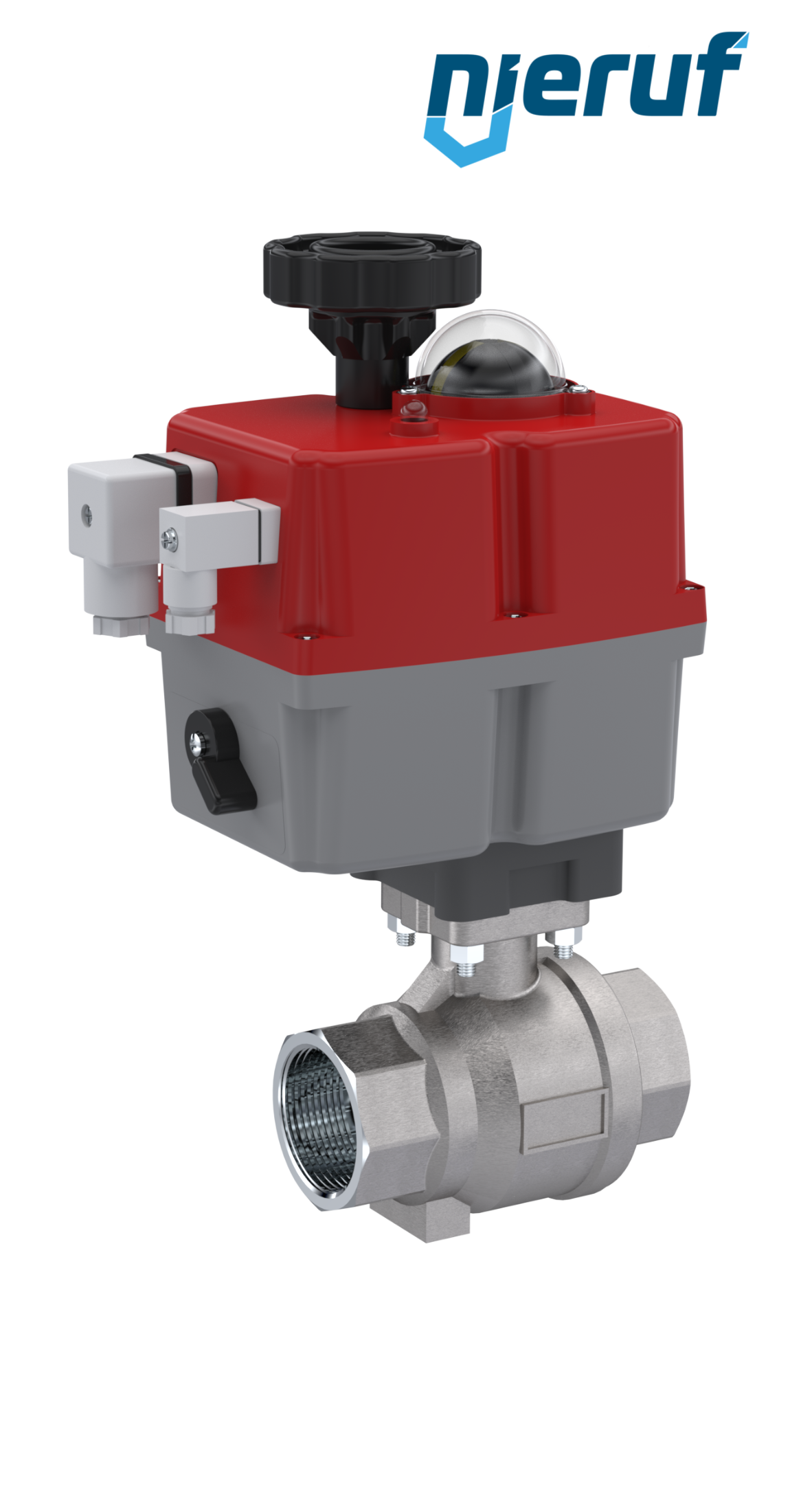

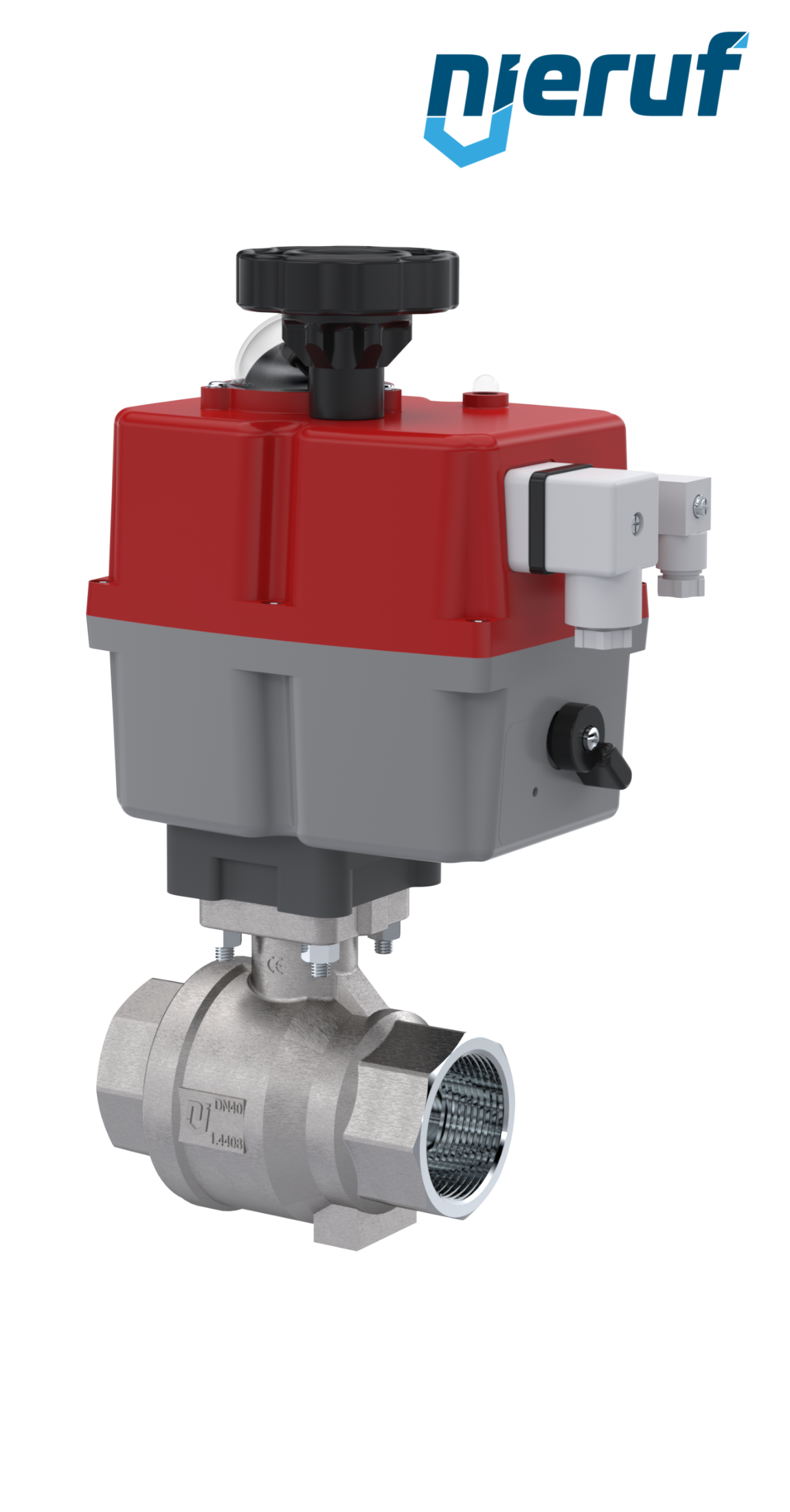

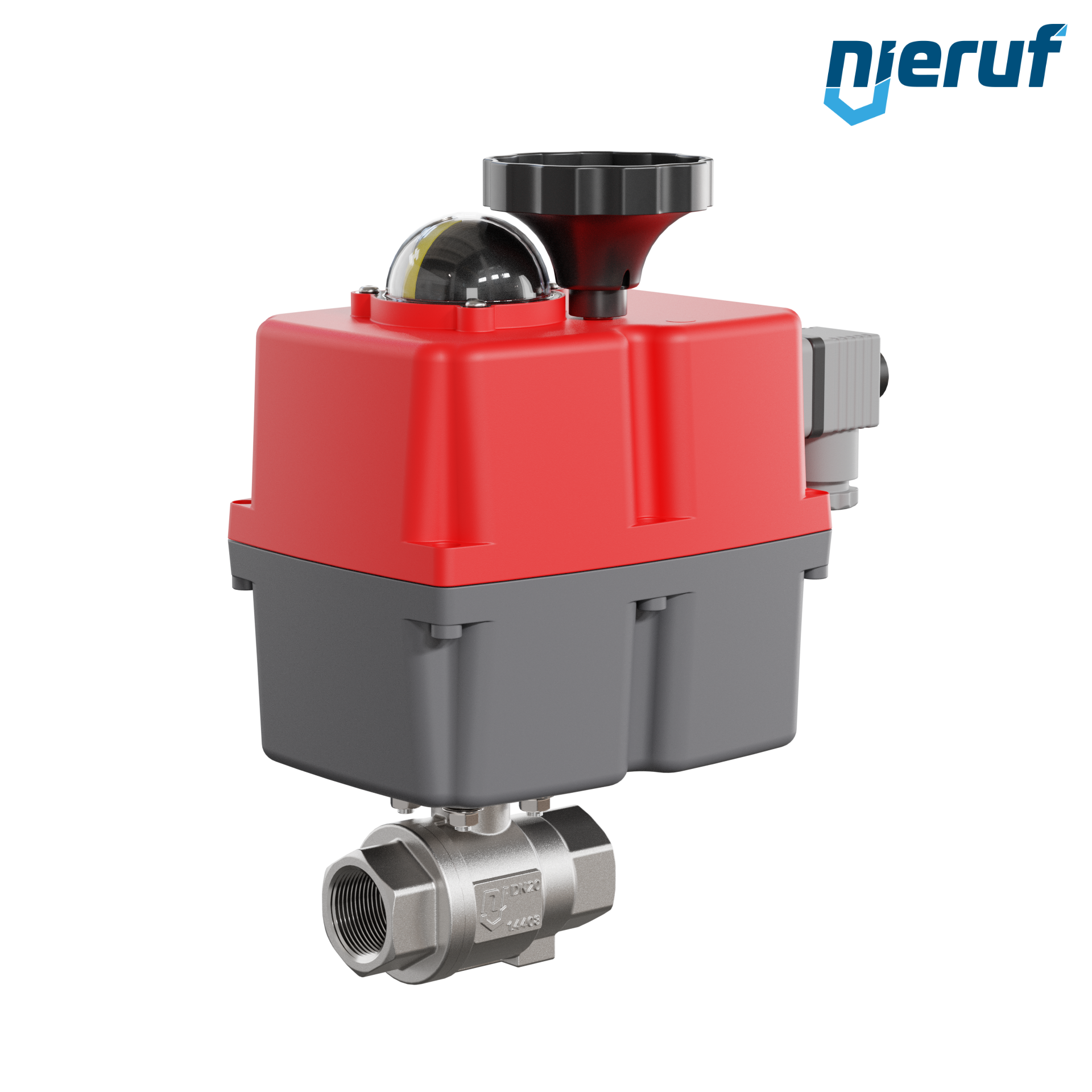

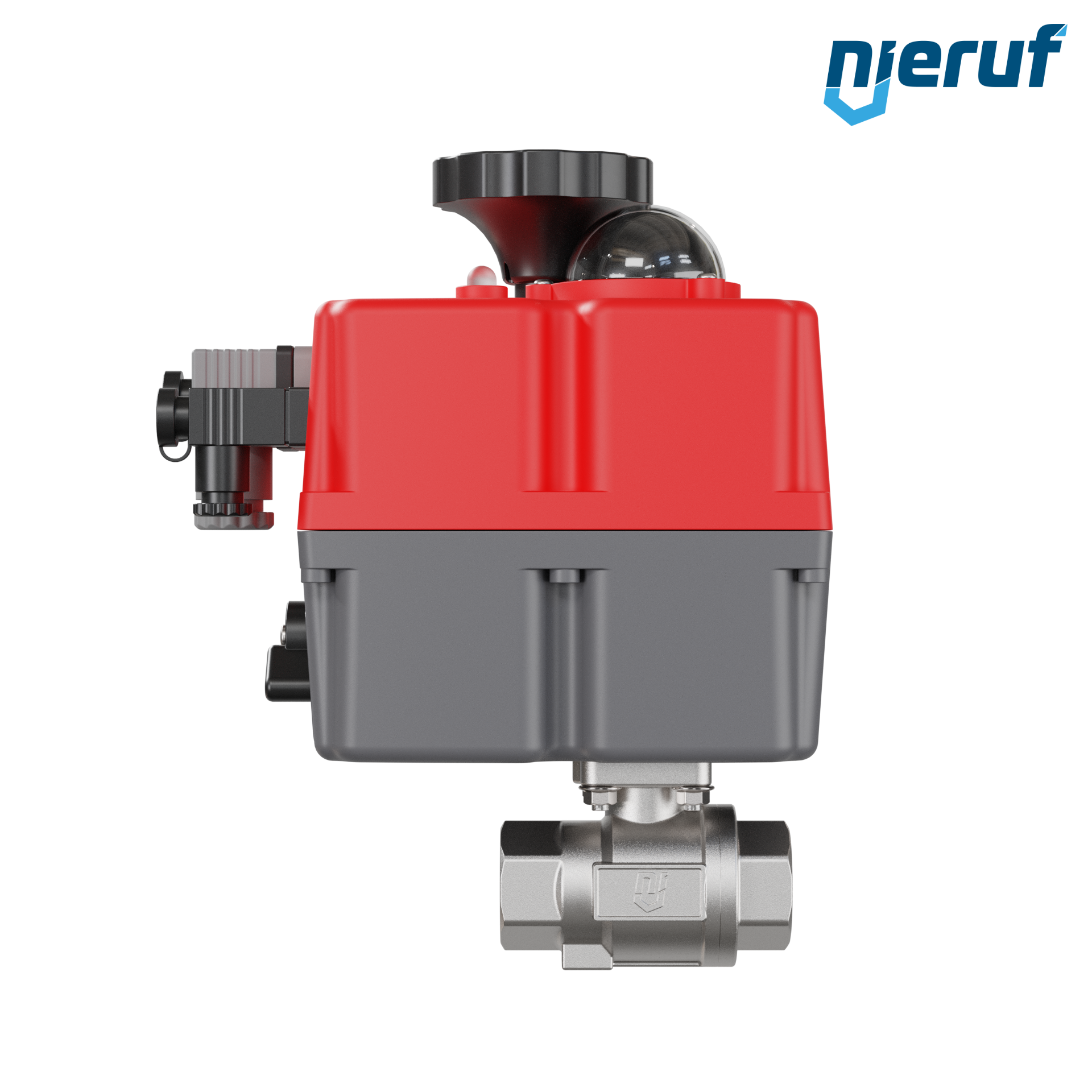

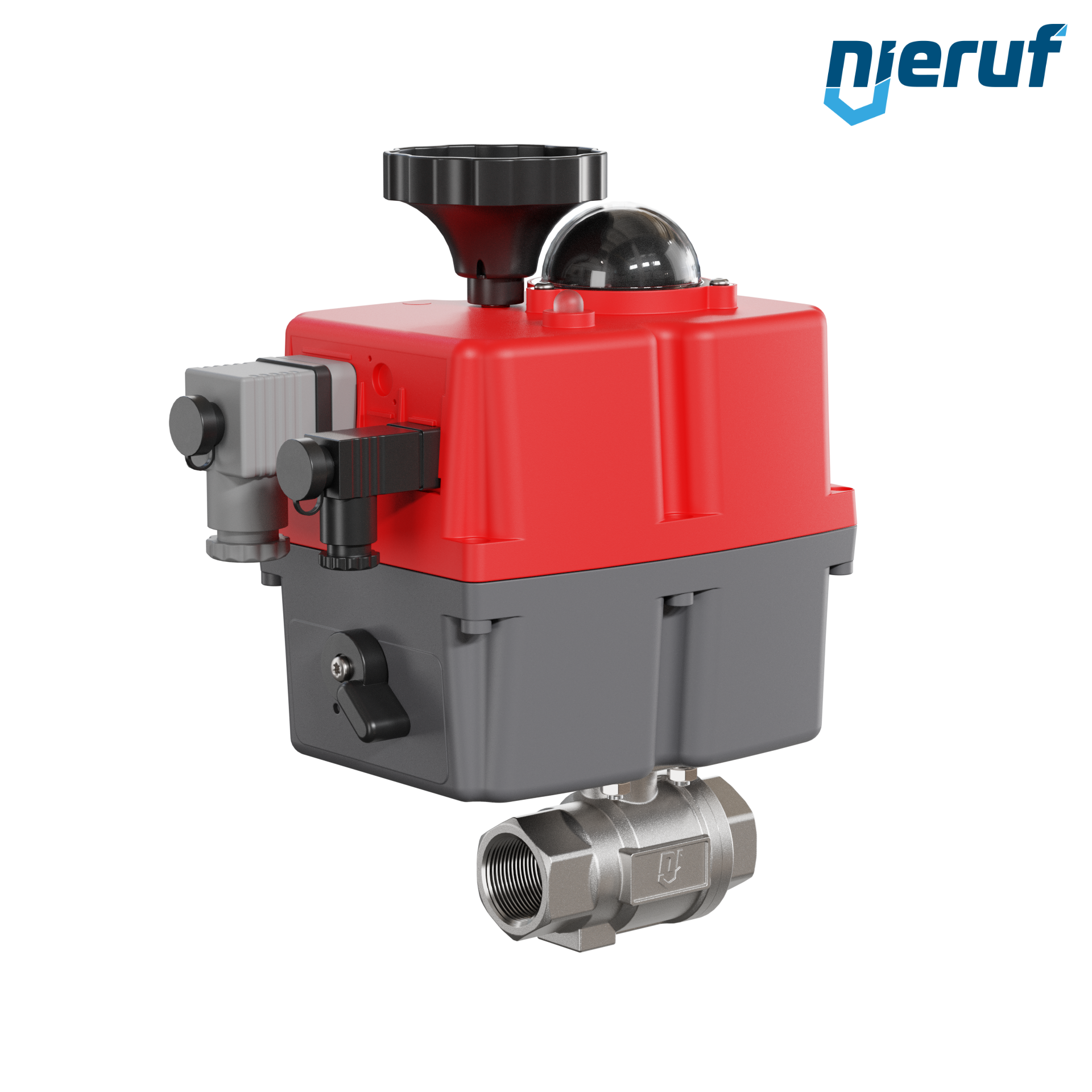

automatic-ball valve DVGW W drinking water approval DN20 - 3/4" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S 24V - 240V AC/DC
| product | automatic-ball valve |
|---|---|
| type | EK02 |
| manufacturer | NieRuf |
| diameter | DN20 - 3/4" inch |
| connection | female thread |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve generally from 0°C up to +65°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure | PN10 |
| design | Two - pieces brass ball valve with actuator |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE |
| length | 80mm |
| actuator | electronic actuator S20 - series S for 24-240V AC/DC |
| actuator informations | corrosion resistant synthetic body polyamide |
| installation position | any position, not upside down |
| authorized for | DVGW W drinking water approval |
| product description | This high quality automatic-stainless steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-ball valve DN20 - 3/4" inch stainless steel 24V EK02 DVGW-water
Article no.
: EK02000104
product:
automatic-ball valve
type:
EK02
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
female thread
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve generally from 0°C up to +65°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN10
design:
Two - pieces brass ball valve with actuator
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
80mm
actuator:
electronic actuator S20 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body polyamide
installation position:
any position, not upside down
authorized for:
DVGW W drinking water approval
product description:
This high quality automatic-stainless steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.
