FK06010005

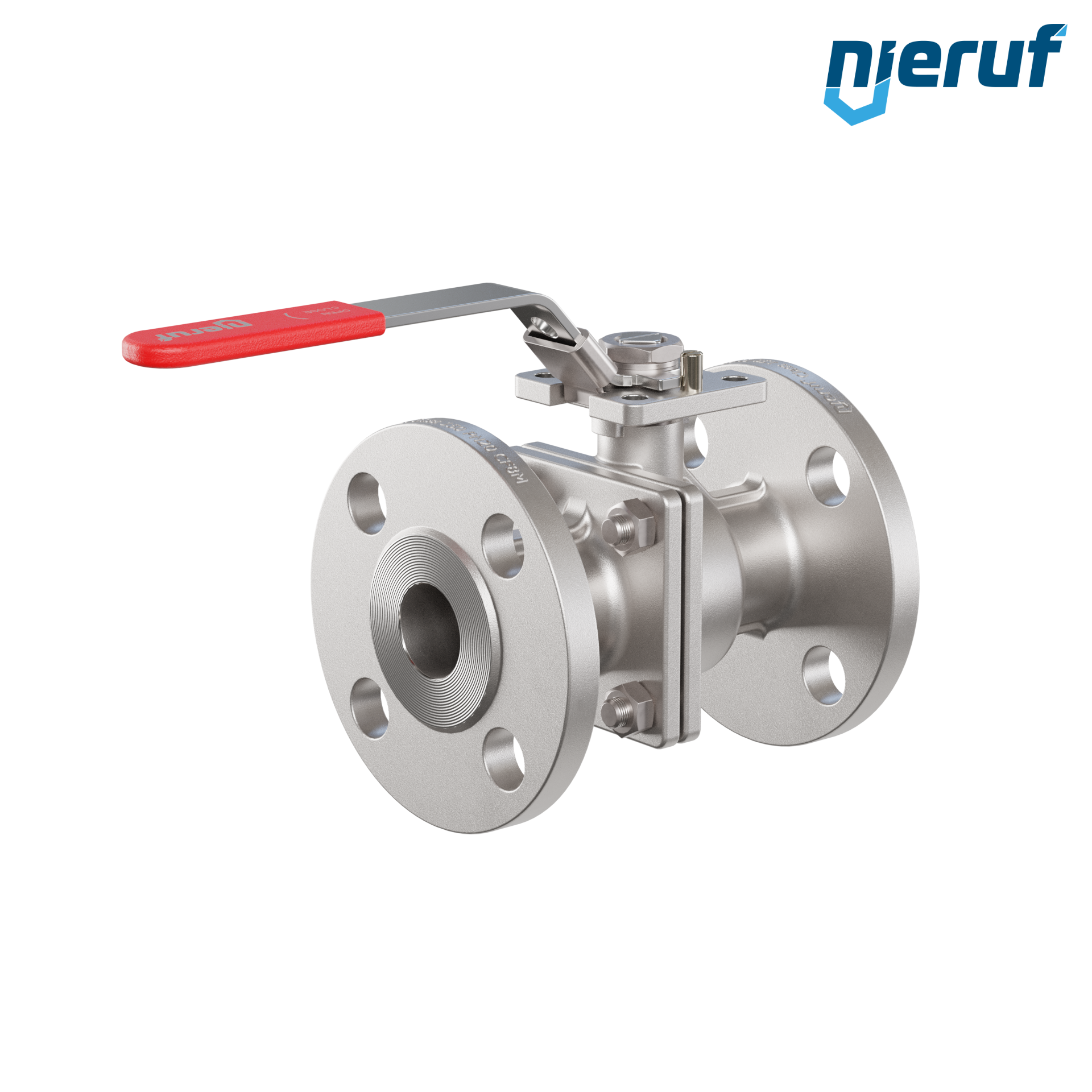

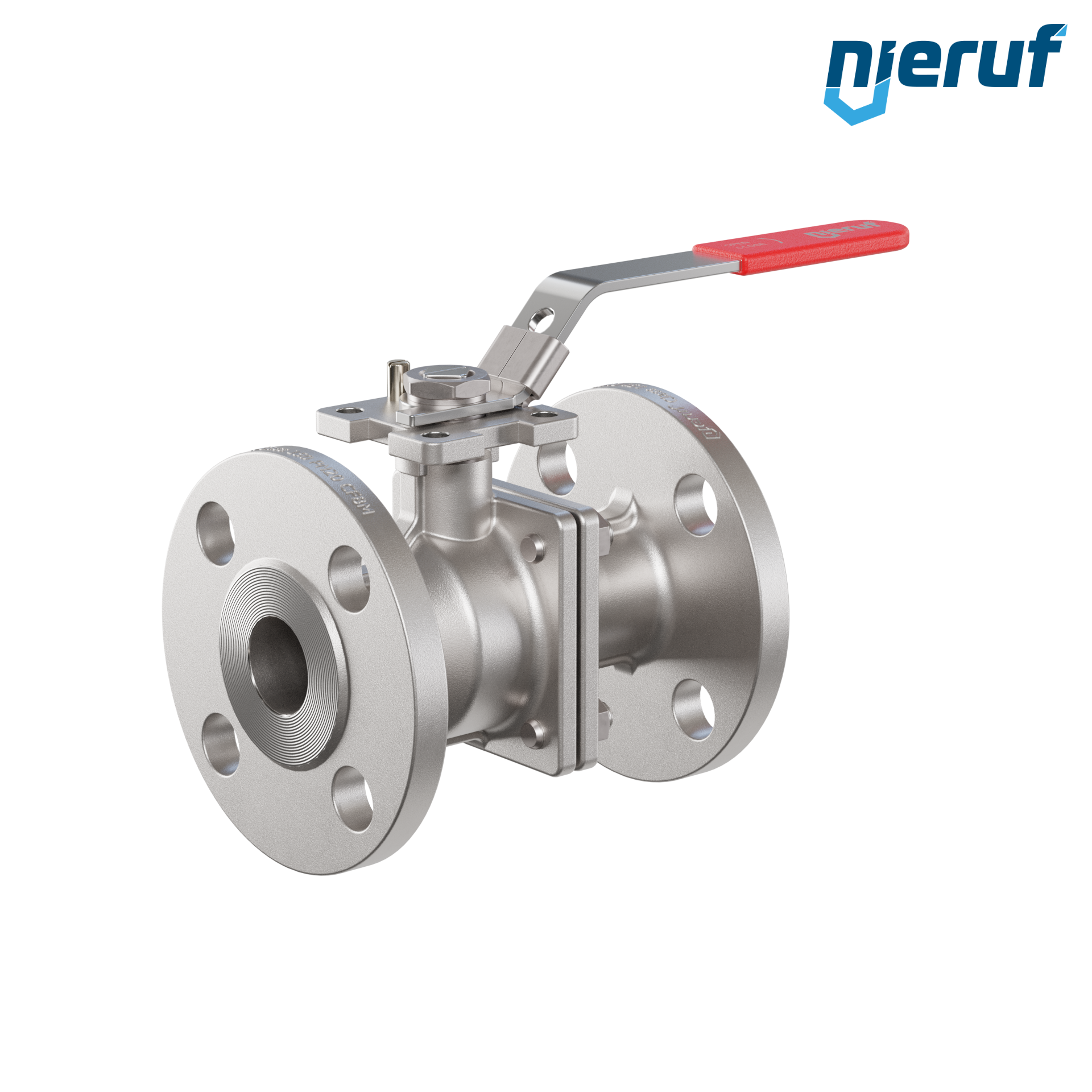

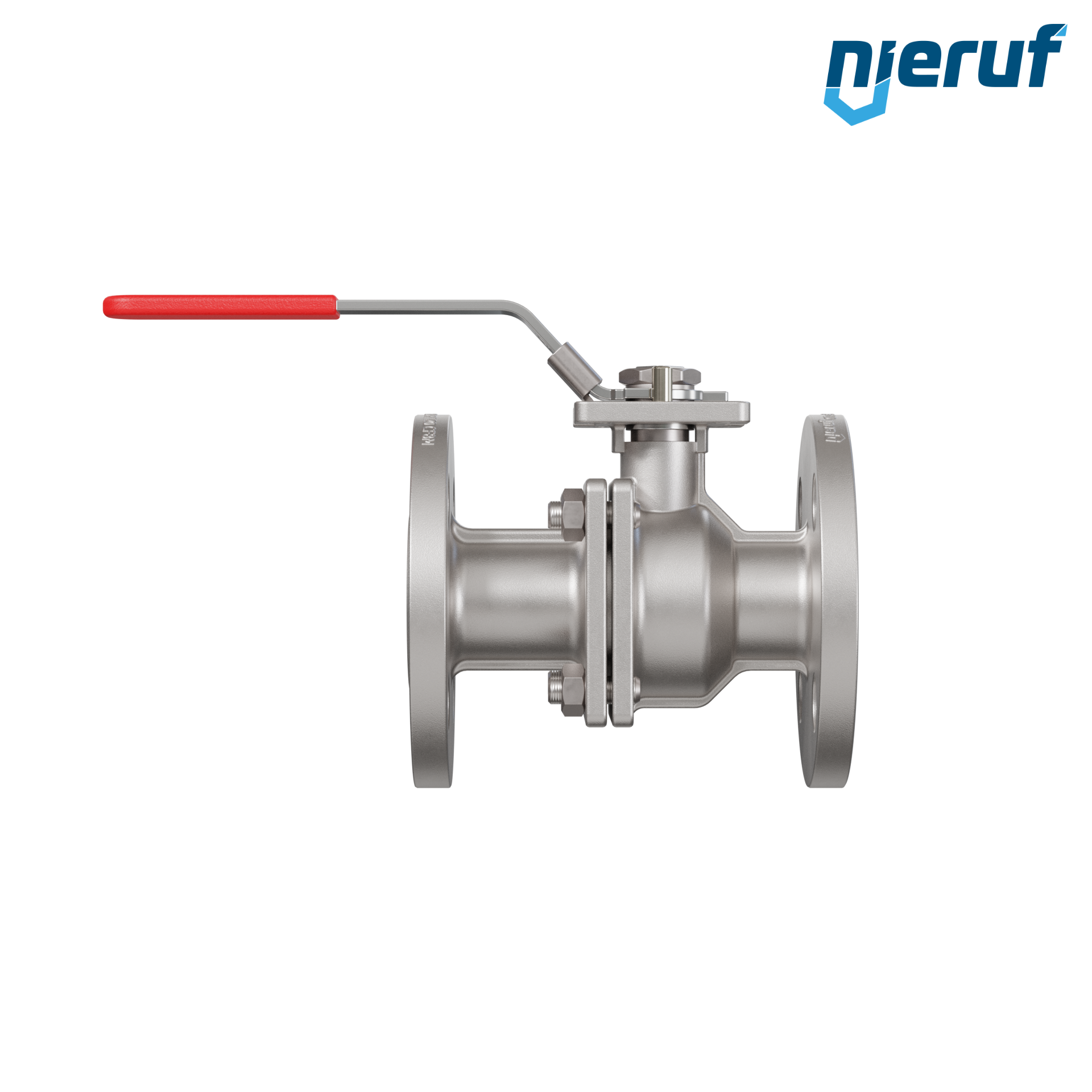

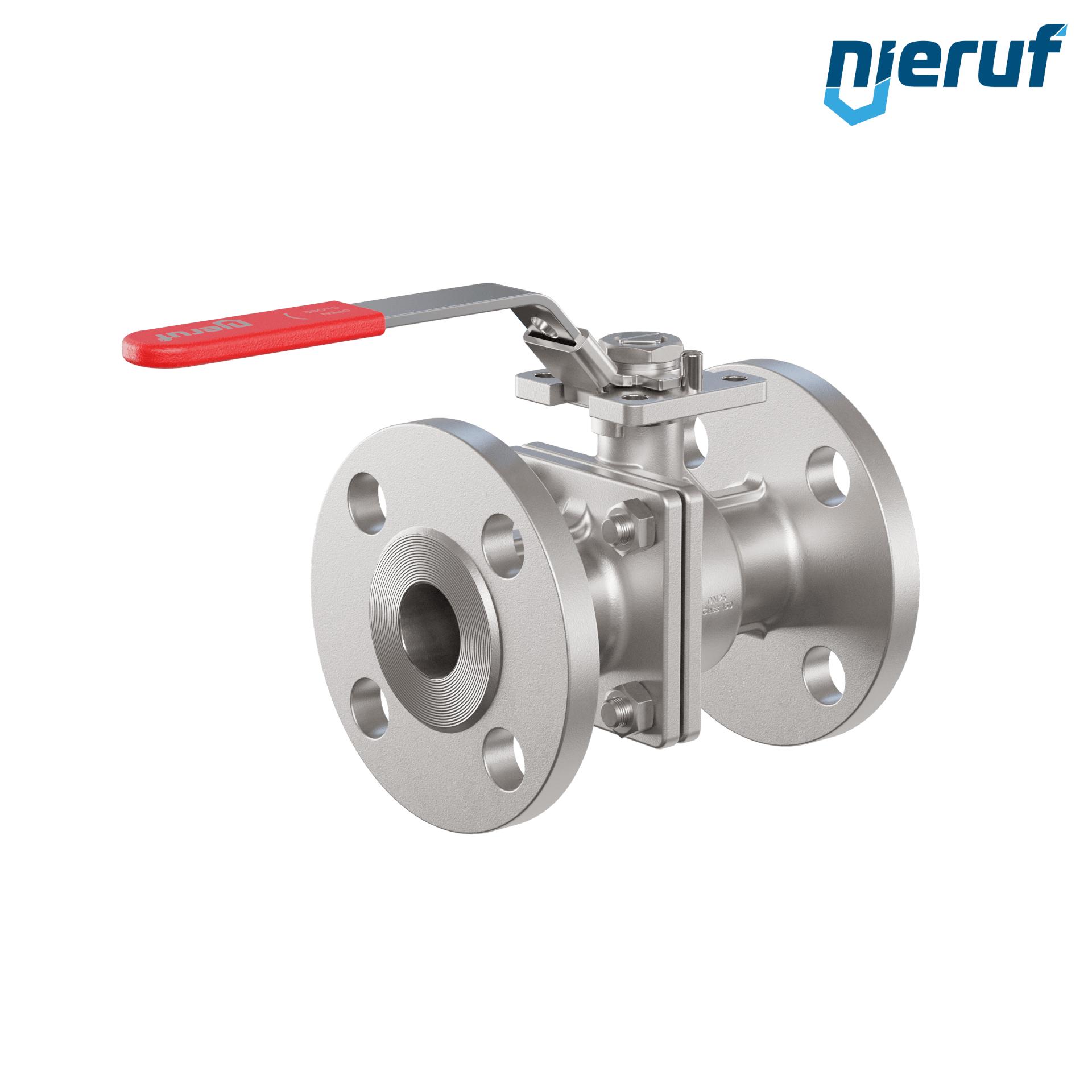

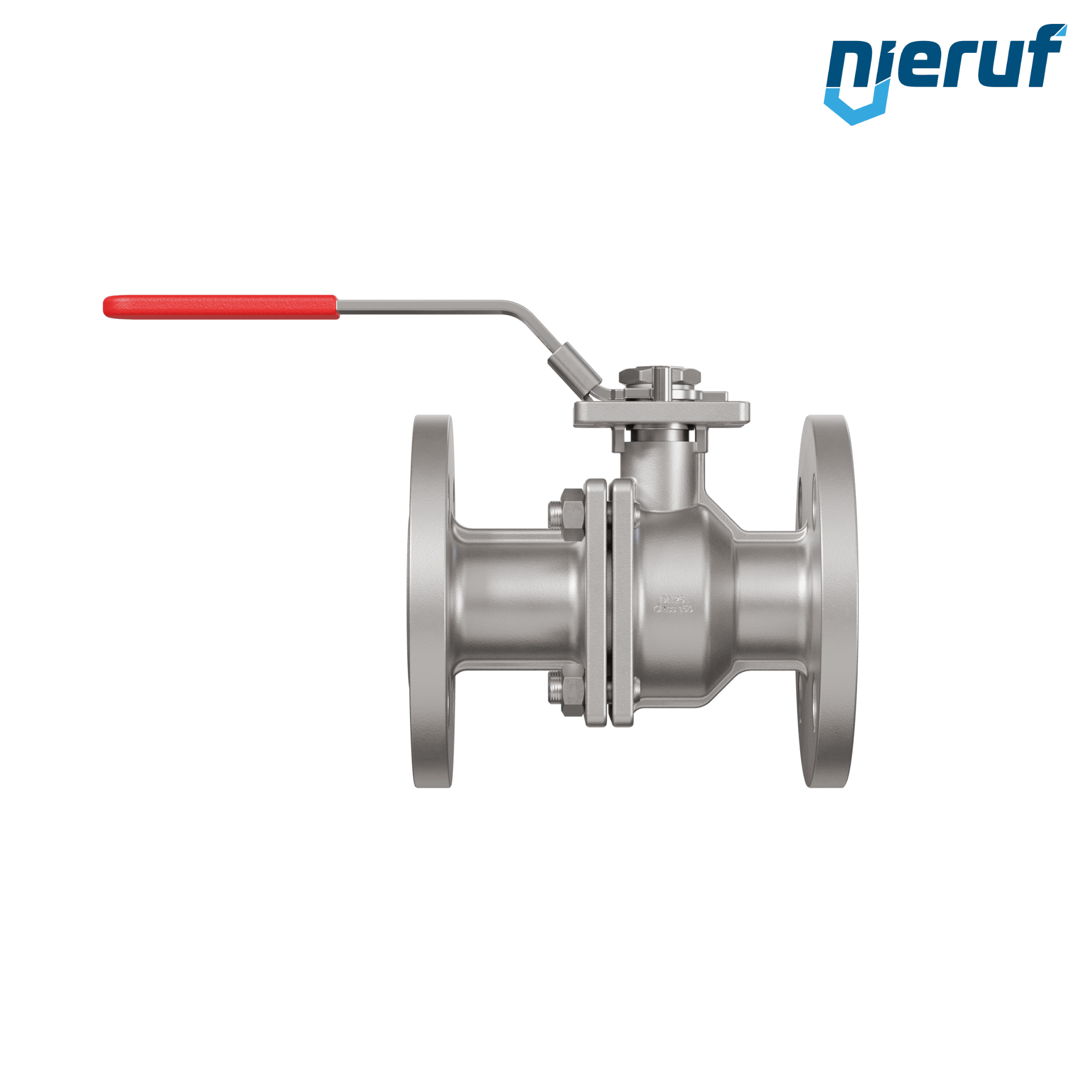

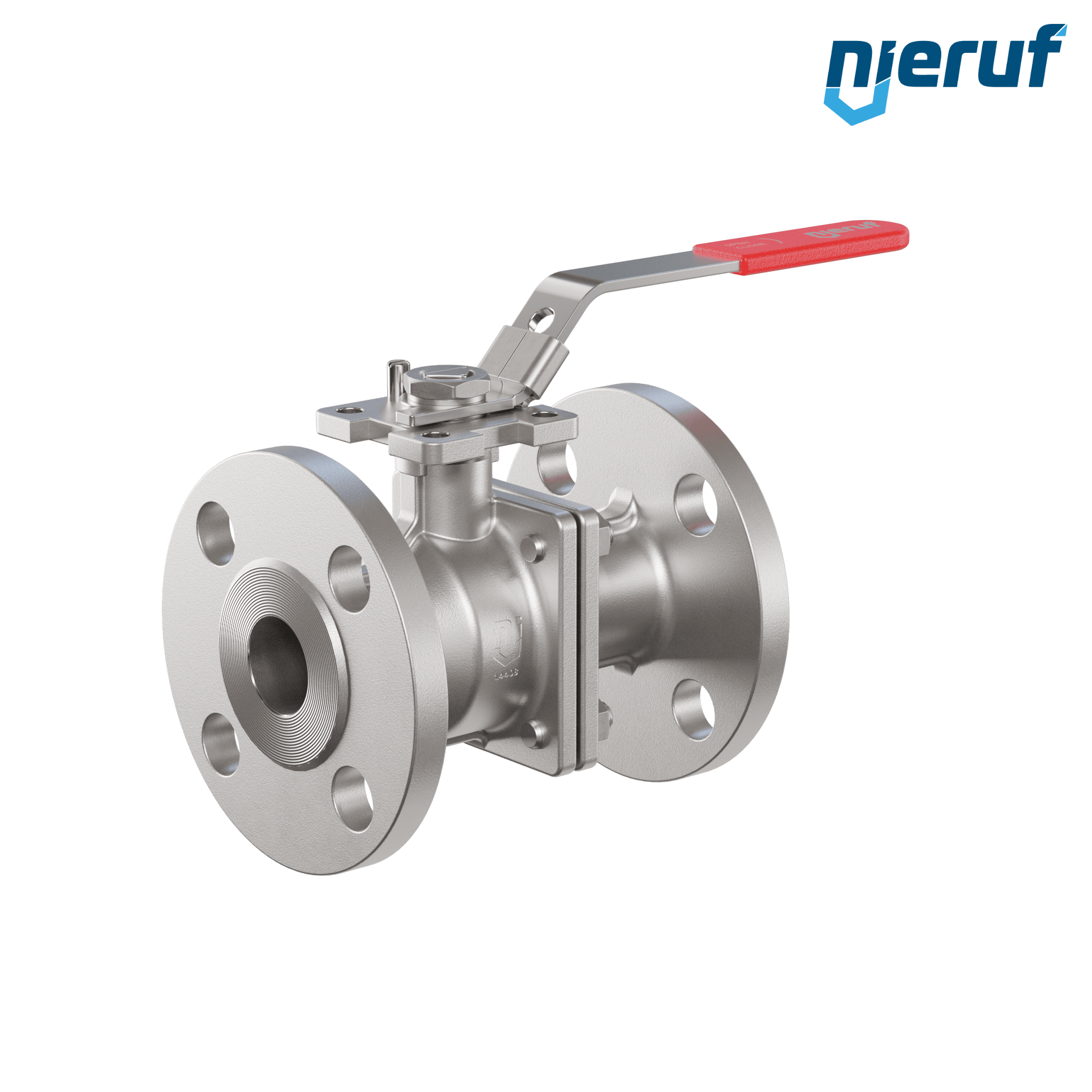

flange ball valve DN25 FK06 ANSI 150 stainless steel 1.4408
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
flange ball valve DN25 ANSI 150 FK06 body stainless steel 1.4408 ball stainless steel 1.4401 seal PTFE for liquid and gaseous media
| product: | flange ball valve |
|---|---|
| type: | FK06 |
| manufacturer: | NieRuf |
| diameter: | DN25 |
| connection: | flange dimensions acc. to ASME B16.5 ANSI 150 |
| Seal steam: | O-ring FKM |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -10°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN20 |
| design: | full port design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4401 |
| length: | ASME B16.10 |
| actuator: | lever handle made of stainless steel with plastic cover |
| installation position: | any position |
| product description: | This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange ball valve DN25 FK06 ANSI 150 stainless steel 1.4408
Article no.
: FK06010005
product:
flange ball valve
type:
FK06
manufacturer:
NieRuf
diameter:
DN25
connection:
flange dimensions acc. to ASME B16.5 ANSI 150
Seal steam:
O-ring FKM
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-10°C up to +180°C - depending on working pressure and media
max. pressure:
PN20
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
length:
ASME B16.10
actuator:
lever handle made of stainless steel with plastic cover
installation position:
any position
product description:
This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.
€2.26 VAT included.
€32.49 VAT included.
€6.66 VAT included.
€28.92 VAT included.
€11.78 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
