GK17010004

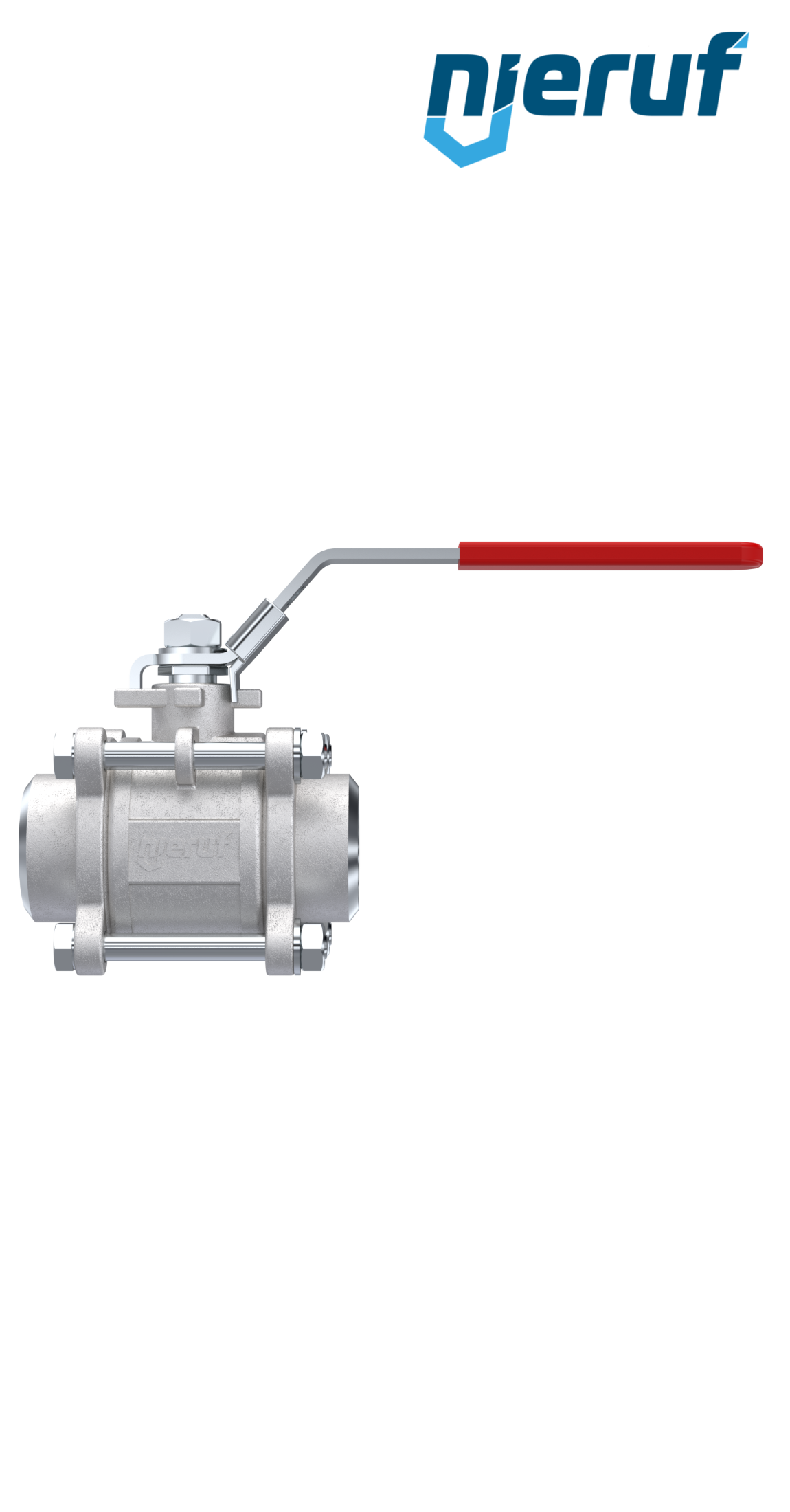

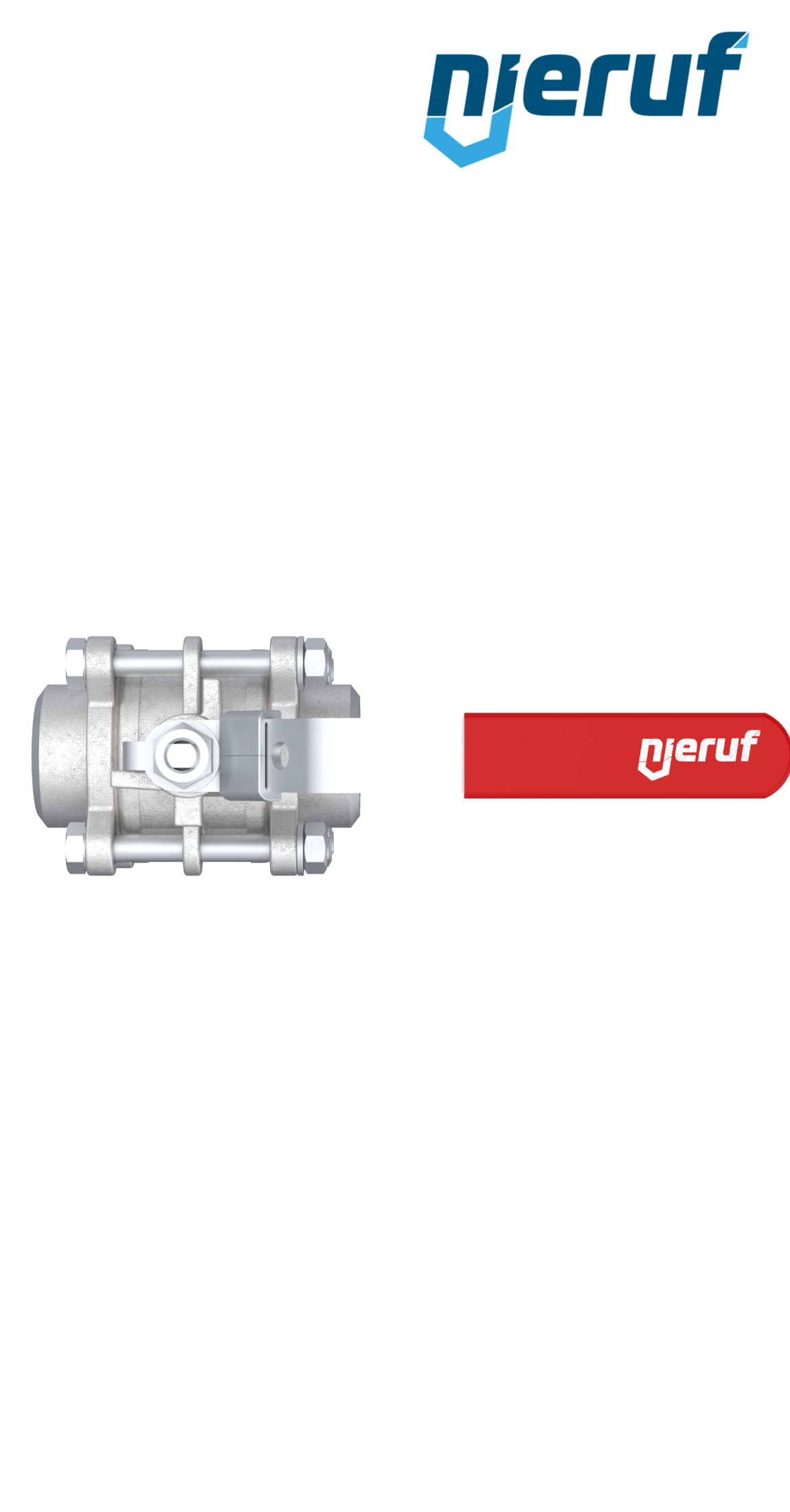

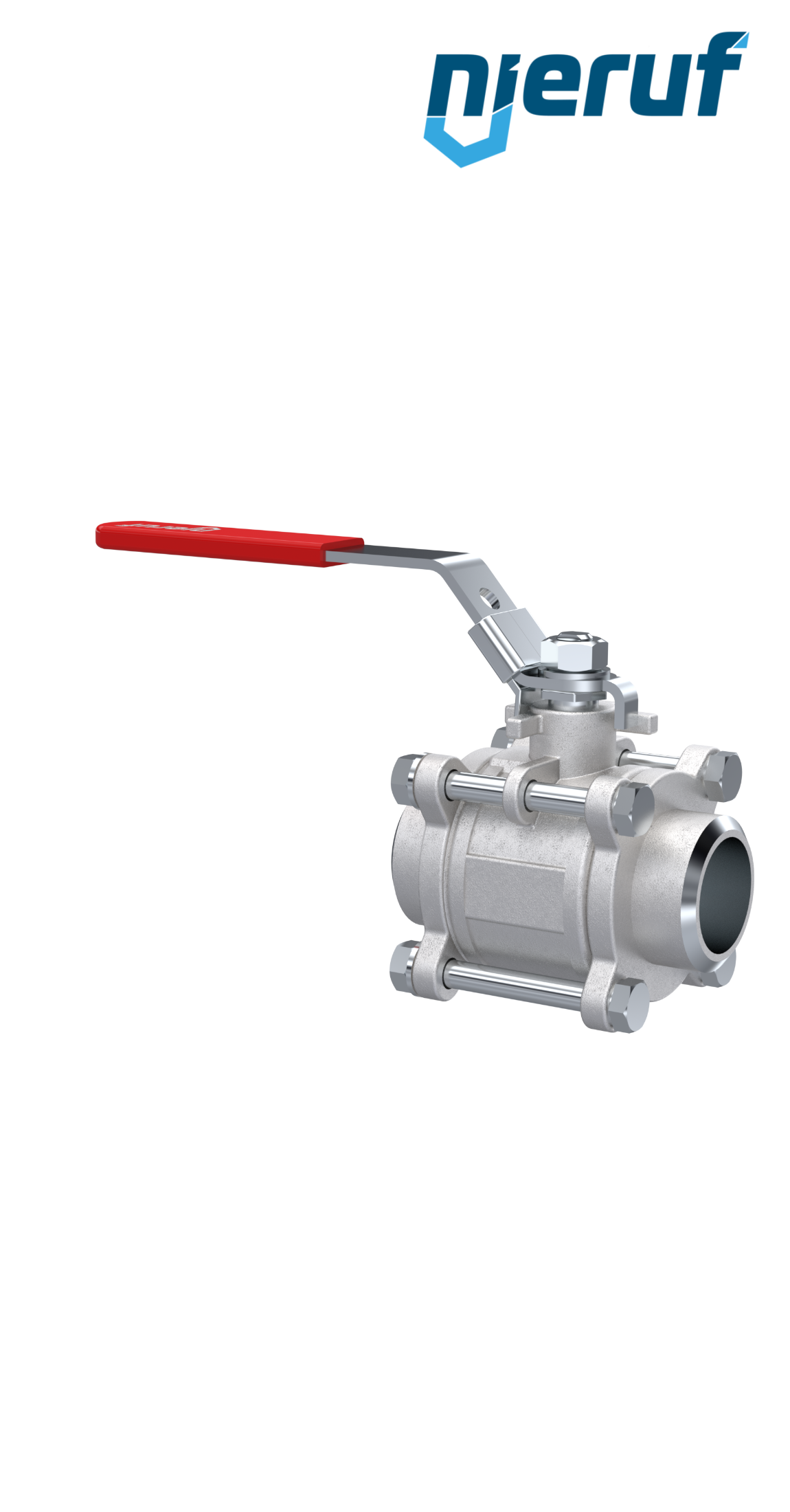

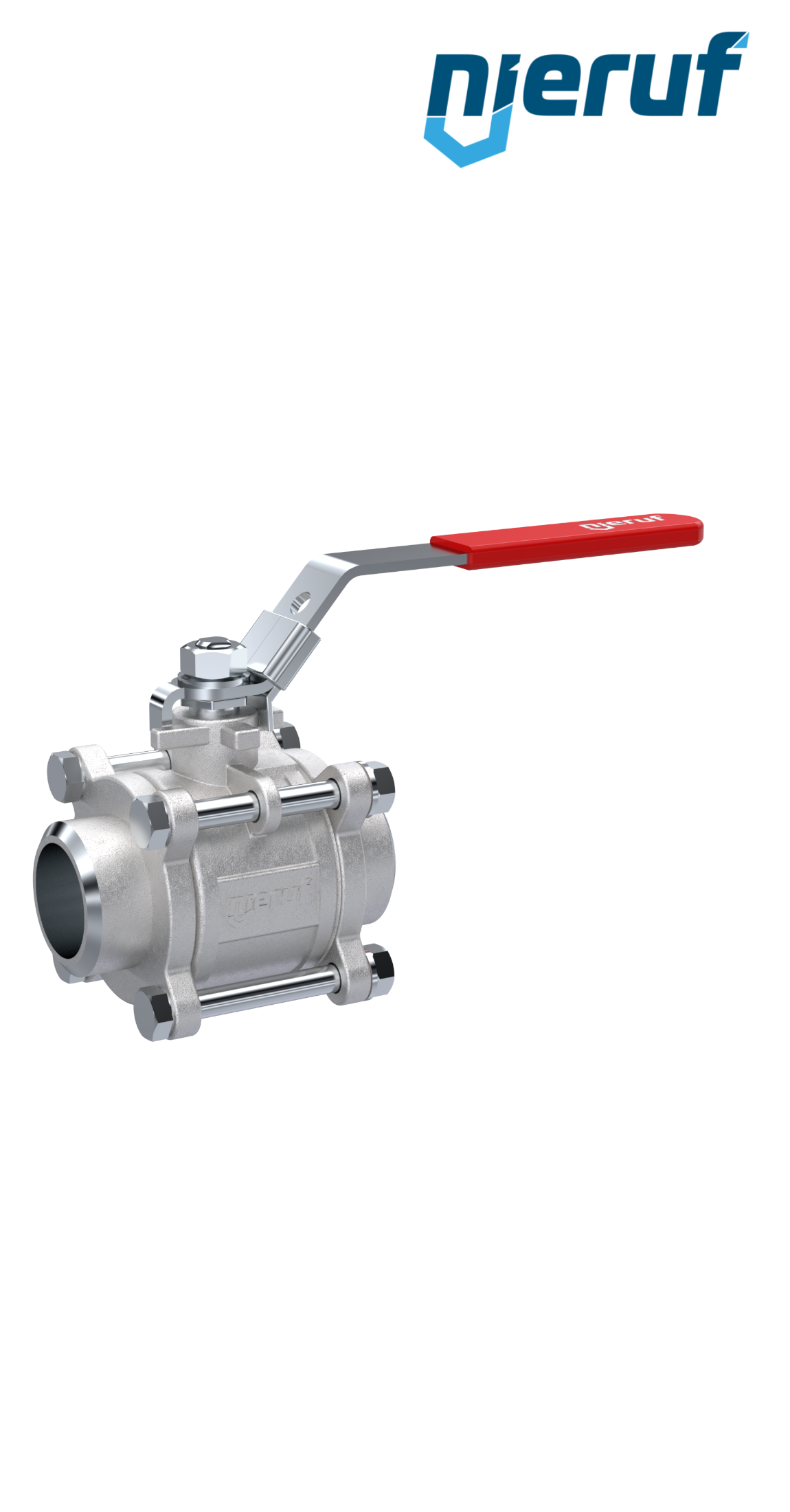

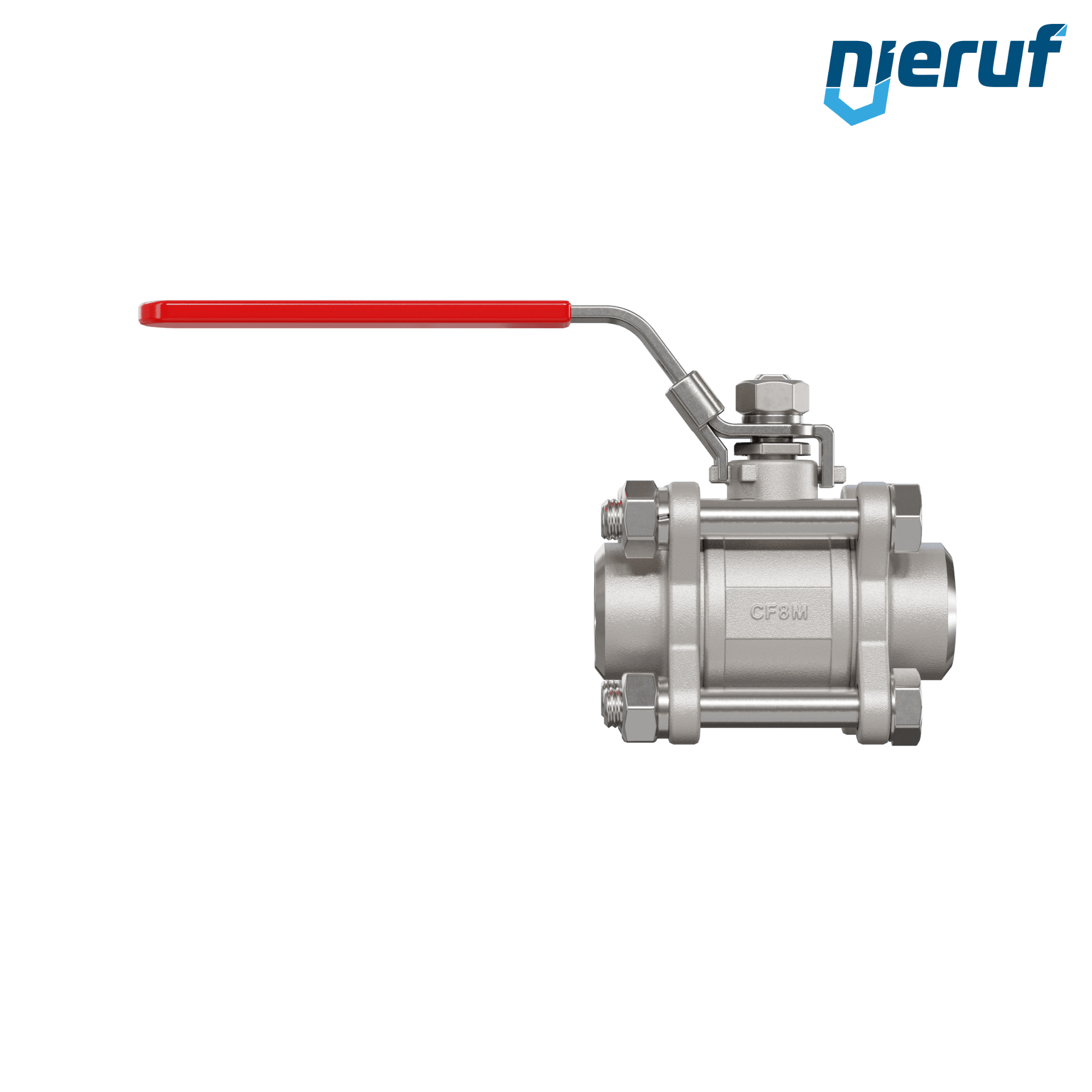

three-pieces stainless steel ball valve DN20 - 3/4" inch butt welding
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
three-pieces 2-way ball valve made of stainless steel 1.4408 DN20 - 3/4" inch butt welding for liquid and gaseous media
| product: | 3 pieces ball valve |
|---|---|
| type: | GK17 |
| manufacturer: | NieRuf |
| diameter: | DN20 - 3/4" inch |
| connection: | butt welding |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | - 20°C up to 180°C - depending on working pressure and media |
| max. pressure: | 63 bar |
| design: | full port design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4401 |
| length: | 70.6mm |
| actuator: | hand lever with red plastic cover |
| installation position: | any position |
| product description: | This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
three-pieces stainless steel ball valve DN20 - 3/4" inch butt welding
Article no.
: GK17010004
product:
3 pieces ball valve
type:
GK17
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
butt welding
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
- 20°C up to 180°C - depending on working pressure and media
max. pressure:
63 bar
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
length:
70.6mm
actuator:
hand lever with red plastic cover
installation position:
any position
product description:
This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
€3.57 VAT included.
