GK17000004

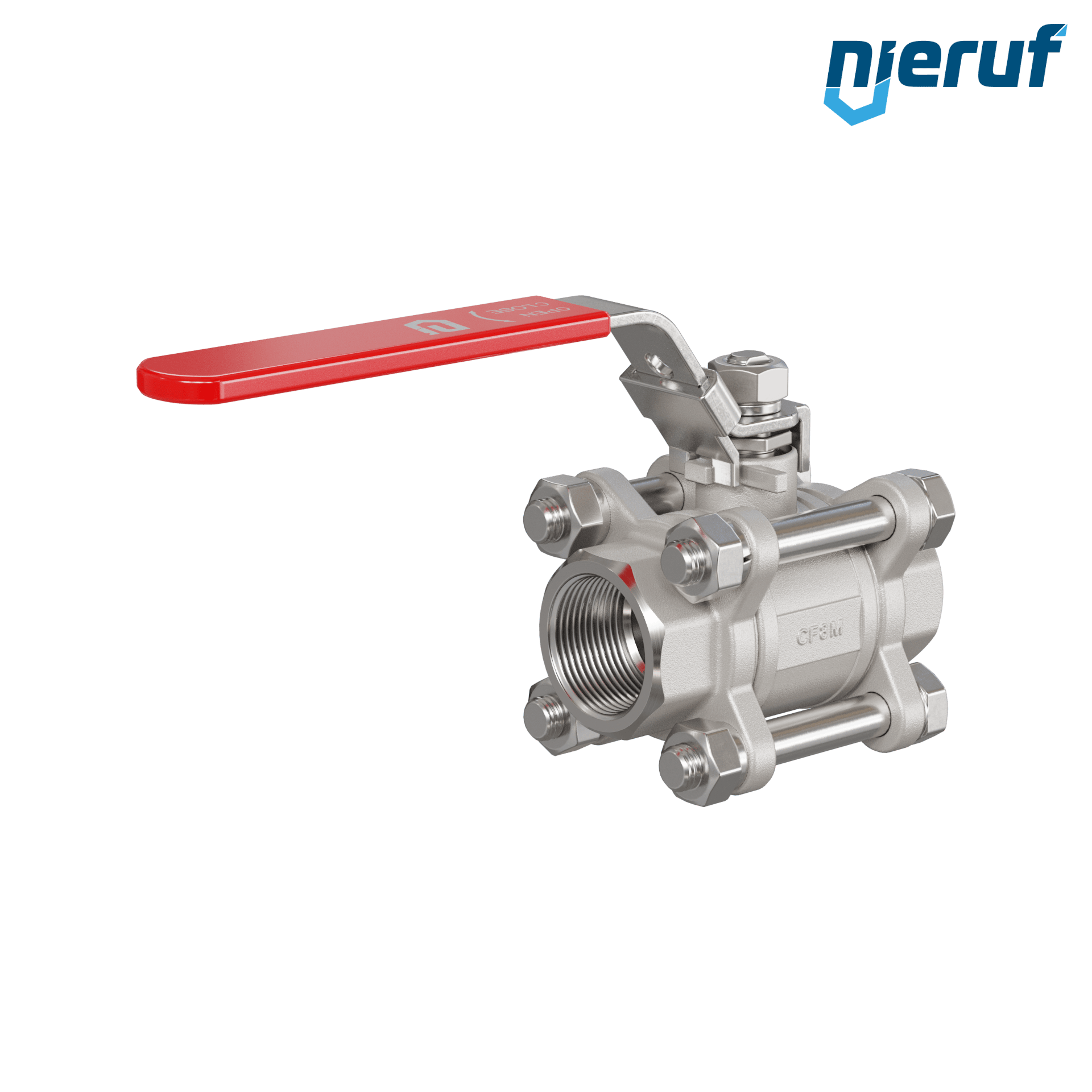

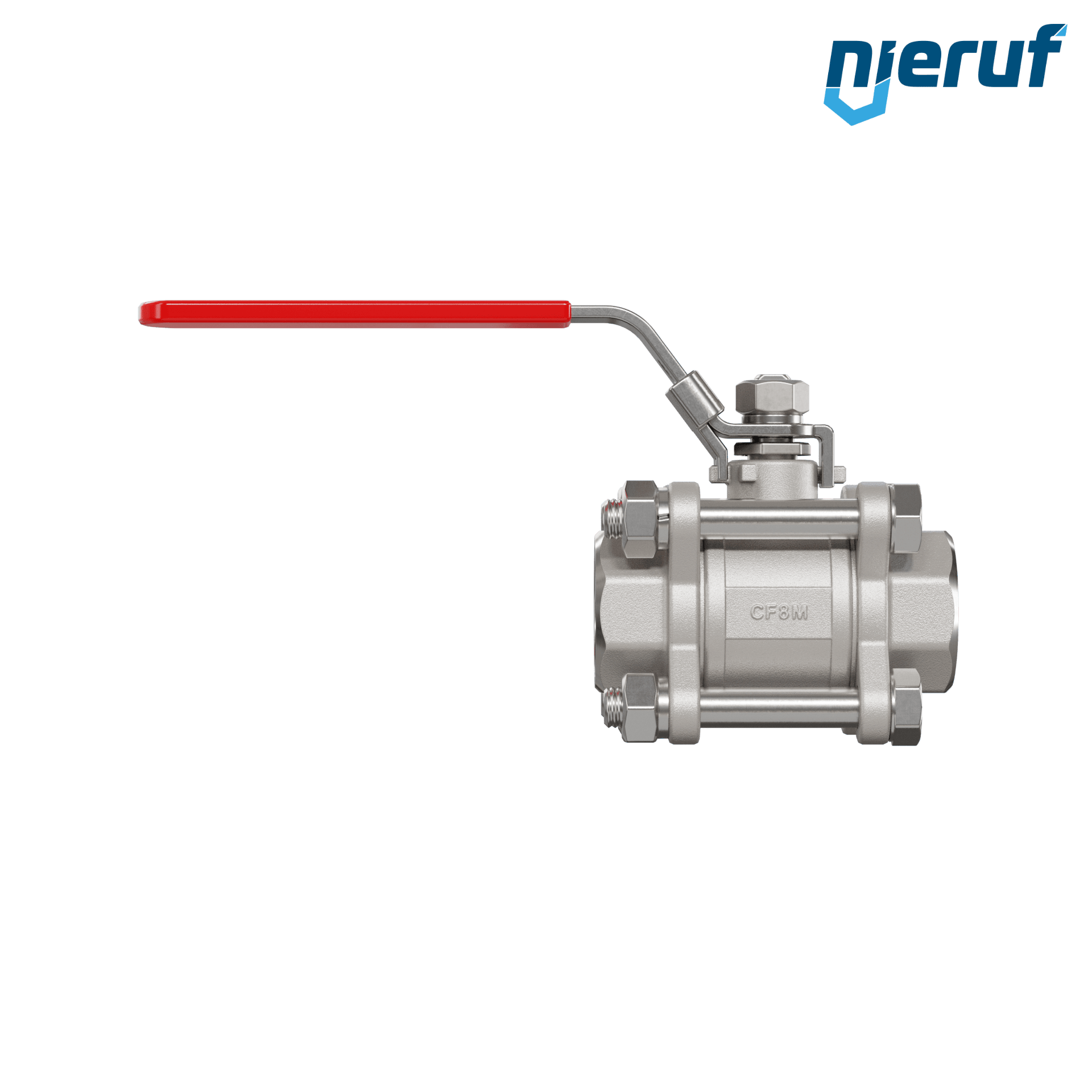

three-pieces stainless steel ball valve DN20 - 3/4" inch female thread
- Delivery time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 12. March
Guaranteed delivery until Thursday, 13. March, 12 o'clock
Equipment
Questions about the article?
three-pieces 2-way ball valve made of stainless steel 1.4408 DN20 - 3/4" inch female thread for liquid and gaseous media
| product | 3 pieces ball valve |
|---|---|
| type | GK17 |
| manufacturer | NieRuf |
| diameter | DN20 - 3/4" inch |
| connection | female thread BSP |
| Seal steam | PTFE |
| ball seal | PTFE |
| media | liquid and gaseous media |
| temperature | - 20°C up to 180°C - depending on working pressure and media |
| max. pressure | 63 bar |
| design | full port design |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4401 |
| length | 70.6mm |
| actuator | hand lever with red plastic cover |
| installation position | any position |
| product description | This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
three-pieces stainless steel ball valve DN20 - 3/4" inch female thread
Article no.
: GK17000004
product:
3 pieces ball valve
type:
GK17
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
female thread BSP
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
- 20°C up to 180°C - depending on working pressure and media
max. pressure:
63 bar
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
length:
70.6mm
actuator:
hand lever with red plastic cover
installation position:
any position
product description:
This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
