GK17010010

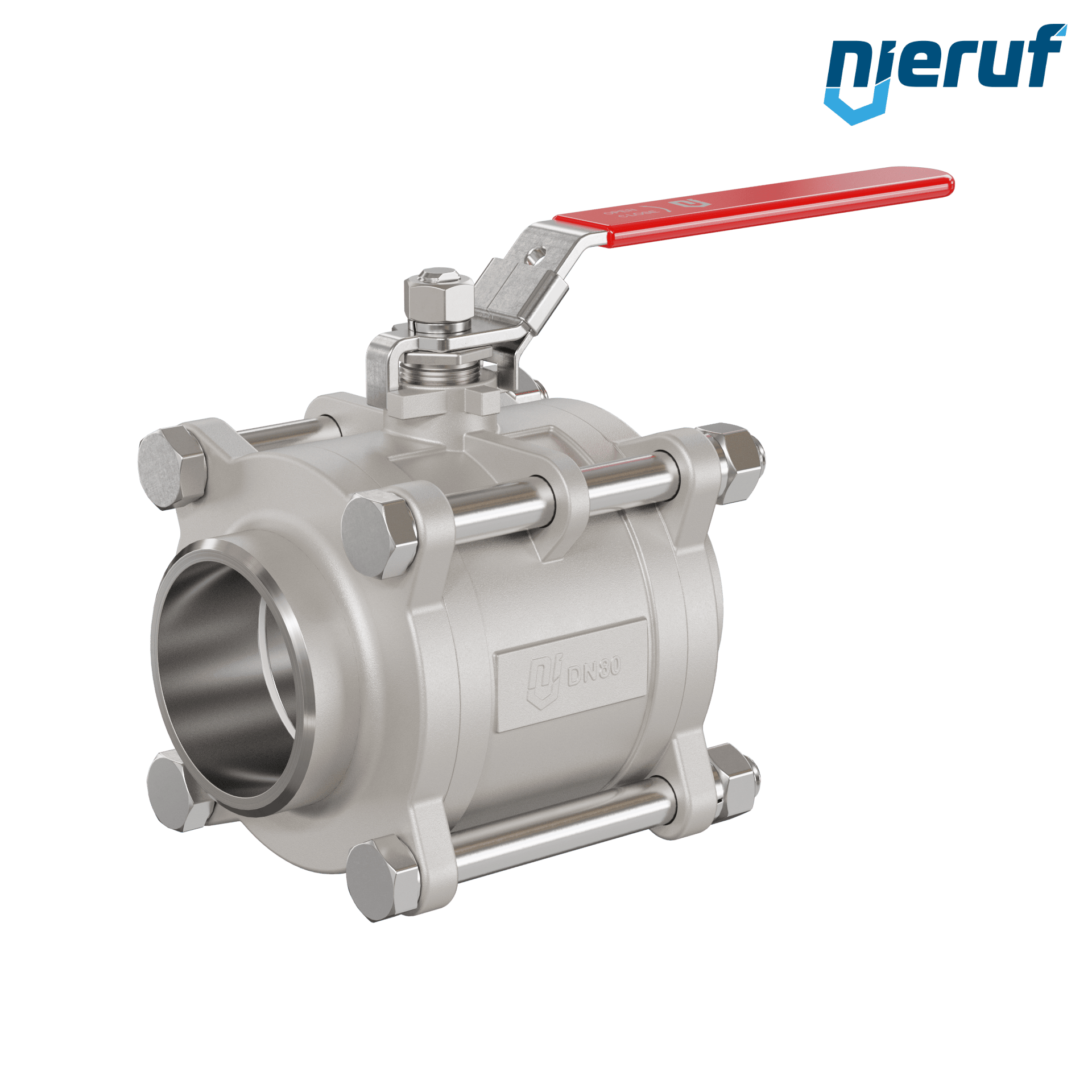

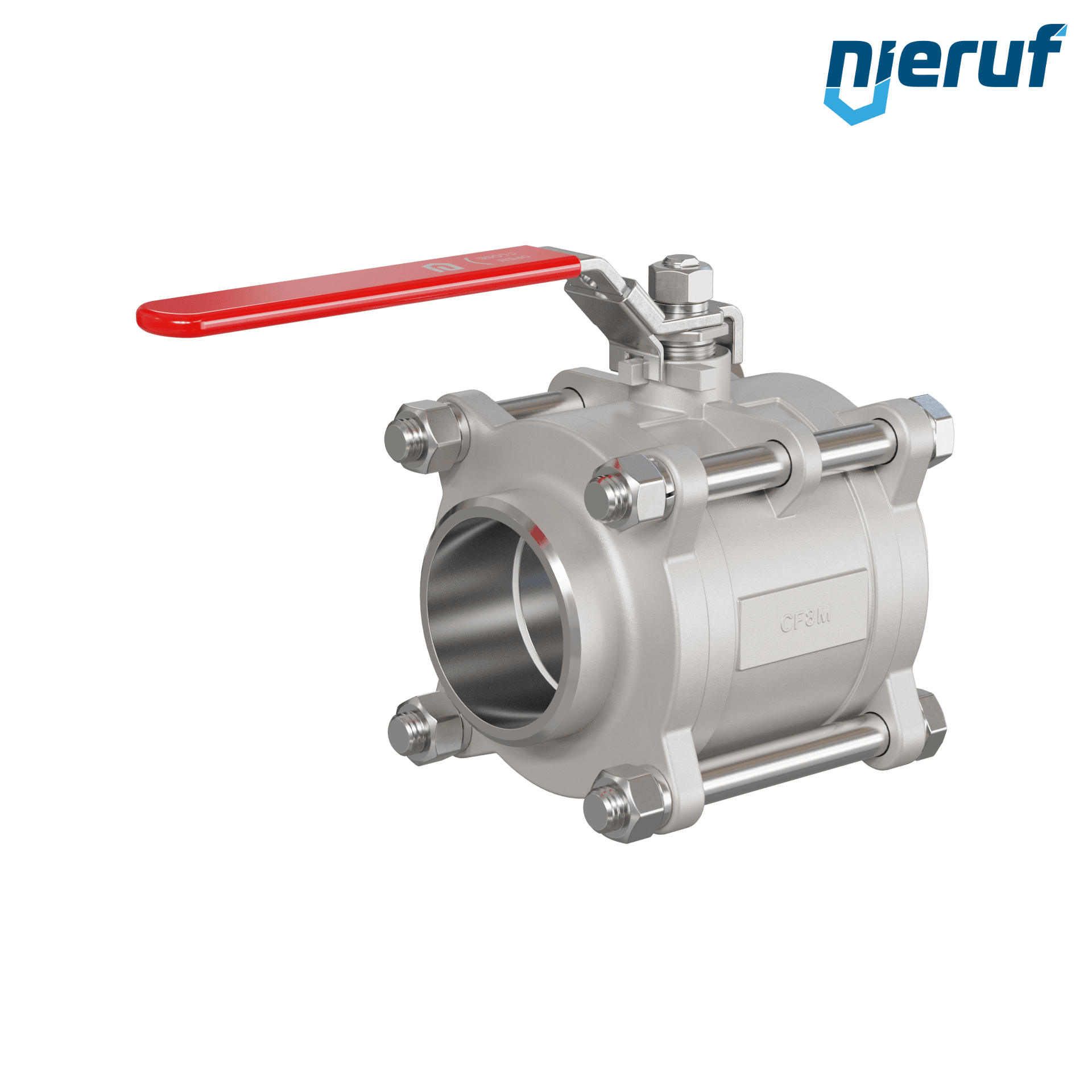

three-pieces stainless steel ball valve DN80 - 3" inch butt welding
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
three-pieces 2-way ball valve made of stainless steel 1.4408 DN80 - 3" inch butt welding for liquid and gaseous media
| product: | 3 pieces ball valve |
|---|---|
| type: | GK17 |
| manufacturer: | NieRuf |
| diameter: | DN80 - 3" inch |
| connection: | butt welding |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | - 20°C up to 180°C - depending on working pressure and media |
| max. pressure: | 25 bar |
| design: | full port design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4401 |
| length: | 175mm |
| actuator: | hand lever with red plastic cover |
| installation position: | any position |
| product description: | This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
three-pieces stainless steel ball valve DN80 - 3" inch butt welding
Article no.
: GK17010010
product:
3 pieces ball valve
type:
GK17
manufacturer:
NieRuf
diameter:
DN80 - 3" inch
connection:
butt welding
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
- 20°C up to 180°C - depending on working pressure and media
max. pressure:
25 bar
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
length:
175mm
actuator:
hand lever with red plastic cover
installation position:
any position
product description:
This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
€23.92 VAT included.
