GK13000005
ball valve with spring reload DN25 - 1" inch GK13
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

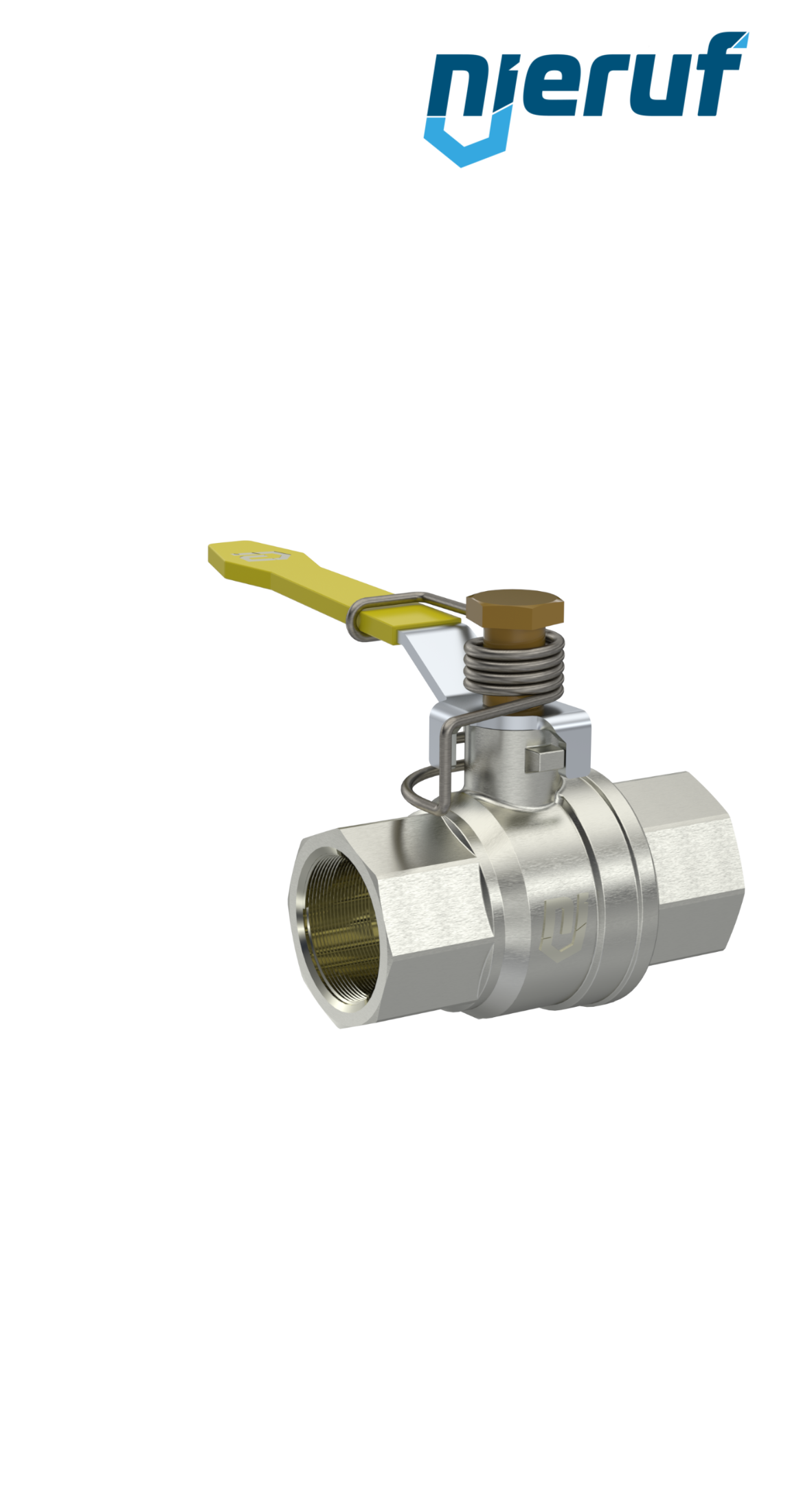

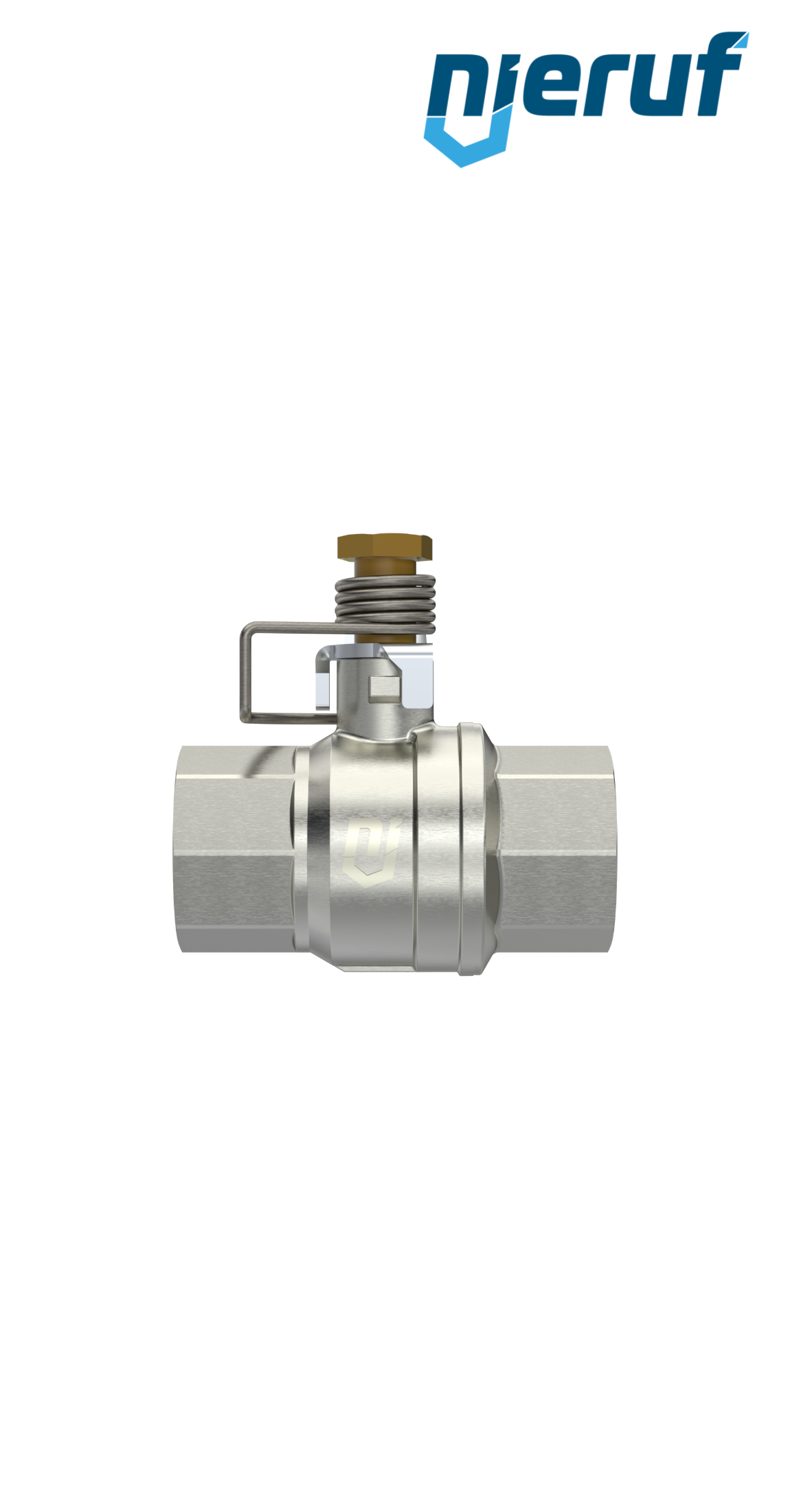

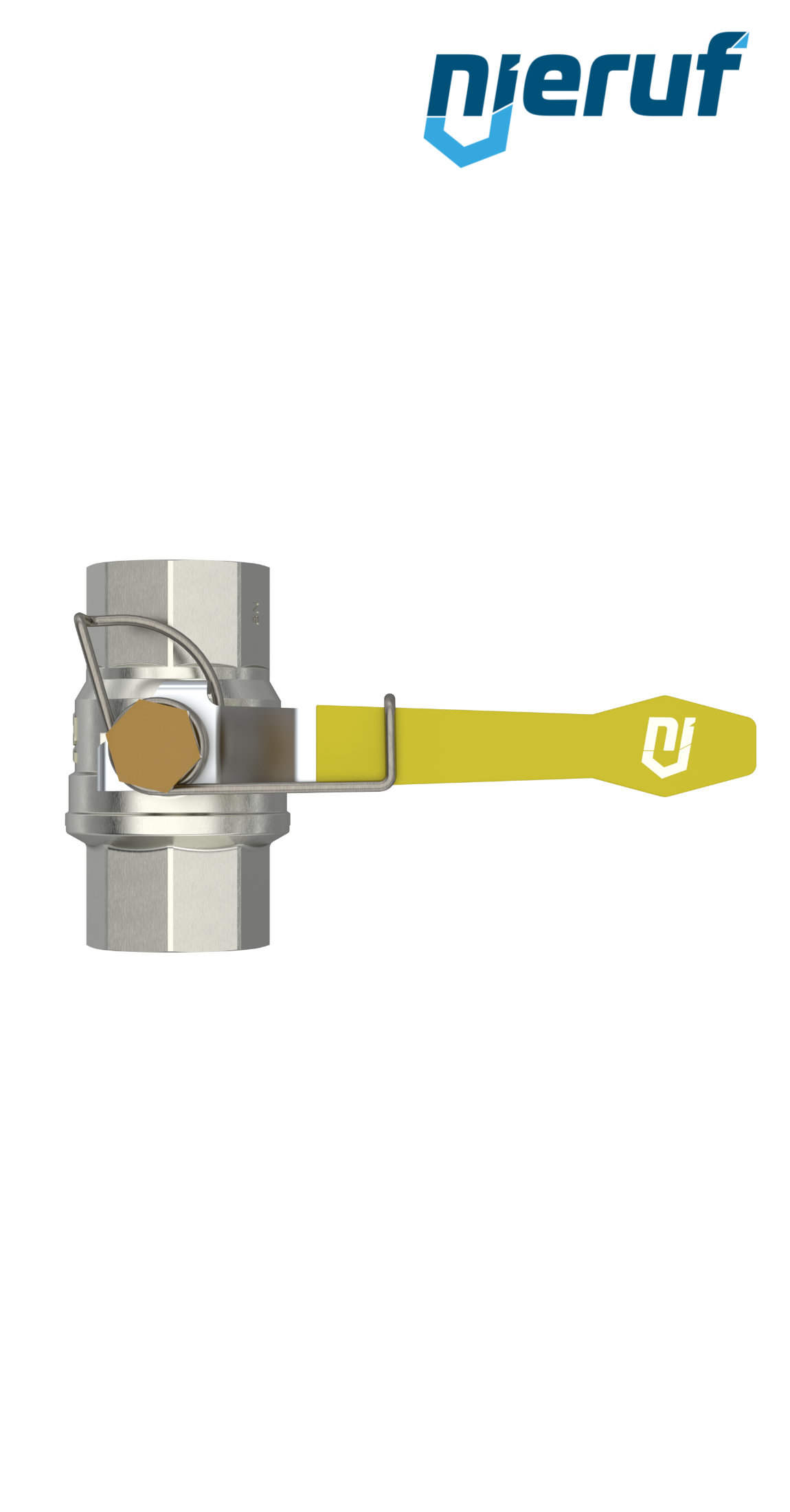

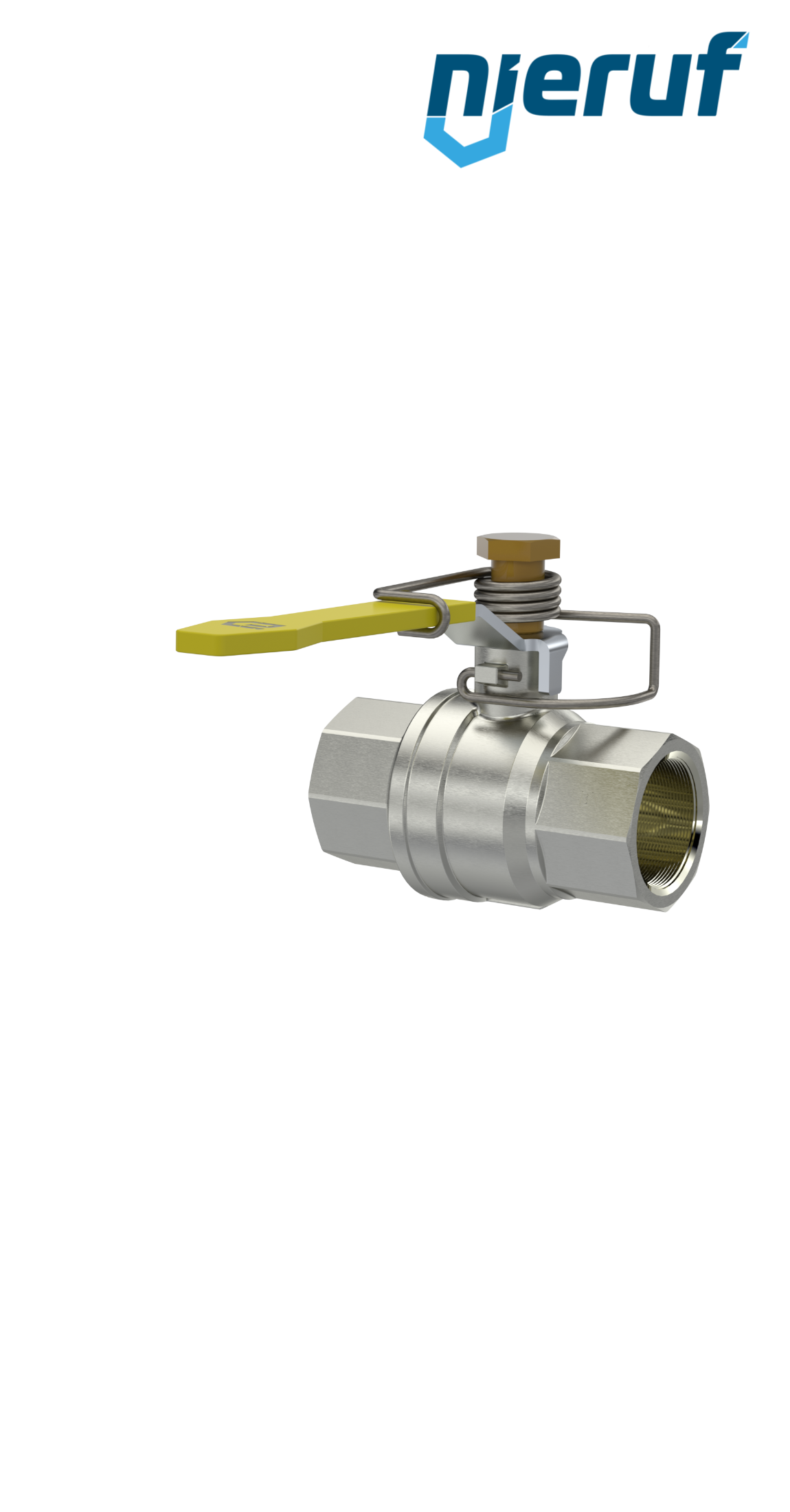

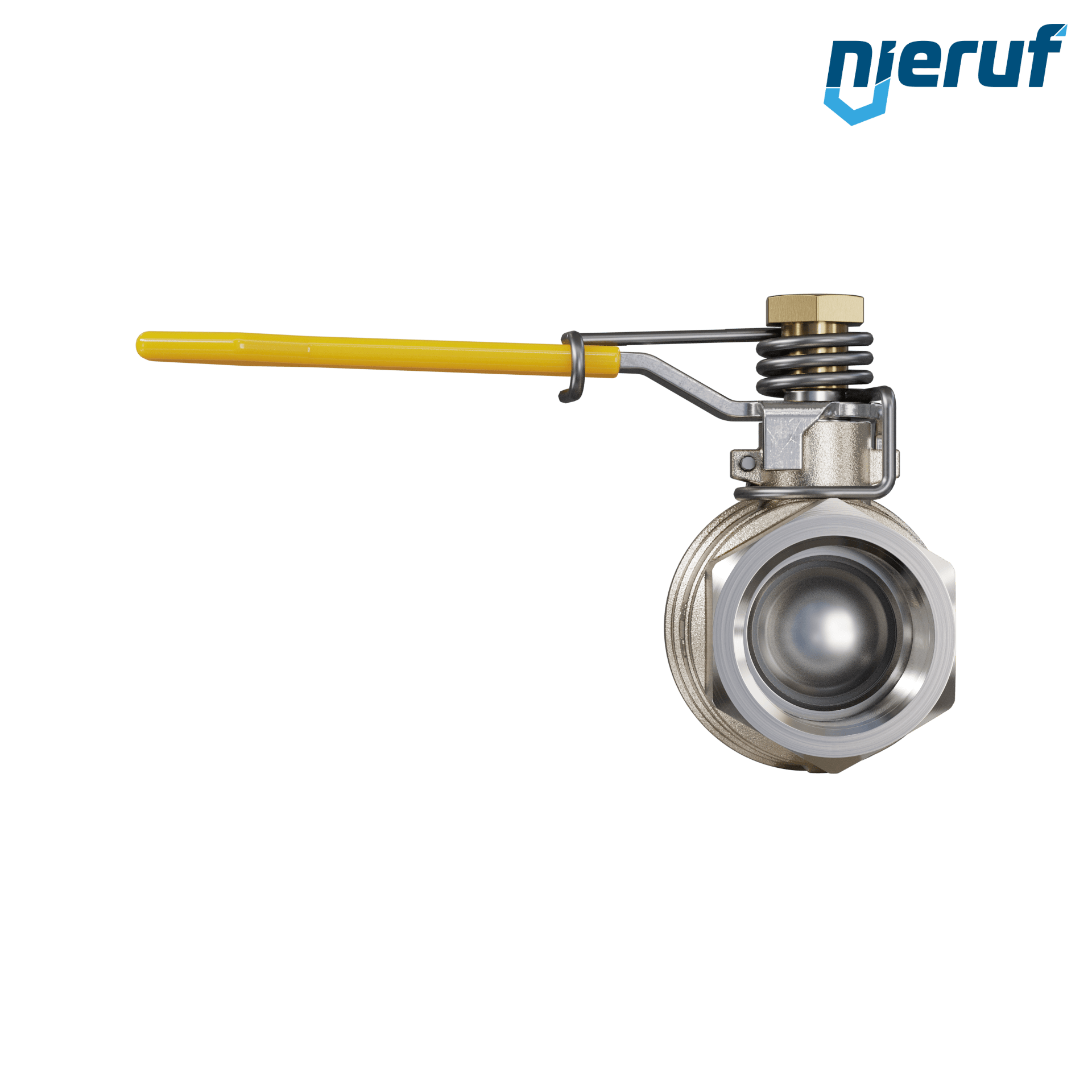

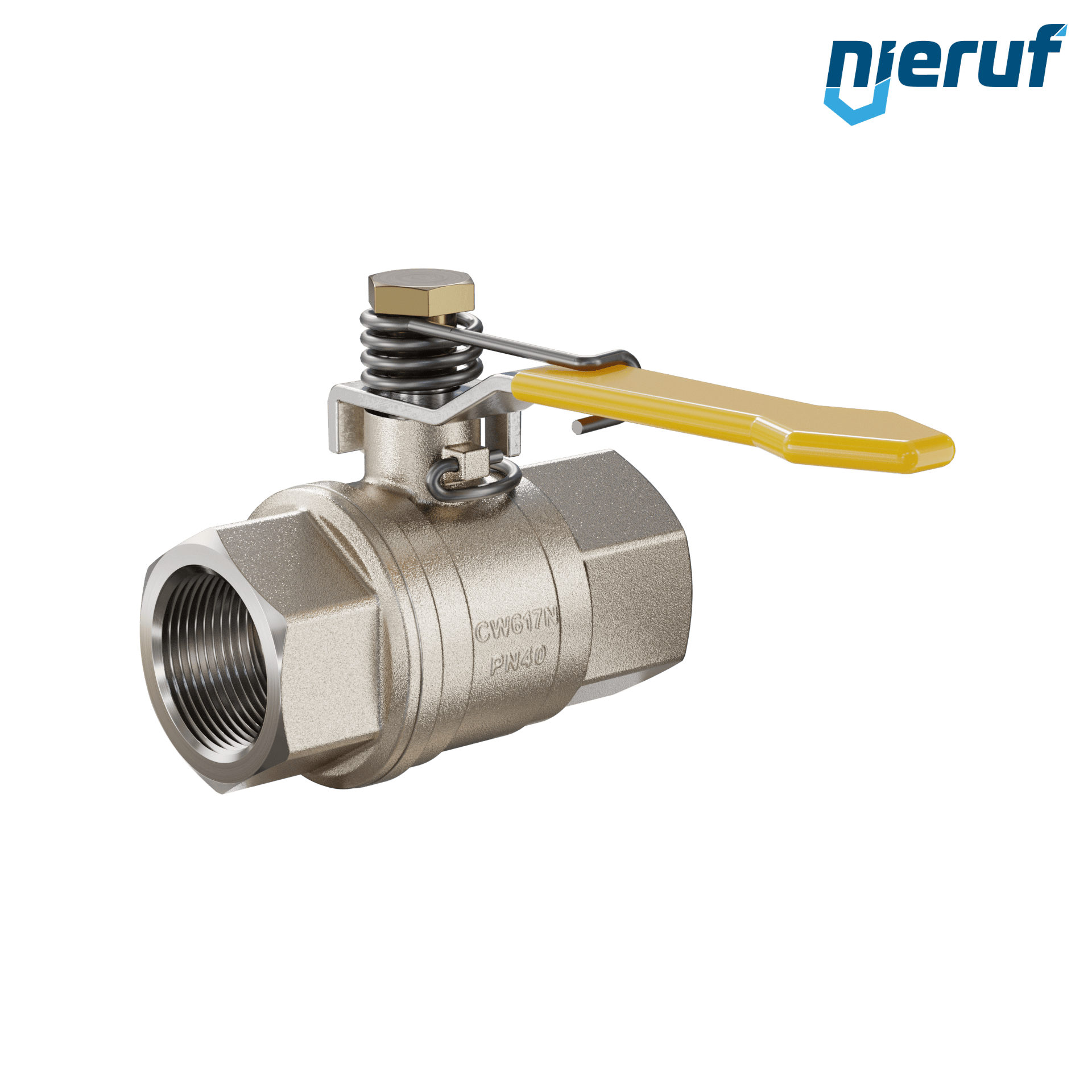

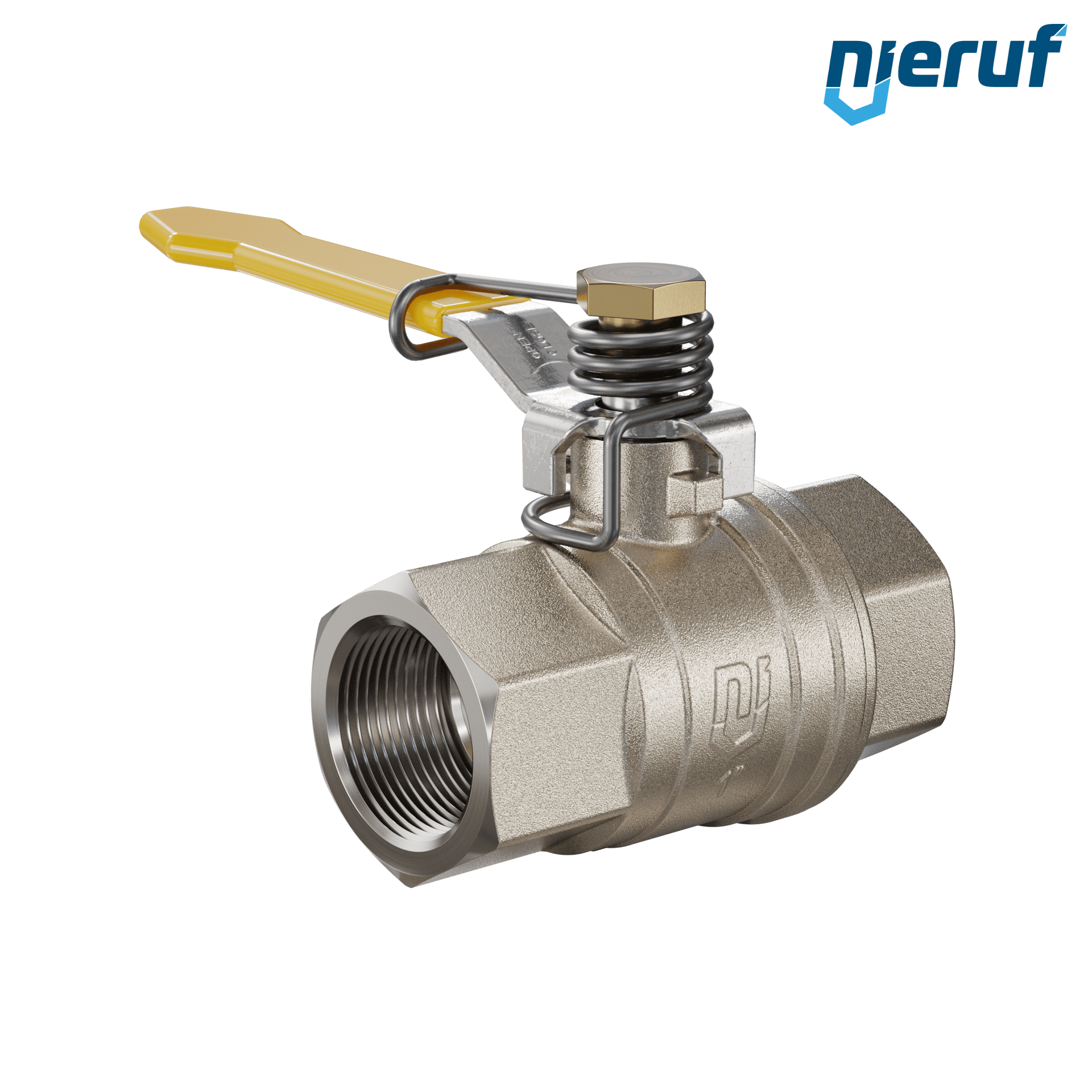

ball valve with spring reload DN25 - 1" inch full port design seal made of 2 Viton O-rings for liquid and gaseous media
| product: | ball valve with spring reload |
|---|---|
| type: | GK13 |
| manufacturer: | NieRuf |
| diameter: | DN25 - 1" inch |
| connection: | female thread |
| Seal steam: | 2 Viton O-rings |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN40 |
| design: | full port design |
| body material: | brass nickel plated (CW617N) |
| ball material: | brass chrome plated (CW617N) |
| length: | 90mm |
| actuator: | lever handle made of steel, zinc coated with yellow plastic cover |
| installation position: | any position |
| product description: | This high quality brass ball valve with spring return is normally in position "closed". The actuating of the brass ball valve is against the spring force |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve with spring reload DN25 - 1" inch GK13
Article no.
: GK13000005
product:
ball valve with spring reload
type:
GK13
manufacturer:
NieRuf
diameter:
DN25 - 1" inch
connection:
female thread
Seal steam:
2 Viton O-rings
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
brass nickel plated (CW617N)
ball material:
brass chrome plated (CW617N)
length:
90mm
actuator:
lever handle made of steel, zinc coated with yellow plastic cover
installation position:
any position
product description:
This high quality brass ball valve with spring return is normally in position "closed". The actuating of the brass ball valve is against the spring force
