- Delivery time
- 3 - 5 working days
Equipment
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€16.66 VAT included.
joint set check valve/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€7.14 VAT included.
Questions about the article?

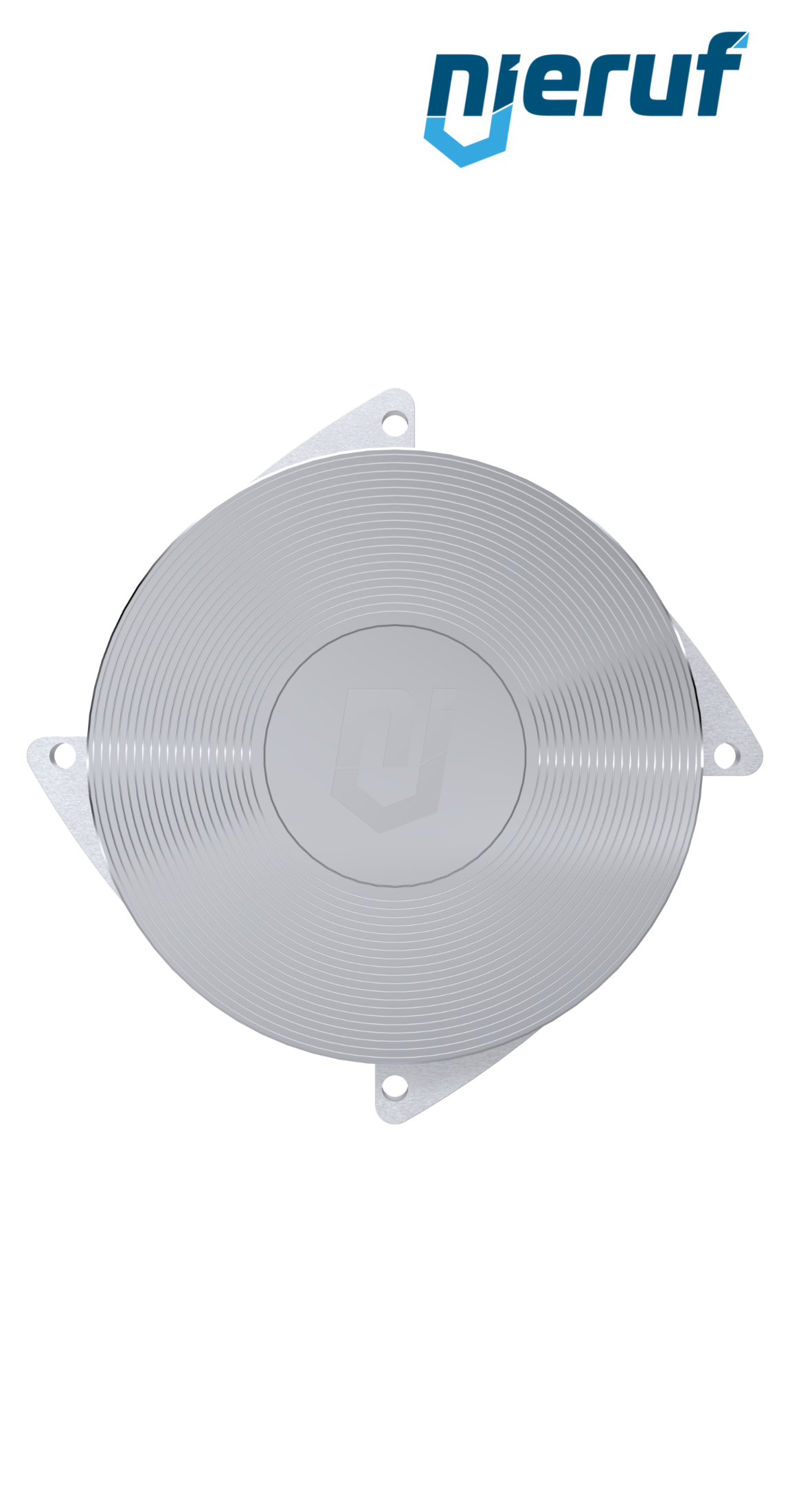

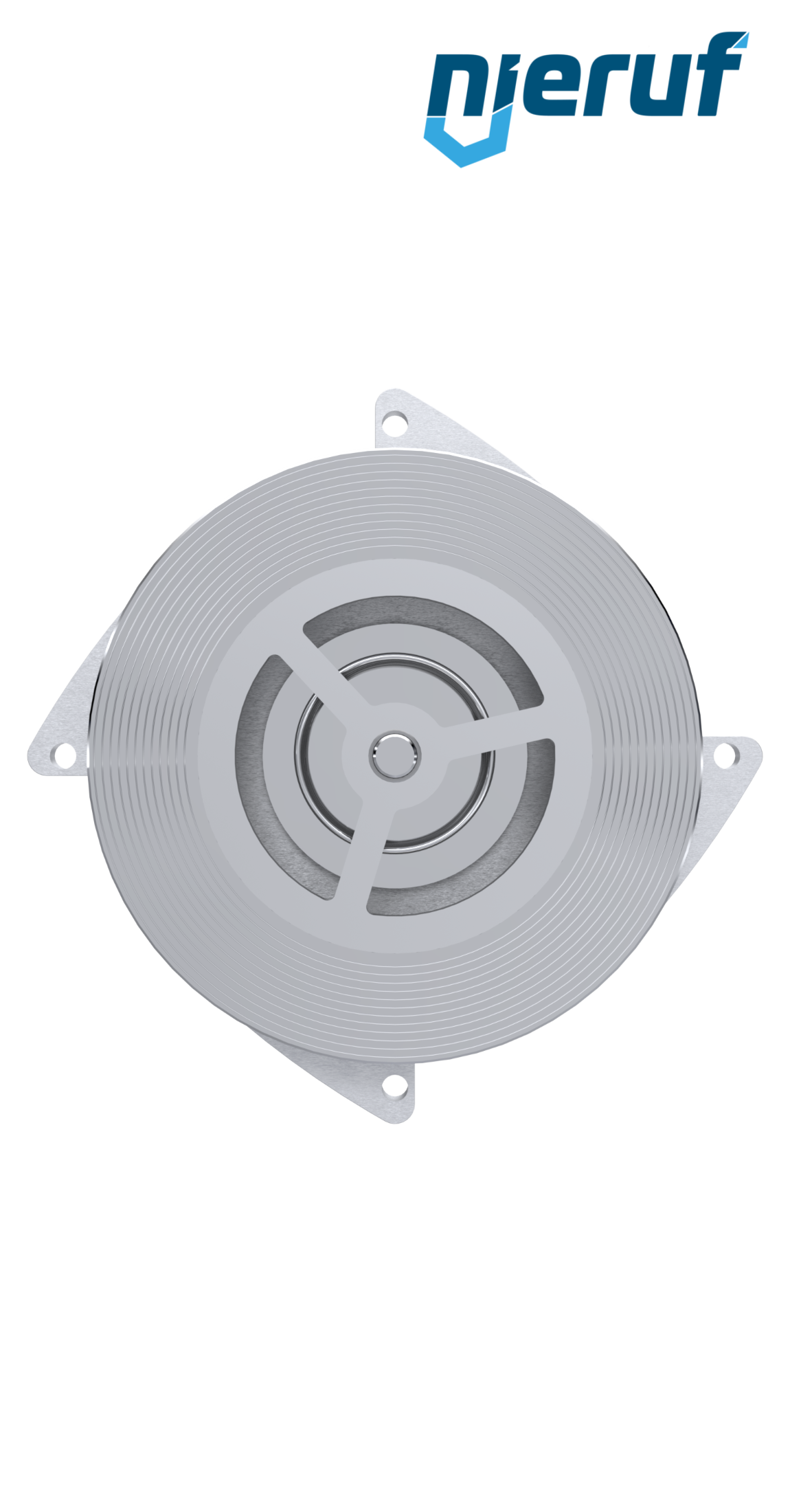

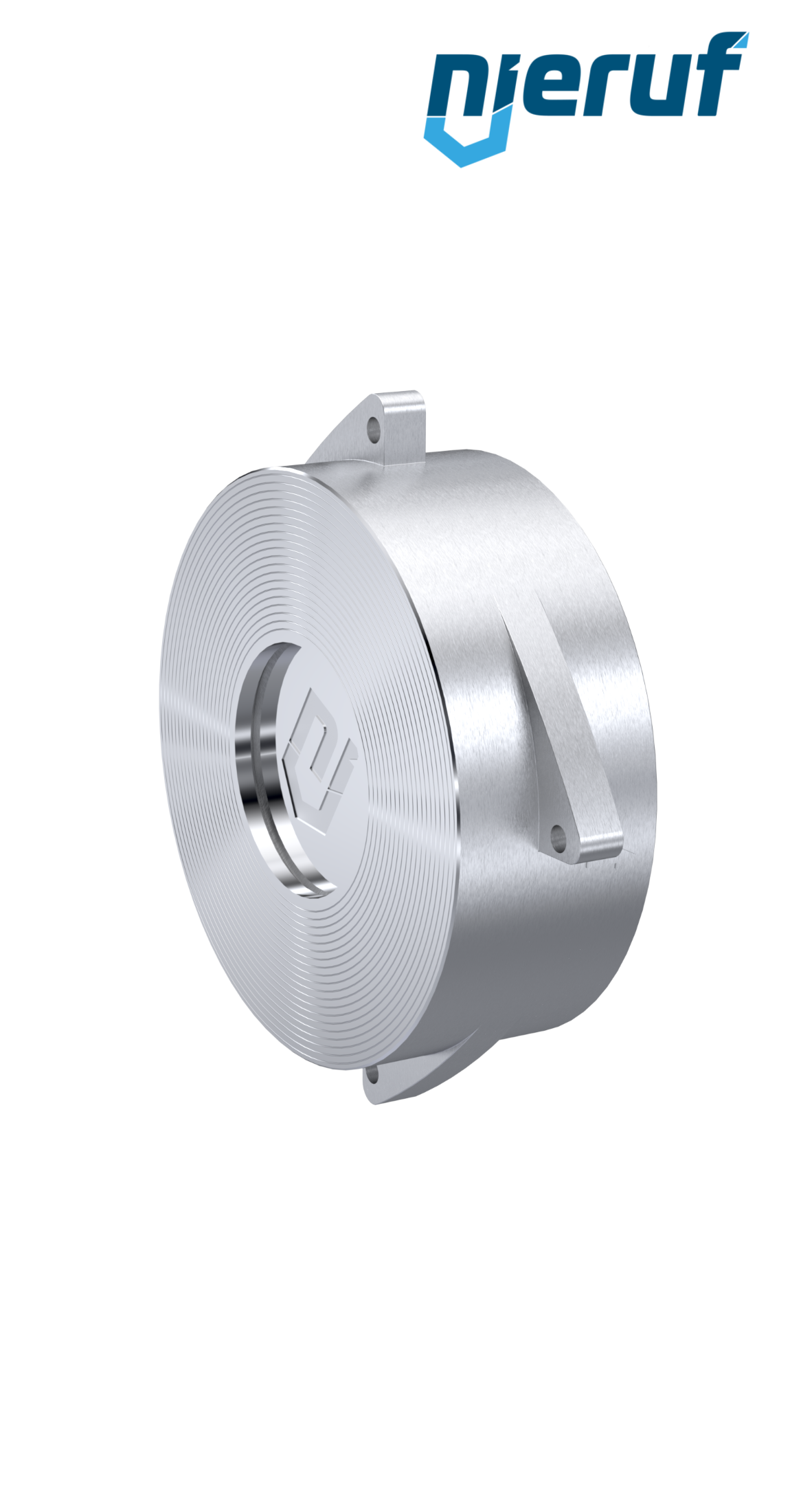

disco check valve DN 25 made of cast steel 1.0619 seal NBR for liquid and gaseous media PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
| product | check valve |
|---|---|
| type | RV02 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 25 |
| body material | cast steel 1.0619 |
| disc material | Stainless steel CF8M |
| seal | NBR |
| tightness acc. to DIN EN 12266 | leak rate A |
| temperature | -10°C up to +100°C |
| flange | PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) |
| pressure range | 0 - 40 bar |
| Kv-value in m3/h | 10,00 |
| spring material | stainless steel 1.4571 |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 25 cast steel 1.0619 NBR PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
Article no.
: RV02100405
product:
check valve
type:
RV02
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 25
body material:
cast steel 1.0619
disc material:
Stainless steel CF8M
seal:
NBR
tightness acc. to DIN EN 12266:
leak rate A
temperature:
-10°C up to +100°C
flange:
PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
pressure range:
0 - 40 bar
Kv-value in m3/h:
10,00
spring material:
stainless steel 1.4571
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
