ZR02000107
check valve DN40 ZR02 stainless steel A351 CF8M EPDM
Delivery time: in stock
Express delivery*:
Shipping on: Thursday, 05. December
Guaranteed delivery until Friday, 06. December, 12 o'clock
Order in within by express delivery
Equipment

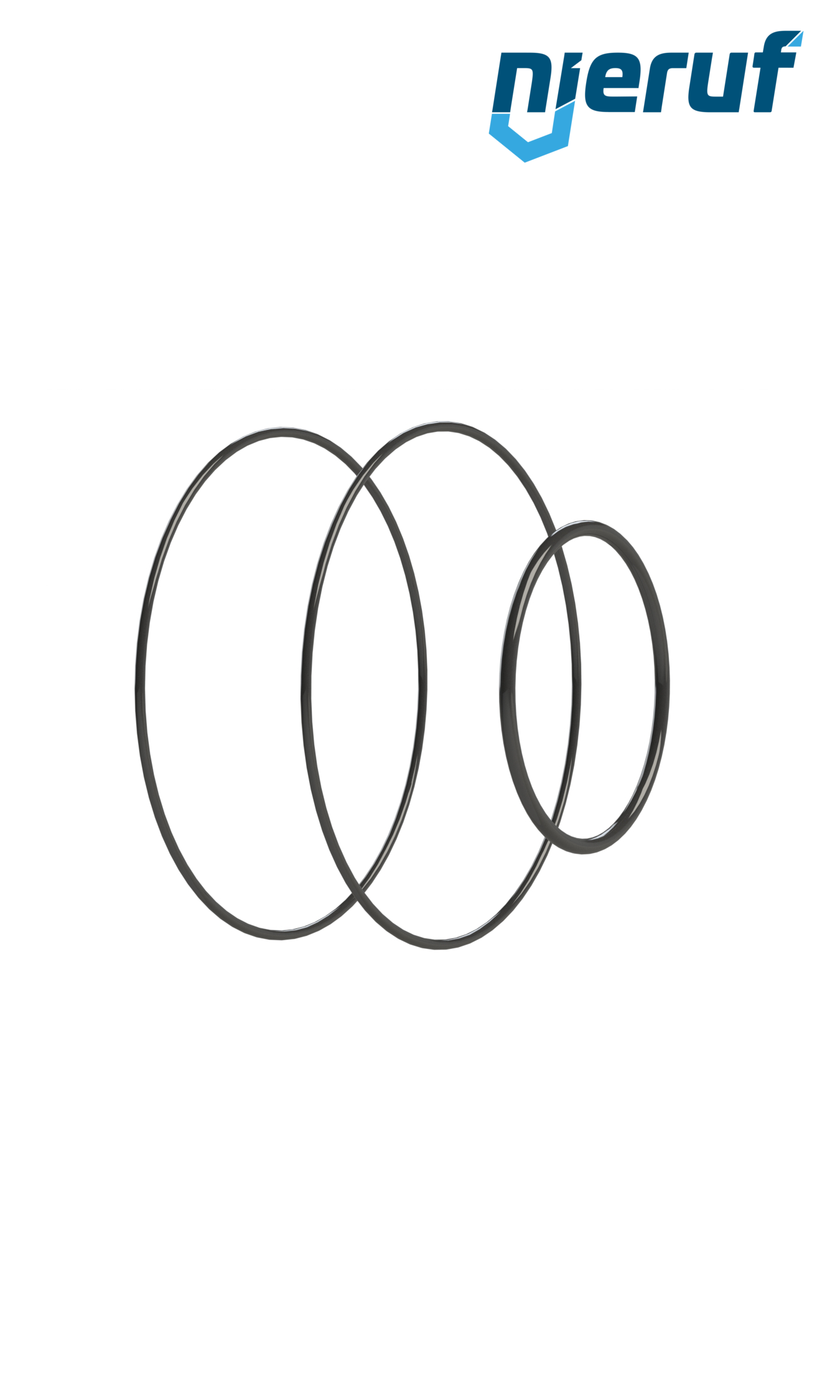

joint set swing check valve/flange DN40 - 1 1/2" Inch for flange PN10/16 stainless steel
€10.95 VAT included.
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
€54.15 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
check valve DN40 PN 10/16/25/40 DIN EN 1092-1 Form B made of stainless steel A351 CF8M seal EPDM
| product: | swing check valve |
|---|---|
| type: | ZR02 |
| manufacturer: | NieRuf |
| design: | swing check valve |
| diameter: | DN40 |
| body material: | stainless steel A351 CF8M |
| disc material: | stainless steel A351 CF8M |
| seal: | EPDM |
| temperature: | -65°C up to +150°C |
| connection: | flange |
| flange: | PN 10/16/25/40 DIN EN 1092-1 Form B |
| pressure range: | 0 - 40 bar |
| media: | liquid and gaseous media |
| tightness acc. to DIN EN 12266: | leak rate A |
| option: | without spring reset |
| installation position: | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature: | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN40 ZR02 stainless steel A351 CF8M EPDM
Article no.
: ZR02000107
product:
swing check valve
type:
ZR02
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN40
body material:
stainless steel A351 CF8M
disc material:
stainless steel A351 CF8M
seal:
EPDM
temperature:
-65°C up to +150°C
connection:
flange
flange:
PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range:
0 - 40 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
€54.15 VAT included.
€2.86 VAT included.
€10.95 VAT included.
€12.38 VAT included.
€45.58 VAT included.
€14.04 VAT included.
