RV02200509
check valve DN 65 Duplex 1.4469 metall PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

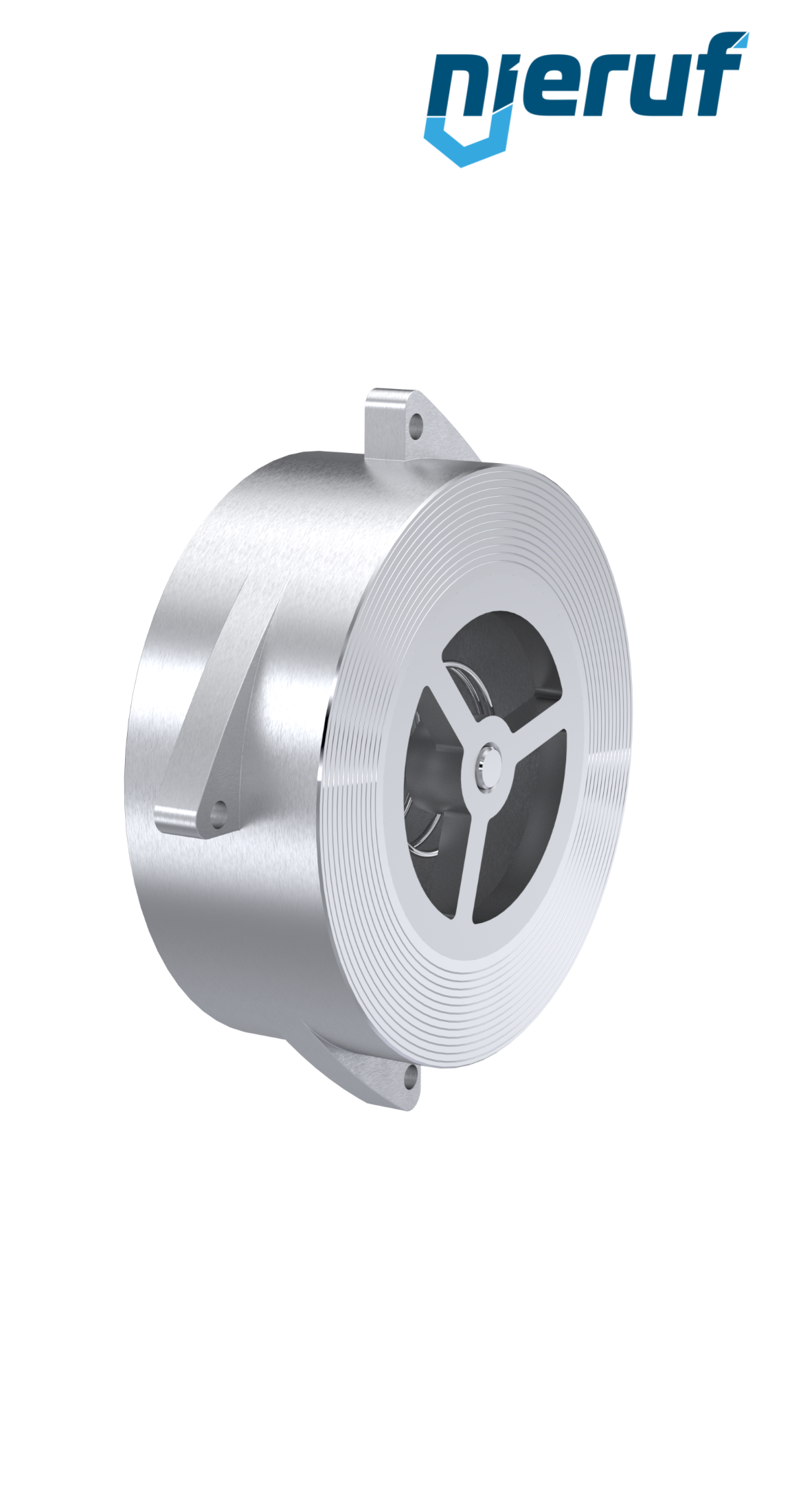

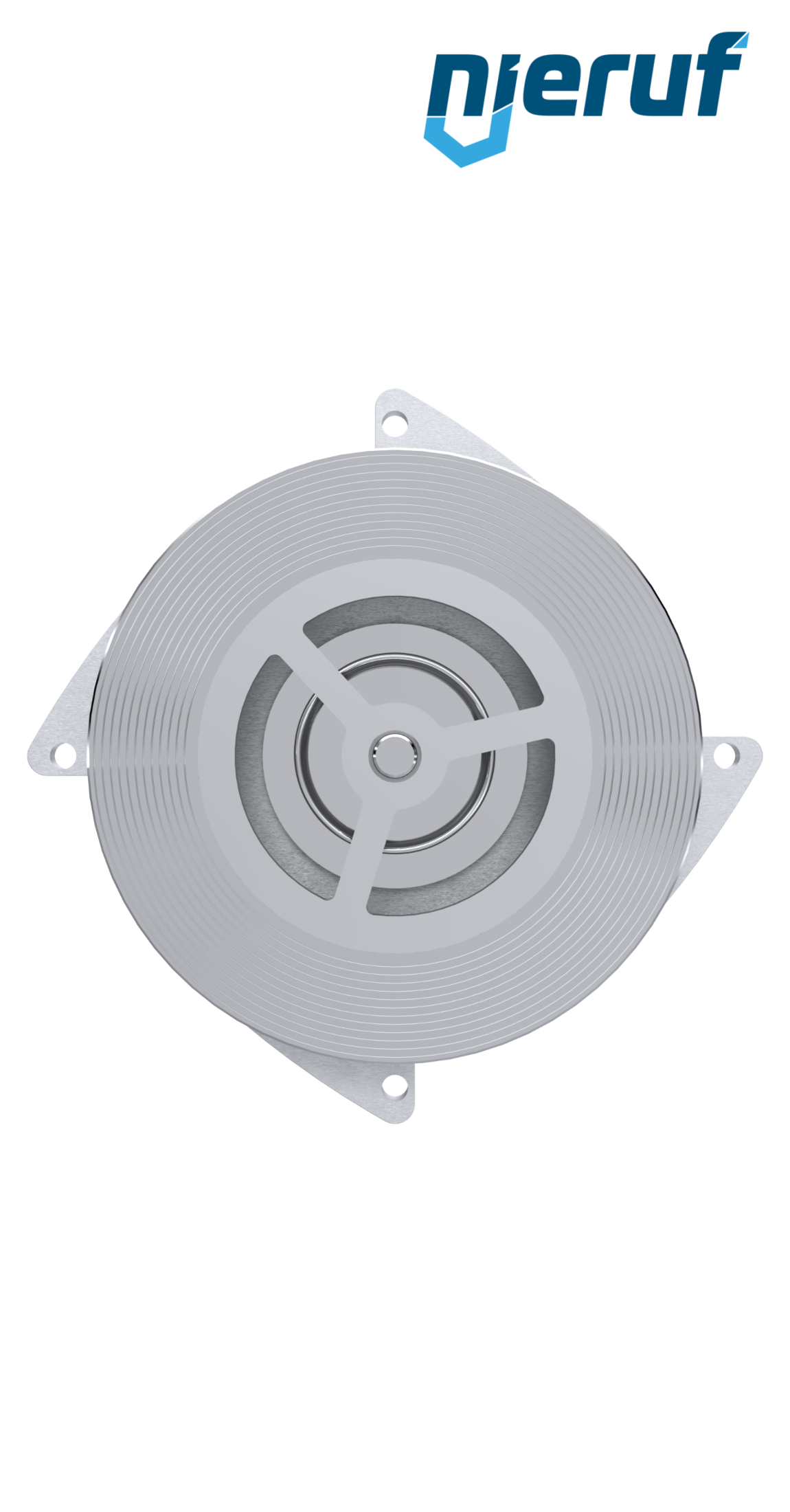

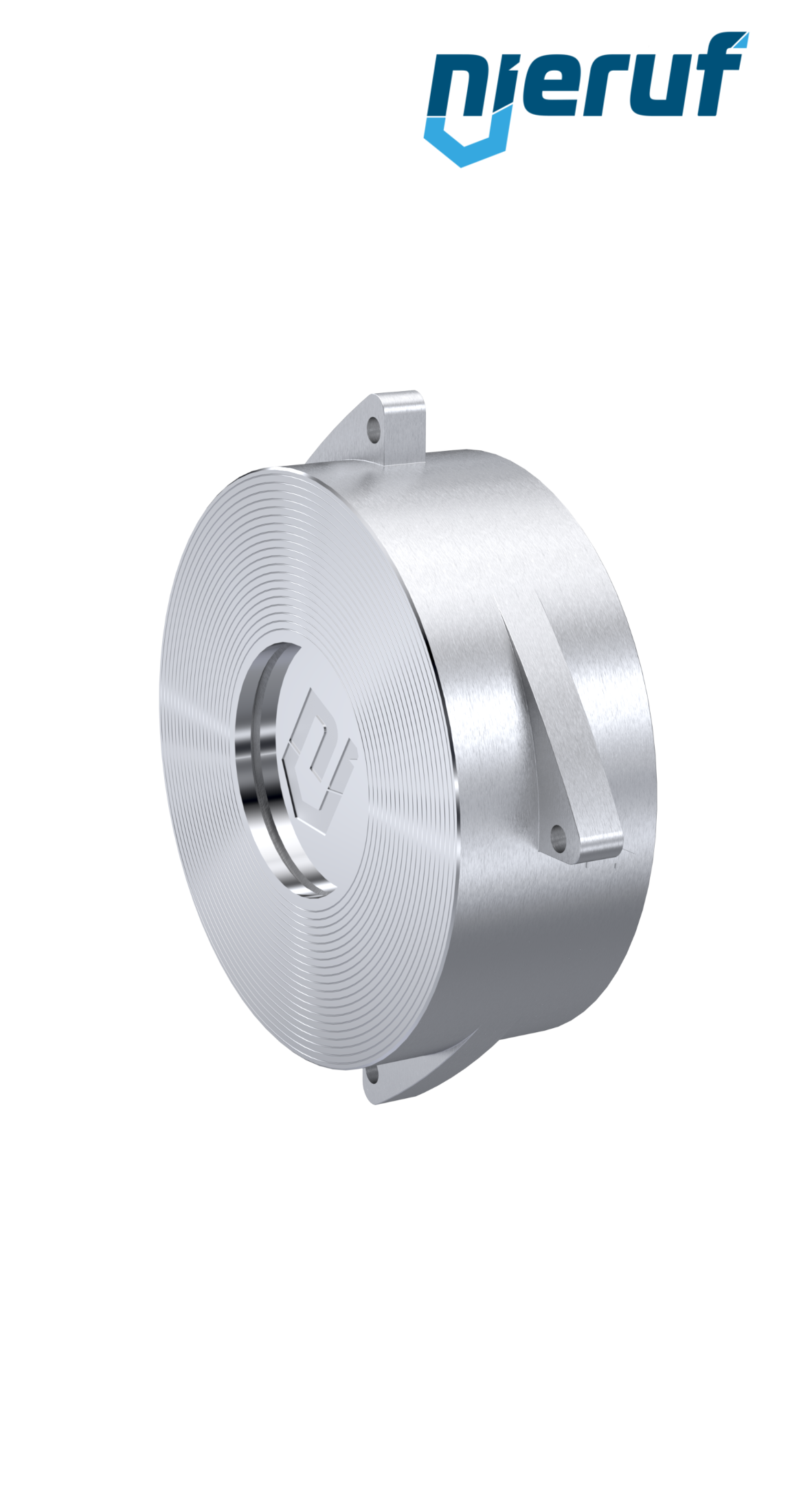

disco check valve DN 65 made of Duplex 1.4469 seal metall for liquid and gaseous media PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
| product: | check valve |
|---|---|
| type: | RV02 |
| manufacturer: | NieRuf |
| design: | disco check valve |
| diameter: | DN 65 |
| body material: | Duplex 1.4469 |
| disc material: | Duplex 1.4469 |
| seal: | metall |
| tightness acc. to DIN EN 12266: | leak rate ≥ G |
| temperature: | -10°C up to +250°C |
| flange: | PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) |
| pressure range: | 0 - 50 bar |
| Kv-value in m3/h: | 61,00 |
| spring material: | Hastelloy C4 |
| media: | liquid and gaseous media |
| installation position: | any position |
| product feature: | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 65 Duplex 1.4469 metall PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
Article no.
: RV02200509
product:
check valve
type:
RV02
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 65
body material:
Duplex 1.4469
disc material:
Duplex 1.4469
seal:
metall
tightness acc. to DIN EN 12266:
leak rate ≥ G
temperature:
-10°C up to +250°C
flange:
PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
pressure range:
0 - 50 bar
Kv-value in m3/h:
61,00
spring material:
Hastelloy C4
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
