CV01000002

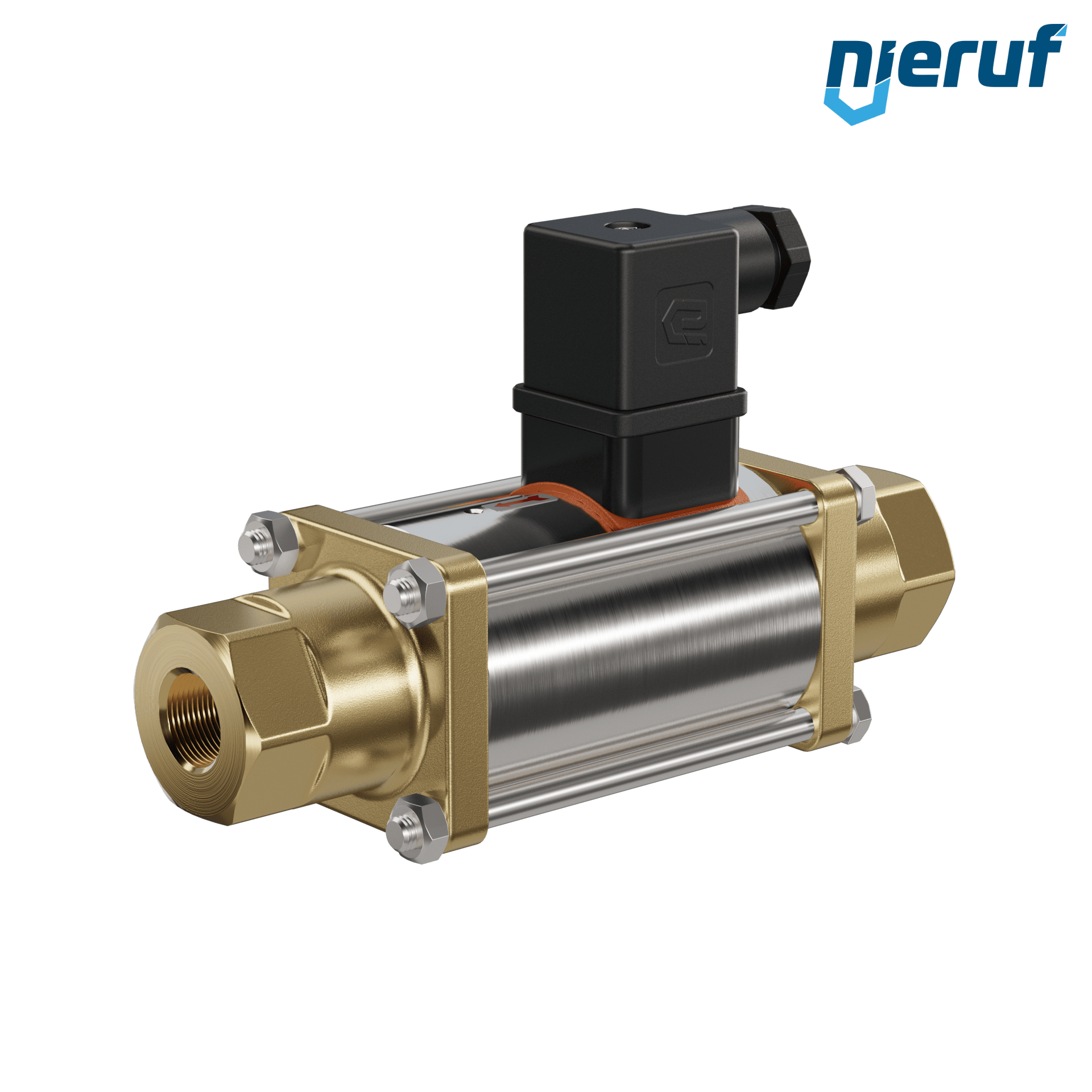

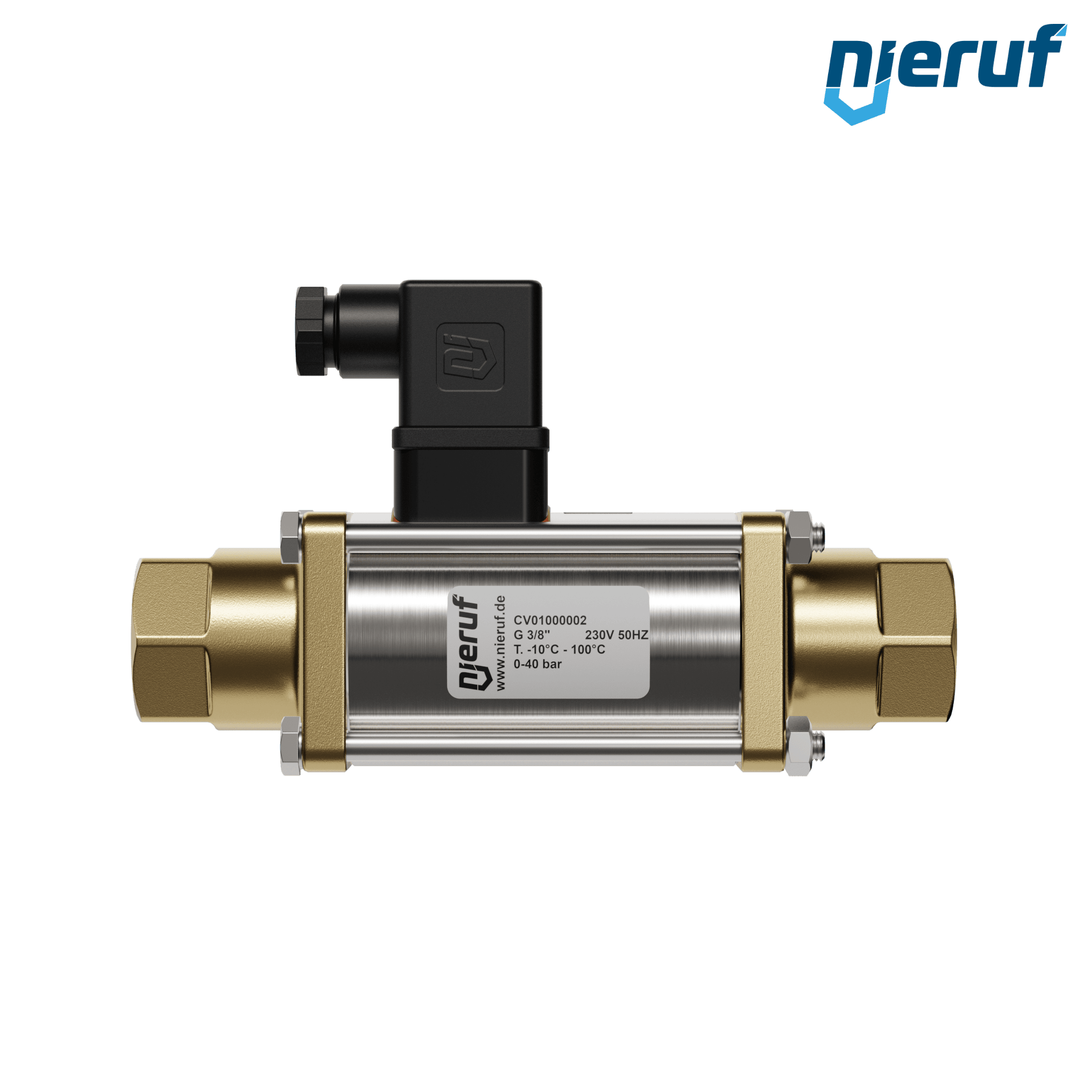

Coaxial-valve 3/8" inch fm - DN10 brass 230V AC NC
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Way-valve Coaxial-valve 3/8" inch fm - DN10 made of brass, direct acting up to max. 40 bar, NC - normal closed voltage 230V AC
| product: | Coaxial-valve |
|---|---|
| type: | CV01 |
| manufacturer: | NieRuf |
| design: | 2/2 Way-valve |
| diameter: | DN10 - 3/8" inch |
| connection: | female thread |
| material: | brass |
| seal: | FKM / PTFE |
| function: | NC - normally closed |
| control: | direct acting |
| voltage: | 230V 50Hz |
| media: | liquid and gaseous media |
| temperature: | from -10°C to max. +100°C |
| pressure range: | up to max. 40 bar |
| installation position: | any position |
| product feature: | Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Coaxial-valve 3/8" inch fm - DN10 brass 230V AC NC
Article no.
: CV01000002
product:
Coaxial-valve
type:
CV01
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN10 - 3/8" inch
connection:
female thread
material:
brass
seal:
FKM / PTFE
function:
NC - normally closed
control:
direct acting
voltage:
230V 50Hz
media:
liquid and gaseous media
temperature:
from -10°C to max. +100°C
pressure range:
up to max. 40 bar
installation position:
any position
product feature:
Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
€2.02 VAT included.
