CV01011102

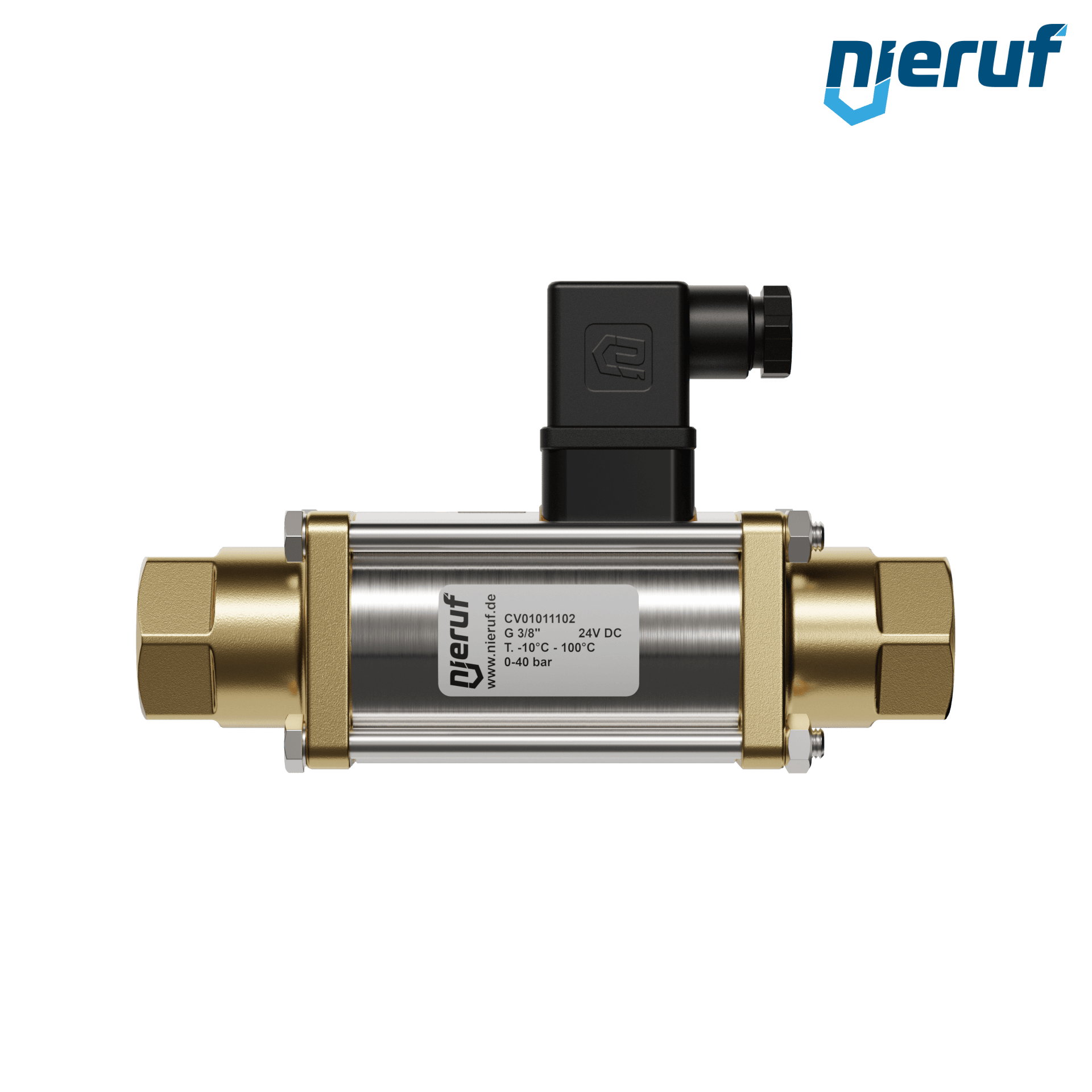

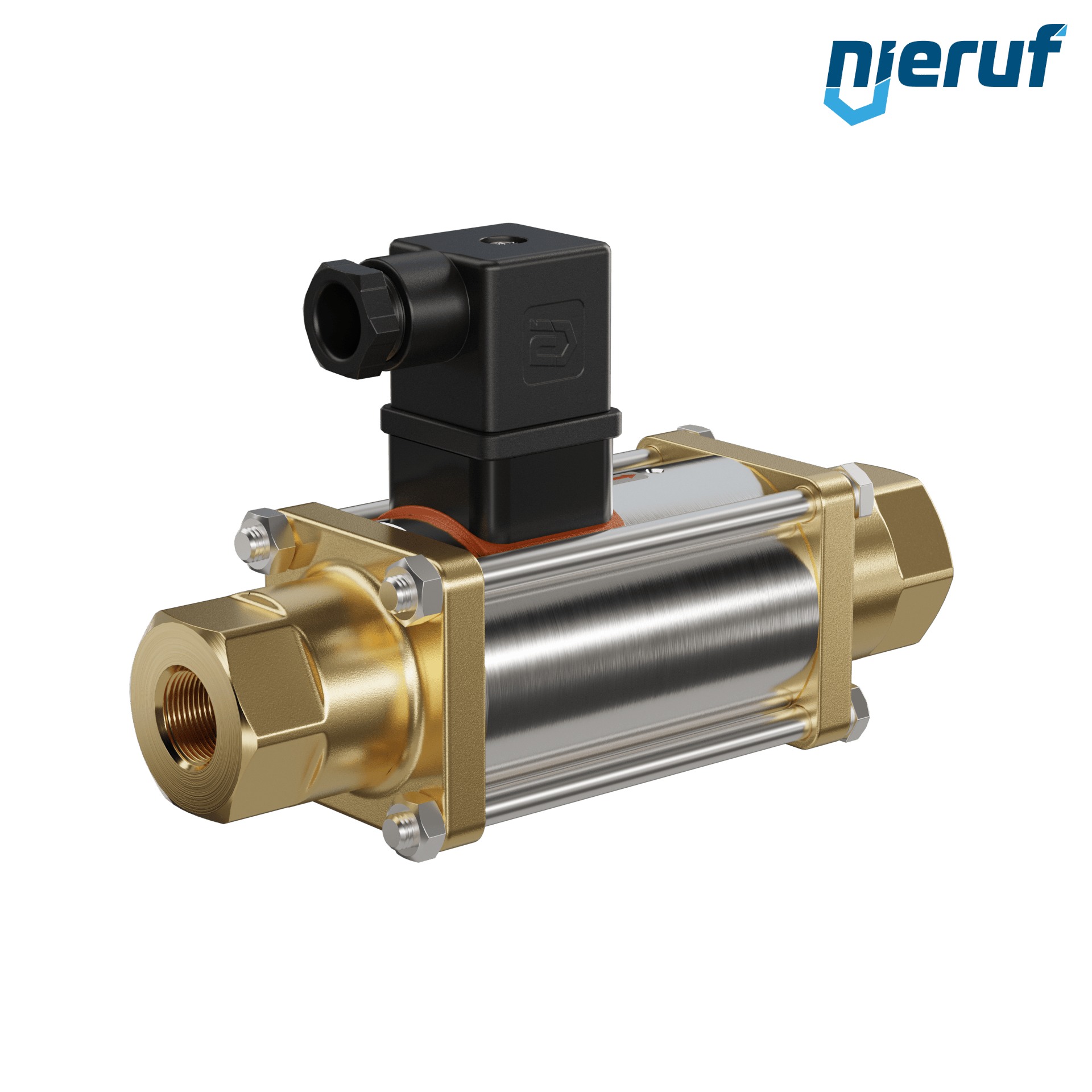

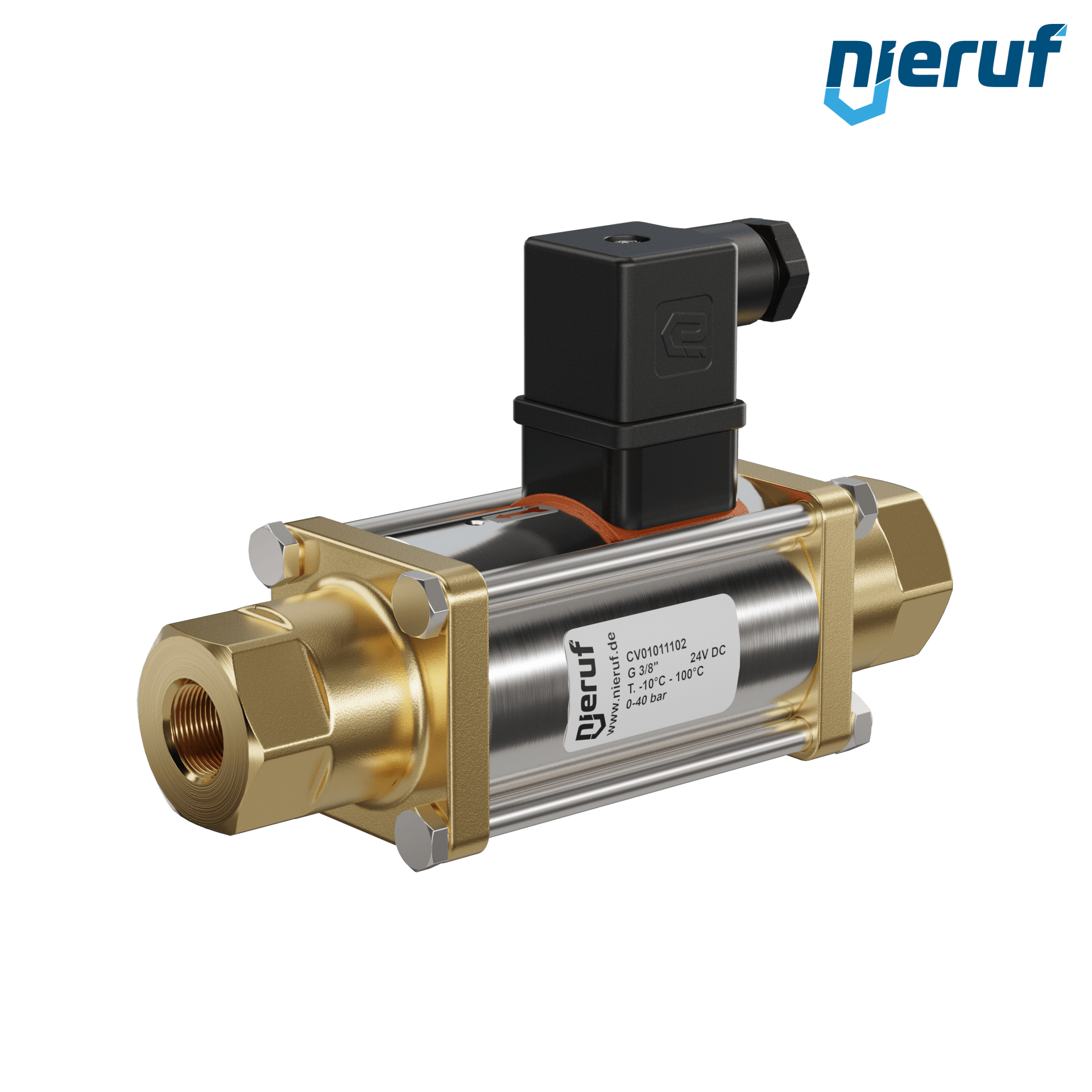

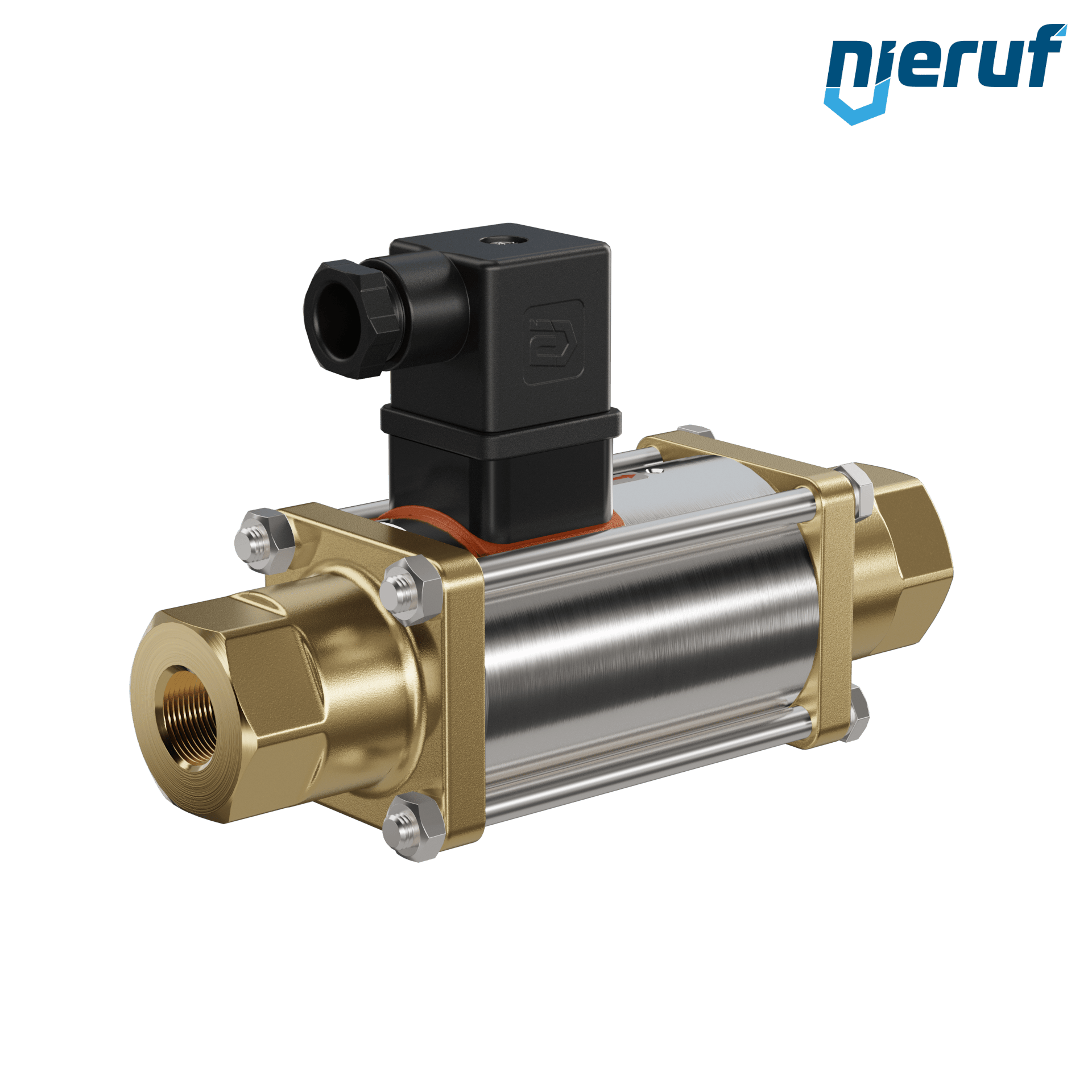

Coaxial-valve 3/8" inch fm - DN10 brass 24V DC NO - for water application
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Way-valve Coaxial-valve 3/8" inch fm - DN10 made of brass, direct acting up to max. 40 bar, NO - normal open voltage 24V DC - for Water
| product: | Coaxial-valve |
|---|---|
| type: | CV01 |
| manufacturer: | NieRuf |
| design: | 2/2 Way-valve |
| diameter: | DN10 - 3/8" inch |
| connection: | female thread |
| material: | brass |
| seal: | FKM / PTFE |
| function: | NO - normally open |
| control: | direct acting |
| voltage: | 24V DC |
| media: | Water |
| temperature: | from -10°C to max. +80°C |
| pressure range: | up to max. 40 bar |
| installation position: | any position |
| product feature: | Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Coaxial-valve 3/8" inch fm - DN10 brass 24V DC NO - for water application
Article no.
: CV01011102
product:
Coaxial-valve
type:
CV01
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN10 - 3/8" inch
connection:
female thread
material:
brass
seal:
FKM / PTFE
function:
NO - normally open
control:
direct acting
voltage:
24V DC
media:
Water
temperature:
from -10°C to max. +80°C
pressure range:
up to max. 40 bar
installation position:
any position
product feature:
Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
€2.02 VAT included.
