CV01010103

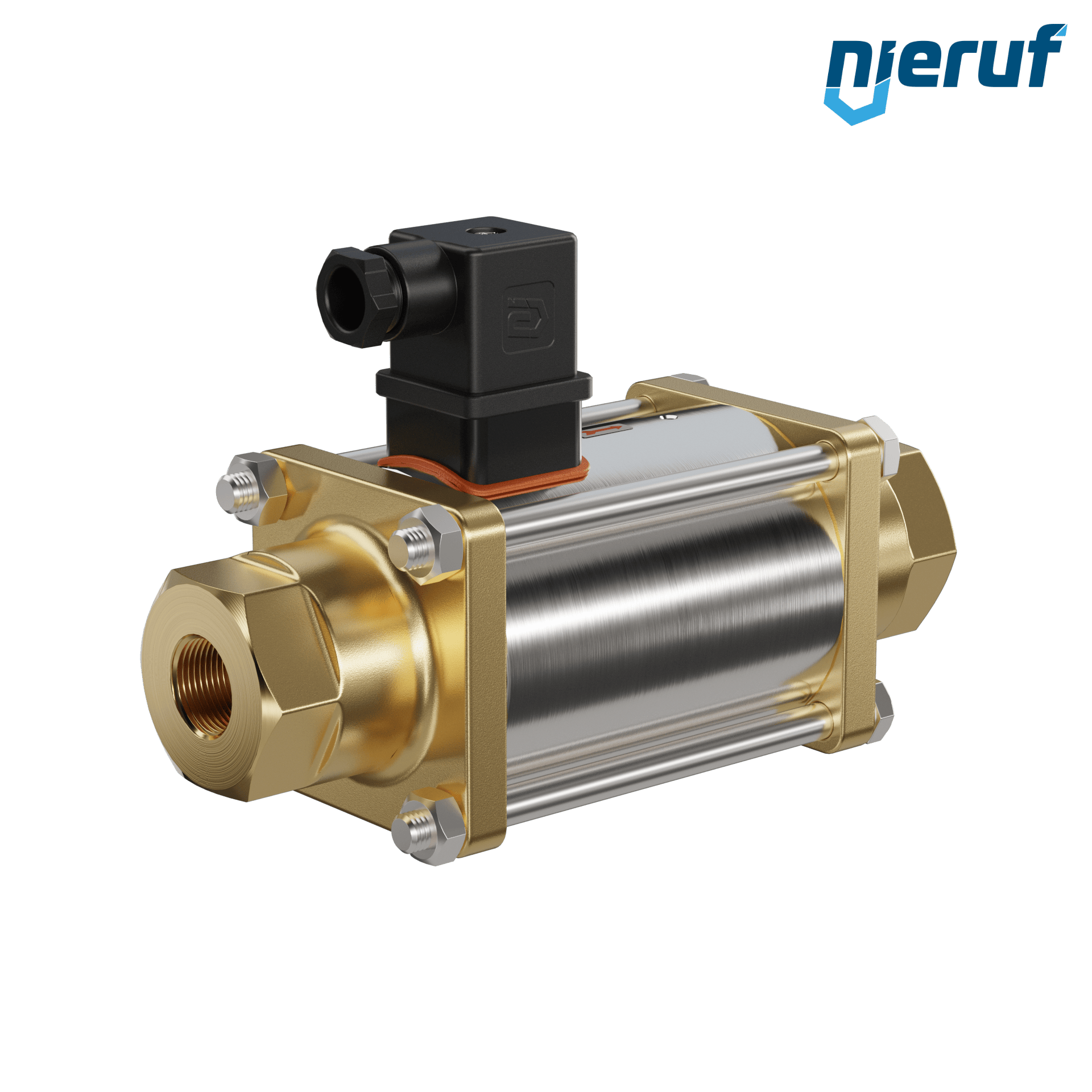

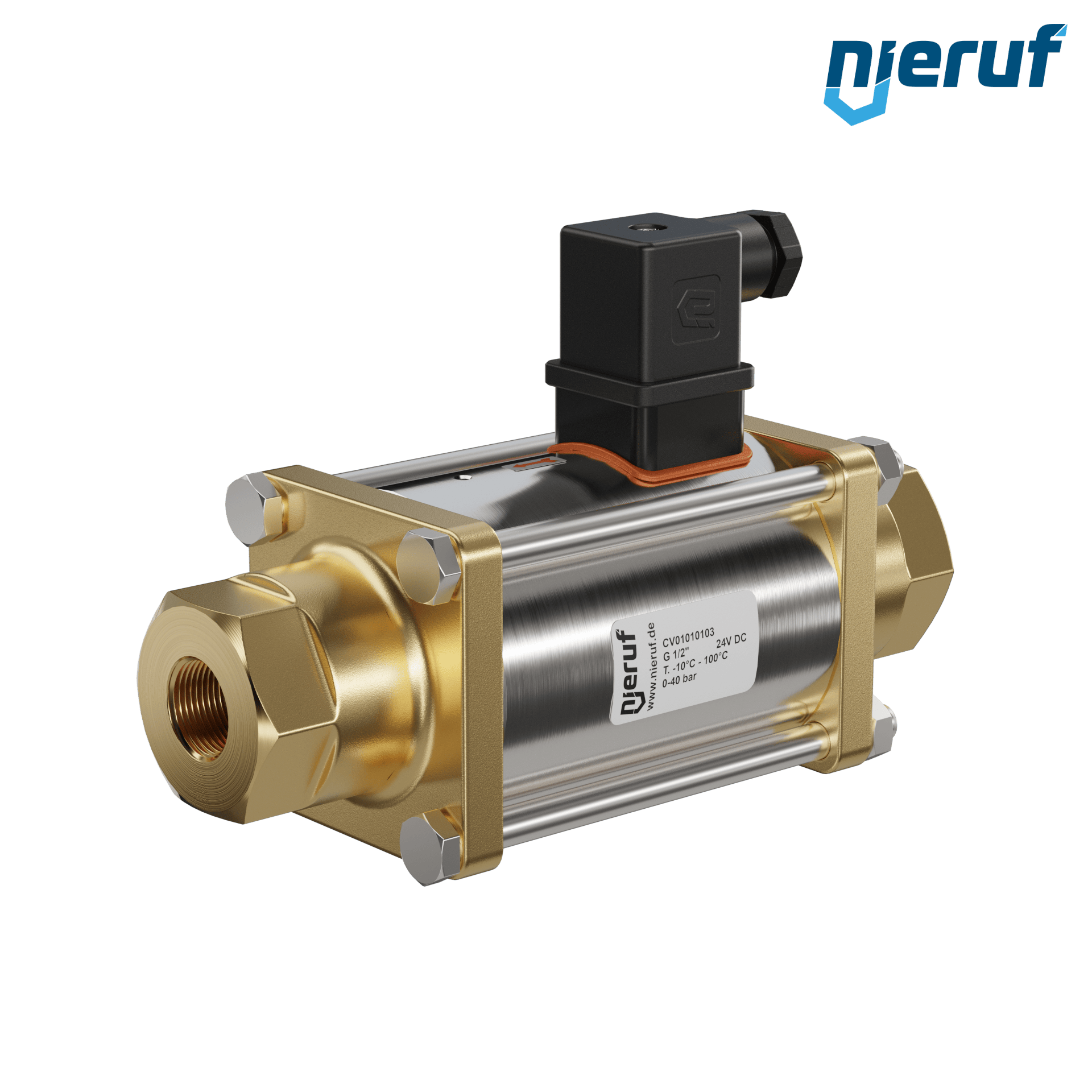

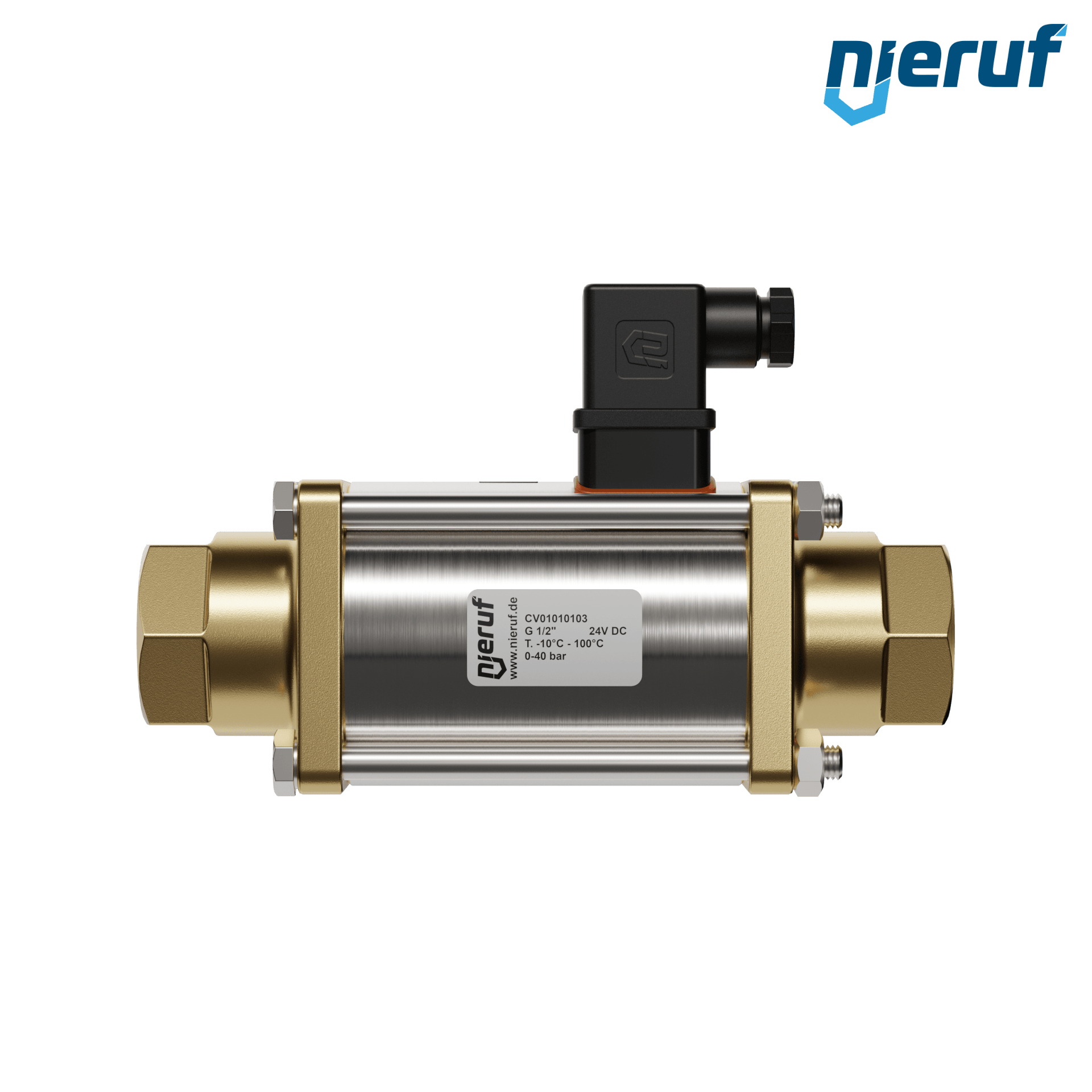

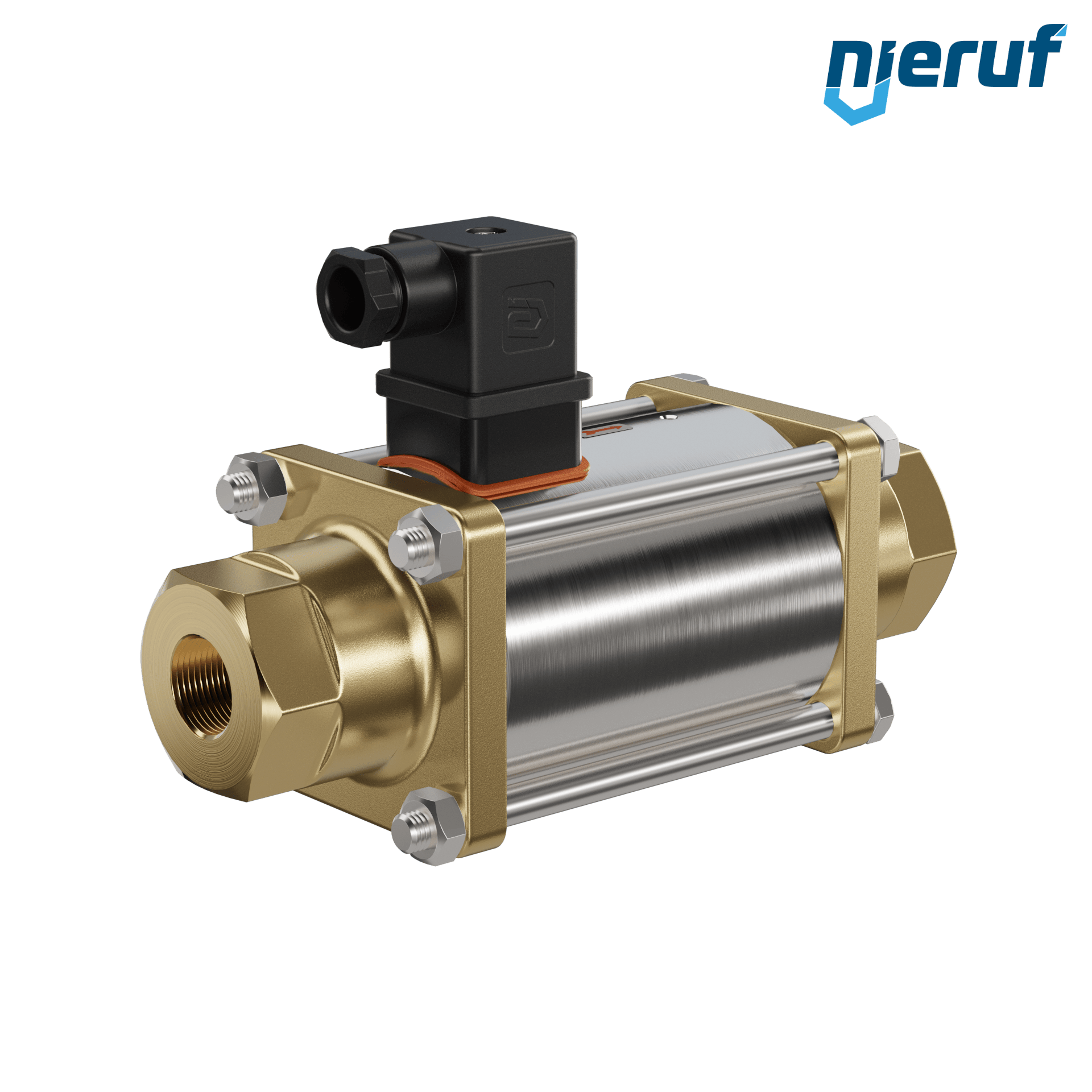

Coaxial-valve 1/2" inch fm - DN15 brass 24V DC NO
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Way-valve Coaxial-valve 1/2" inch fm - DN15 made of brass, direct acting up to max. 40 bar, NO - normal open voltage 24V DC
| product: | Coaxial-valve |
|---|---|
| type: | CV01 |
| manufacturer: | NieRuf |
| design: | 2/2 Way-valve |
| diameter: | DN15 - 1/2" inch |
| connection: | female thread |
| material: | brass |
| seal: | FKM / PTFE |
| function: | NO - normally open |
| control: | direct acting |
| voltage: | 24V DC |
| media: | liquid and gaseous media |
| temperature: | from -10°C to max. +100°C |
| pressure range: | up to max. 40 bar |
| installation position: | any position |
| product feature: | Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Coaxial-valve 1/2" inch fm - DN15 brass 24V DC NO
Article no.
: CV01010103
product:
Coaxial-valve
type:
CV01
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN15 - 1/2" inch
connection:
female thread
material:
brass
seal:
FKM / PTFE
function:
NO - normally open
control:
direct acting
voltage:
24V DC
media:
liquid and gaseous media
temperature:
from -10°C to max. +100°C
pressure range:
up to max. 40 bar
installation position:
any position
product feature:
Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
€2.38 VAT included.
€5.00 VAT included.
€20.35 VAT included.
€9.16 VAT included.
