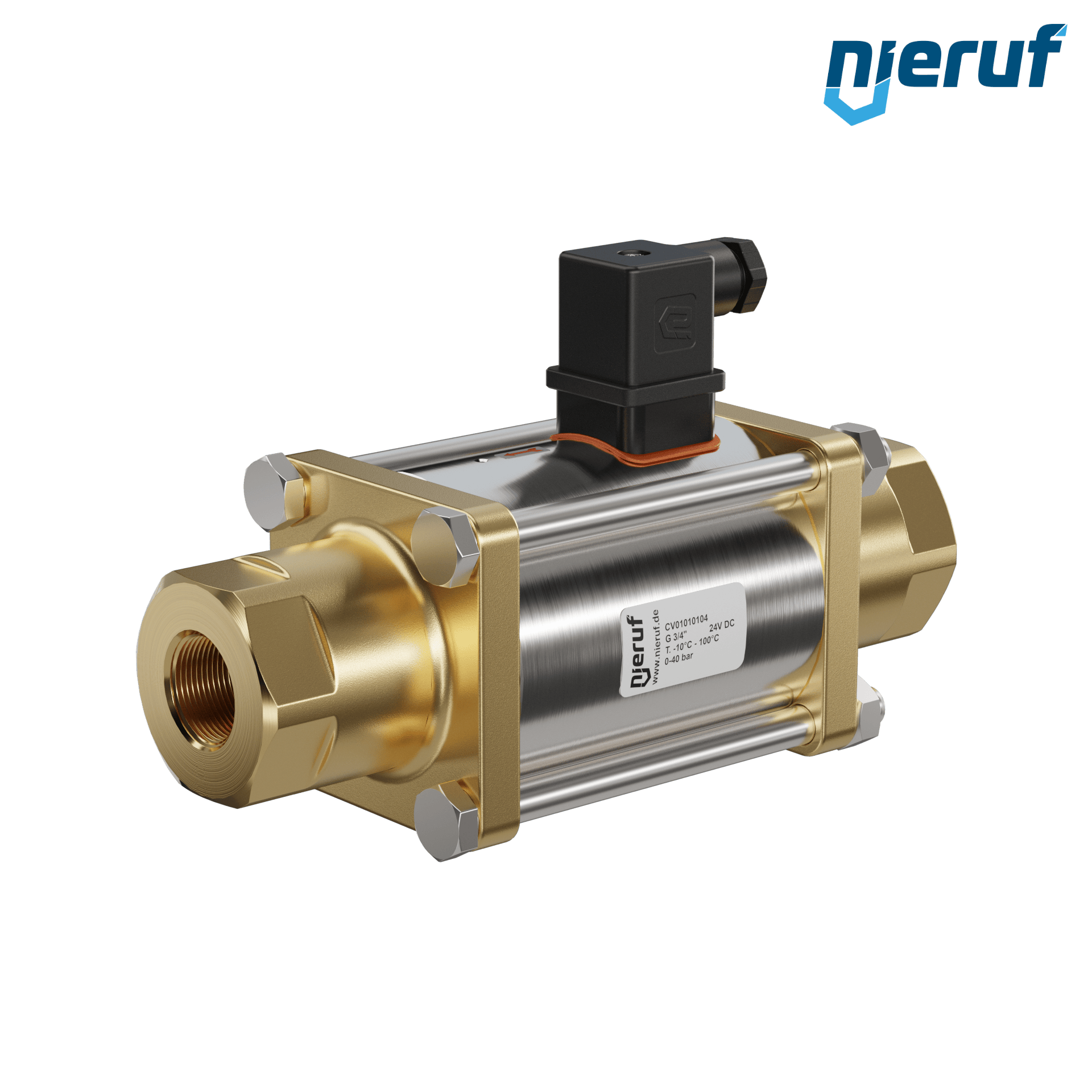

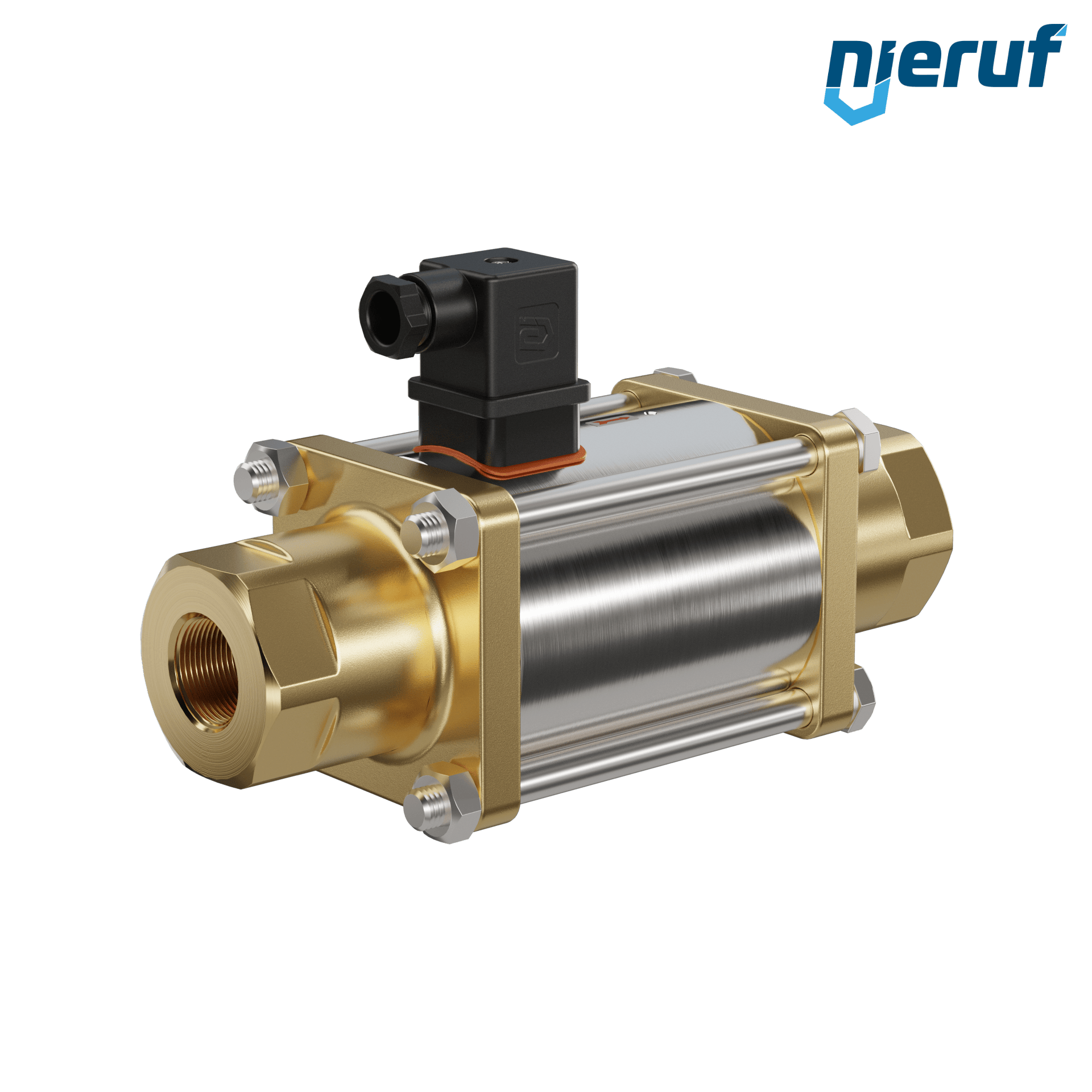

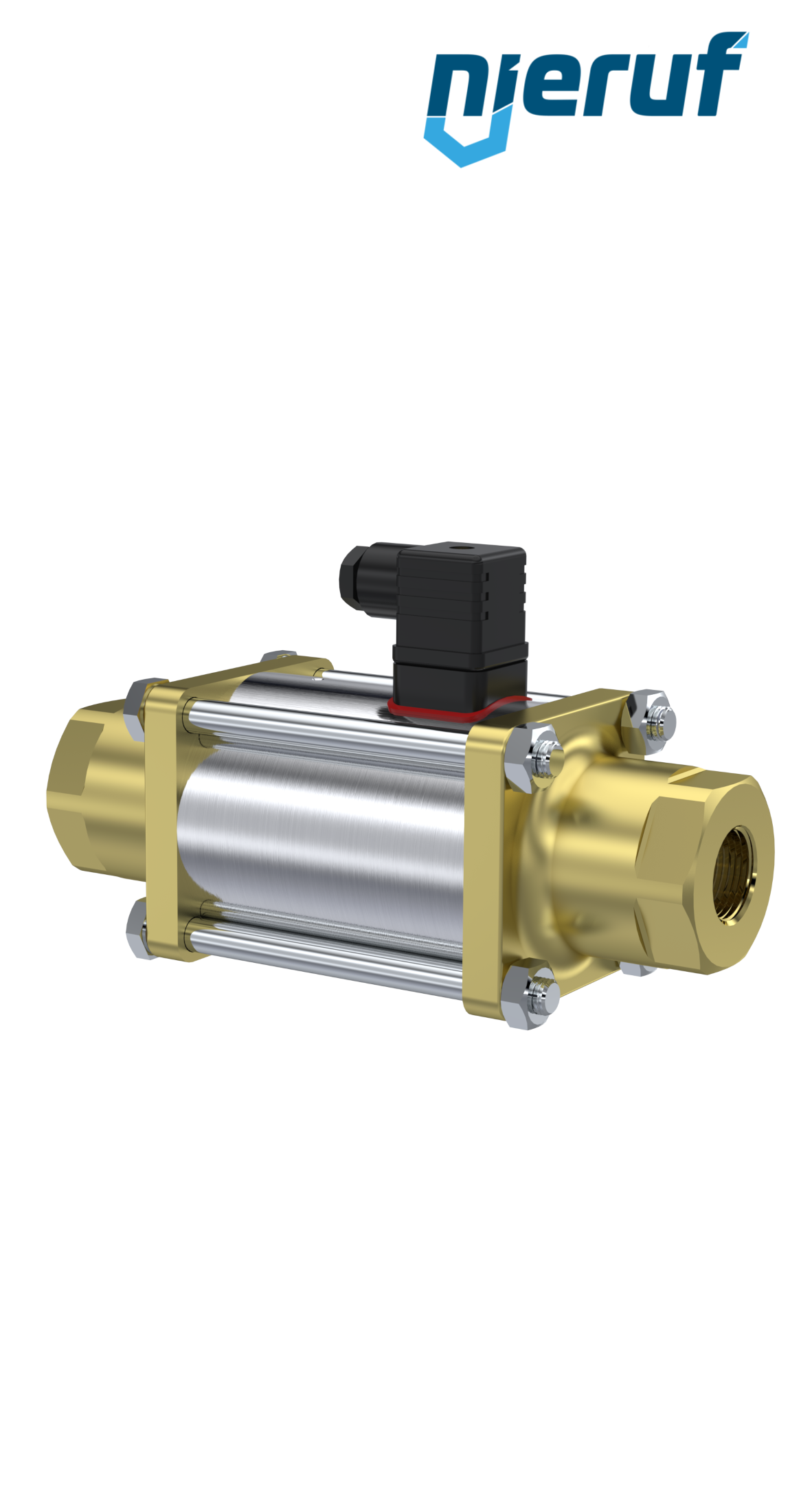

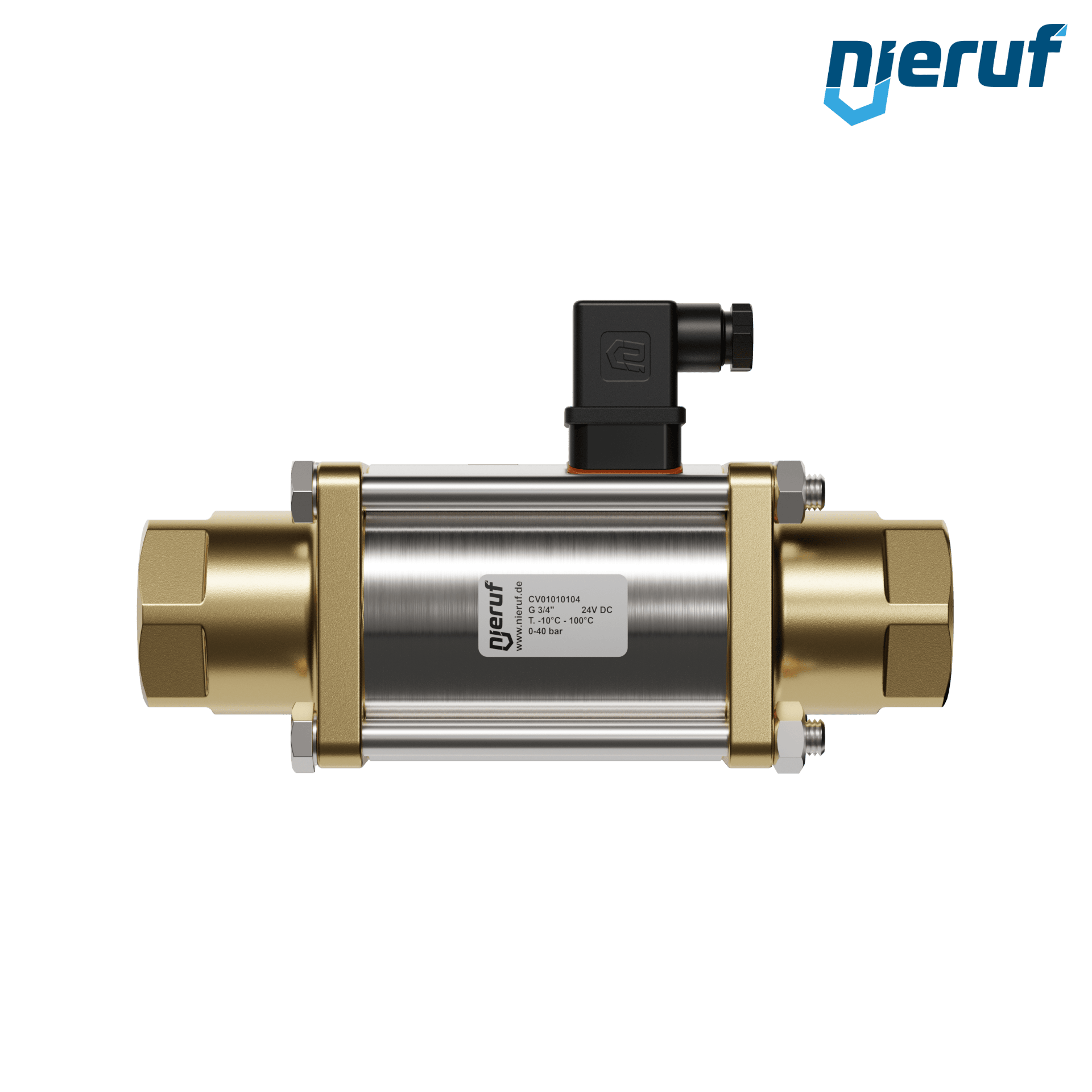

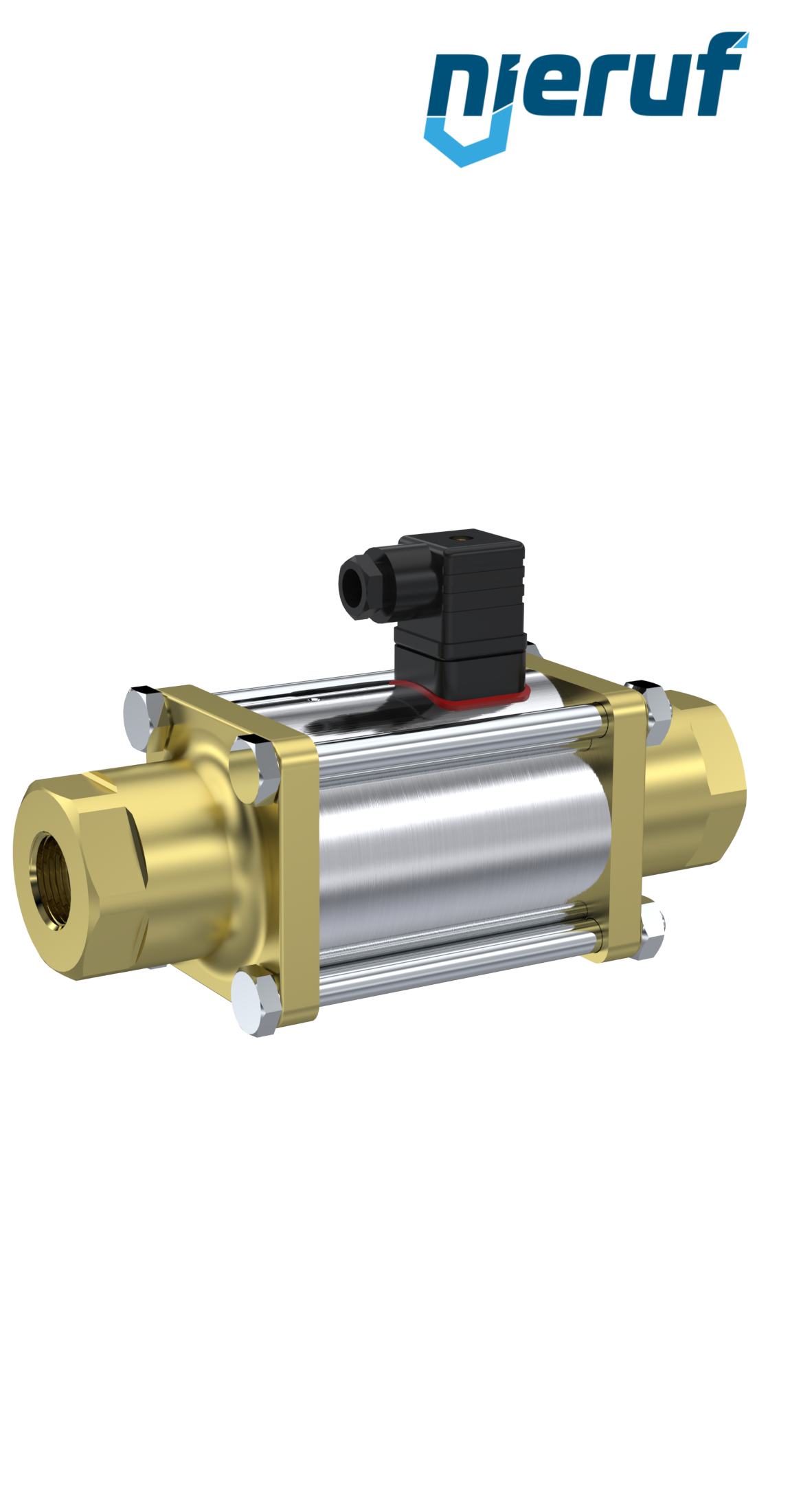

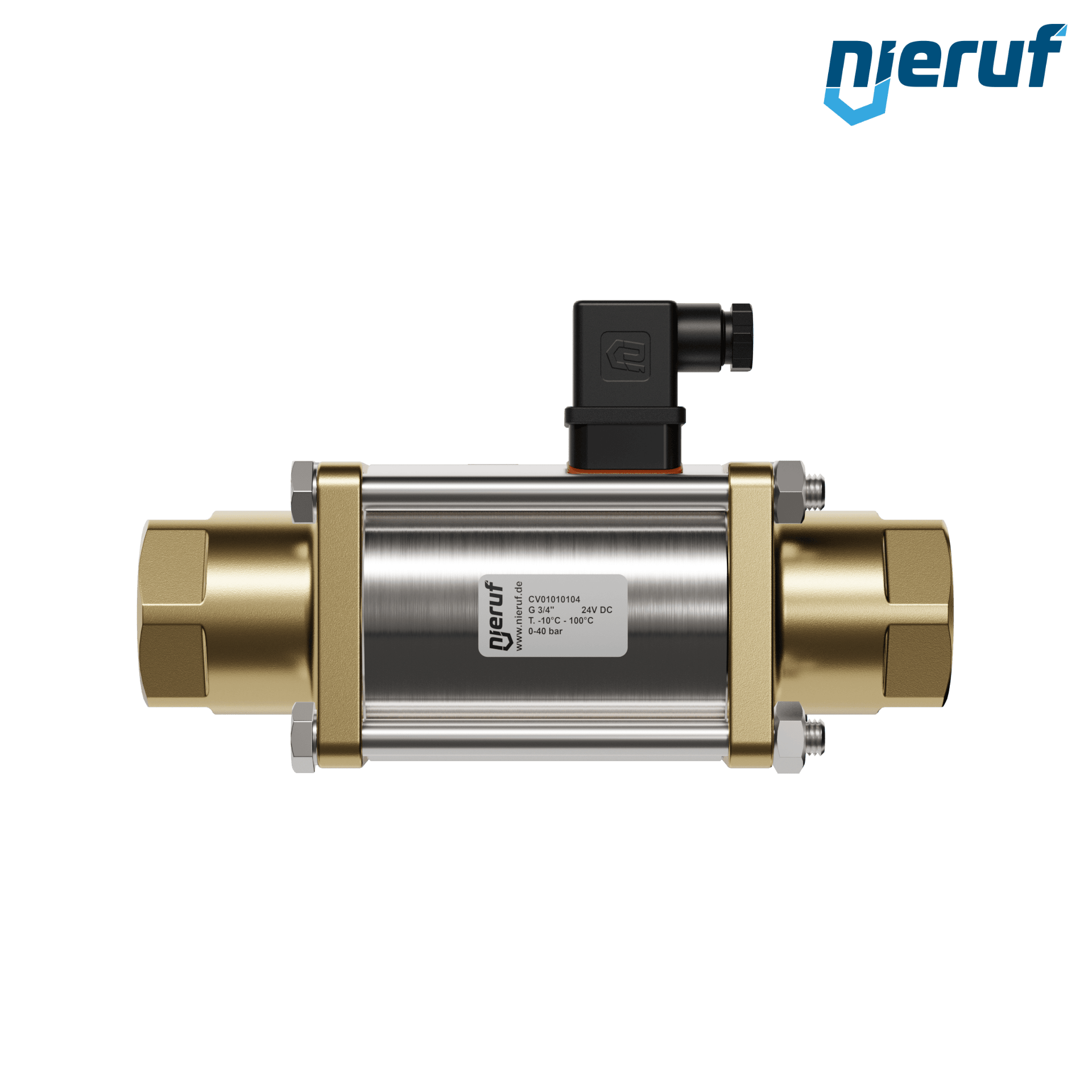

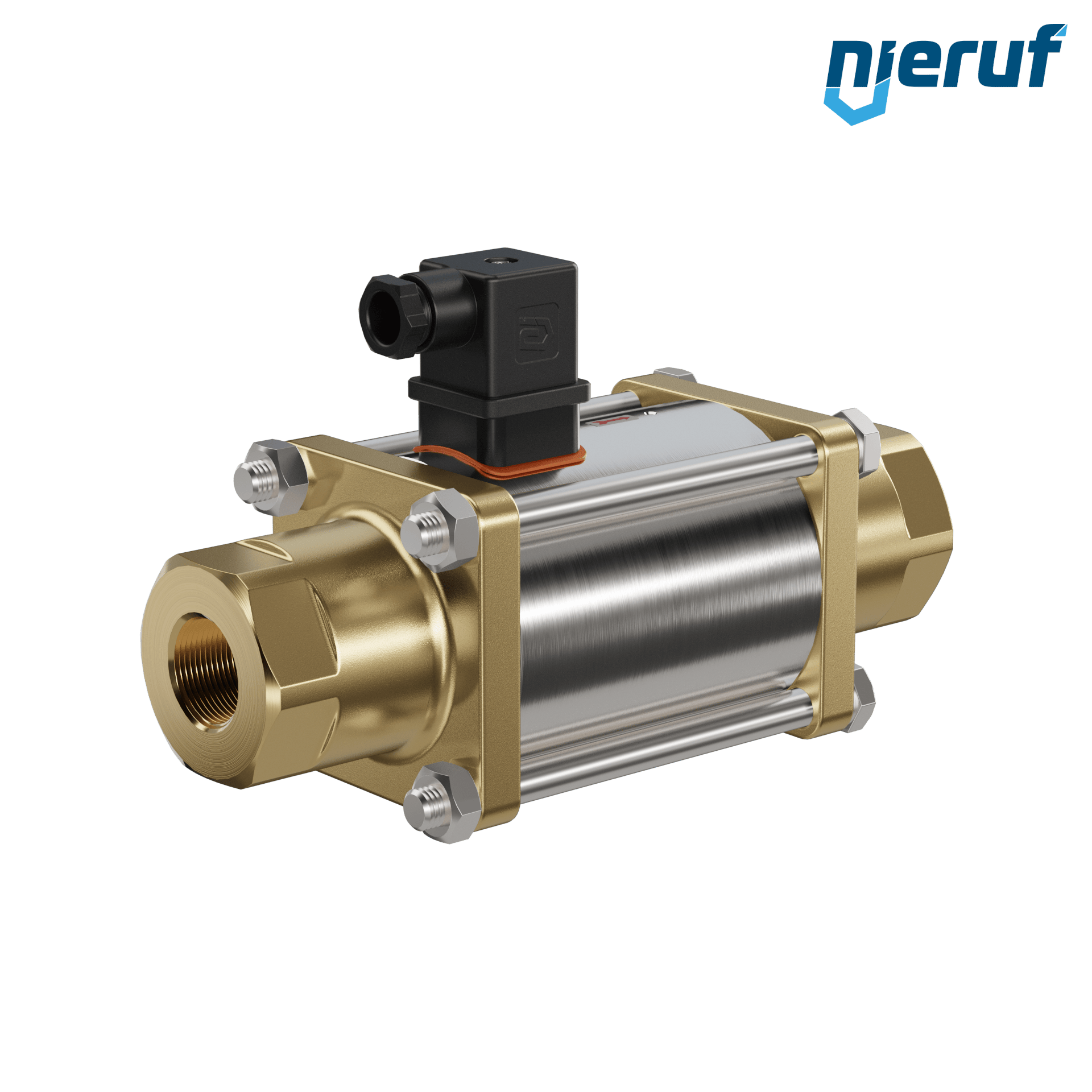

2/2 Way-valve Coaxial-valve 3/4" inch fm - DN20 made of brass, direct acting up to max. 40 bar, NO - normal open voltage 24V DC
| product | Coaxial-valve |
|---|---|
| type | CV01 |
| manufacturer | NieRuf |
| design | 2/2 Way-valve |
| diameter | DN20 - 3/4" inch |
| connection | female thread |
| material | brass |
| seal | FKM / PTFE |
| function | NO - normally open |
| control | direct acting |
| voltage | 24V DC |
| media | liquid and gaseous media |
| temperature | from -10°C to max. +100°C |
| pressure range | up to max. 40 bar |
| installation position | any position |
| product feature | Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Coaxial-valve 3/4" inch fm - DN20 brass 24V DC NO
Article no.
: CV01010104
product:
Coaxial-valve
type:
CV01
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN20 - 3/4" inch
connection:
female thread
material:
brass
seal:
FKM / PTFE
function:
NO - normally open
control:
direct acting
voltage:
24V DC
media:
liquid and gaseous media
temperature:
from -10°C to max. +100°C
pressure range:
up to max. 40 bar
installation position:
any position
product feature:
Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
