CV02000104
Coaxial-valve 3/4" inch fm - DN20 stainless steel 230V AC NO
Delivery time: 1 - 2 weeks
Equipment
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

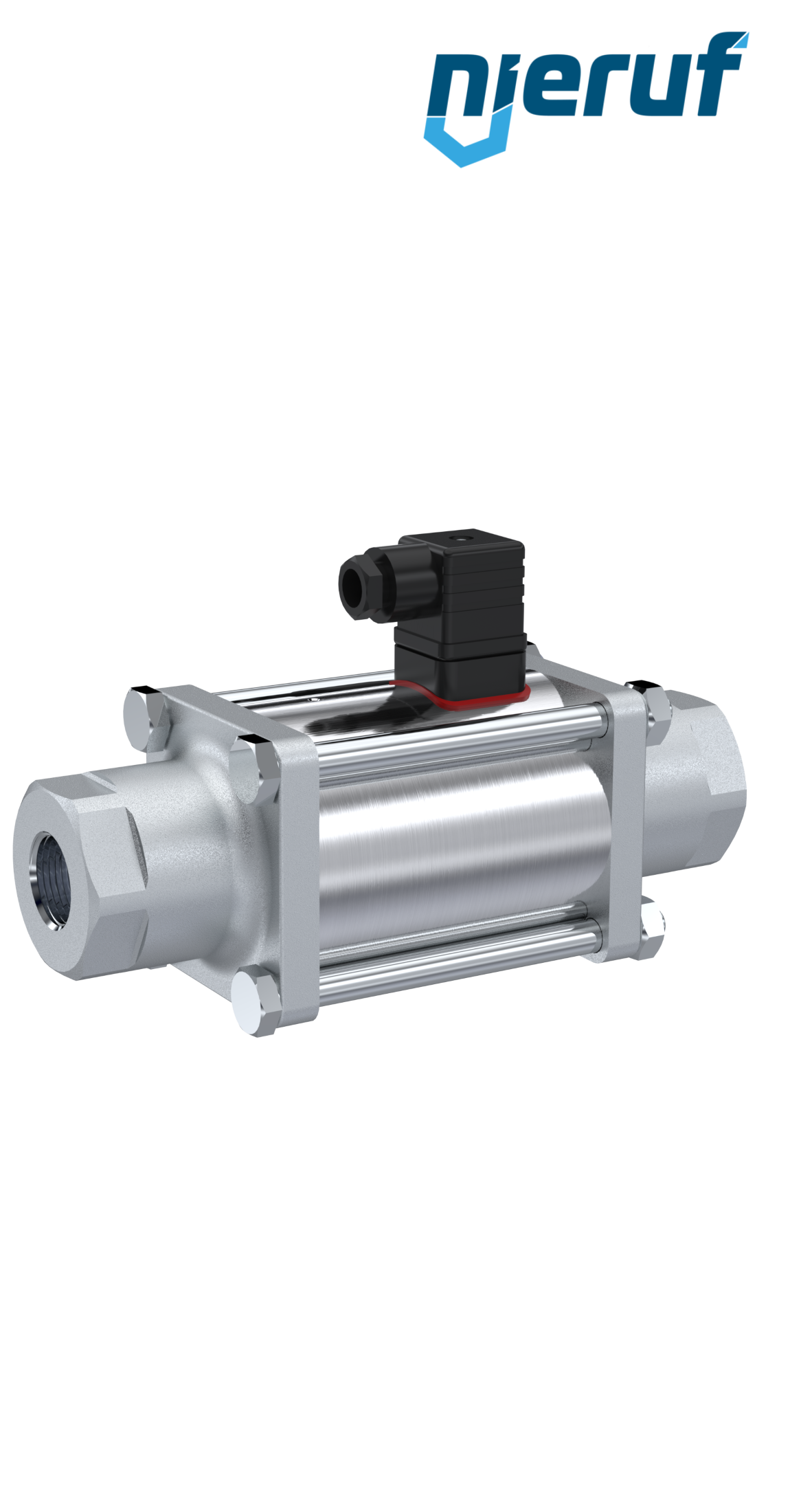

2/2 Way-valve Coaxial-valve 3/4" inch fm - DN20 made of stainless steel, direct acting up to max. 40 bar, NO - normal open voltage 230V AC
product: | Coaxial-valve |
---|---|
type: | CV02 |
manufacturer: | NieRuf |
design: | 2/2 Way-valve |
diameter: | DN20 - 3/4" inch |
connection: | female thread |
material: | stainless steel 1.4305 |
seal: | FKM / PTFE |
function: | NO - normally open |
control: | direct acting |
voltage: | 230V 50Hz |
media: | liquid and gaseous media |
temperature: | from -10°C to max. +100°C |
pressure range: | up to max. 40 bar |
installation position: | any position |
product feature: | Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Coaxial-valve 3/4" inch fm - DN20 stainless steel 230V AC NO
Article no.
: CV02000104
product:
Coaxial-valve
type:
CV02
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN20 - 3/4" inch
connection:
female thread
material:
stainless steel 1.4305
seal:
FKM / PTFE
function:
NO - normally open
control:
direct acting
voltage:
230V 50Hz
media:
liquid and gaseous media
temperature:
from -10°C to max. +100°C
pressure range:
up to max. 40 bar
installation position:
any position
product feature:
Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
