FK07000006
3/2 cross over ball valve DN32 FK07 C22 steel zinc plated 1.040 Kugel stainless steel 1.4404
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you

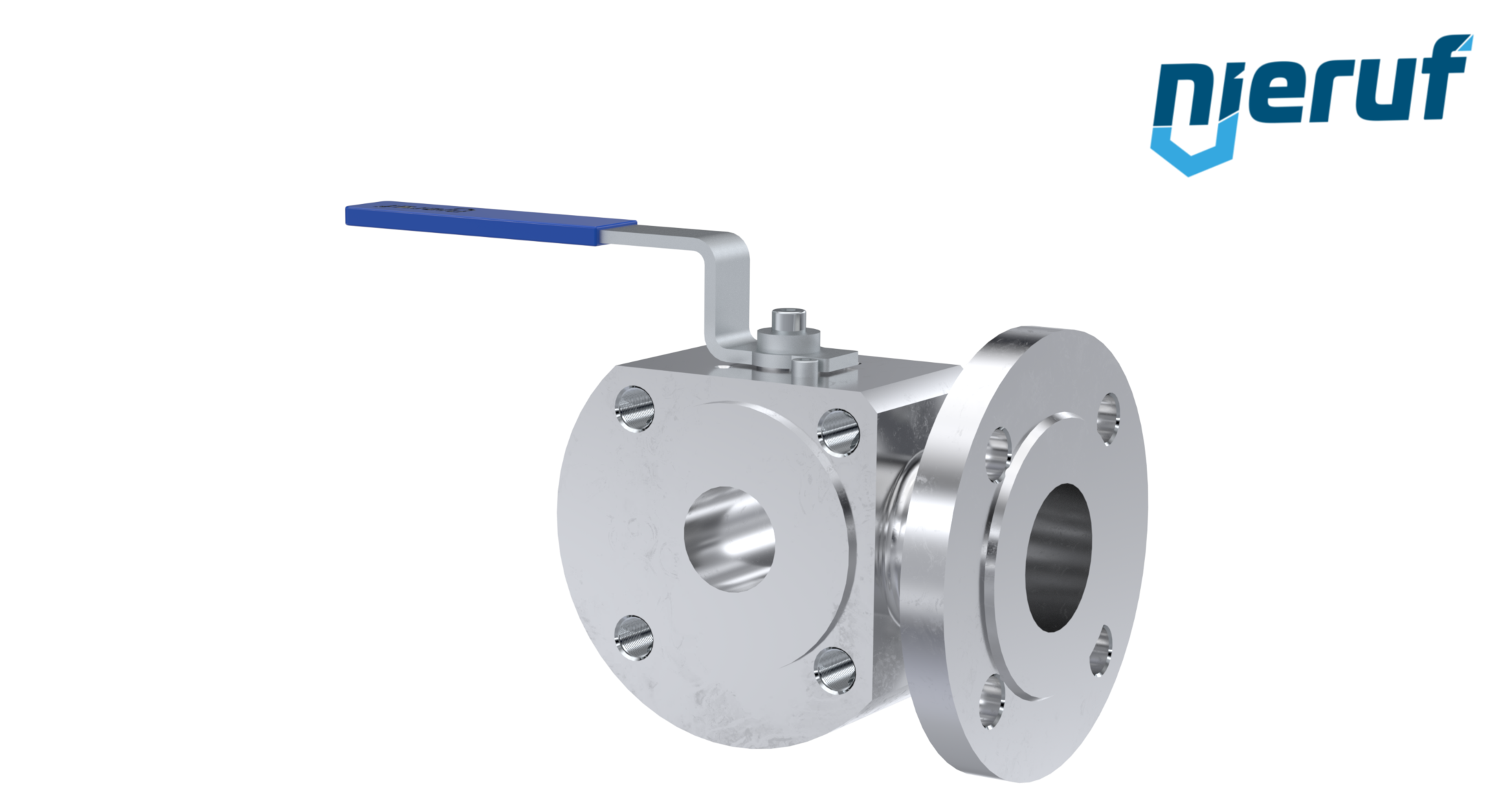

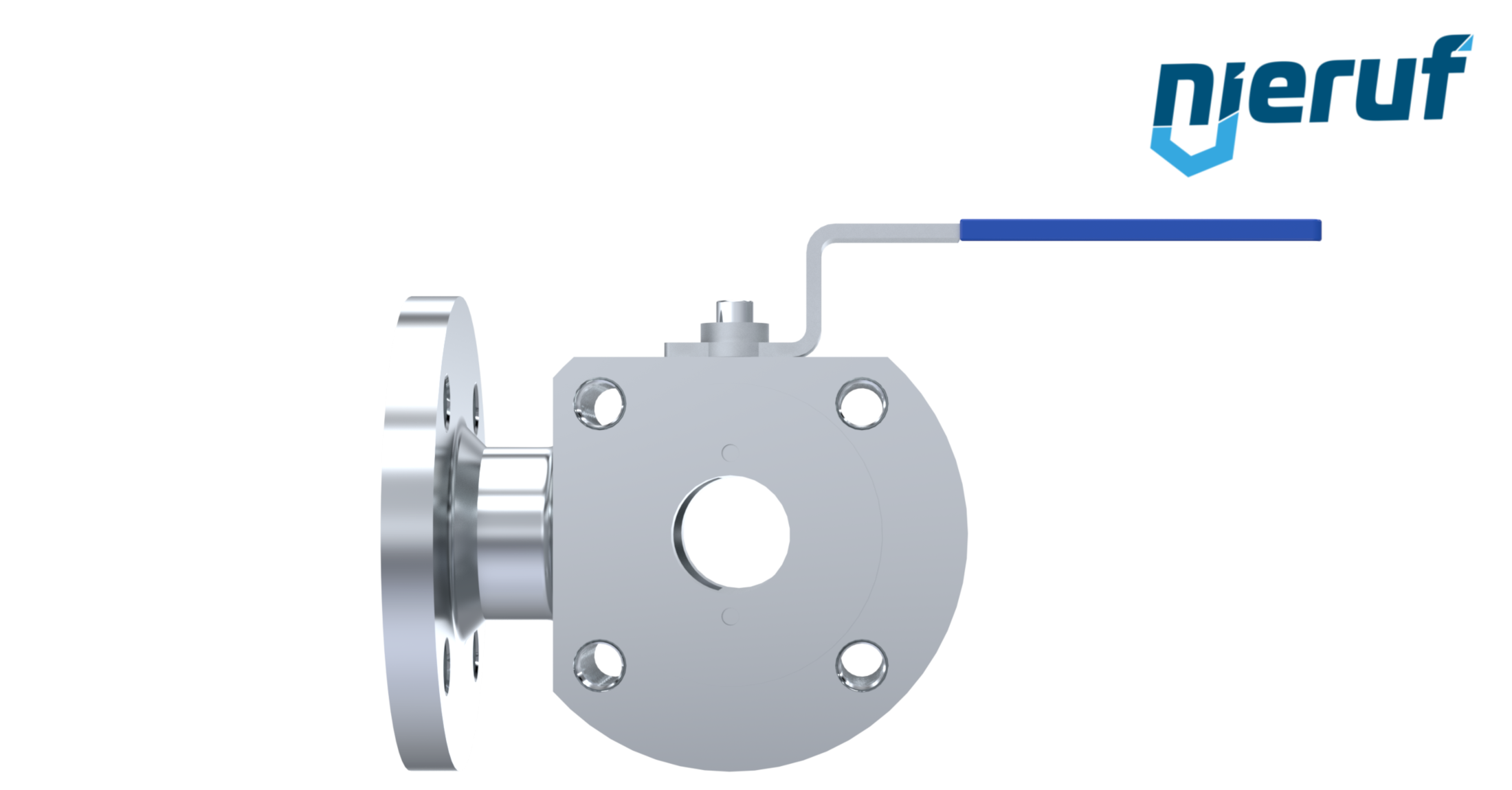

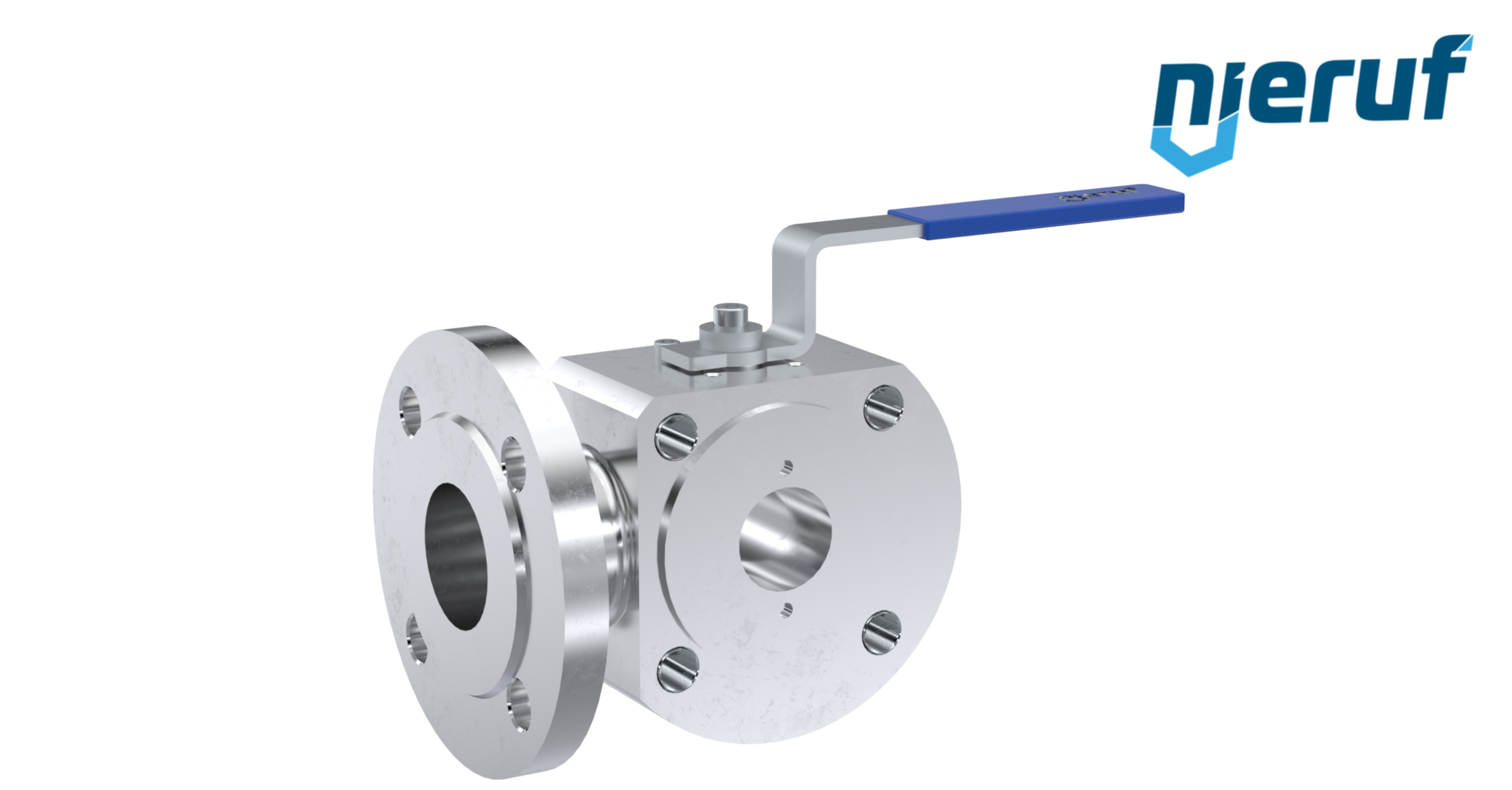

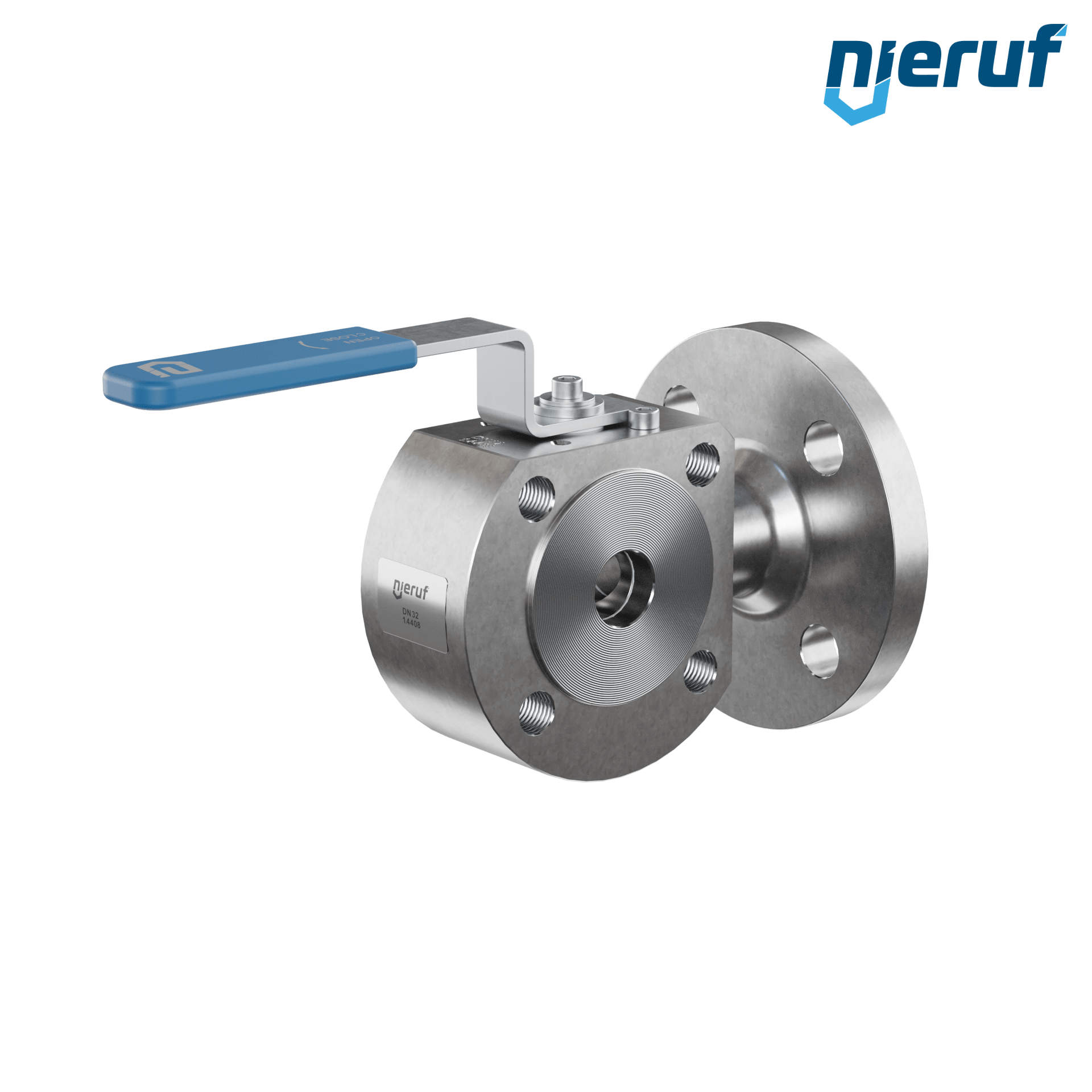

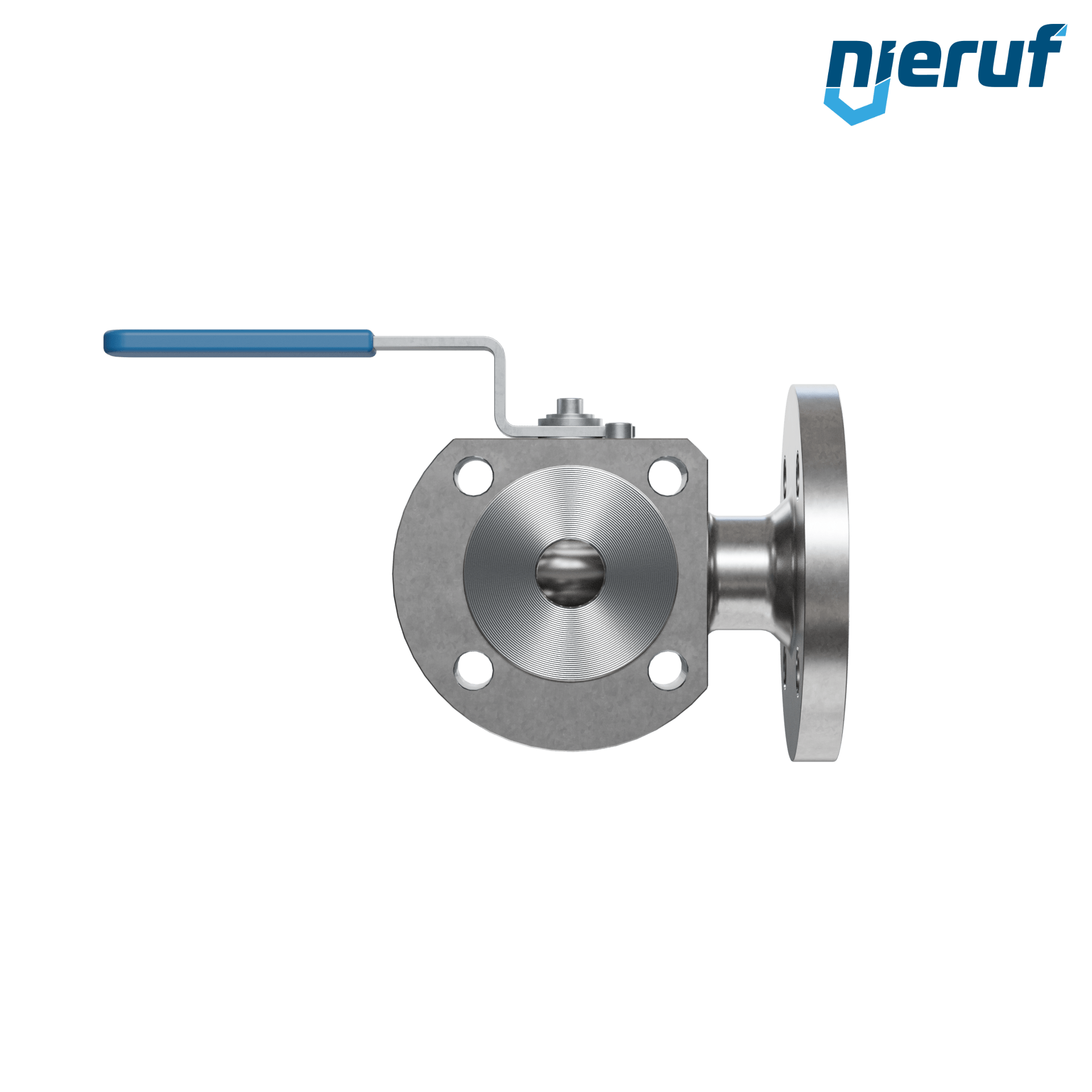

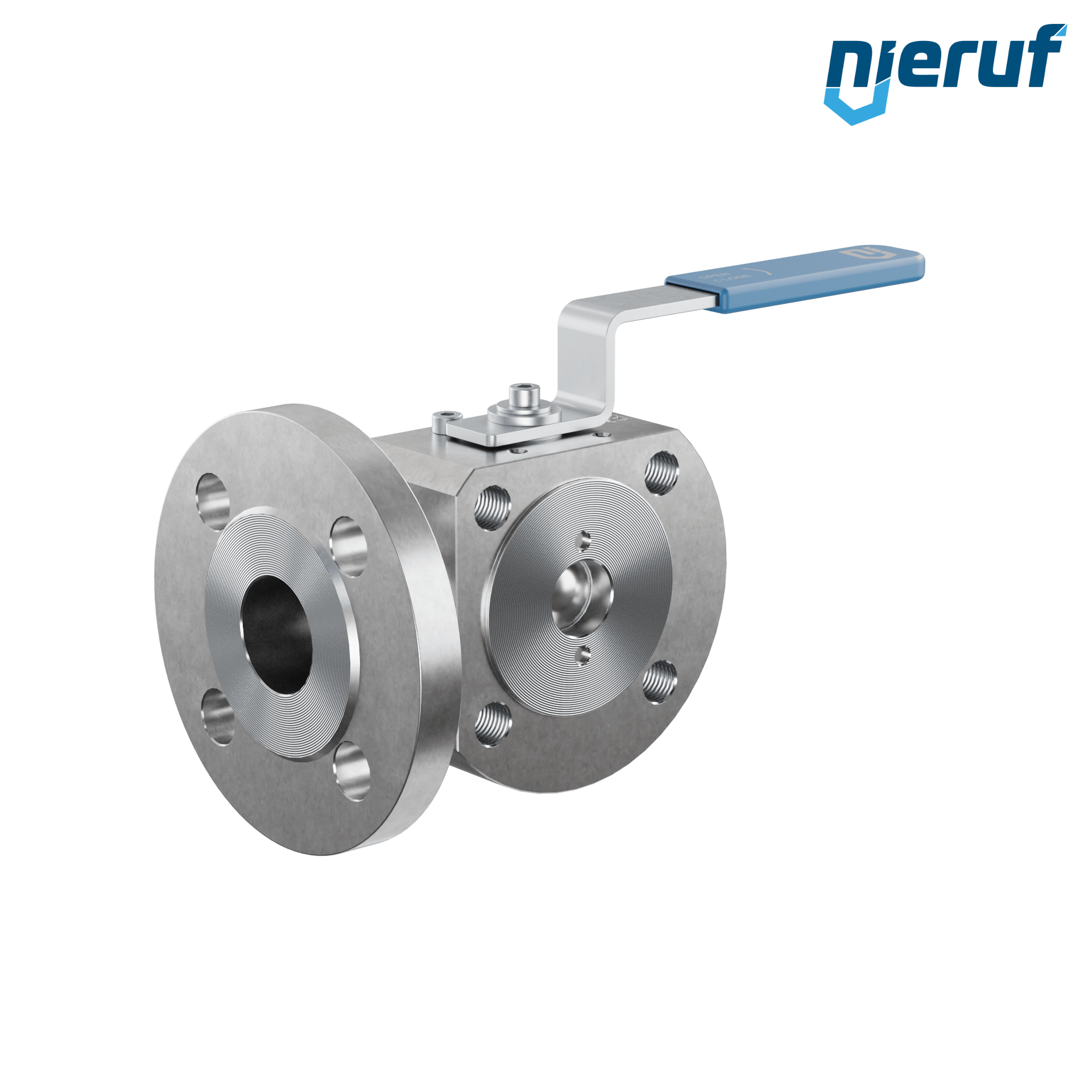

3/2 cross over ball valve DN32 PN16/40 FK07 body C22 steel zinc plated 1.040 ball stainless steel 1.4404 seal TFM 25% GF for liquid and gaseous media
| product: | 3/2 cross over ball valve |
|---|---|
| type: | FK07 |
| manufacturer: | NieRuf |
| diameter: | DN32 |
| connection: | flange |
| Seal steam: | O-ring Viton |
| ball seal: | TFM 25% GF |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN16/40 |
| design: | reduced port design |
| body material: | C22 steel zinc plated 1.040 |
| ball material: | stainless steel 1.4404 |
| length: | 58mm |
| actuator: | hand lever with blue plastic cover |
| installation position: | any position |
| product description: | This high quality 3/2 valve with compactdesign and the body is steel zinc plated. This 3/2 cross over ball valve with sealing on the output side and direction of flow see graphical symbol |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3/2 cross over ball valve DN32 FK07 C22 steel zinc plated 1.040 Kugel stainless steel 1.4404
Article no.
: FK07000006
product:
3/2 cross over ball valve
type:
FK07
manufacturer:
NieRuf
diameter:
DN32
connection:
flange
Seal steam:
O-ring Viton
ball seal:
TFM 25% GF
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16/40
design:
reduced port design
body material:
C22 steel zinc plated 1.040
ball material:
stainless steel 1.4404
length:
58mm
actuator:
hand lever with blue plastic cover
installation position:
any position
product description:
This high quality 3/2 valve with compactdesign and the body is steel zinc plated. This 3/2 cross over ball valve with sealing on the output side and direction of flow see graphical symbol
