SV14000301

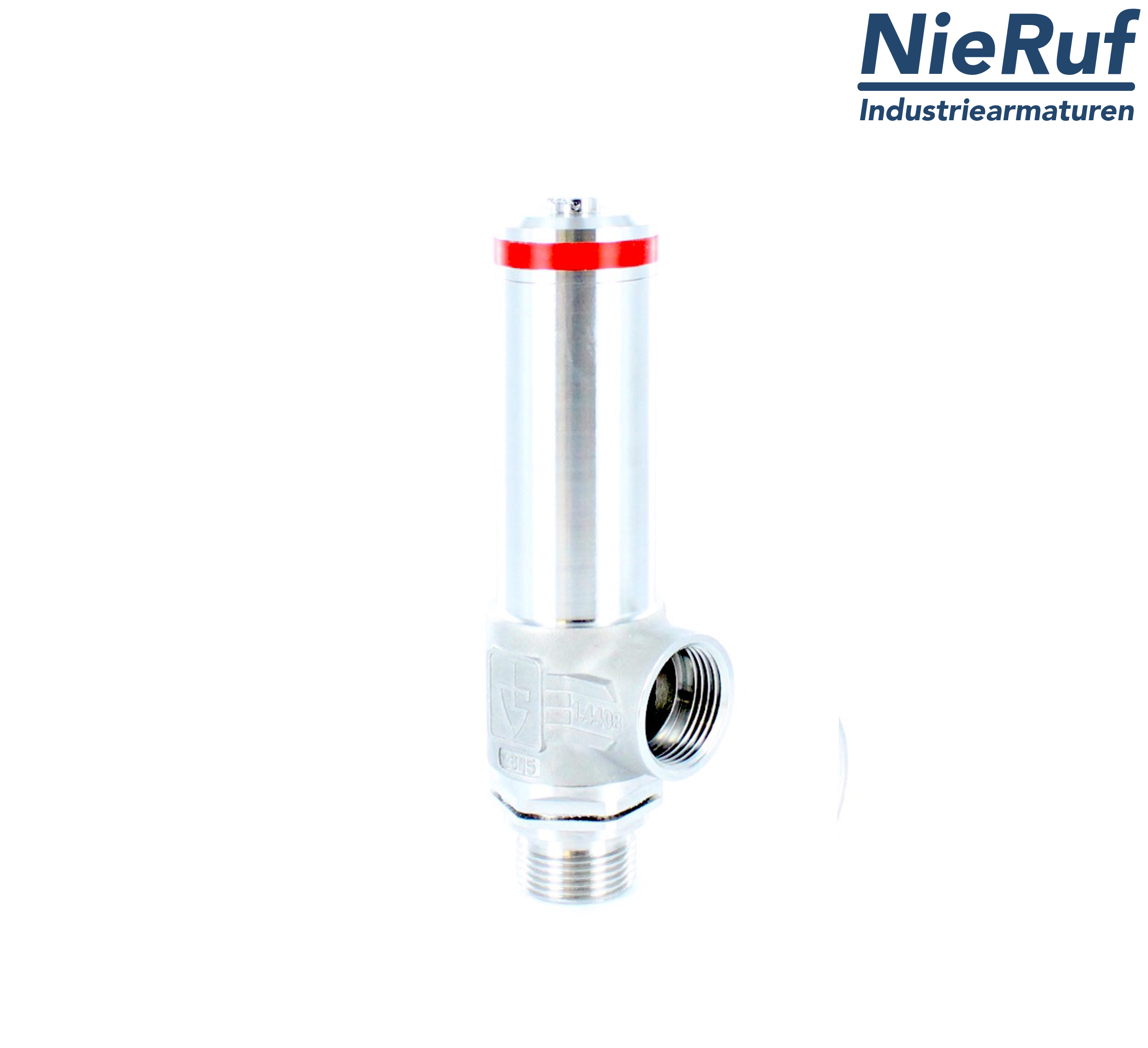

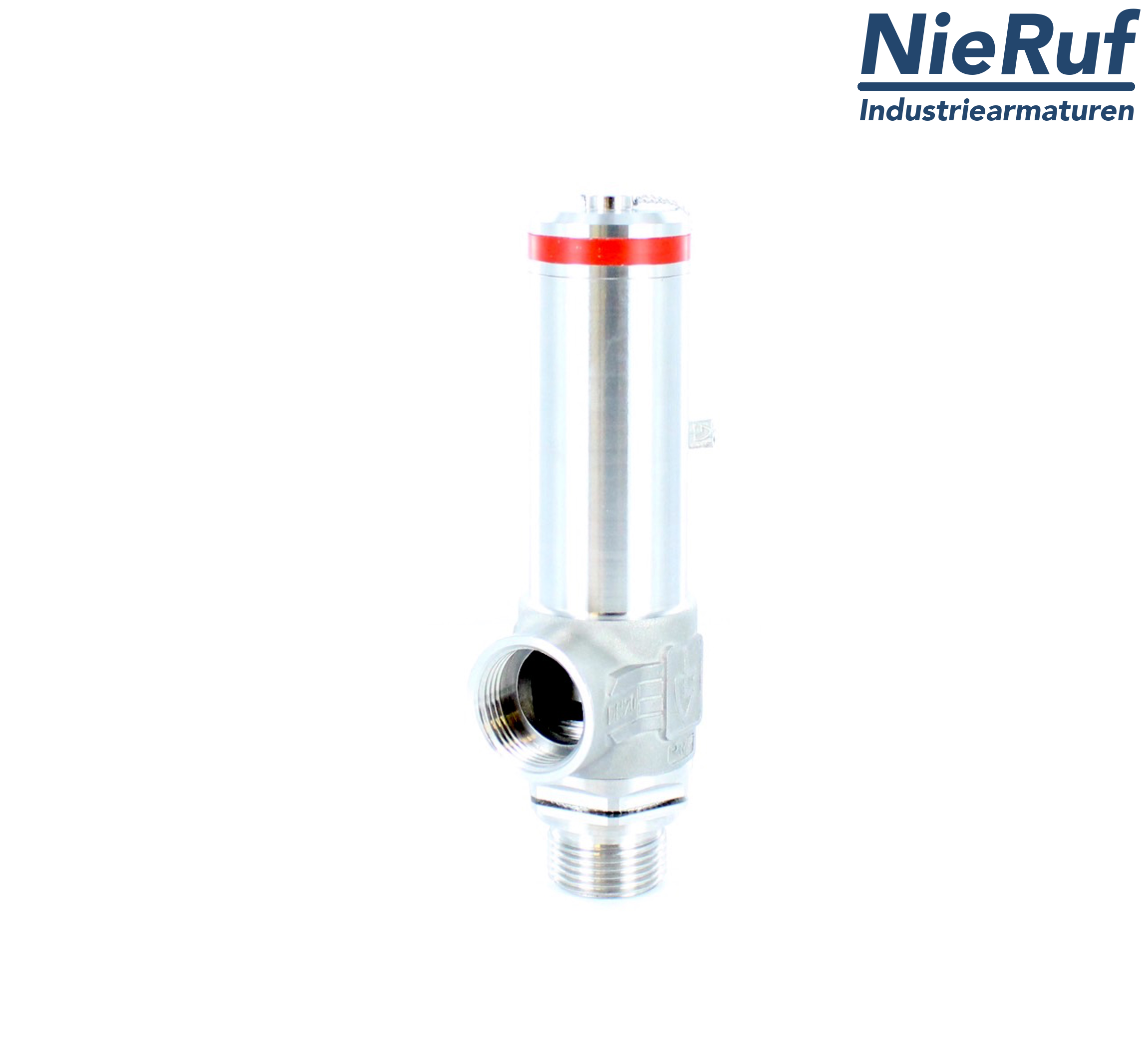

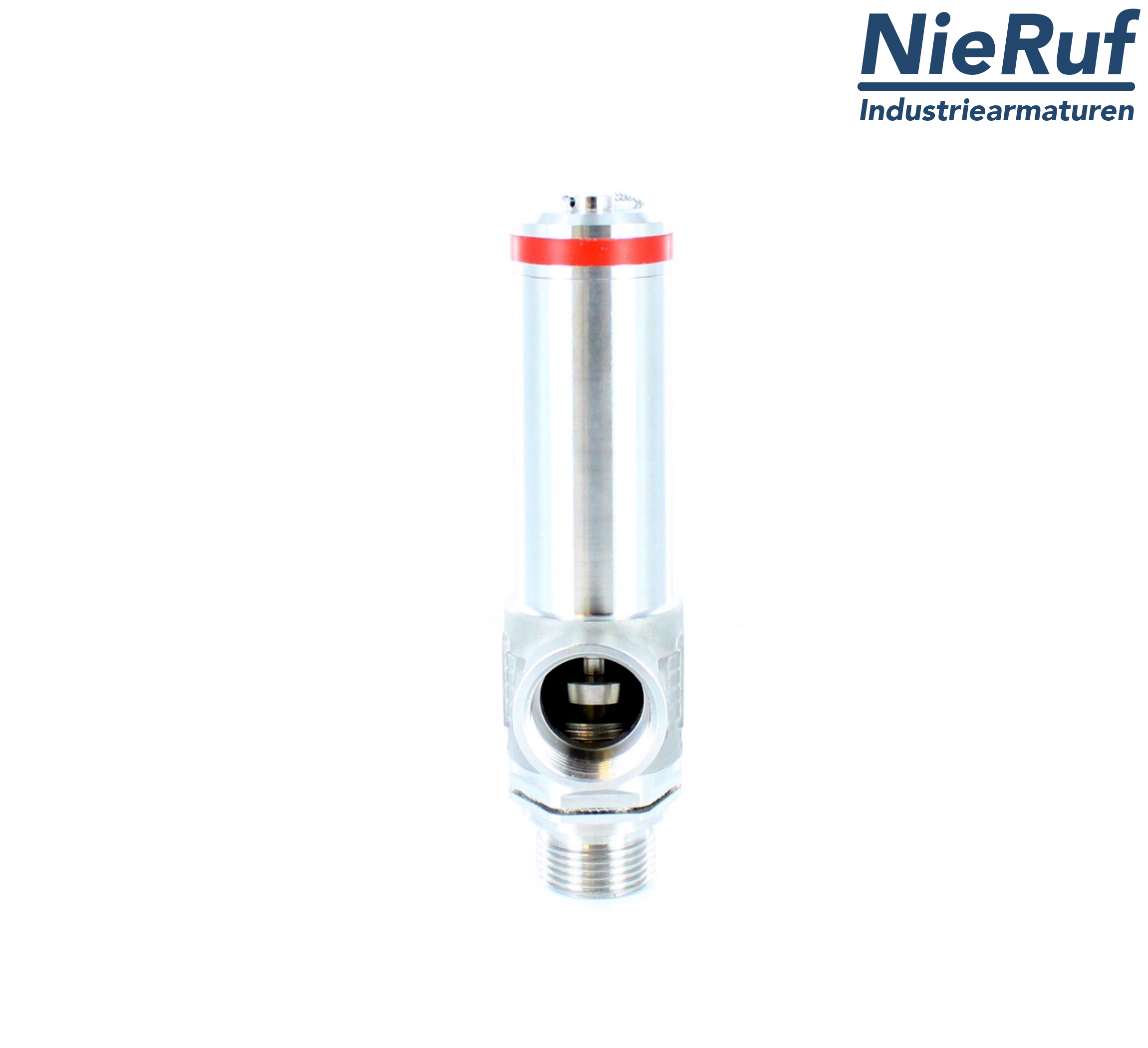

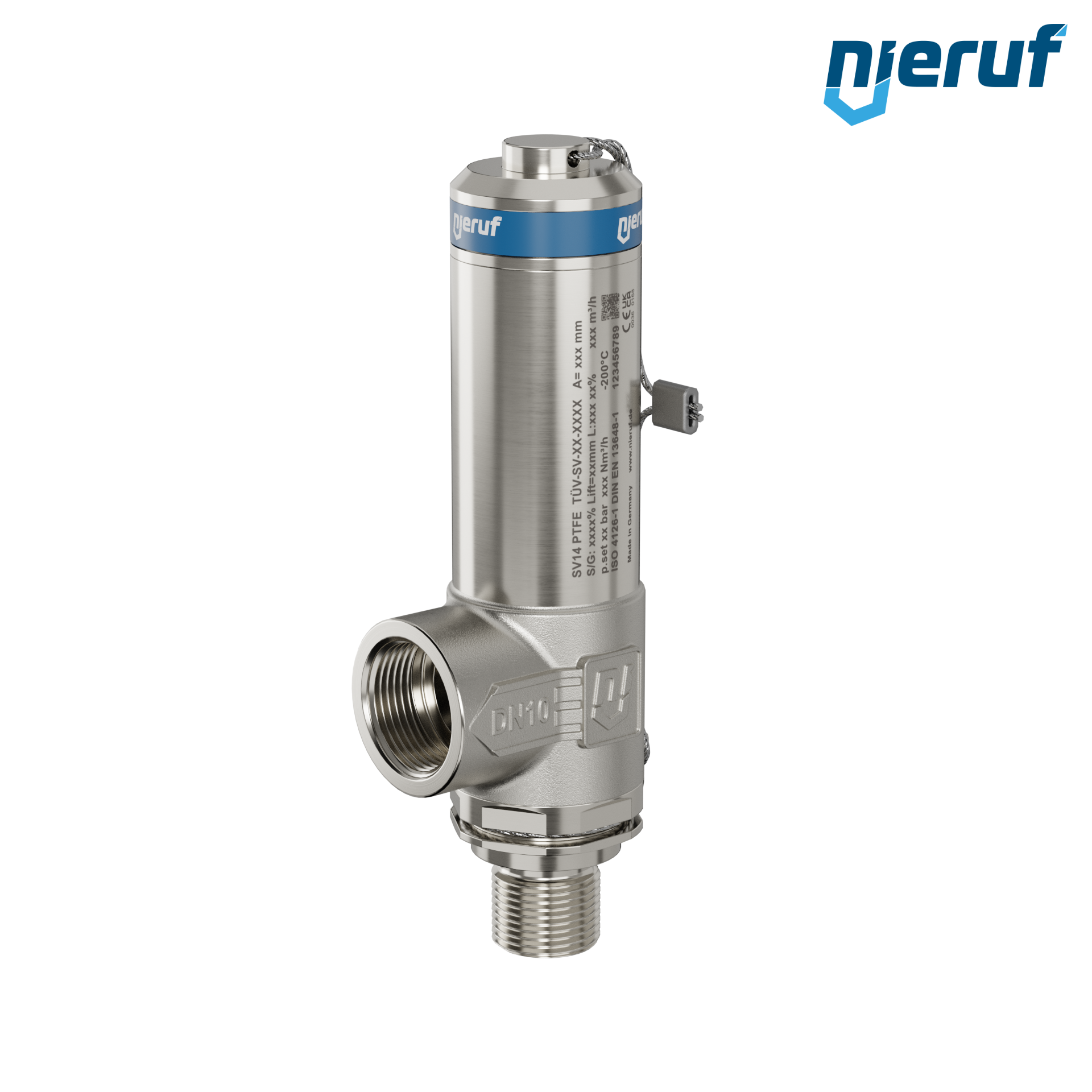

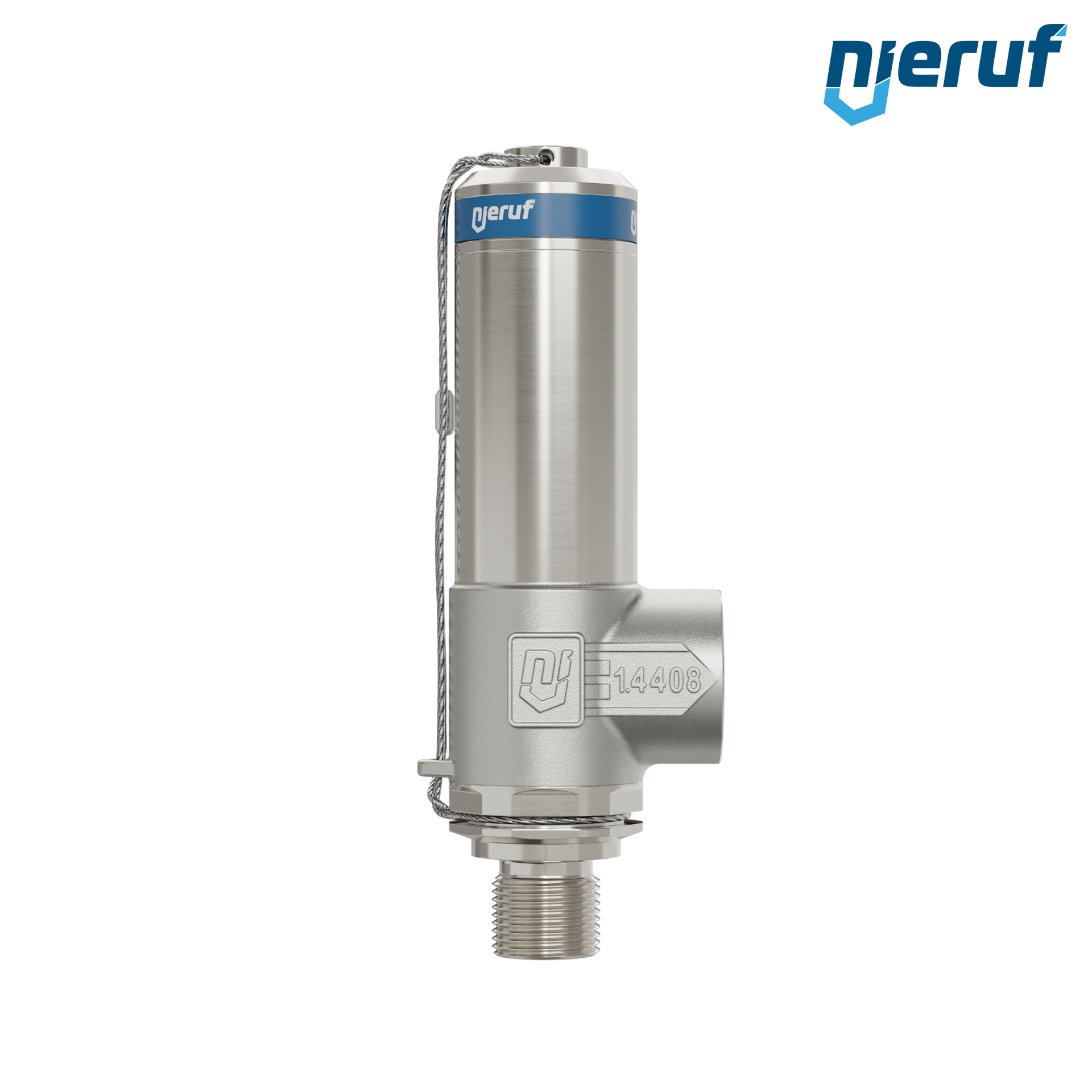

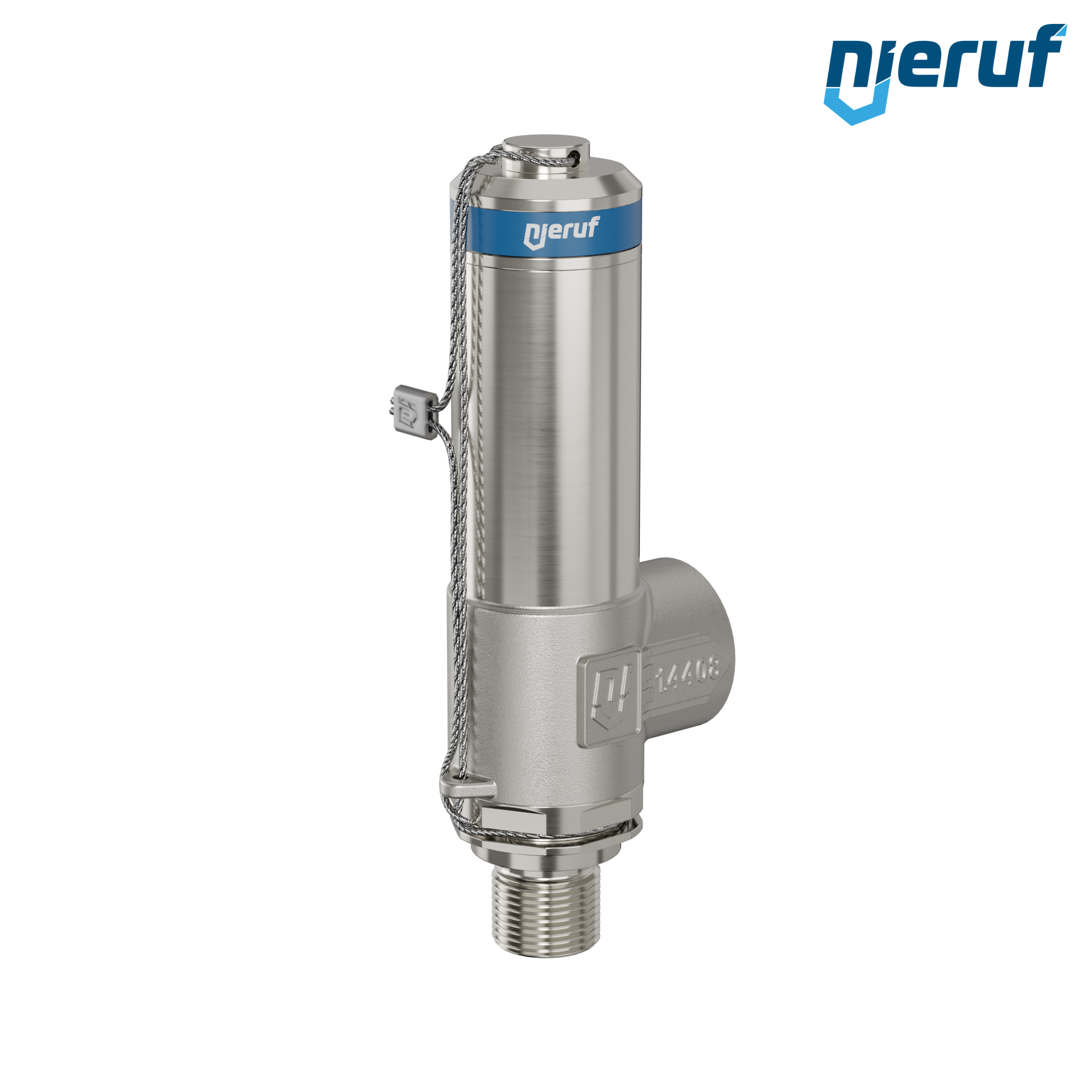

cryo-safety-valve DN8 1/4" m x 3/8" fm SV14, stainless steel PTFE
Delivery time: 3 - 5 working days
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
cryo-safety-valve DN8 1/4" m x 3/8" fm SV14 for cryogenic liquified gases made of stainless steel seal PTFE pressure 0,2 - 70,0 bar
| product: | cryo-safety-valve |
|---|---|
| type: | SV14 |
| manufacturer: | NieRuf |
| diameter: | DN8 1/4" m x 3/8" fm |
| d0: | 6,0 mm |
| connection: | male screw threaded BSP-P |
| seal: | PTFE |
| media: | cryogenic liquified gases |
| temperature: | - 200°C up to + 200°C |
| set pressure: | 0,2 - 70,0 bar |
| design: | angle-type |
| material: | stainless steel |
| lifting: | without |
| type test approval: | TÜV-SV-2091 D/G/F |
| requirements: | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position: | Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case. |
| SIL - safety integrity level: | SIL 3 |
| product feature 1: | Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG |
| product feature 2: | oil- and greasefree |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
cryo-safety-valve DN8 1/4" m x 3/8" fm SV14, stainless steel PTFE
Article no.
: SV14000301
product:
cryo-safety-valve
type:
SV14
manufacturer:
NieRuf
diameter:
DN8 1/4" m x 3/8" fm
d0:
6,0 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
cryogenic liquified gases
temperature:
- 200°C up to + 200°C
set pressure:
0,2 - 70,0 bar
design:
angle-type
material:
stainless steel
lifting:
without
type test approval:
TÜV-SV-2091 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case.
SIL - safety integrity level:
SIL 3
product feature 1:
Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG
product feature 2:
oil- and greasefree
€2.86 VAT included.
