DS03130201
digital pressure sensor G 1/4" B 5-wire: 2xPNP, 1x4 - 20mA FPM 0,0 - 100,0 bar
Delivery time: 2 - 3 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you

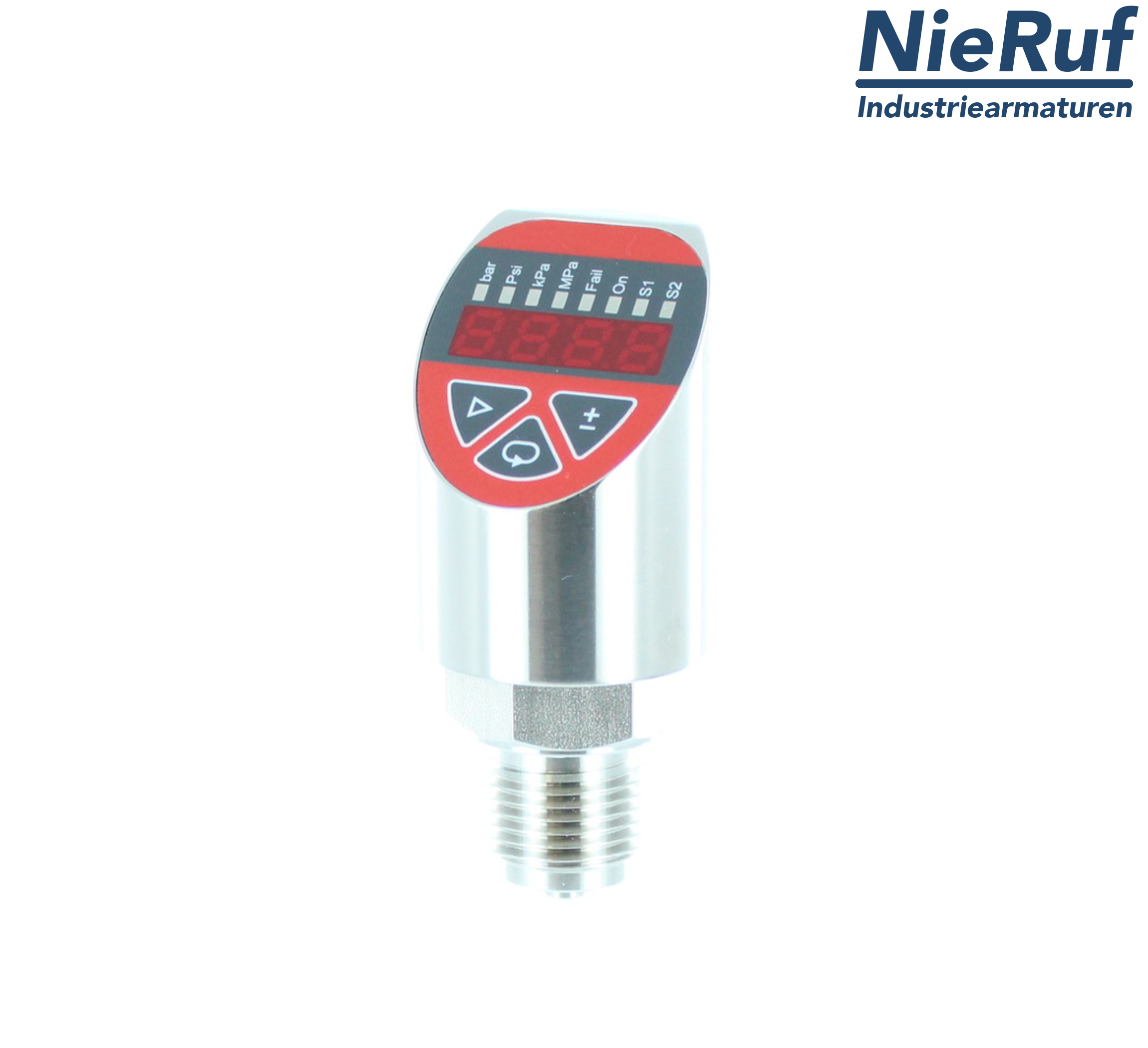

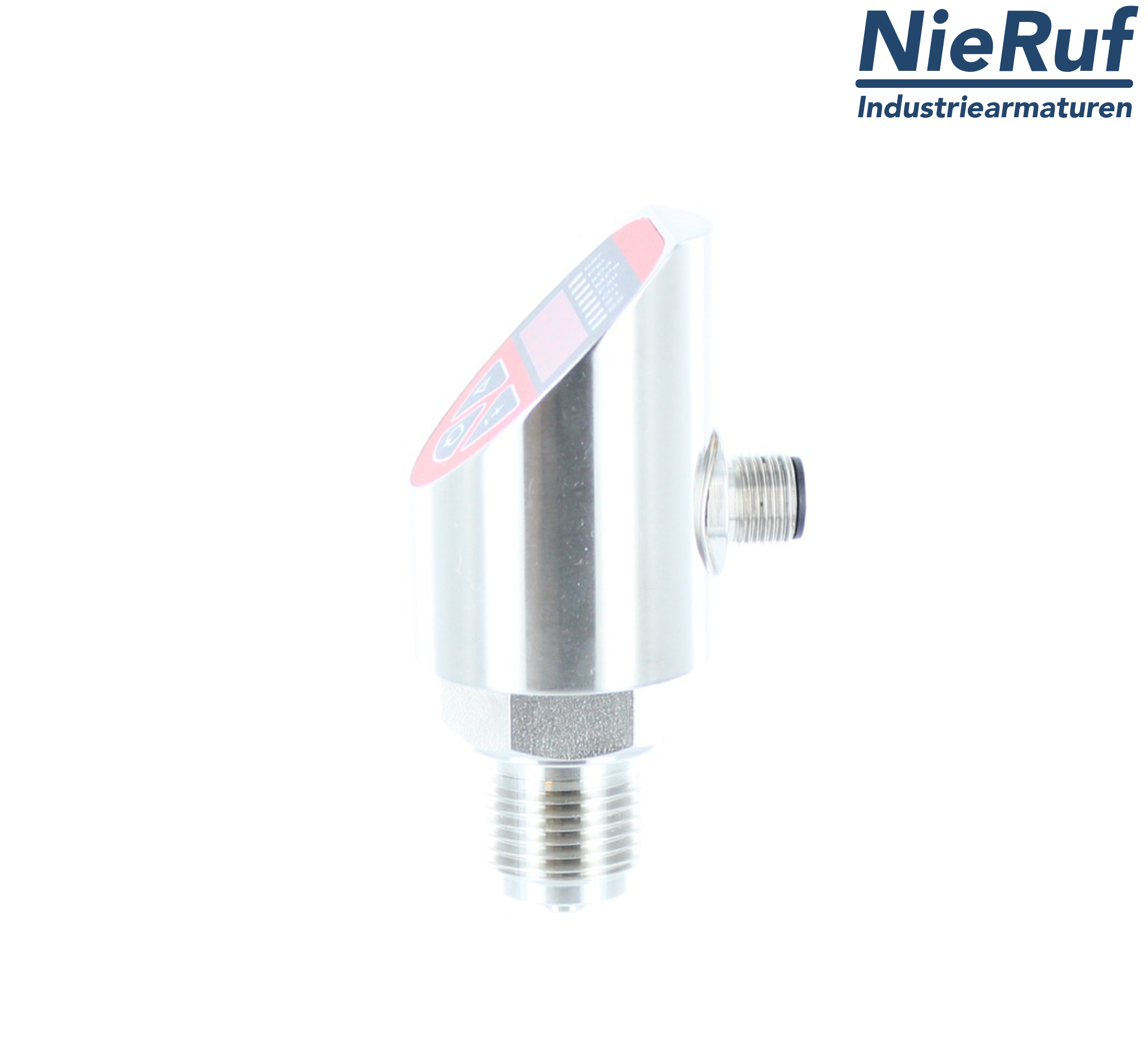

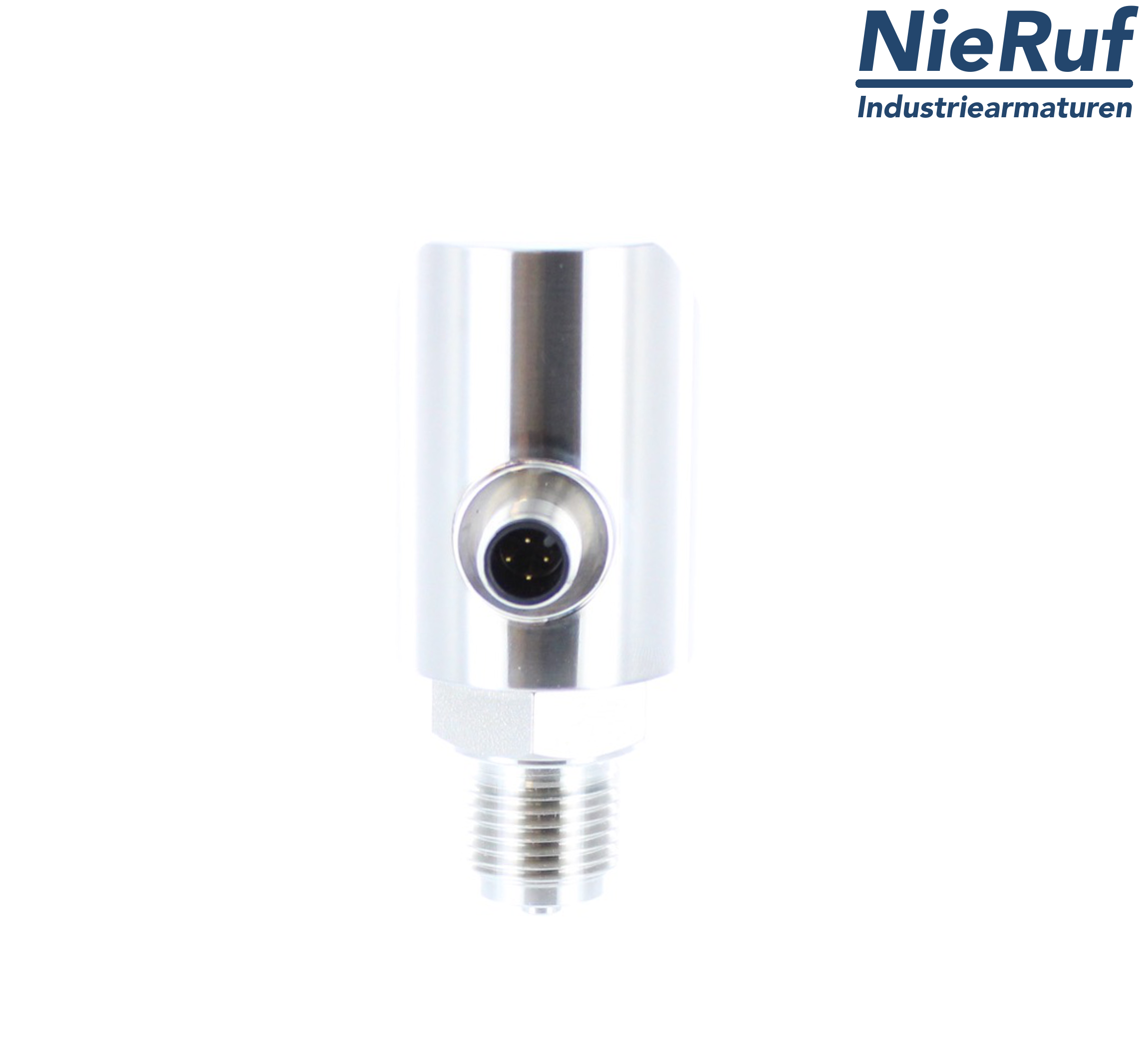

digital pressure sensor G 1/4" B pressure range 0,0 - 100,0 bar made of stainless steel 5-wire: 2xPNP, 1x4 - 20mA seal FPM for liquid and gaseous media
| product: | digital pressure sensor |
|---|---|
| type: | DS03 |
| manufacturer: | NieRuf |
| diameter: | G 1/4" B |
| connection: | male thread |
| material connection: | stainless steel |
| material: | chromium-nickel steel |
| seal: | FPM |
| media: | liquid and gaseous media |
| temperature: | -40°C up to +100°C |
| temperature ambiente: | -40°C up to +85°C |
| membrane: | ceramic |
| range of measurement: | 0,0 - 100,0 bar |
| pressure version: | relative pressure |
| accuracy: | ≤ 0,5% |
| output: | 5-wire: 2xPNP, 1x4 - 20mA |
| plug: | plug M12 (inclusive) |
| product feature: | High-quality pressure switch with 4-digit digital display and internal ceramic membrane. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
digital pressure sensor G 1/4" B 5-wire: 2xPNP, 1x4 - 20mA FPM 0,0 - 100,0 bar
Article no.
: DS03130201
product:
digital pressure sensor
type:
DS03
manufacturer:
NieRuf
diameter:
G 1/4" B
connection:
male thread
material connection:
stainless steel
material:
chromium-nickel steel
seal:
FPM
media:
liquid and gaseous media
temperature:
-40°C up to +100°C
temperature ambiente:
-40°C up to +85°C
membrane:
ceramic
range of measurement:
0,0 - 100,0 bar
pressure version:
relative pressure
accuracy:
≤ 0,5%
output:
5-wire: 2xPNP, 1x4 - 20mA
plug:
plug M12 (inclusive)
product feature:
High-quality pressure switch with 4-digit digital display and internal ceramic membrane.
€2.86 VAT included.
