TM03003103.8
digital temperature device -99°C - +200°C Sensor 200 mm 1xPNP, 1x4-20mA
Delivery time: 2 - 3 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you

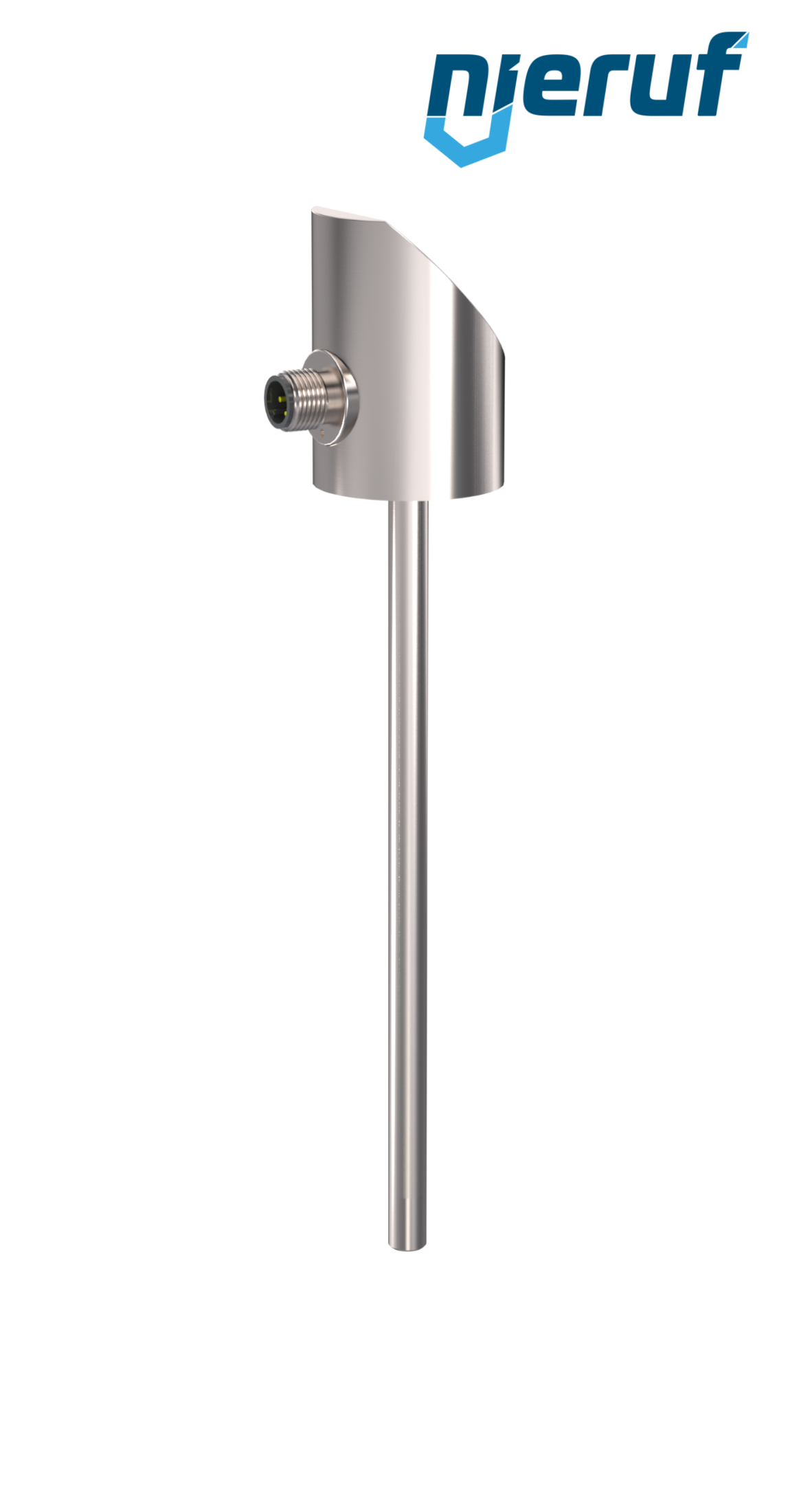

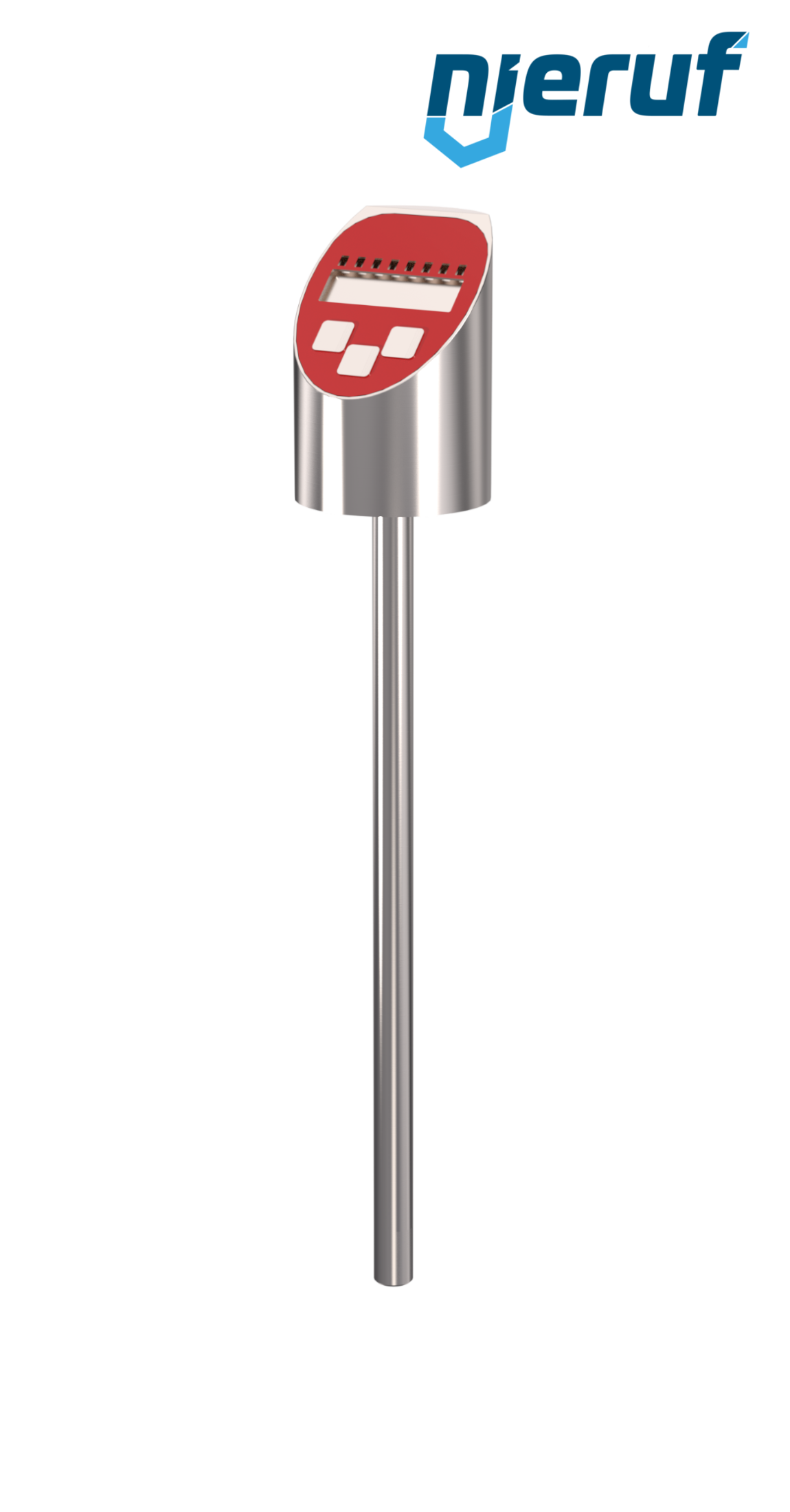

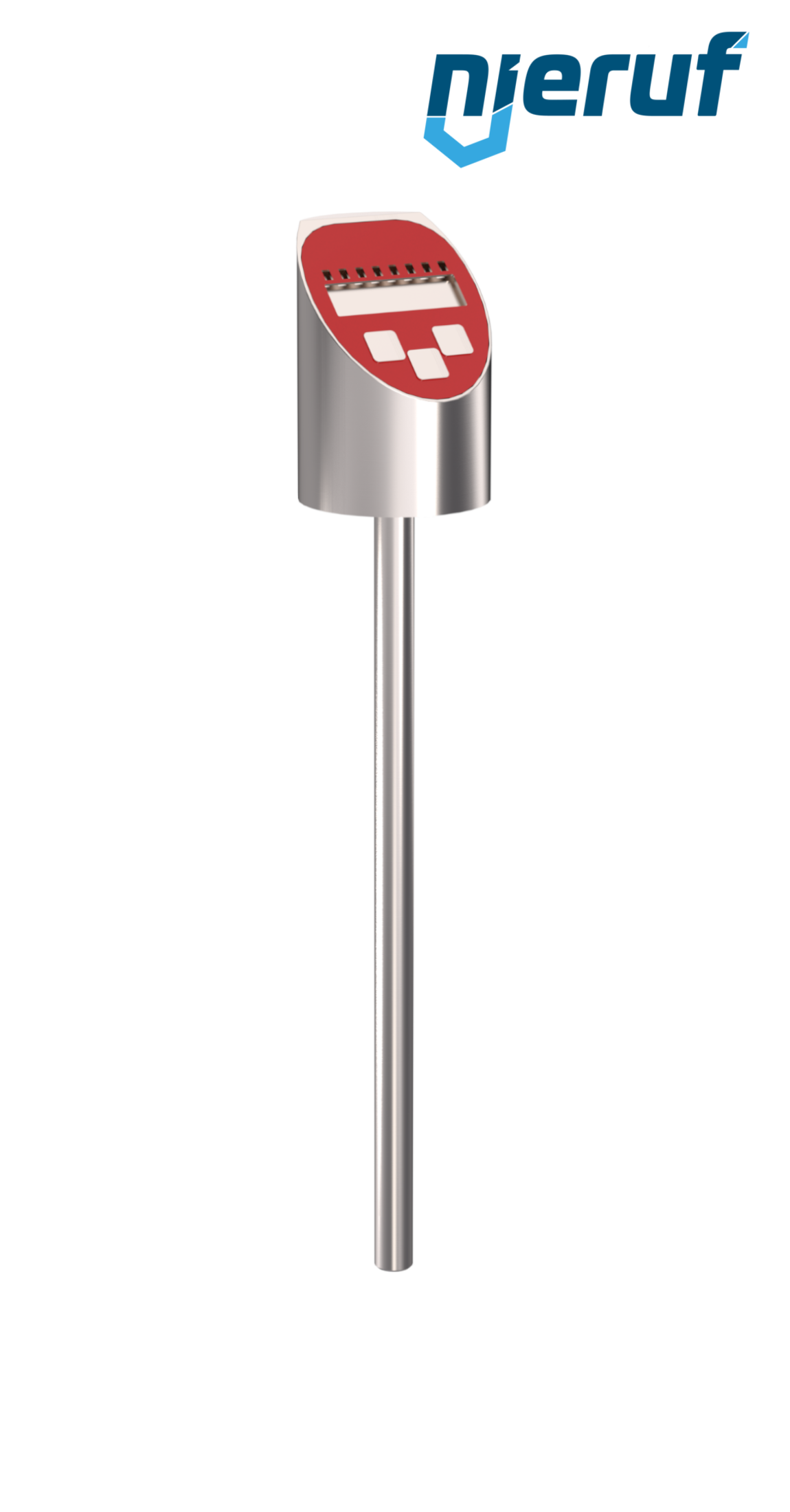

digital temperature device from -99°C - +200°C type TM03 G 1/2" B sensor length 200 mm tube diameter 8 mm output 3-wire, 1xPNP, 1x 4 - 20mA
| product: | digital temperature gauge |
|---|---|
| type: | TM03 |
| manufacturer: | NieRuf |
| diameter: | G 1/2" B |
| connection: | male thread |
| material: | stainless steel |
| sensor: | Pt100 class A |
| media: | liquid and gaseous media |
| temperature: | -99 - +500°C |
| temperature ambiente: | -40°C up to +85°C |
| long-term drift: | ≤±0,1K / year |
| EMV compatibility: | class B means / industrial sector (EN/IEC 61326) |
| supply voltage: | 10,5 – 35V DC reverse voltage protected |
| sensor tube: | 200 mm |
| tube diameter: | 8 mm |
| range of measurement: | -99°C - +200°C |
| accuracy: | ≤0,08% FS |
| output: | 3-wire, 1xPNP, 1x 4 - 20mA |
| plug: | M12 IP65/IP67 (inclusive) |
| current consumption: | ≤60mA incl. Analog output with max. 22,5mA switching output loop |
| standby time: | ≤ 1s |
| cycle of operations: | ≥ 100.000.000 |
| product feature: | High-quality digital temperature gauge made of stainless steel to controll process temperatures. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
digital temperature device -99°C - +200°C Sensor 200 mm 1xPNP, 1x4-20mA
Article no.
: TM03003103.8
product:
digital temperature gauge
type:
TM03
manufacturer:
NieRuf
diameter:
G 1/2" B
connection:
male thread
material:
stainless steel
sensor:
Pt100 class A
media:
liquid and gaseous media
temperature:
-99 - +500°C
temperature ambiente:
-40°C up to +85°C
long-term drift:
≤±0,1K / year
EMV compatibility:
class B means / industrial sector (EN/IEC 61326)
supply voltage:
10,5 – 35V DC reverse voltage protected
sensor tube:
200 mm
tube diameter:
8 mm
range of measurement:
-99°C - +200°C
accuracy:
≤0,08% FS
output:
3-wire, 1xPNP, 1x 4 - 20mA
plug:
M12 IP65/IP67 (inclusive)
current consumption:
≤60mA incl. Analog output with max. 22,5mA switching output loop
standby time:
≤ 1s
cycle of operations:
≥ 100.000.000
product feature:
High-quality digital temperature gauge made of stainless steel to controll process temperatures.
