DR03100116

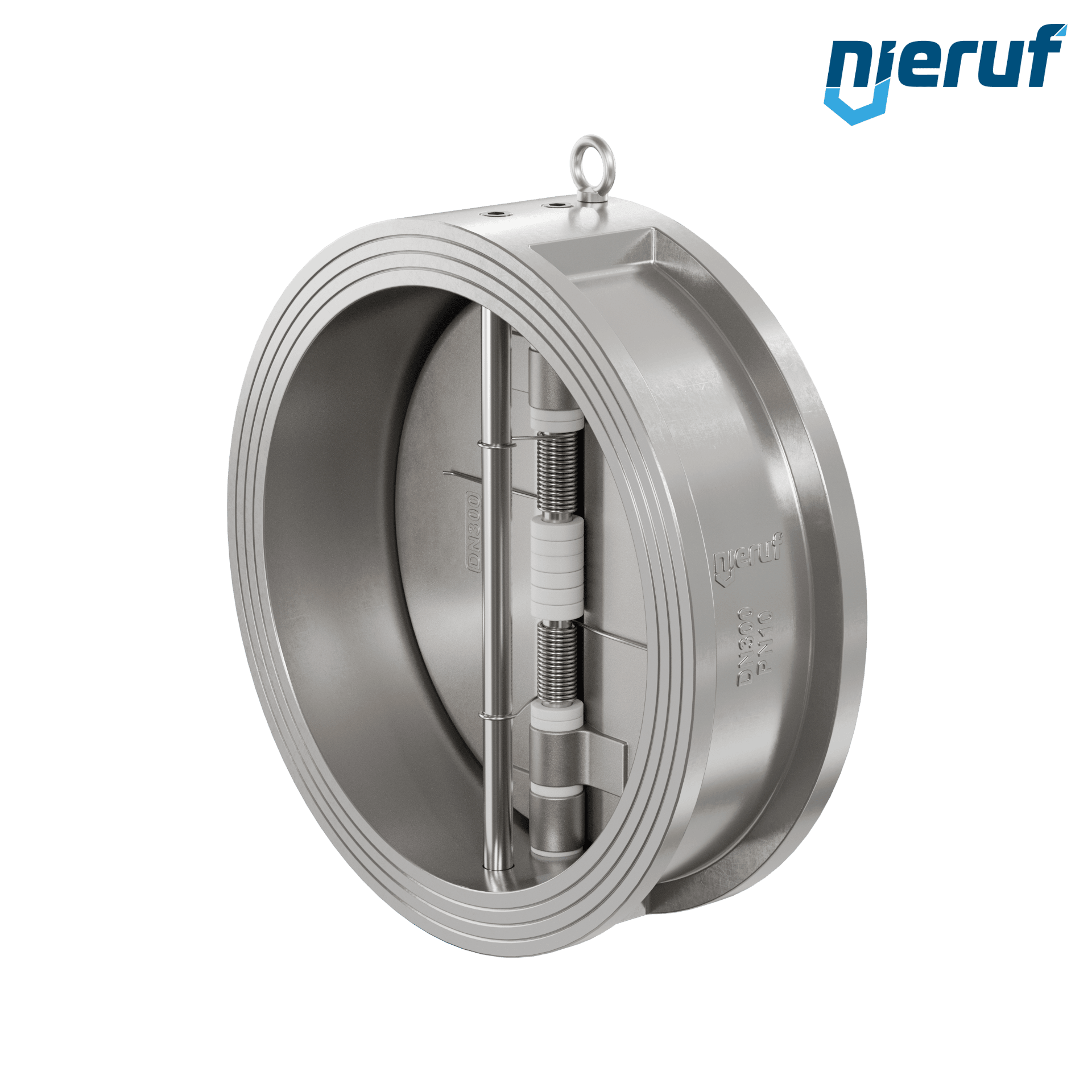

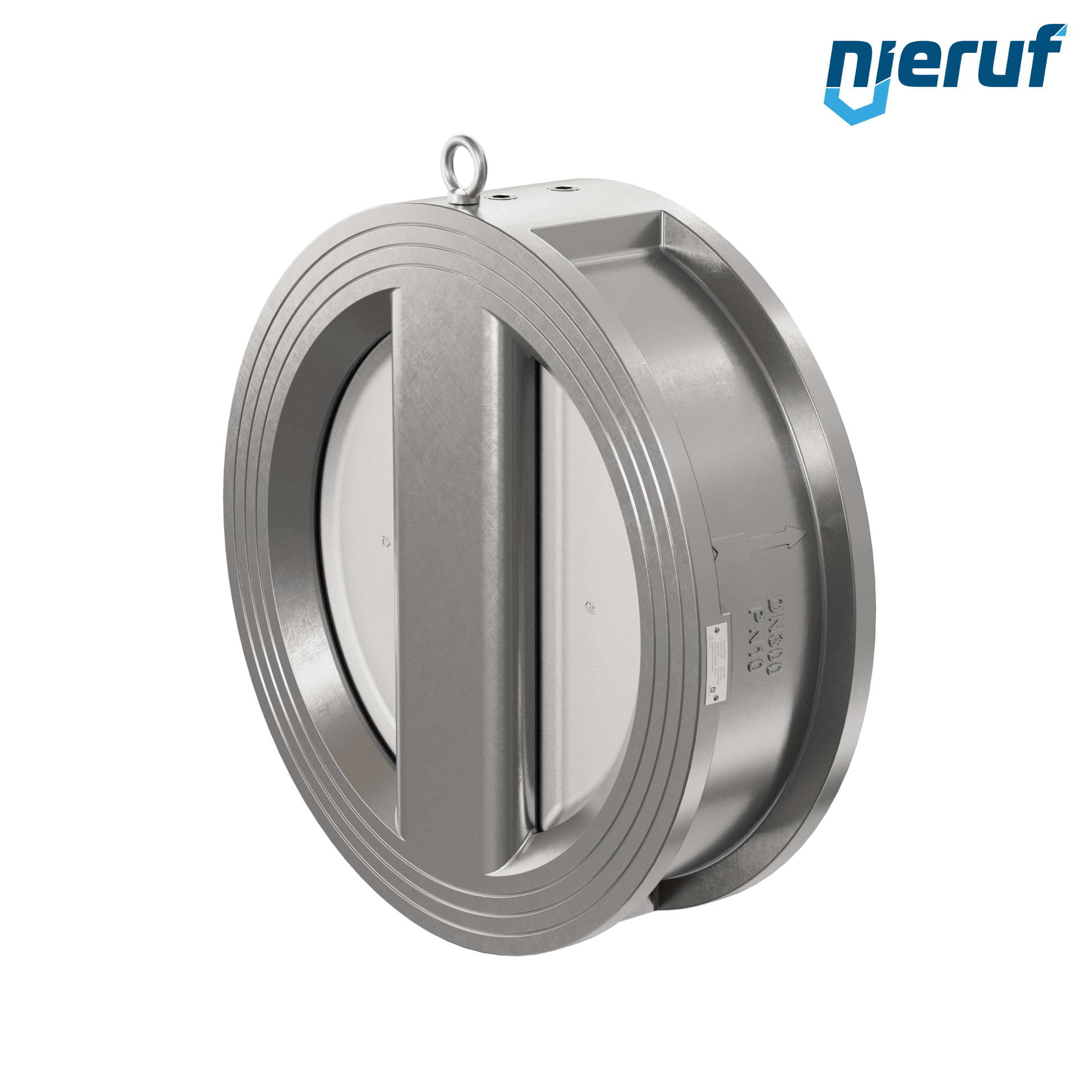

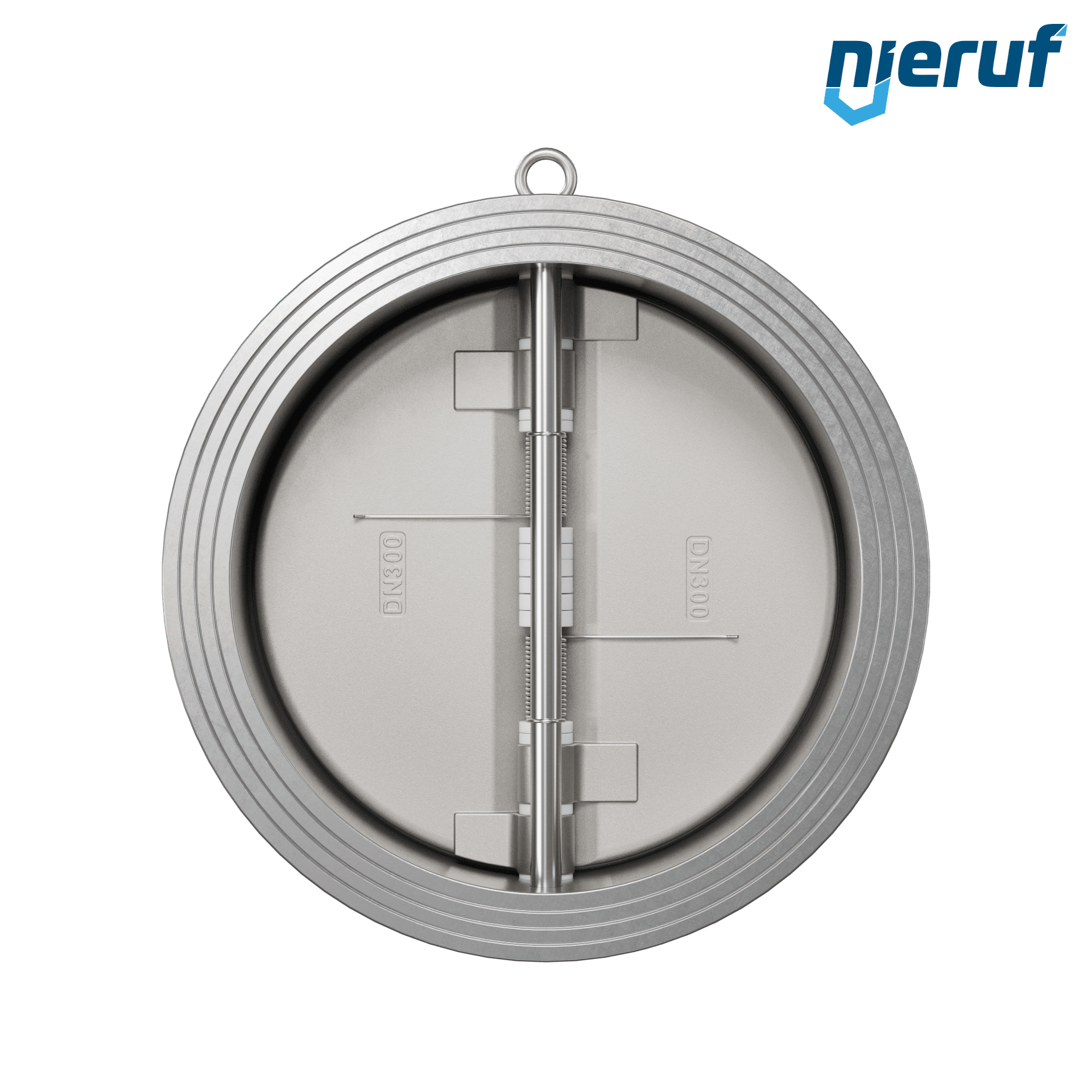

dual plate check valve DN300 DR03 ANSI 150 stainless steel 1.4408 EPDM
Delivery time: On request
Questions about the article?
Our employee Max Eisele
will be happy to help you
dual plate check valve DN300 ASME B16.5 / ANSI 150, body made of stainless steel 1.4408, wings made of stainless steel 1.4408 seal EPDM
| product: | dual plate check valve |
|---|---|
| type: | DR03 ANSI 150 |
| manufacturer: | NieRuf |
| design: | dual plate check valve |
| diameter: | DN300 |
| body material: | stainless steel 1.4408 |
| disc material: | stainless steel 1.4408 |
| seal: | EPDM |
| temperature: | -10°C to +120°C |
| connection: | flange |
| flange: | ASME B16.5 / ANSI 150 |
| pressure range: | 0 - 20 bar |
| media: | liquid and gaseous media |
| tightness acc. to DIN EN 12266: | leak rate A |
| option: | with spring made of stainless steel |
| installation position: | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature: | API 594 / ASME B16. 10 / Class 150 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN300 DR03 ANSI 150 stainless steel 1.4408 EPDM
Article no.
: DR03100116
product:
dual plate check valve
type:
DR03 ANSI 150
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN300
body material:
stainless steel 1.4408
disc material:
stainless steel 1.4408
seal:
EPDM
temperature:
-10°C to +120°C
connection:
flange
flange:
ASME B16.5 / ANSI 150
pressure range:
0 - 20 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
API 594 / ASME B16. 10 / Class 150
€1,004.00 VAT included.
€1,272.71 VAT included.
