FK05010011
Steam-flange ball valve DN100 FK05 stainless steel 1.4408
Delivery time: 1 - 2 weeks
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

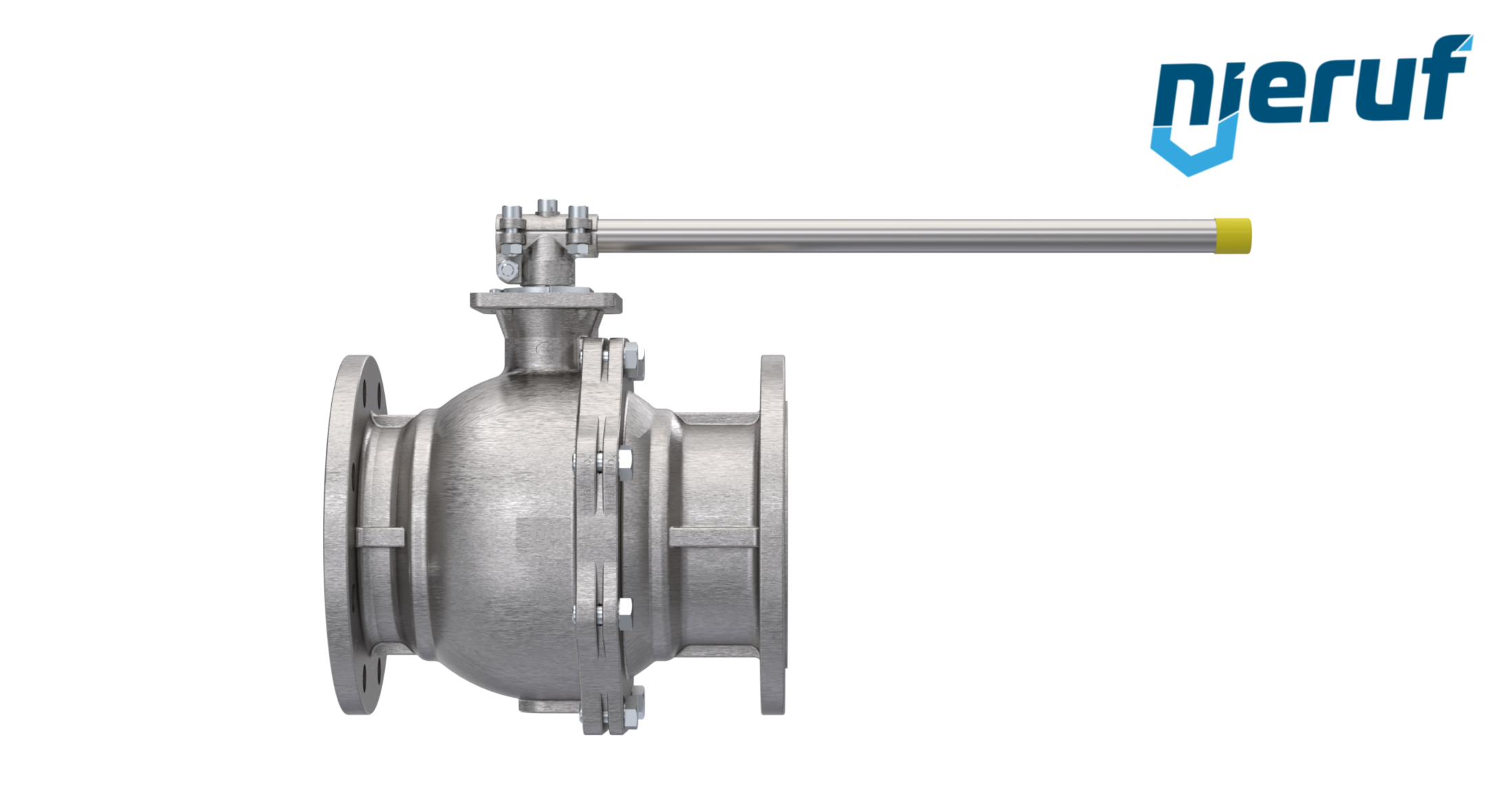

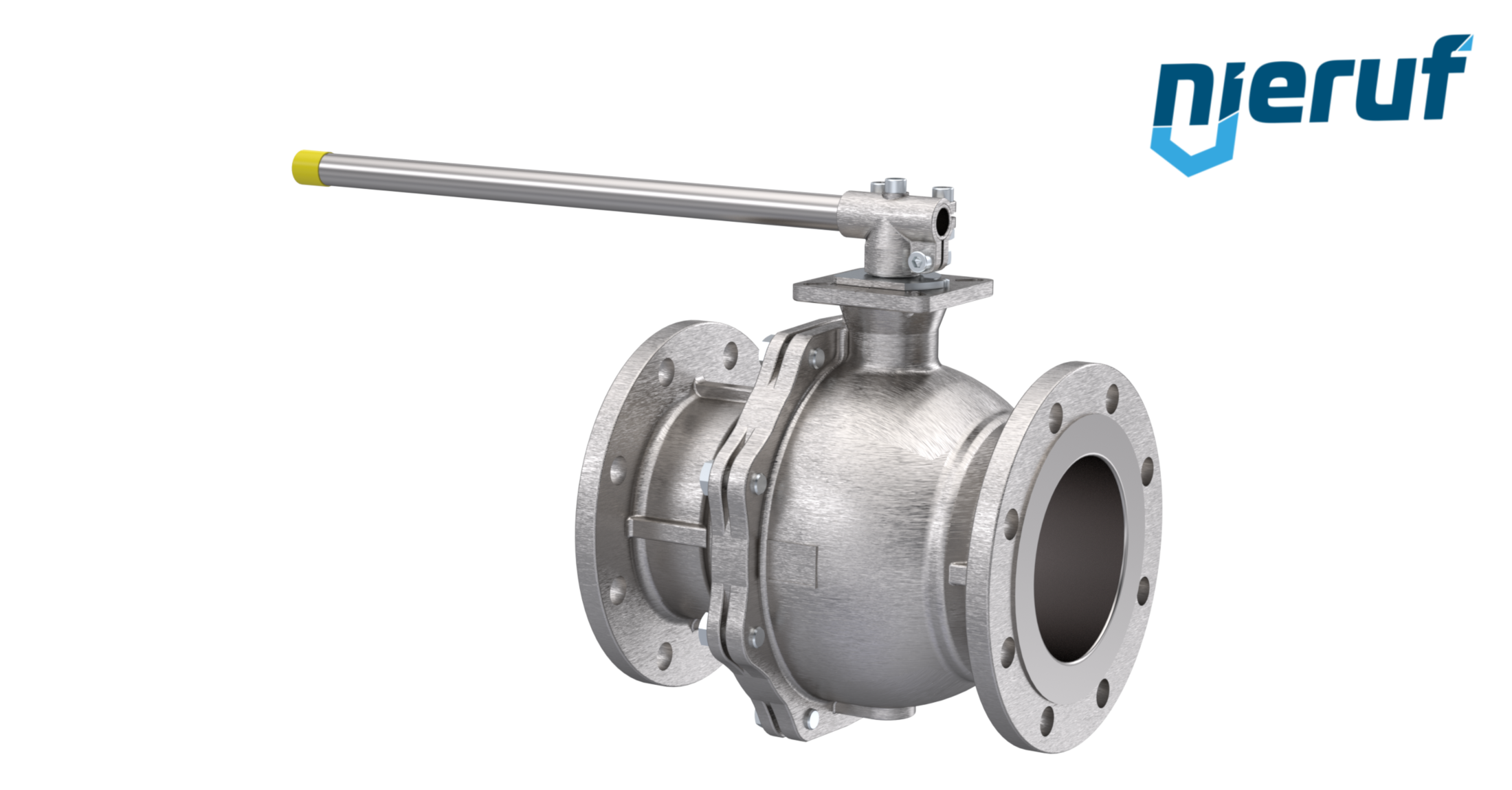

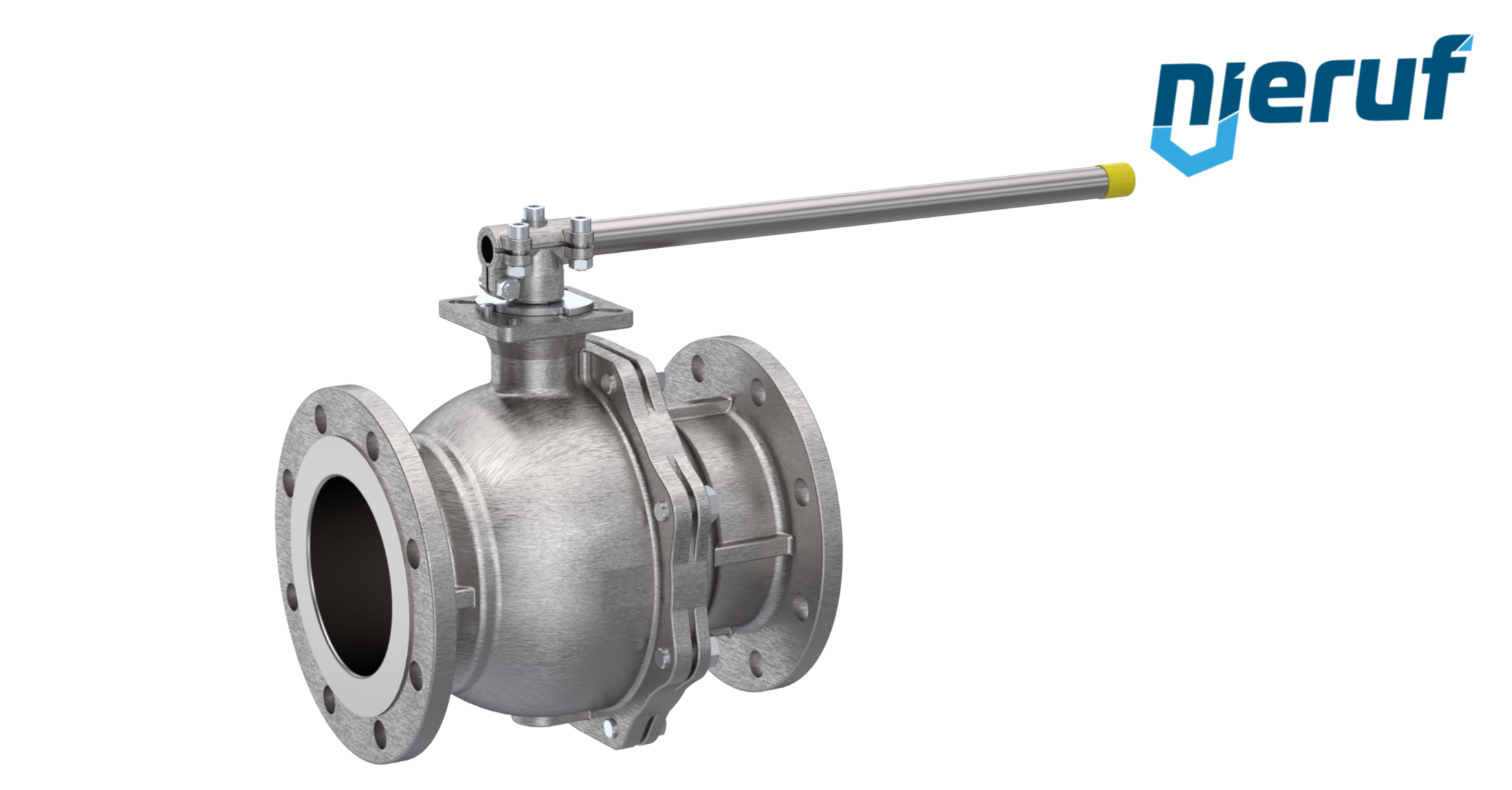

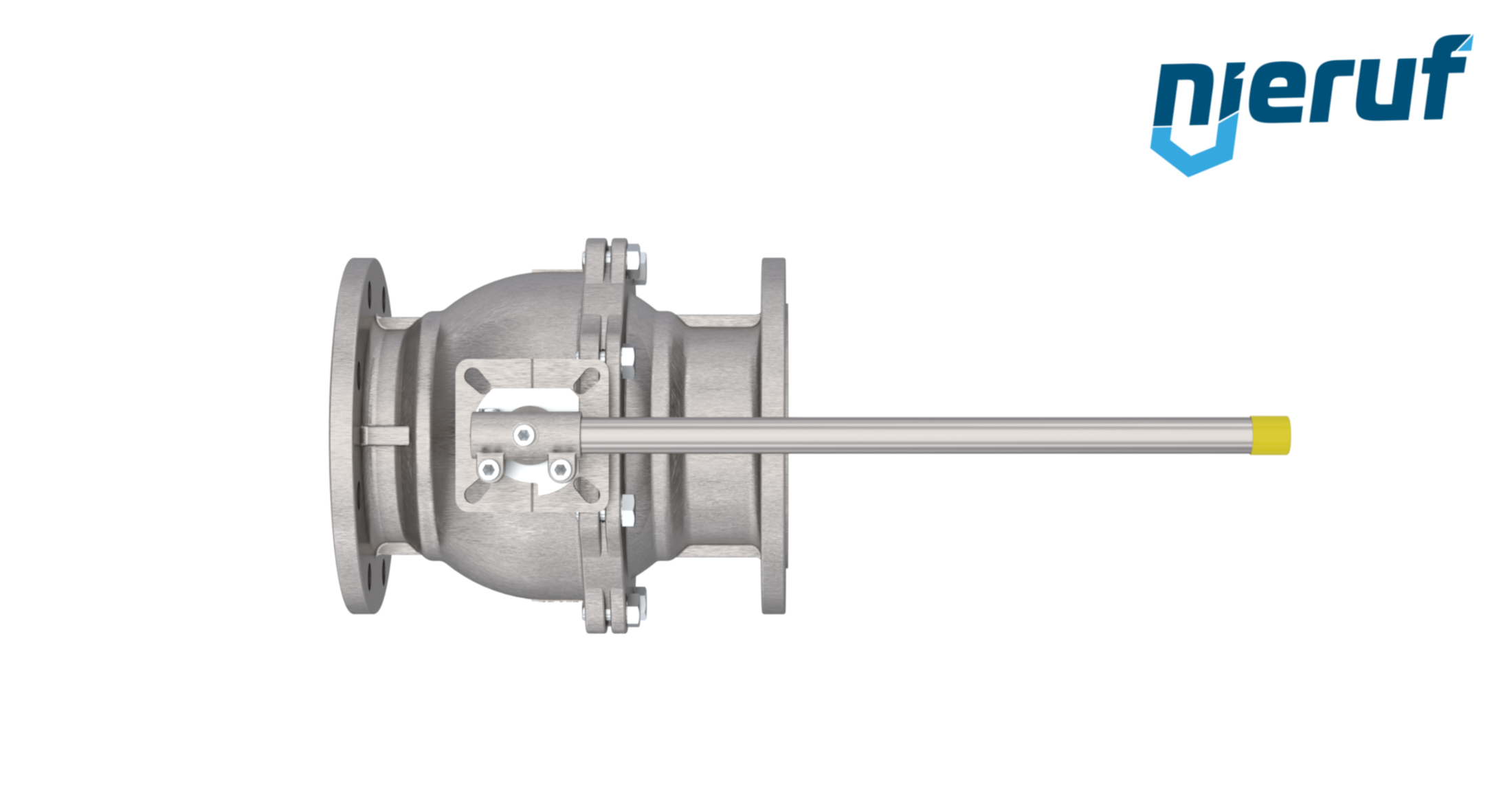

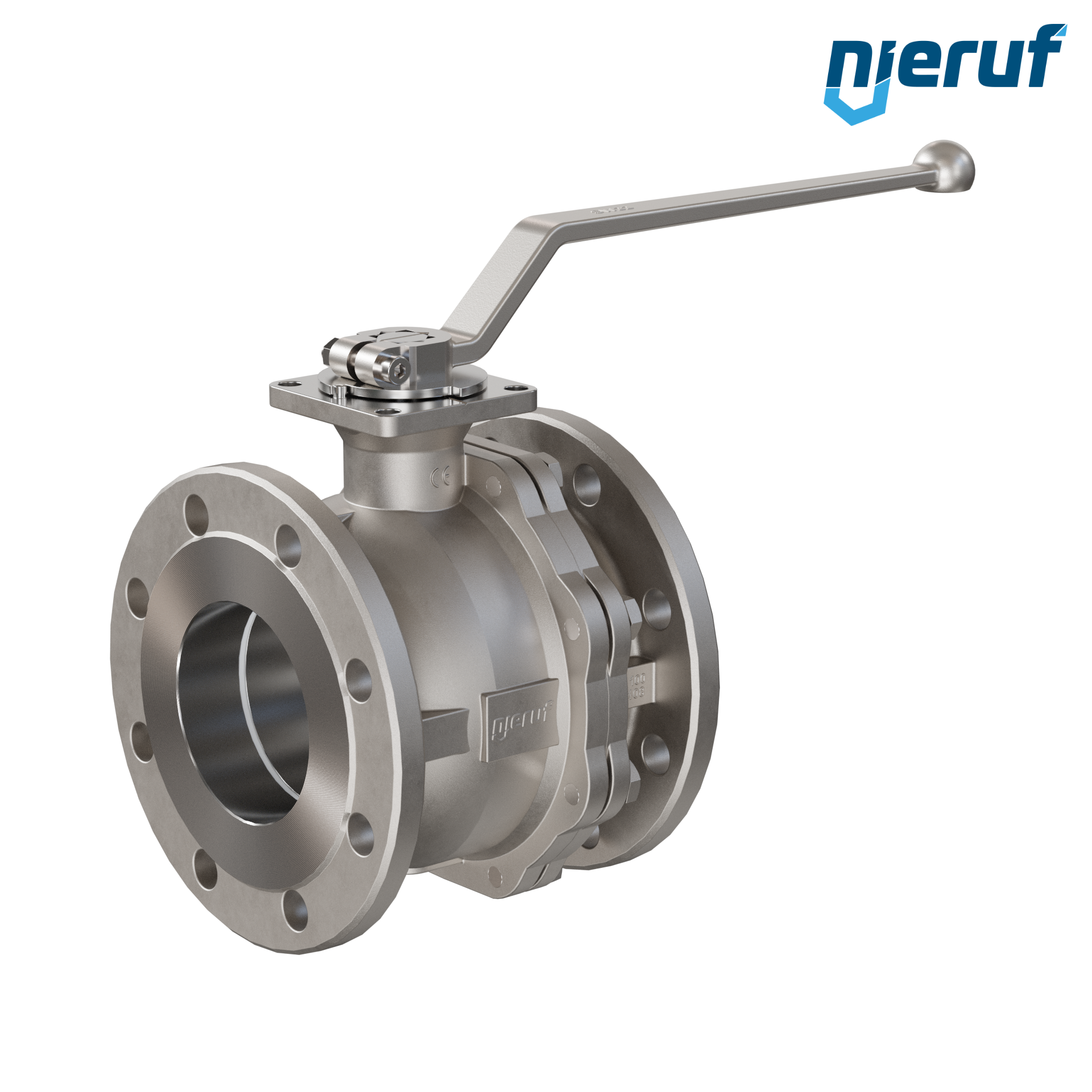

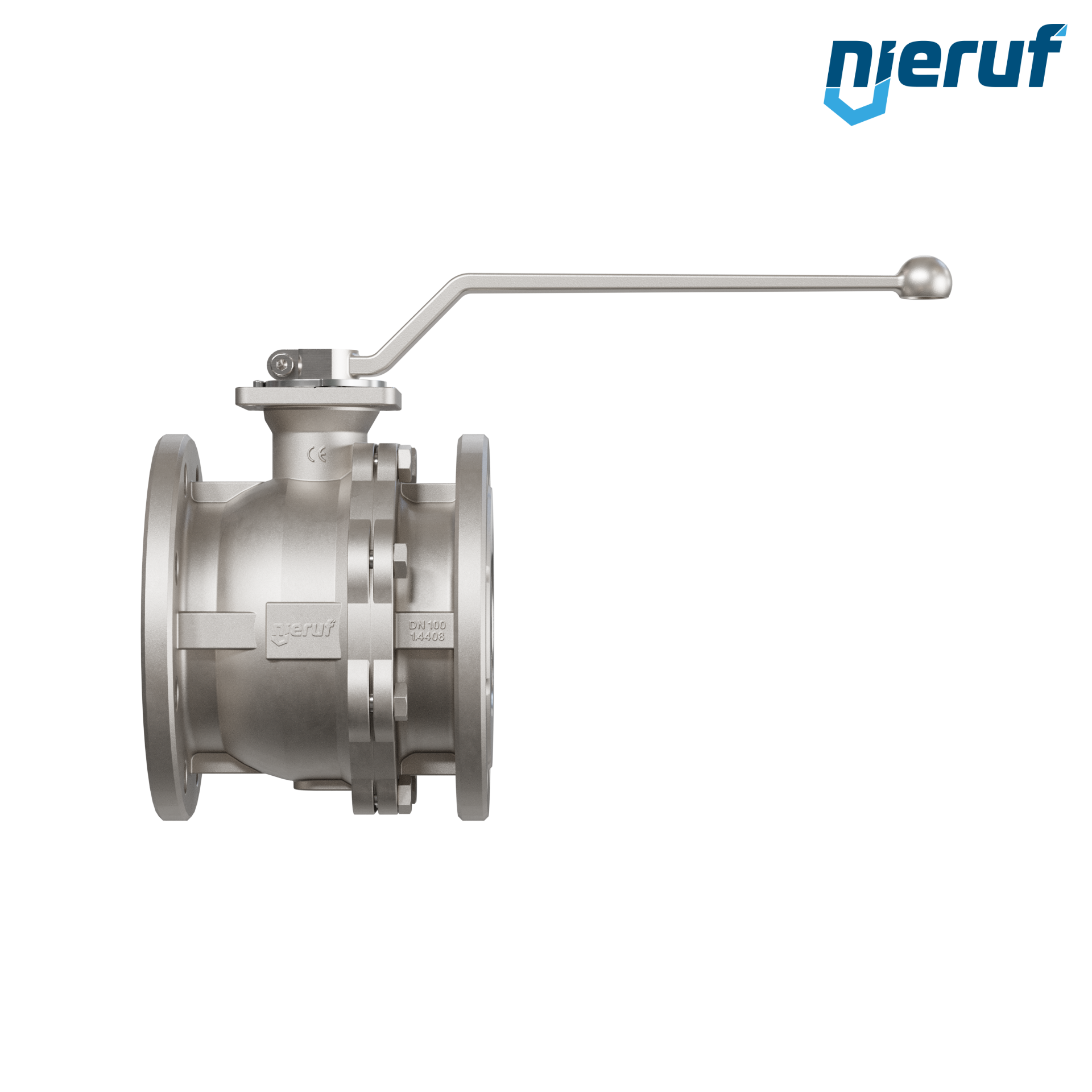

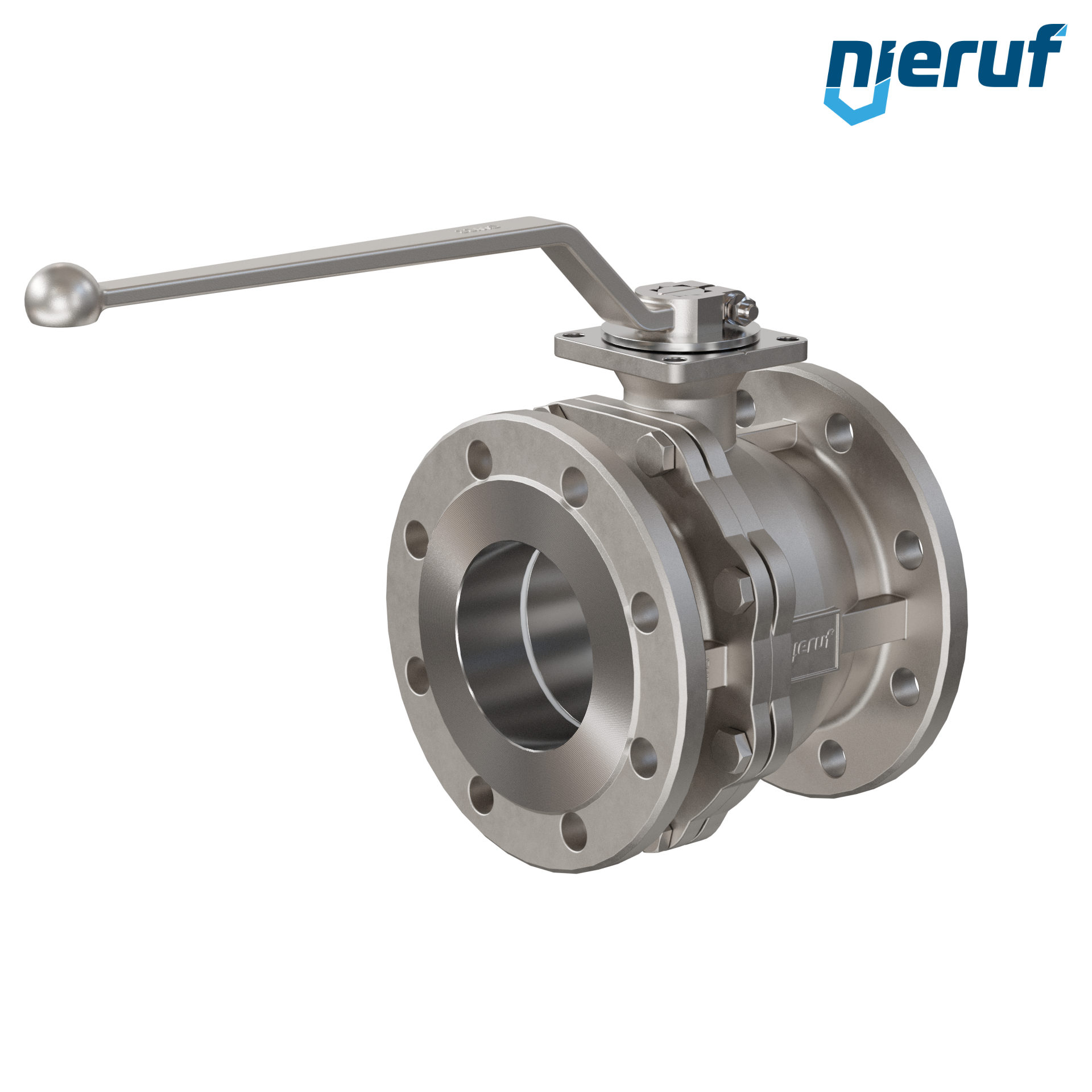

Steam-flange ball valve DN100 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / TFM for gaseous for example steam
product: | Steam-flange ball valve |
---|---|
type: | FK05 |
manufacturer: | NieRuf |
diameter: | DN100 |
connection: | flange dimensions acc. to EN 1092-1 PN16 |
Seal steam: | graphite |
body seal: | graphite |
ball seal: | PTFE/TFM |
media: | gaseous for example steam |
temperature: | -20°C up to +220°C - depending on media and dimension |
max. pressure: | PN16 |
design: | full port design |
body material: | stainless steel 1.4408 |
ball material: | stainless steel 1.4408 |
length: | DIN EN 558 R 27 |
actuator: | lever handle made of stainless steel |
installation position: | any position |
authorized for: | TA Luft |
product description: | This high quality ball valve is made of stainless steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media, such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Steam-flange ball valve DN100 FK05 stainless steel 1.4408
Article no.
: FK05010011
product:
Steam-flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN100
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
graphite
body seal:
graphite
ball seal:
PTFE/TFM
media:
gaseous for example steam
temperature:
-20°C up to +220°C - depending on media and dimension
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of stainless steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media, such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
