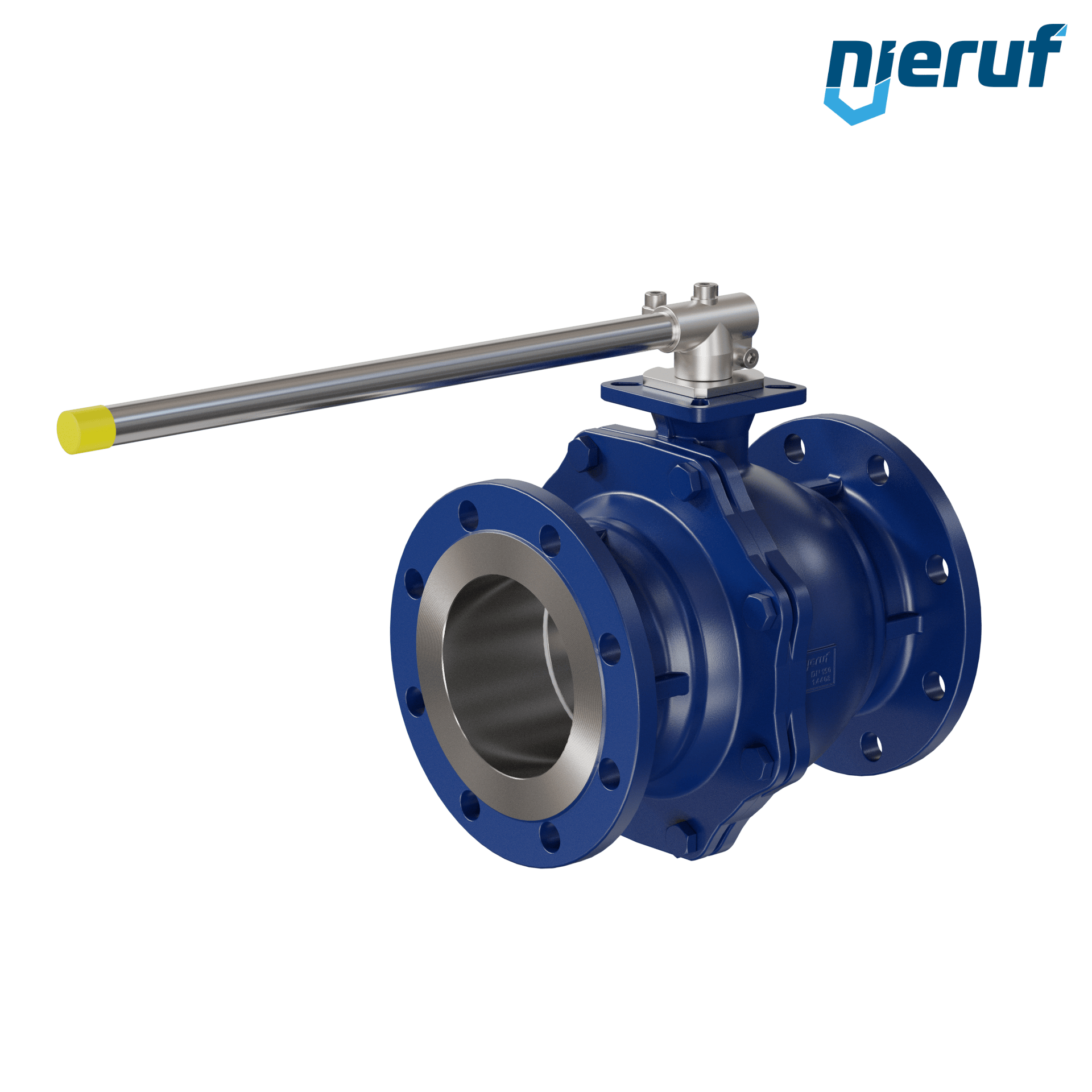

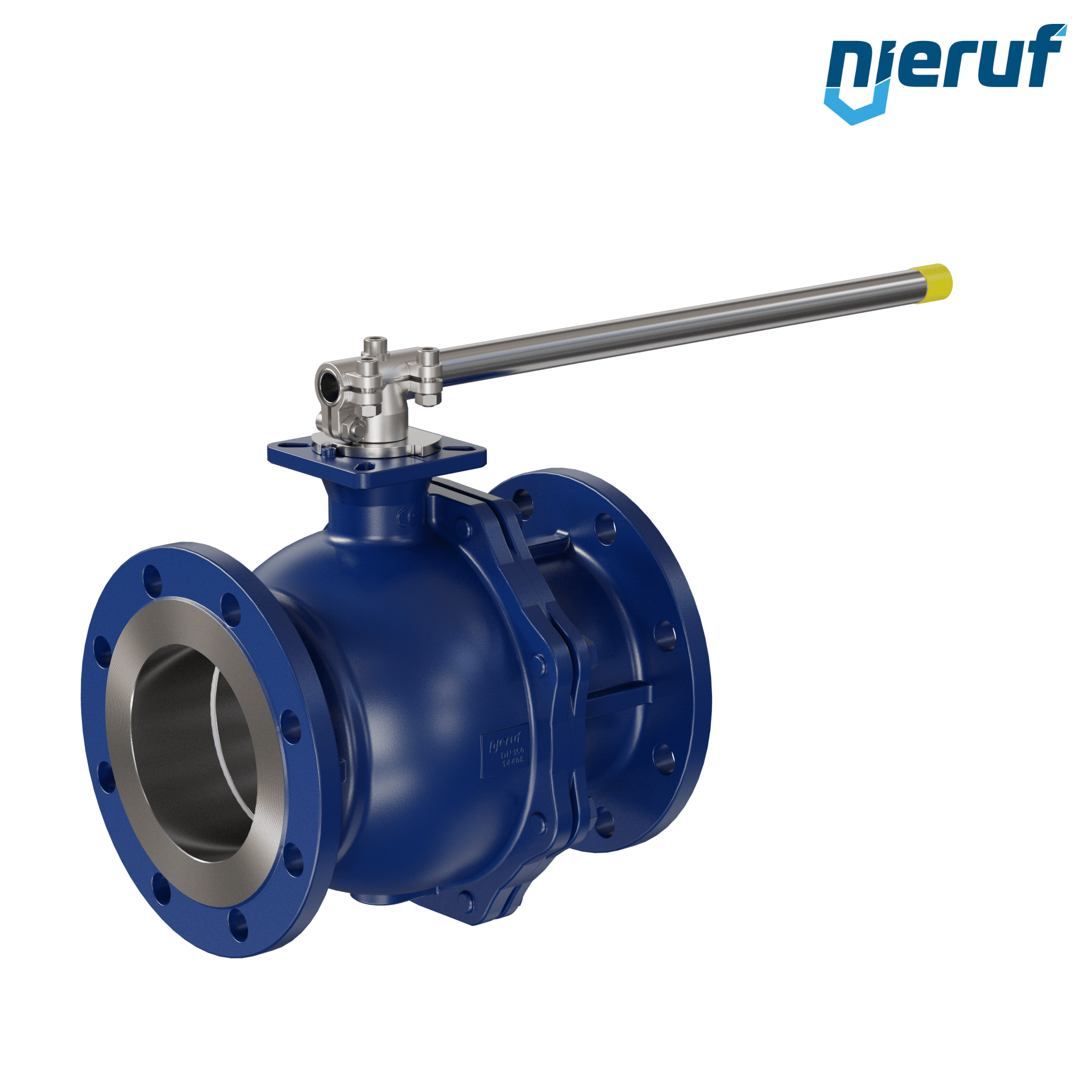

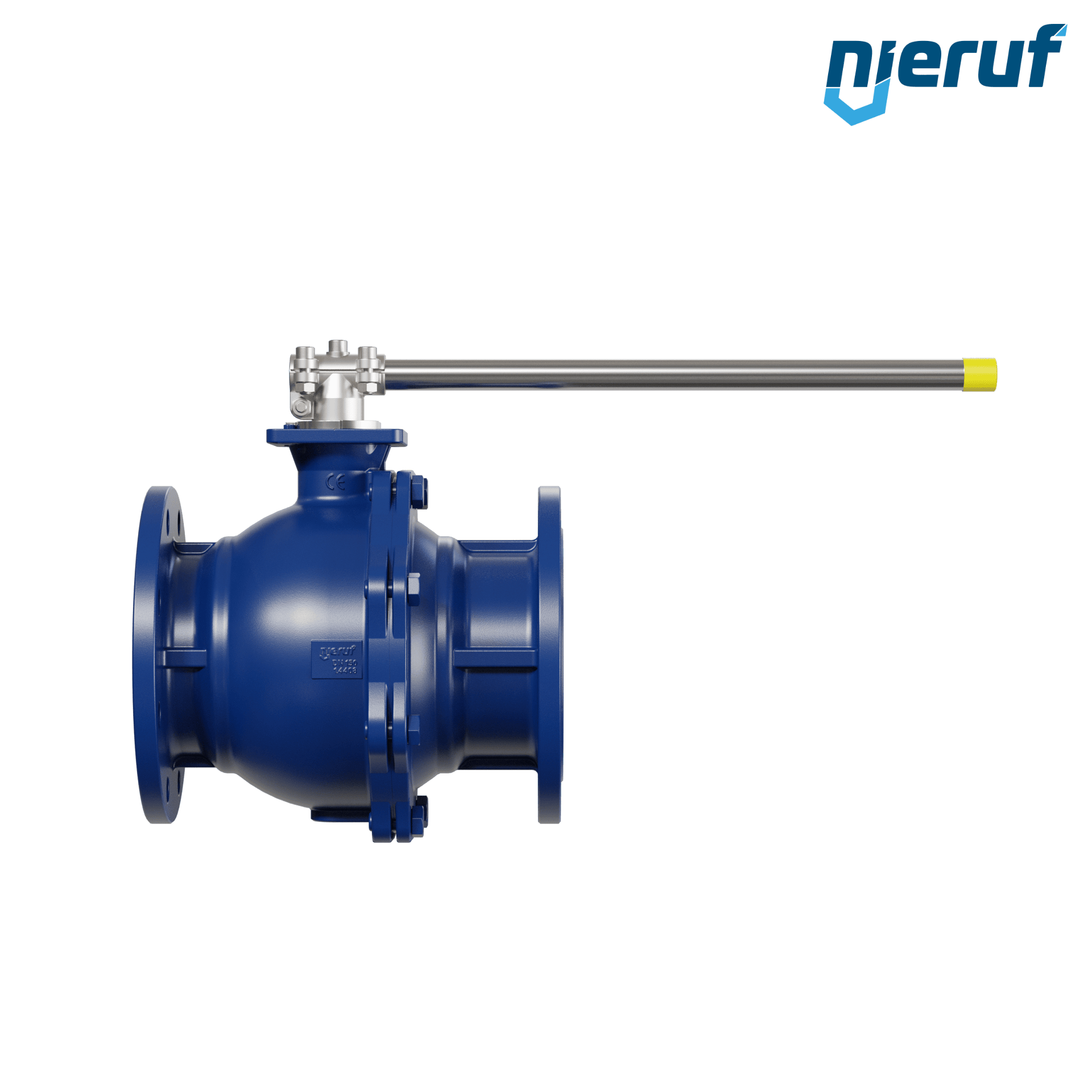

Steam-flange ball valve DN150 PN16 FK12 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE / TFM for gaseous for example steam
| product | Steam-flange ball valve |
|---|---|
| type | FK12 |
| manufacturer | NieRuf |
| diameter | DN150 |
| connection | flange dimensions acc. to EN 1092-1 |
| Seal steam | PTFE / TFM / Graphite |
| ball seal | PTFE / TFM |
| media | gaseous for example steam |
| temperature | -20°C up to +220°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4408 |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Steam-flange ball valve DN150 FK12 carbon steel 1.0619
Article no.
: FK12010013
product:
Steam-flange ball valve
type:
FK12
manufacturer:
NieRuf
diameter:
DN150
connection:
flange dimensions acc. to EN 1092-1
Seal steam:
PTFE / TFM / Graphite
ball seal:
PTFE / TFM
media:
gaseous for example steam
temperature:
-20°C up to +220°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered.
