FK01020013

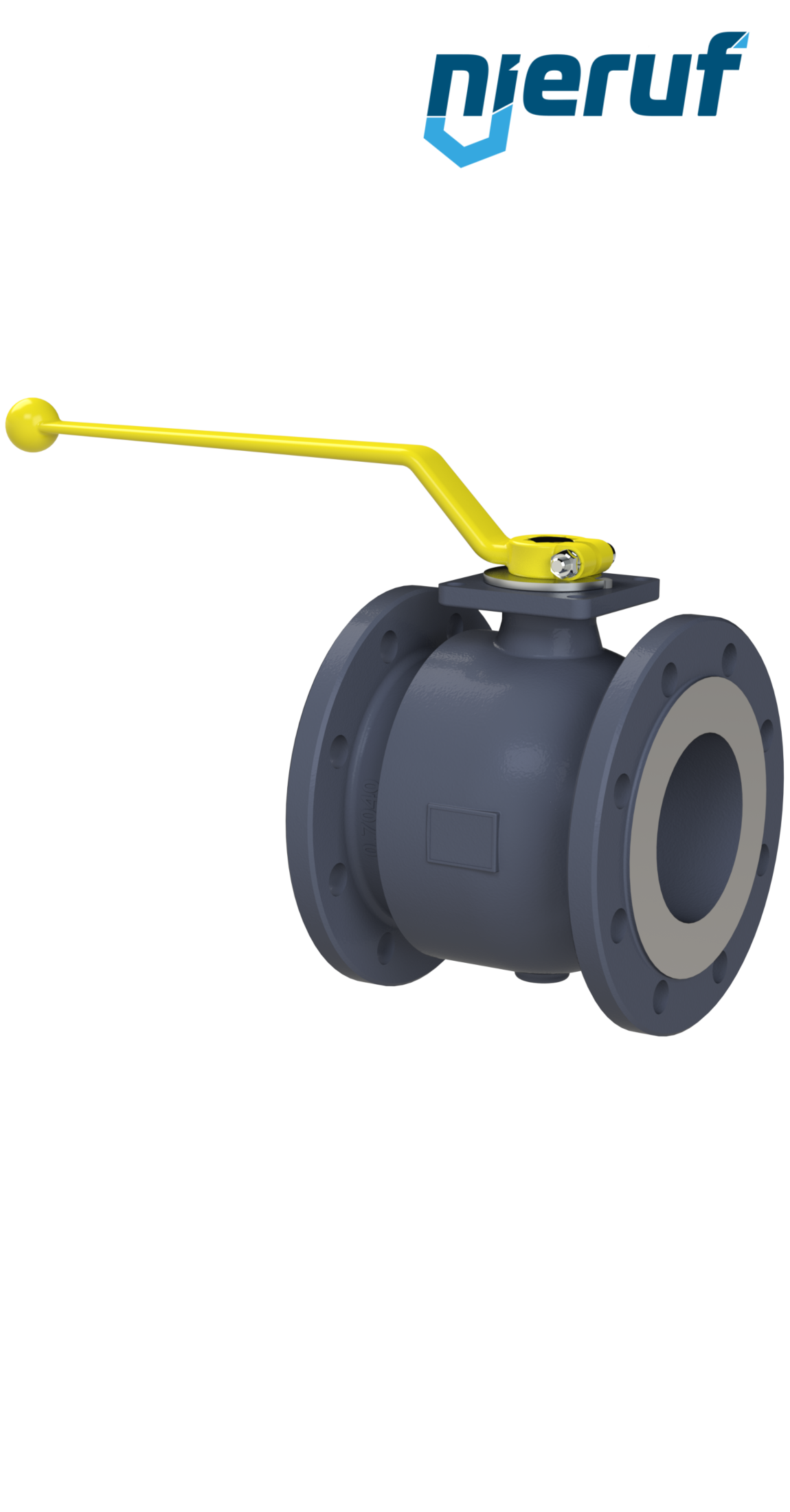

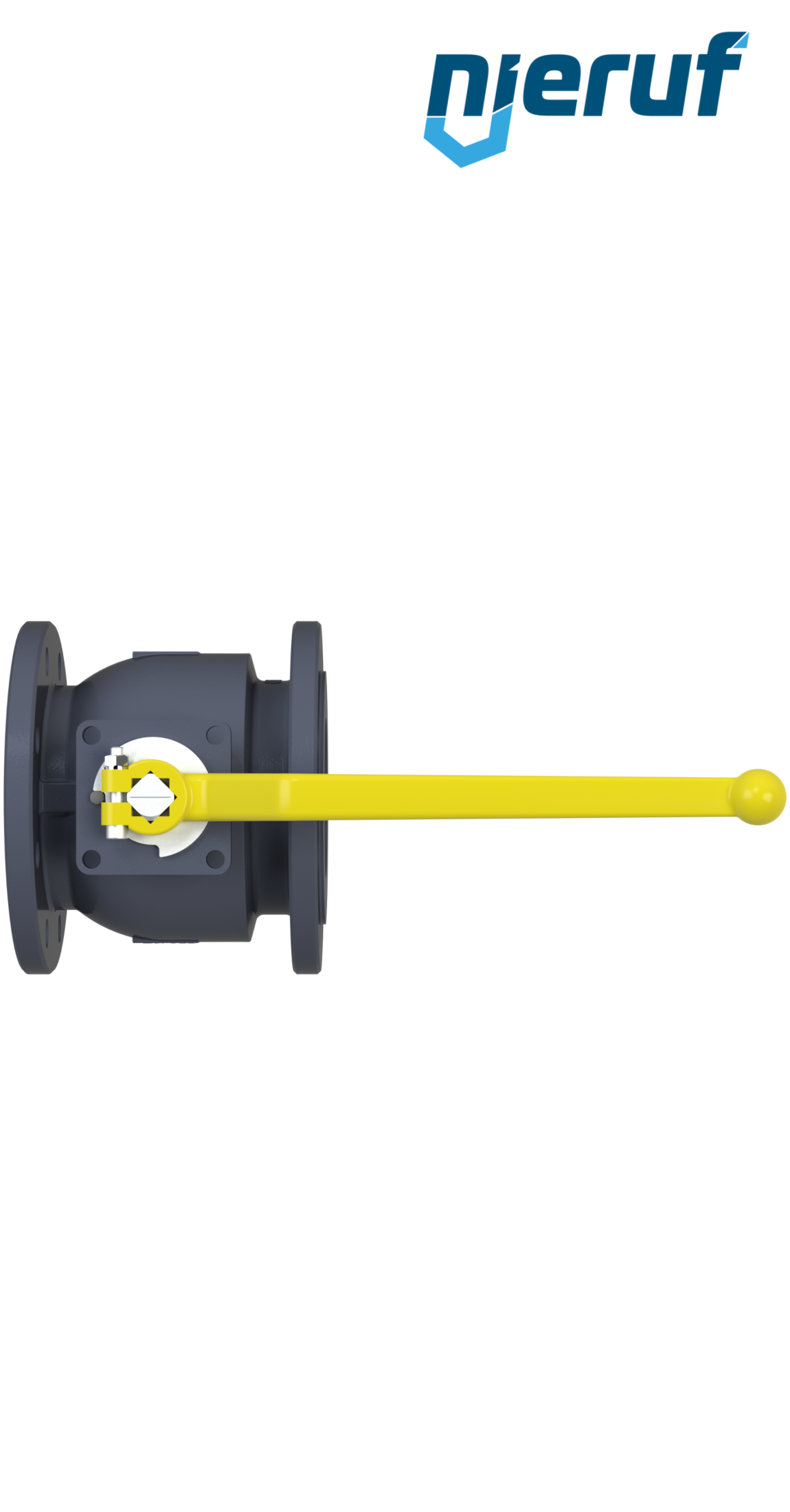

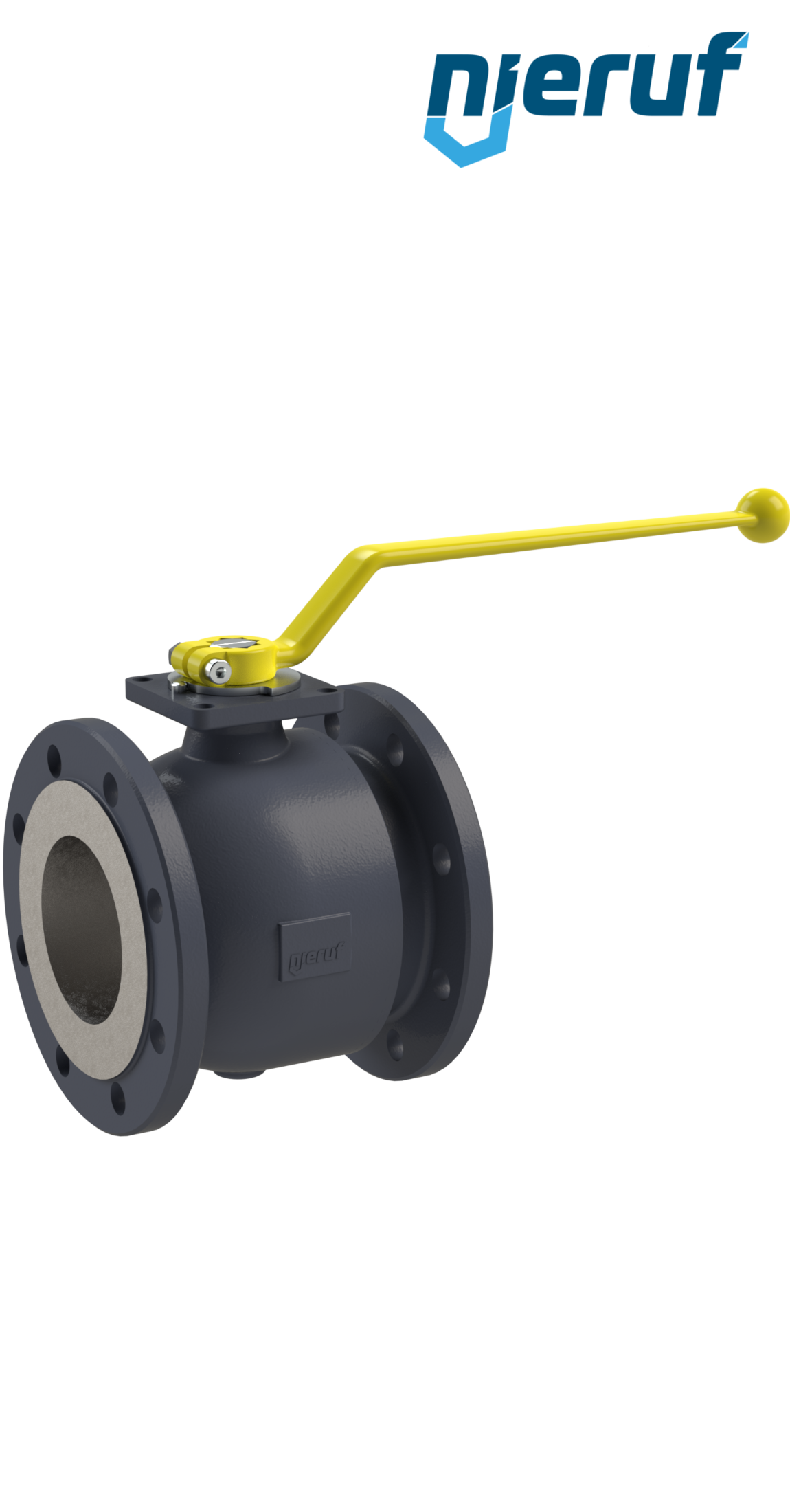

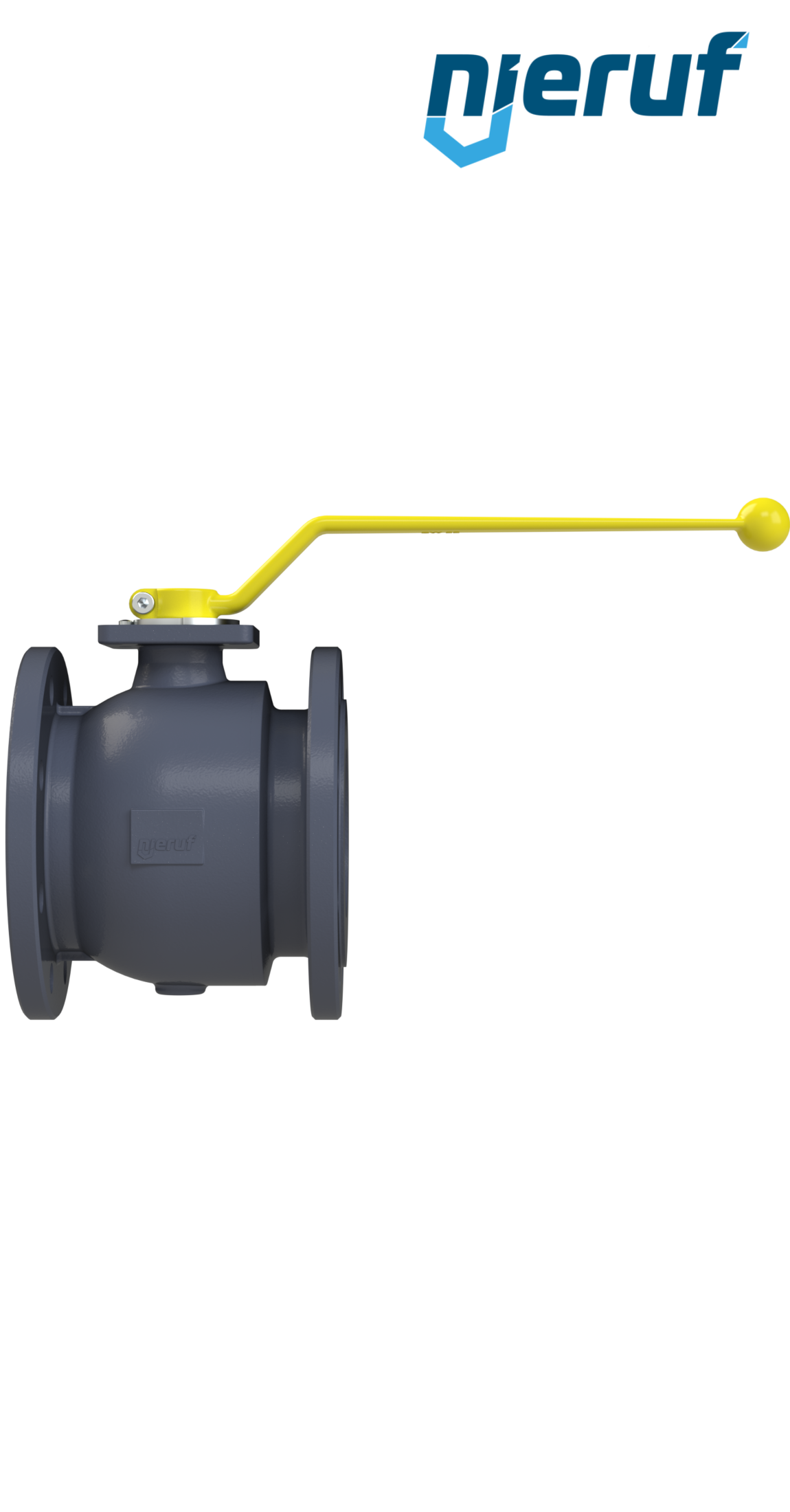

Flange ball valve DN150 FK01 GGG40 ball steel chrome plated DVGW-Gas
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 steel
€24.75 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Flange ball valve DN150 FK01 body spheroidal graphite cast iron GJS 400-18 ball steel chrome plated seal PTFE approval DVGW gas
| product: | Flange ball valve |
|---|---|
| type: | FK01 |
| manufacturer: | NieRuf |
| diameter: | DN150 |
| connection: | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam: | O-rings FKM |
| ball seal: | PTFE |
| media: | gas: 1., 2. and 3. gas category |
| temperature: | -20°C up to +60°C - depending on working pressure and media |
| max. pressure: | PN16 |
| design: | full port design with chrome plated steel ball |
| body material: | spheroidal graphite cast iron 5.3103 |
| ball material: | steel chrome plated 1.0503 |
| length: | DIN EN 558-1 R14 |
| actuator: | hand lever made of alu with yellow cover |
| installation position: | any position |
| authorized for: | DVGW-Gas |
| product description: | This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and floating chrome plated steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange ball valve DN150 FK01 GGG40 ball steel chrome plated DVGW-Gas
Article no.
: FK01020013
product:
Flange ball valve
type:
FK01
manufacturer:
NieRuf
diameter:
DN150
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
ball seal:
PTFE
media:
gas: 1., 2. and 3. gas category
temperature:
-20°C up to +60°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design with chrome plated steel ball
body material:
spheroidal graphite cast iron 5.3103
ball material:
steel chrome plated 1.0503
length:
DIN EN 558-1 R14
actuator:
hand lever made of alu with yellow cover
installation position:
any position
authorized for:
DVGW-Gas
product description:
This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and floating chrome plated steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.
