FK05030004

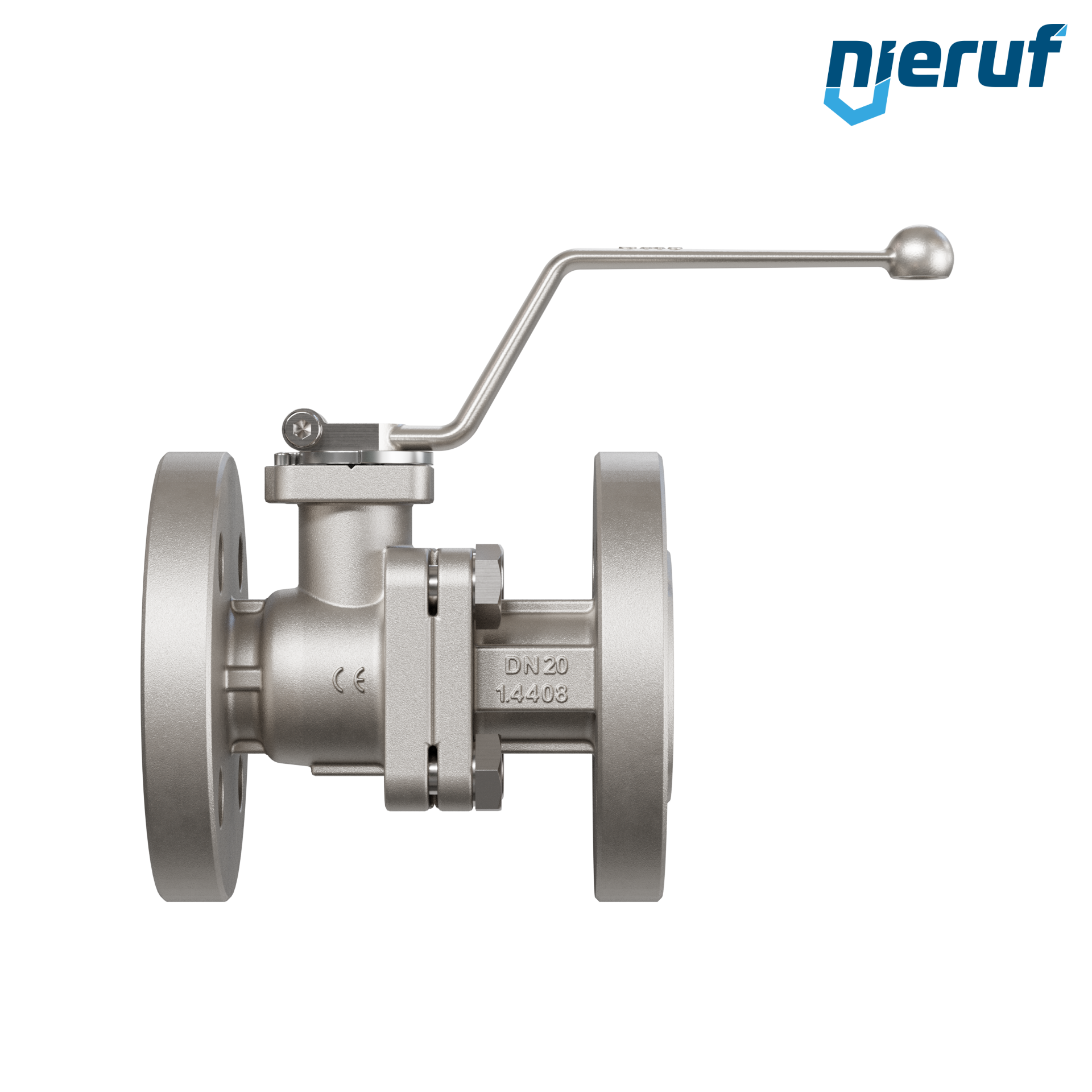

Gas-flange ball valve DN20 FK05 stainless steel 1.4408
- Delivery time
- 1 - 2 weeks
Equipment
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.

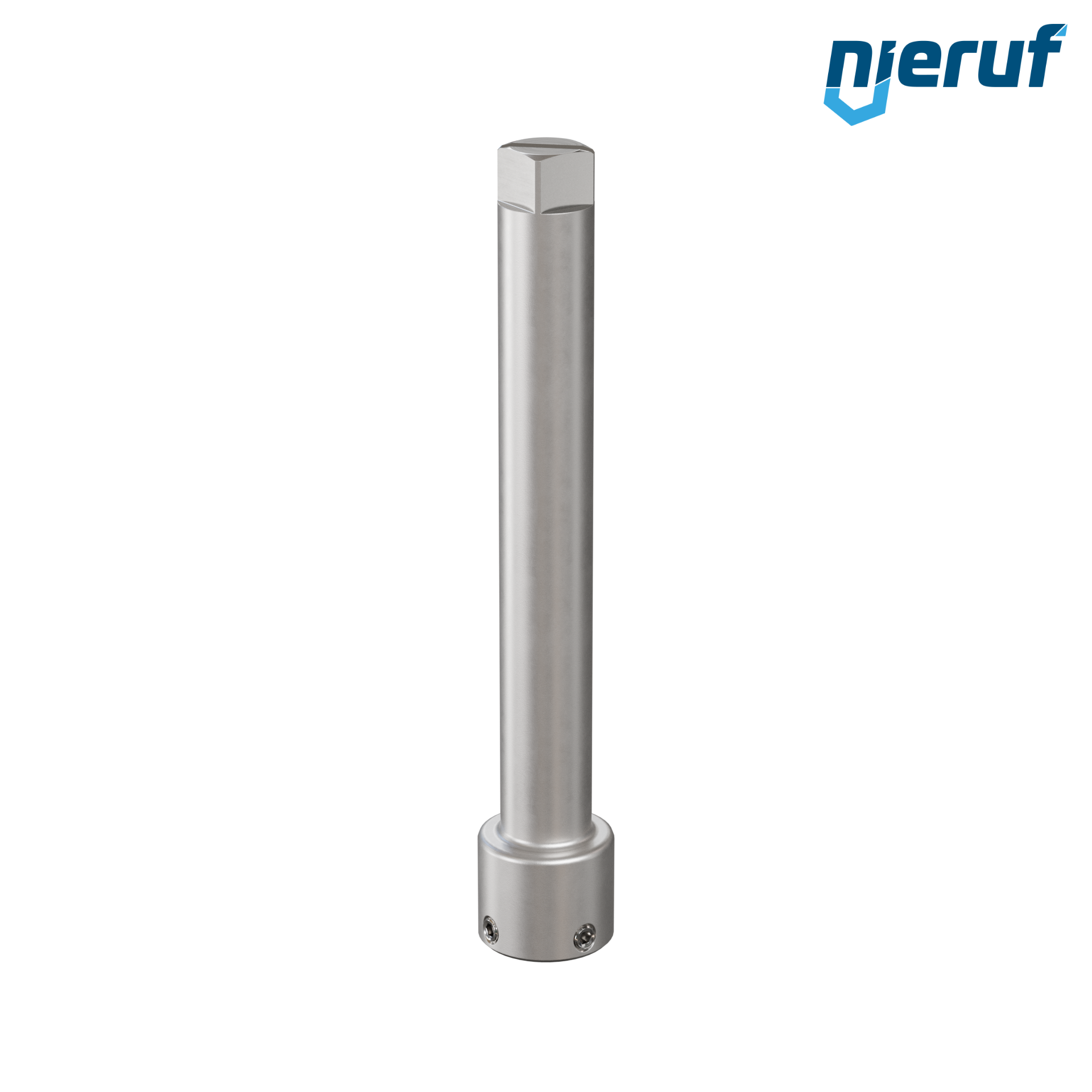

stem extension hub length 100 mm square 09mm AD02 stainless steel
€32.73 VAT included.

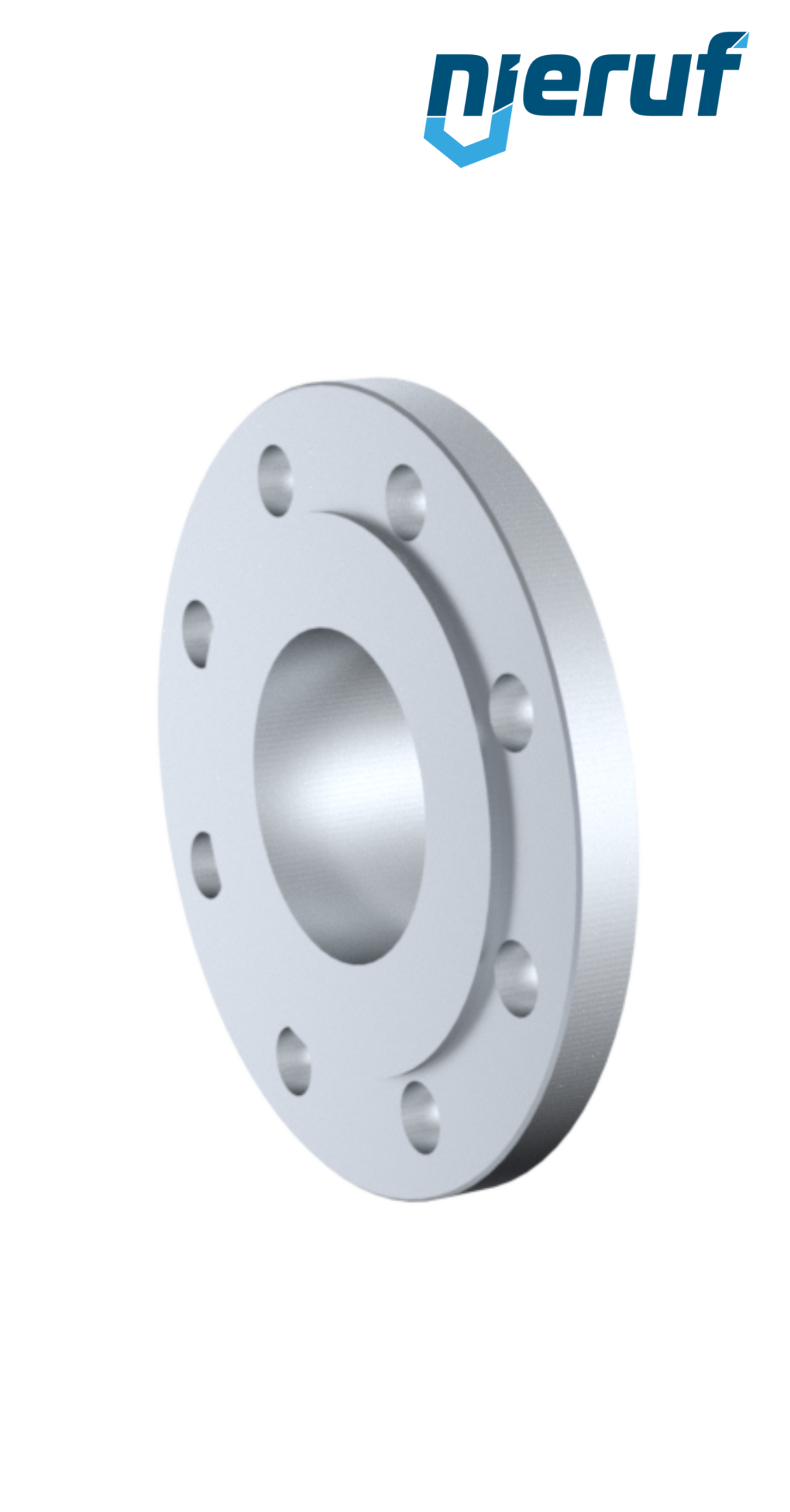

Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€19.75 VAT included.
Questions about the article?

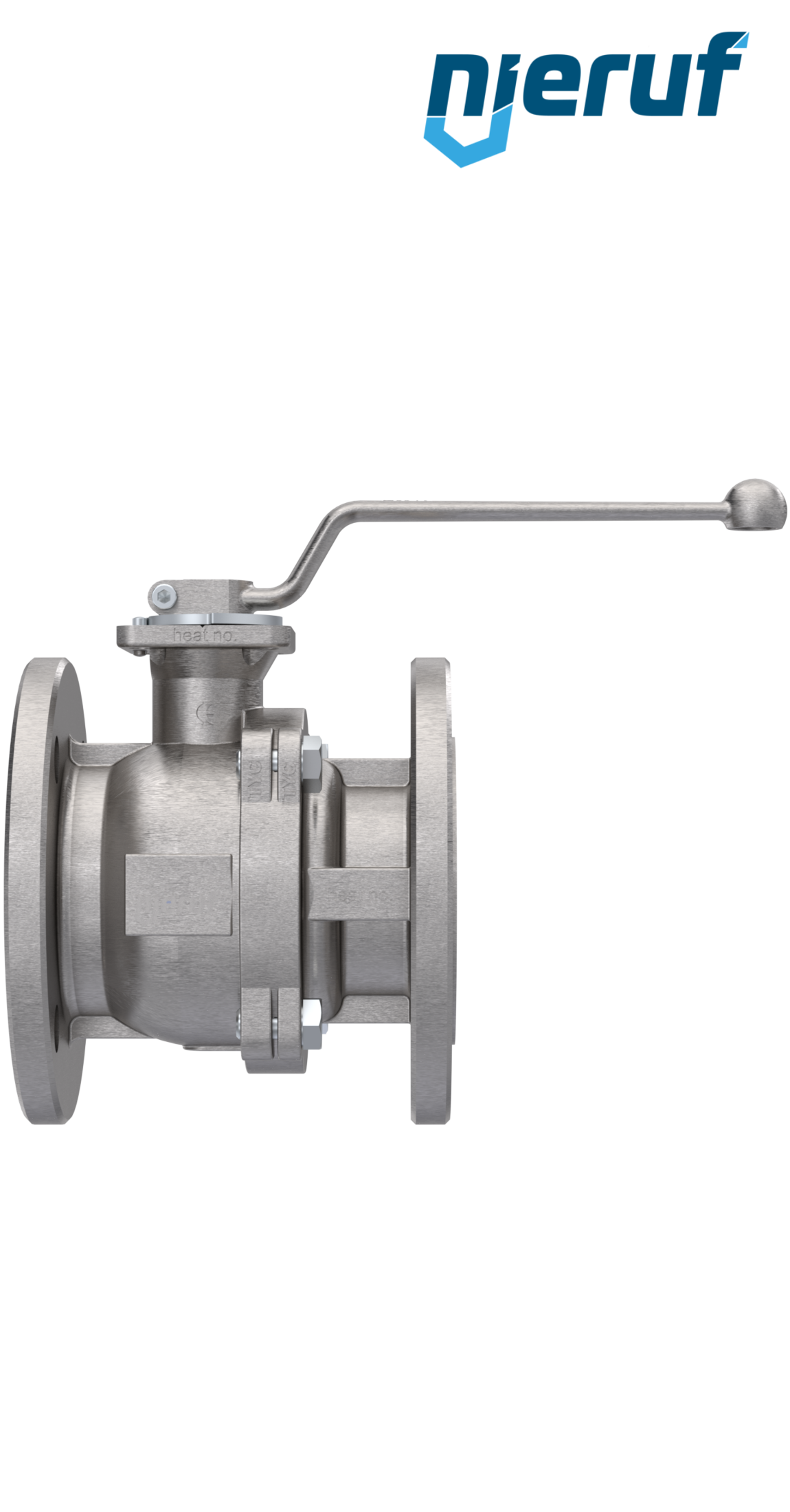

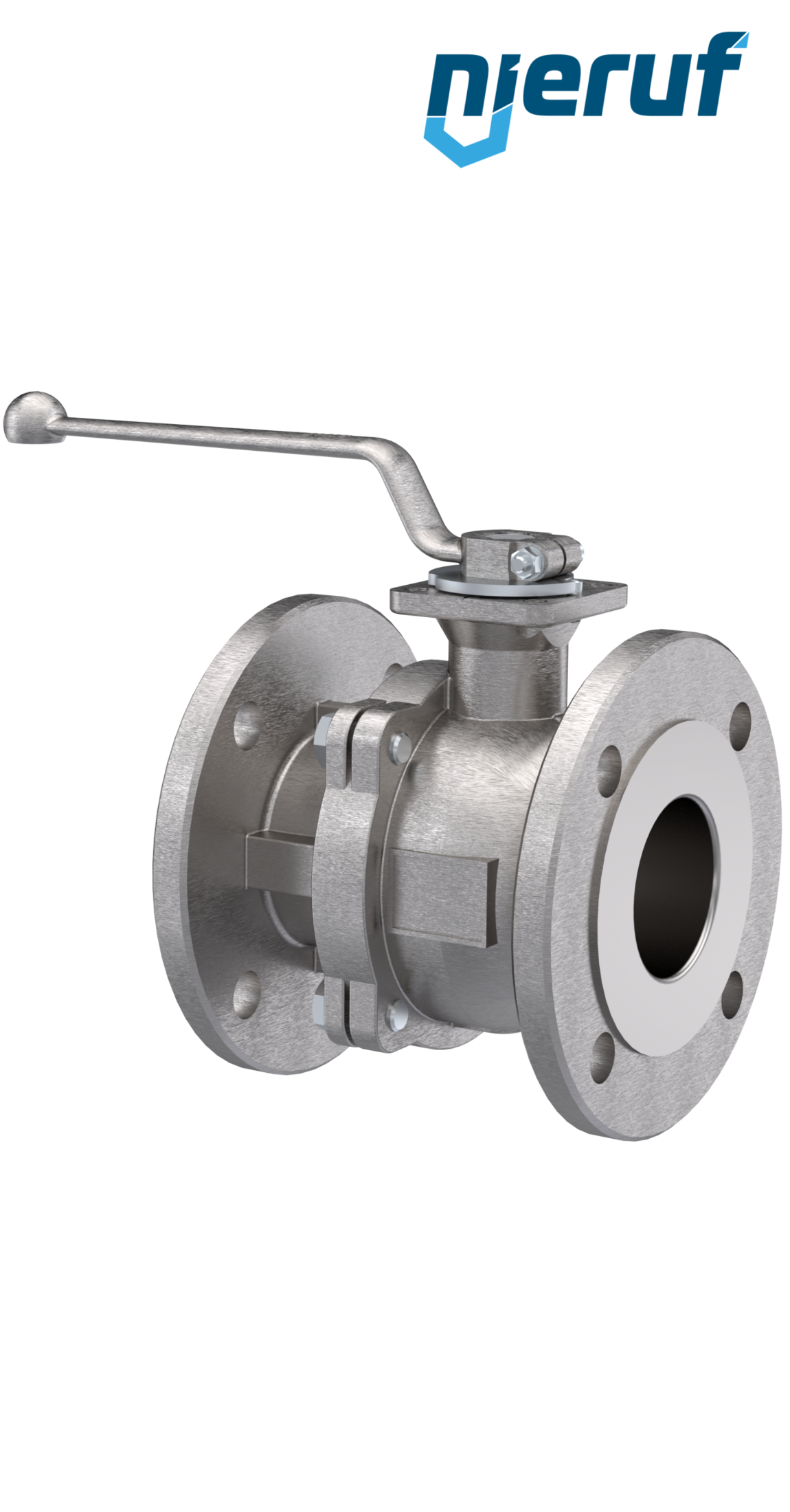

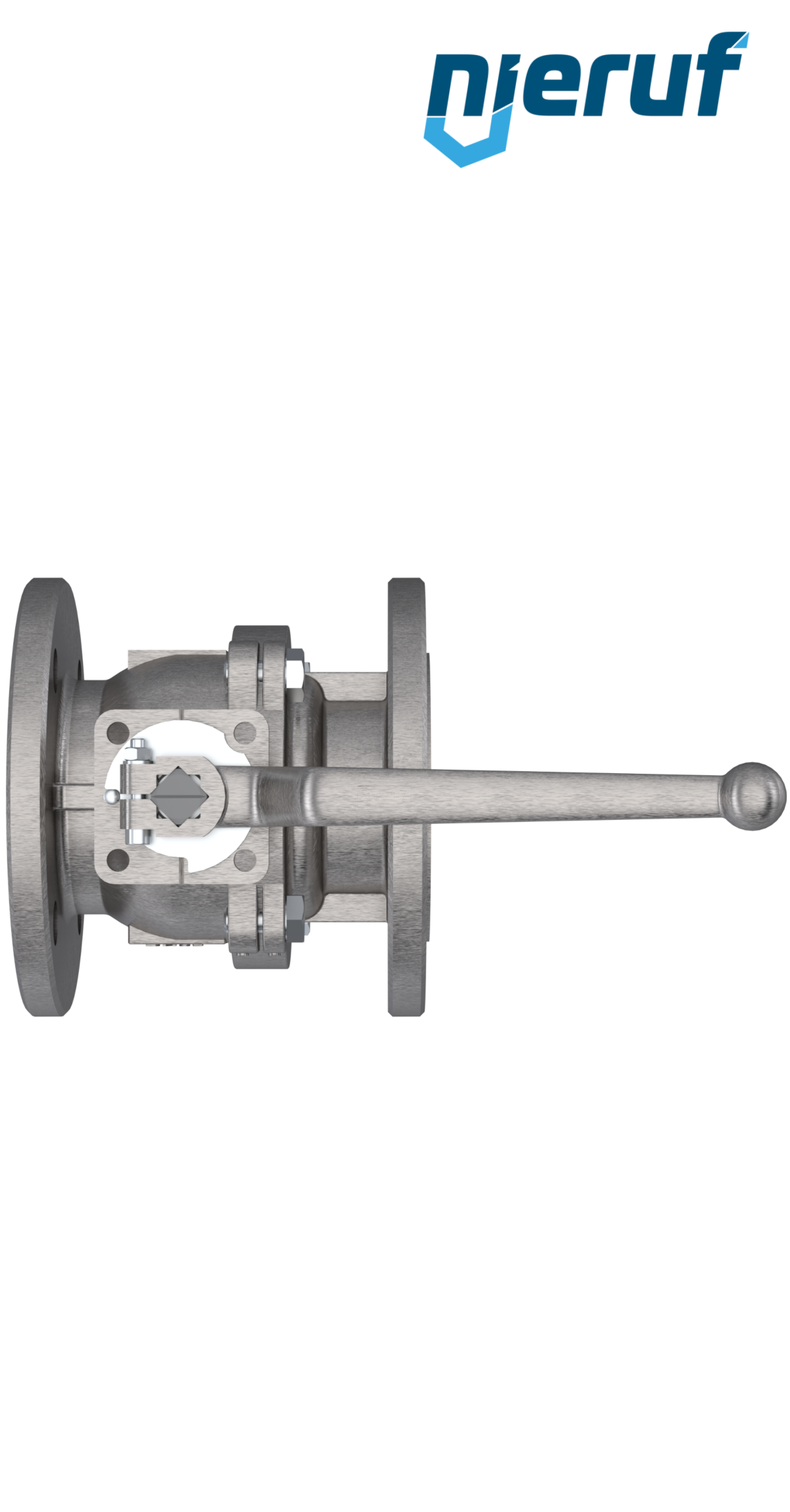

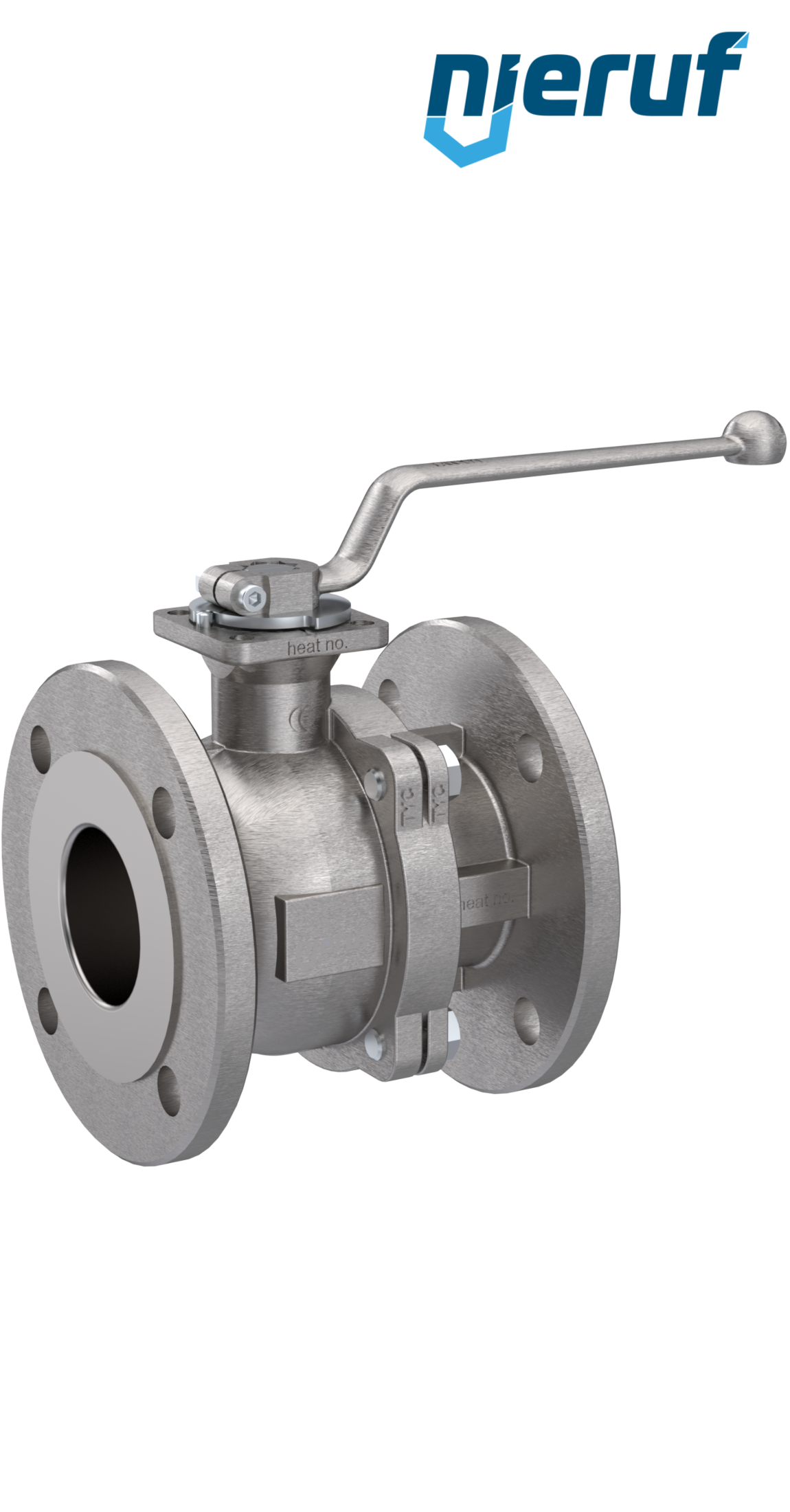

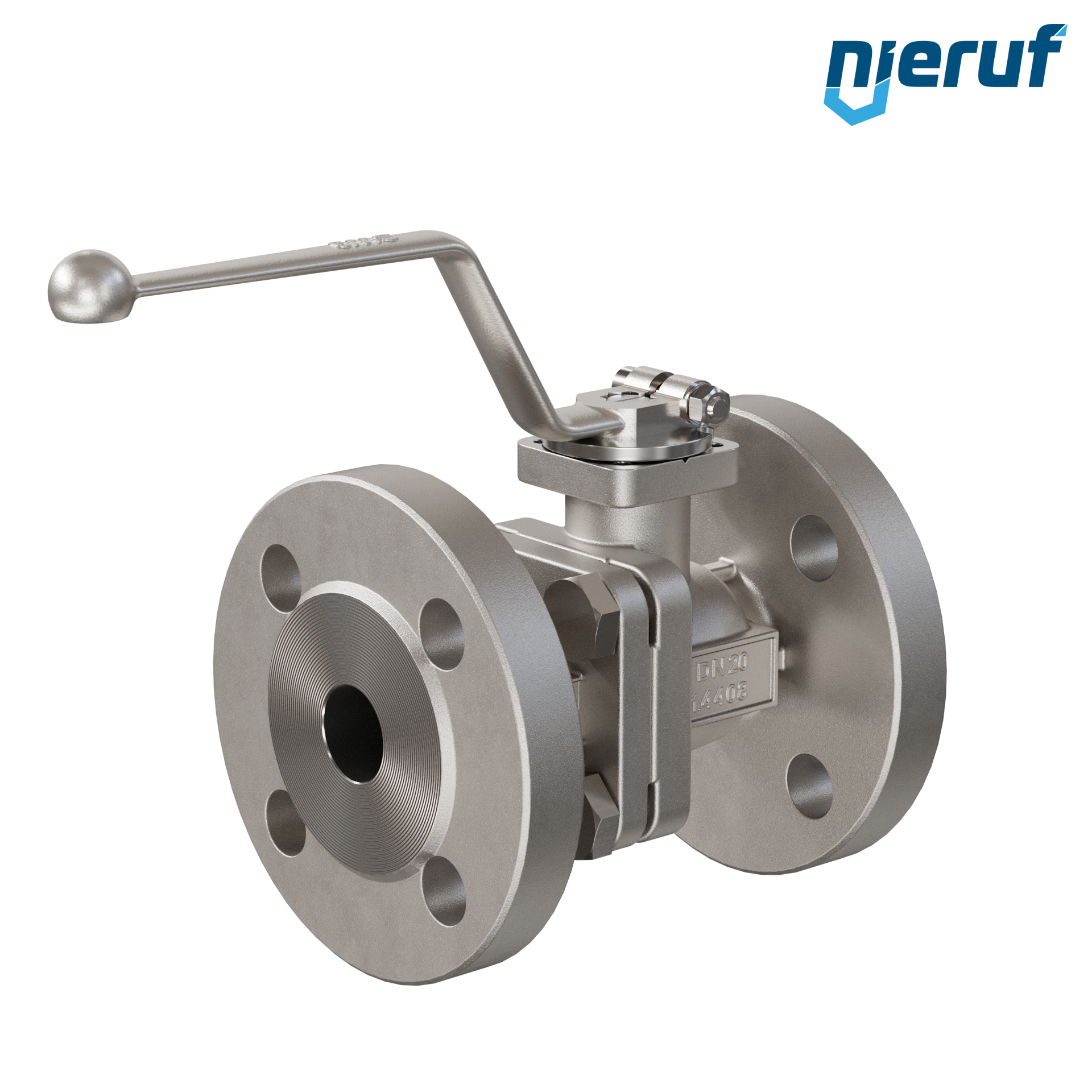

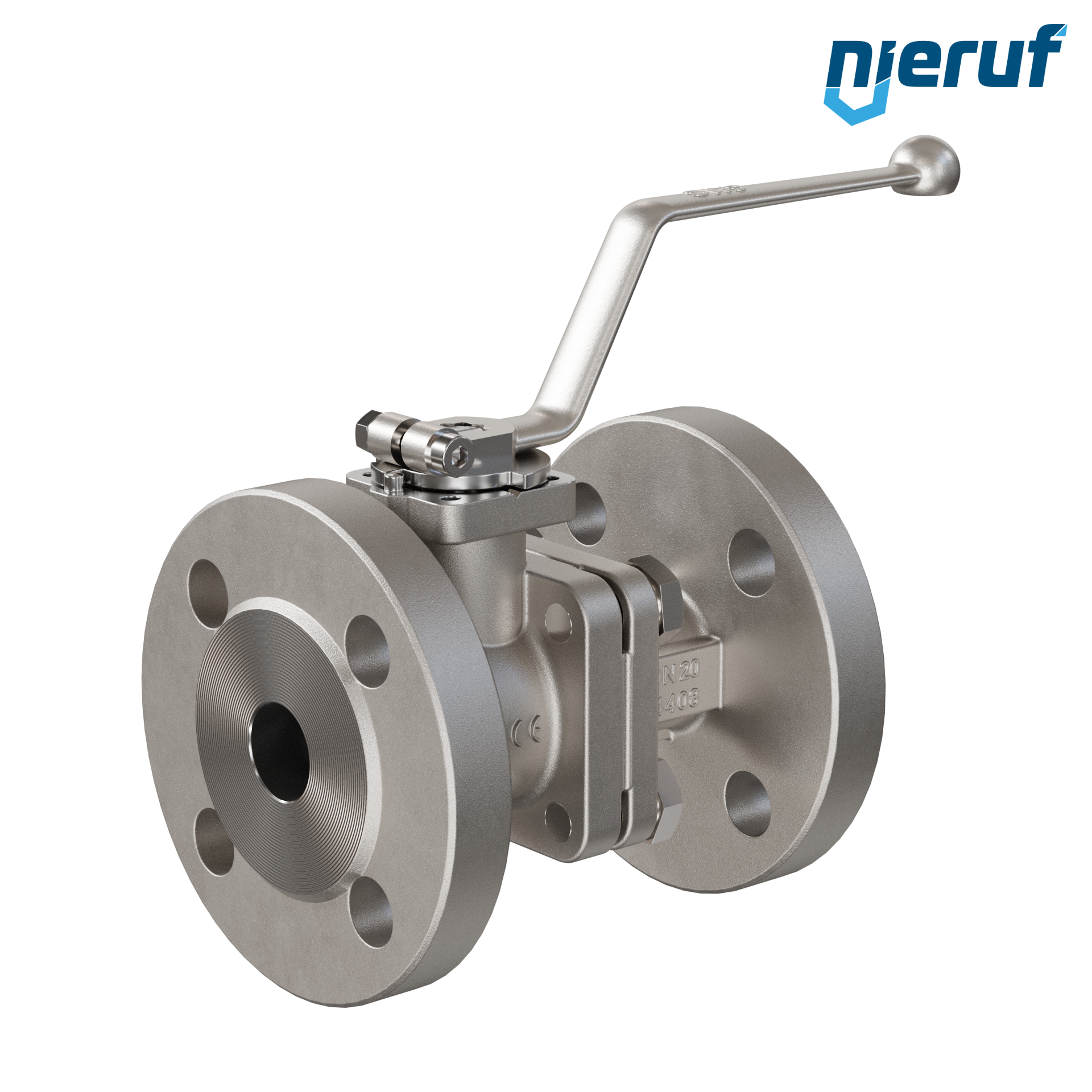

Gas-flange ball valve DN20 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE for gas
| product | Gas-flange ball valve |
|---|---|
| type | FK05 |
| manufacturer | NieRuf |
| diameter | DN20 |
| connection | flange dimensions acc. to EN 1092-1 PN16 |
| Seal steam | PTFE/FKM |
| body seal | FKM/TFM |
| ball seal | PTFE |
| media | gaseous media, gas, DVGW-gas |
| temperature | -20°C up to +180°C - depending on media and dimension |
| max. pressure | PN16 |
| design | full port design |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of stainless steel |
| installation position | any position |
| authorized for | DVGW-Gas |
| product description | This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. This ball valve includes DVGW gas approval. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Gas-flange ball valve DN20 FK05 stainless steel 1.4408
Article no.
: FK05030004
product:
Gas-flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN20
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
PTFE/FKM
body seal:
FKM/TFM
ball seal:
PTFE
media:
gaseous media, gas, DVGW-gas
temperature:
-20°C up to +180°C - depending on media and dimension
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
DVGW-Gas
product description:
This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. This ball valve includes DVGW gas approval.
